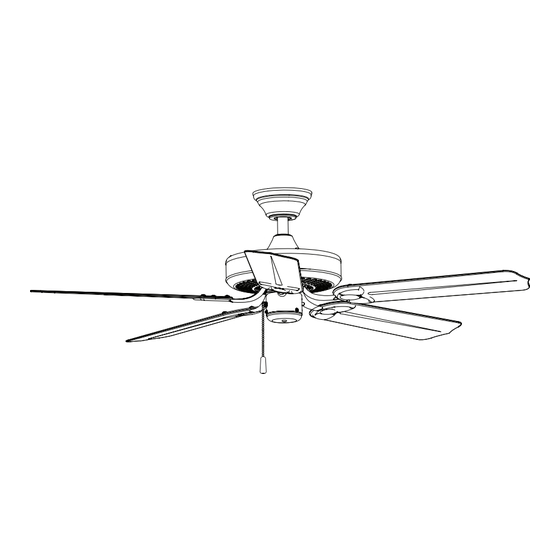

- Page 1 Owner’s Manual Part #269152 Pismo ™ 52” Ceiling Fan Exclusively Distributed by: HD Supply Facilities Maintenance, Ltd. To Reorder: Atlanta, GA 30339 1-800-431-3000 ©2017 hdsupplysolutions.com Made in China 9206 • 121217...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Trim Ring 11. Switch Housing 2. Canopy 12. Blade (x 5) 3. Canopy Cover 13. Blade Arm (x 5) 4. Mounting Bracket 14. -
Page 3: Mounting Options
DIMENSION REFERENCE A. 12.59 in. B. 11.24 in. C. 11.46 in. D. 5.83 in. MOUNTING OPTIONS Triple Mount Drawing Closemount Downrod Mount Angled Ceiling Mount (Up to 16 degrees) Choose one of the following mounting options: Closemount method is best suited for ceilings lower than 8 feet. It does not utilize the downrod. Downrod Mount is best suited for ceilings 8 ft. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. - Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. 2. Remove the canopy from the mounting bracket Mounting by removing the two mounting bracket screws from Bracket Screw the round holes in the canopy. Then loosen the other two mounting bracket screws from the L-shaped slots.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Feed the wires coming from the yoke through the yoke cover, trim ring, canopy and downrod. Downrod Canopy Trim Ring Yoke Cover Yoke 6. Insert the downrod into the yoke and reinstall the Downrod downrod pin and downrod clip. Then retighten the two Yoke set screws.
- Page 7 ASSEMBLY INSTRUCTIONS 8. Use wire connectors to connect the fan wires to the Black (Hot) power supply wires according to the wiring diagram and the following instructions: White (Neutral) Bare/Green (Ground) • Connect the green wire from the upper bracket to the bare/green (ground) supply wire.
- Page 8 ASSEMBLY INSTRUCTIONS 12. Secure the blade arm to the underside of the motor using motor screws removed in Step 10. Secure each blade arm to motor before moving to the next. Motor Switch Housing Motor Screw Blade Arm 13. Attach the pull chain extension to the pull chain. Pull Chain Extension 14.
- Page 9 OPERATING INSTRUCTIONS 1. Use the fan reverse switch, located on the switch housing to optimize your fan for seasonal performance. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort.
-
Page 10: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-574-9990, 8 a.m. -
Page 11: Manufacturer Warranty
MANUFACTURER WARRANTY To contact Customer Service: 1-800-431-3000. Model Name: Seasons® Pismo™ 52” Ceiling Fan Part No: 269152 (32110) - White Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts”...
