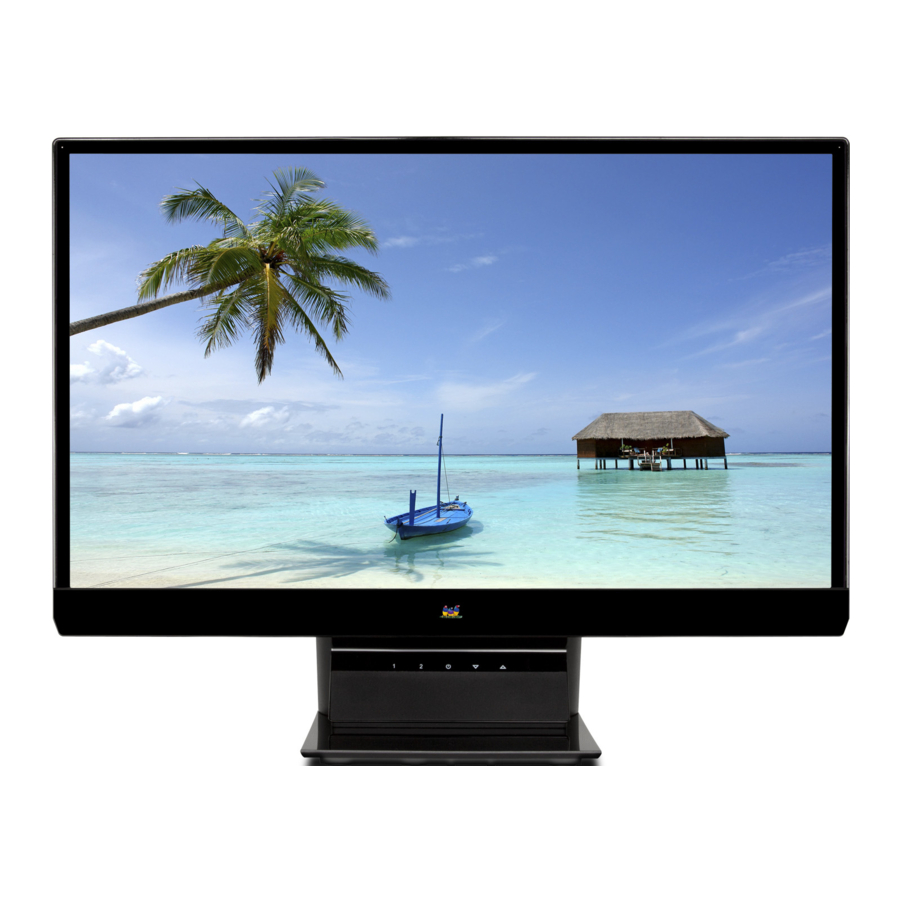

ViewSonic VX2270Smh-LED, VS15052 Manual

Getting Started

Save the original box and all packing material for future shipping needs.
NOTE: The word "Windows" in this user guide refers to Microsoft Windows operating system.

Package Contents

Your LCD display package includes:

• LCD display
• Power cord
• AC/DC power adapter
• Audio cable
• D-Sub cable
• DVI cable (available in some countries only)
• HDMI cable (available in some countries only)
• ViewSonic Wizard CD-ROM
• Quick Start Guide

NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files.

Precautions

• Sit at least 18" from the LCD display.
• Avoid touching the screen. Skin oils are difficult to remove.
• Never remove the rear cover. This LCD display contains high-voltage parts. You may be seriously injured if you touch them.
• Avoid exposing the LCD display to direct sunlight or another heat source. Orient the LCD display away from direct sunlight to reduce glare.
• Always handle the LCD display with care when moving it.
• Place the LCD display in a well ventilated area. Do not place anything on the LCD display that prevents heat dissipation.
• Ensure the area around the LCD display isc lean and free of moisture.
• Do not place heavy objects on the LCD display, video cable, or power cord.
• If smoke, an abnormal noise, or a strange odor is present, immediately switch the LCD display off and call your dealer or ViewSonic. It is dangerous to continue using the LCD display.
• Do not rub or apply pressure to the LCD panel, as it may permanently damage the screen.

Quick Installation

1. Connect AC/DC Adapter to LCD Display, and then plug in power cord to AC outlet.
2. Connect video cable
   • Make sure both the LCD display and computer are turned OFF
   • Remove rear panel covers if necessary
   • Connect the video cable from the LCD display to the computer
     Macintosh users: Models older than G3 require a Macintosh adapter. Attach the adapter to the computer and plug the video cable into the adapter.
     To order a ViewSonic^® Macintosh adapter, contact ViewSonic Customer Support.
3. Turn ON LCD display and computer
   Turn ON the LCD display, then turn ON the computer. This sequence (LCD display before computer) is important.
   NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD.
4. Insert the ViewSonic Wizard CD into the computer's CD drive.
   Follow the on-screen instructions. If your computer does not have a CD-ROM drive, please refer to Customer Support page.
   • Wait for the CD-ROM to auto-start.
     NOTE: If the CD-ROM does not autostart: double-click on the CD-ROM icon in the Windows Explorer, then double click onviewsonic.exe.
   • Follow the on-screen instructions.
5. Windows users: Set the timing mode (resolution and refresh rate)
   Example: 1920 x 1080 @ 60 Hz.
   For instructions on changing the resolution and refresh rate, see the graphics card's user guide.
   Installation is complete. Enjoy your new ViewSonic LCD display.
   To be best prepared for any future customer service needs: print this user guide and write the serial number in "For Your Records". (See back of LCD display.)
   You can register your product online at the ViewSonic website for your region. See the Customer Support table in this guide.
   The ViewSonic Wizard CD-ROM also
   provides an opportunity for you to print the registration form which you may mail or fax to ViewSonic.

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution (example 1920 x 1080) and refresh rate (or vertical frequency; example 60 Hz). After setting the timing mode, use the OSD (On-screen Display) controls to adjust the screen image.
For the best picture quality set your LCD display timing mode to:
VESA 1920 x 1080 @ 60Hz.
To set the Timing Mode:

1. Set the resolution: Right-click on the Windows desktop > Properties > Settings > set the resolution.
2. Set the refresh rate: See your graphic card's user guide for instructions.

Do not set the graphics card in your computer to exceed the maximum refresh rate of 75Hz; doing so may result in permanent damage to your LCD display.

OSD and Power Lock Settings

• OSD Lock: Press and hold [1] and the up arrow for 10 seconds. If any buttons are pressed the message OSD Locked will display for 3 seconds.
• OSD Unlock: Press and hold [1] and the up arrow again for 10 seconds.
• Power Button Lock: Press and hold [1] and the down arrow for 10 seconds. If the power button is pressed the message Power Button Locked will display for 3 seconds. With or without this setting, after a power failure, your LCD display's power will automatically turn ON when power is restored.
• Power Button Unlock: Press and hold [1] and the down arrow again for 10 seconds.

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OSD controls which display on the screen. The OSD controls are explained at the top of the next page and are defined in "Main Menu Controls".

Do the following to adjust the display setting:

1. To display the Main Menu, press button [1].

   NOTE: All OSD menus and adjustment screens disappear automatically after about 15 seconds. This is adjustable through the OSD timeout setting in the setup menu.
2. To select a control to adjust, press or to scroll up or down in the Main Menu.
3. After the desired control is selected, press button [2]. A control screen like the one shown below appears.

4. To adjust the control, press the up or down buttons.
5. To save the adjustments and exit the menu, press button [1] twice.

The following tips may help you optimize your display:

• Adjust the computer's graphics card so that it outputs a 1920 x 1080 @ 60Hz video signal to the LCD display. (Look for instructions on "changing the refresh rate" in the graphics card's user guide.)

Main Menu Controls

Adjust the menu items shown below by using the up and down buttons.

Control	Explanation
	Auto Image Adjust automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion. NOTE: Auto Image Adjust works with most common video cards. If this function does not work on your LCD display, then lower the video refresh rate to 60 Hz and set the resolution to its pre-set value.
	Contrast adjusts the difference between the image background (black level) and the foreground (white level).
	Brightness adjusts background black level of the screen image.
	Input Select toggles between inputs if you have more than one computer connected to the LCD Display.
	Audio Adjust Volume increases the volume, decreases the volume, and mutes the audio. Mute temporarily silences audio output. Audio Input (For HDMI mode only) toggles audio source between HDMI and jack plug (AUDIO IN).
	Color Adjust provides several color adjustment modes, including preset color temperatures and a User Color mode which allows independent adjustment of red (R), green (G), and blue (B). The factory setting for this product is Native. sRGB-This is quickly becoming the industry standard for color management, with support being included in many of the latest applications. Enabling this setting allows the LCD display to more accurately display colors the way they were originally intended. Enabling the sRGB setting will cause the Contrast and Brightness adjustments to be disabled. Bluish-Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting). Cool-Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting). Native-Adds red to the screen image for warmer white and richer red. Warm-Adds red to the screen image for warmer white and richer red. User Color Individual adjustments for red (R), green (G), and blue (B). To select color (R, G or B) press button [2]. To adjust selected color, press and . If you select RECALL from the Main Menu when the product is set to a Preset Timing Mode, colors return to the Native factory preset.

Control	Explanation
	Information displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic ® website URL. See your graphics card's user guide for instructions on changing the resolution and refresh rate (vertical frequency). NOTE: VESA 1920 x 1080 @ 60Hz (recommended) means that the resolution is 1920 x 1080 and the refresh rate is 60 Hertz.
	Manual Image Adjust displays the Manual Image Adjust menu. H./V. Position (Horizontal/Vertical Position) moves the screen image left or right and up or down. H.Size (Horizontal Size) adjusts the width of the screen image. Fine Tune sharpens the focus by aligning text and/or graphics with pixel boundaries. NOTE: Try Auto Image Adjust first. Sharpness adjusts the clarity and focus of the screen image.
	Dynamic Contrast allows the user to turn the contrast ratio enhancement on or off. Aspect ratio Selects the image size for 4:3 and full screen. Overscan allows the user to cut off extra area around the image. ECO Mode provides the lower power consumption by reducing the brightness. Standard: The default brightness setting. Optimize: Decreases the brightness by 25%. Conserve: Decreases the brightness by 50%. Setup Menu displays the menu shown below: Language Select allows the user to choose the language used in the menus and control screens. Resolution Notice advises the optimal resolution to use. OSD Position allows the user to move the OSD menus and control screens. OSD Timeout sets the length of time the OSD screen is displayed. For example, with a "15 second" setting, if a control is not pushed within 15 seconds, the display screen disappears. OSD Background allows the user to turn the OSD background On or Off. Auto Power Off, if enabled, will power off the display automatically when no signal is detected for 3 minutes. Sleep Set up the auto power off time for 30/45/60/120 minutes. (It's active in HDMI mode only)
	Power Indicator allows the user to select the Power Indicator On/Off for Power On/Off mode. Memory Recall returns the adjustments back to factory settings if the display is operating in a supported timing mode listed in the specification of this manual. Exception: This control does not affect changes made with the Language Select or Power Lock setting.

Other Information Specifications

Specifications

LCD	Type Display Size Color Filter Glass Surface	TFT (Thin Film Transistor), Active Matrix 1920 x 1080 LCD, 0.248 mm pixel pitch Metric: 55 cm Imperial: 22" (21.5" viewable) RGB vertical stripe Anti-Glare
Input Signal	Video Sync	RGB analog (0.7/1.0 Vp-p, 75 ohms) HDMI/DVI-D (TMDS digital, 100ohms) Composite Sync, Separate Sync, Sync on Green f h: 24-83 kHz, f v: 50-76 Hz
Compatibility	PC Macintosh 1	Up to 1920 x 1080 Non-interlaced Power Macintosh up to 1920 x 1080
Resolution	Recommended and supported	1920 x 1080 @ 60 Hz 1680 x 1050 @ 60 Hz 1600 x 1200 @ 60 Hz 1440 x 900 @ 60, 75 Hz 1280 x 1024 @ 60, 75 Hz 1024 x 768 @ 60, 70, 72, 75 Hz 800 x 600 @ 56, 60, 72, 75 Hz 640 x 480 @ 60, 75 Hz 720 x 400 @ 70 Hz
Video Timing (HDMI)	Recommended and supported	480p / 576p / 720p / 1080p
Power Adaptor 2	Input Voltage Output Voltage	100-240 VAC, 50/60 Hz (auto switch) 19VDC, 2.1A
Display area	Full Scan	476.064 mm (H) x 267.786 mm (V) 18.74" (H) x 10.54" (V)
Operating conditions	Temperature Humidity Altitude	+32°F to +104°F (0°C to +40°C) 10% to 90% (non-condensing) To 10,000 feet
Storage conditions	Temperature Humidity Altitude	-4°F to +140°F (-20°C to +60°C) 10% to 80% (non-condensing) To 40,000 feet
Dimensions	Physical	499.47 mm (W) x 392.00 mm (H) x 179.50 mm (D) 19.66" (W) x 15.43" (H) x 7.07" (D)
Weight	Physical	7.94 lb (3.6 kg)
Power saving modes	On Off	26W (Typical) (blue LED) <0.5W

Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display.

1. Macintosh computers older than G3 require a ViewSonic ® Macintosh adapter. To order an adapter, contact ViewSonic.
2. Please use the power adaptor from ViewSonic ® or authorized source only.

Troubleshooting

No power

• Make sure power button (or switch) is ON.
• Make sure A/C power cord is securely connected to the LCD display.
• Plug another electrical device (like a radio) into the power outlet to verify that the outlet is supplying proper voltage.

Power is ON but no screen image

• Make sure the video cable supplied with the LCD display is tightly secured to the video output port on the back of the computer. If the other end of the video cable is not attached permanently to the LCD display, tightly secure it to the LCD display.
• Adjust brightness and contrast.
• If you are using an Macintosh older than G3, you need a Macintosh adapter.

Wrong or abnormal colors

• If any colors (red, green, or blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection.
• Connect the LCD display to another computer.
• If you have an older graphics card, contact ViewSonic^® for a non-DDC adapter.

Control buttons do not work

• Press only one button at a time.

Install SRS Premium Sound Software

Installation Procedure:

1. Load the ViewSonic CD Wizard on your CD/DVD drive, and then exit the Wizard installation process.
2. Right click on the Start button and select Explore.
3. Locate the ViewSonic Wizard CD (The ViewSonic Wizard always has the 3 birds logo), click on the + sign to expand the folders.
4. Double click on the SRS Premium Sound folder and double click on the Setup.exe file and follow the onscreen instructions to complete the simple installation.

Customer Support

For technical support or product service, see the table below or contact your reseller.
NOTE: You will need the product serial number.

Cleaning the LCD Display

• MAKE SURE THE LCD DISPLAY IS TURNED OFF.
• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.

To clean the screen:

1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If the screen still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

1. Use a soft, dry cloth.
2. If the case still not clean, apply a small amount of a non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

Important Safety Instructions

1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
6. Clean with a soft, dry cloth. If further cleaning is required, see "Cleaning the Display" in this guide for further instructions.
7. Do not block any ventilation openings. Install the equipment in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.
9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the plug does not fit into your outlet, consult an electrician for replacement of the outlet.
10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the point where if emerges from the equipment. Be sure that the power outlet is located near the equipment so that it is easily accessible.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to avoid injury from tipping over.

13. Unplug this equipment when it will be unused for long periods of time.
14. Refer all servicing to qualified service personnel. Service is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.
