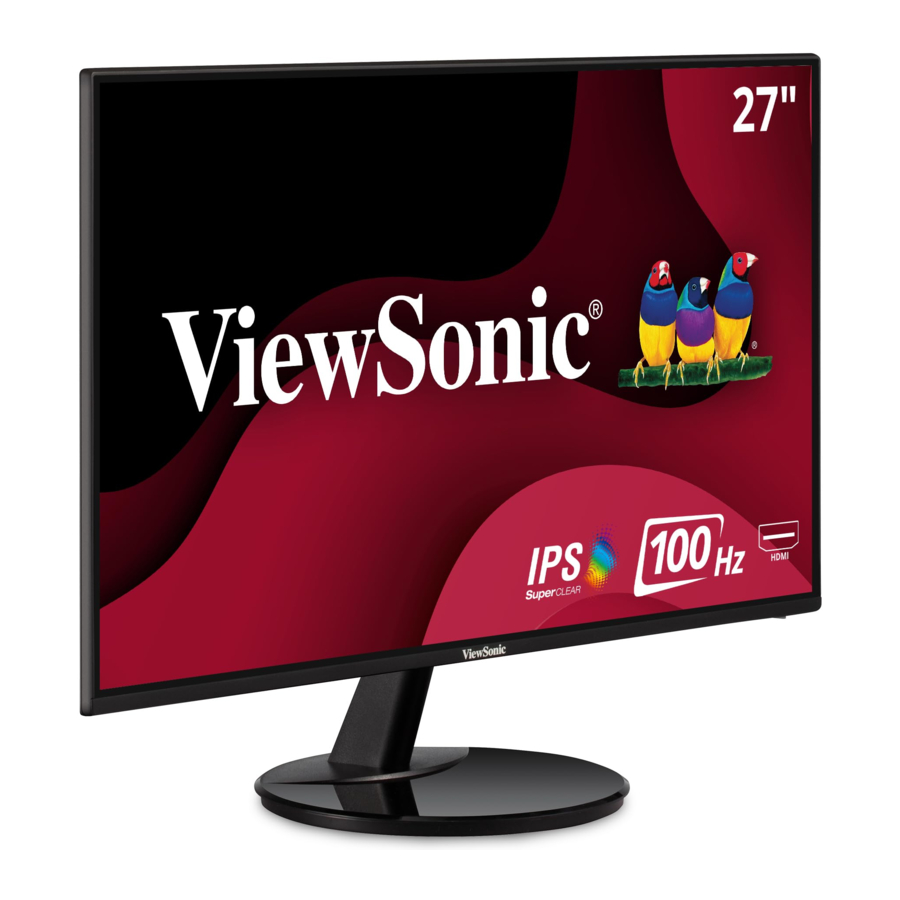

ViewSonic VA2759-smh (VS18564) Manual

Introduction

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world's expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.

Package Contents

• Monitor
• Power cord
• Video cable
• Quick start guide

NOTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.

Product Overview

Front and Rear View

I/O Ports

1. AC IN
2. HDMI 1.4
3. VGA
4. Audio In
5. Audio Out

NOTE: For more information about the 1()/2/3/4/5() key and its functions, refer to "Hot Keys".

Initial Setup

Installing the Stand

NOTE: Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

Wall Mounting
NOTE: Only use UL Certified wall mount kits.

Refer to the table below for the standard dimensions for wall mount kits.

NOTE: Wall mount kits are sold separately. To obtain a wall mounting kit, contact ViewSonic® or your local dealer.

1. Turn off the device and disconnect all cables.
2. Place the device on a flat, stable surface with the screen facing down.
3. Remove the monitor stand.

4. Attach the mounting bracket to the VESA mounting holes at the rear of the device. Then secure it with four (4) screws (M4 x 10 mm).
5. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

Using the Security Slot
To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object.
Additionally, fastening the monitor to a wall or fixed object using a security cable can help support the weight of the monitor in order to prevent the monitor from falling over.
Below is an example of setting up a security slot locking device on a table.

Making Connections

Connecting to Power

1. Connect the power cord to the AC IN jack at the rear of the device.
2. Connect the power cord plug to a power outlet.


Connecting External Devices

Using the Monitor

Adjusting the Viewing Angle
Tilt Angle Adjustment
Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 20˚).

NOTE: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand.

Turning the Device On/Off

1. Plug the power cord into a power outlet.
2. Press the Power button to turn on the monitor.
3. To turn the monitor off, press the Power button again.

NOTE: The monitor will still consume some power as long as the power cord is connected to the power outlet. If the monitor is not being used for a long period of time, please disconnect the power plug from the power outlet.

Using the Control Panel Keys
Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings.

Quick Menu
Press the 1() key to activate the Quick Menu.

NOTE: Follow the key guide that appears on the bottom of the screen to select the option or make adjustments.

Menu	Description
ViewMode	Select one of the preset color settings.
Volume	Adjust the level, or mute the volume.
Contrast/Brightness	Adjust the contrast or brightness level.
Input Select	Select the input source.
Exit	Exit the Quick Menu.

Hot Keys
When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys.

Key	Description
1() + 2	Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. If the OSD Menu is locked, the below message will appear on the screen:
2 + 3	Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the Power button. If the Power button is locked, the below message will appear on the screen:
3 + 4	Press the keys to display/hide the boot up screen when the device is turned on.

Configuring the Settings
General Operations

1. Press the 2/3/4 key to display the On-Screen Display (OSD) Menu.

2. Press the 1() or 2 key to select the main menu. Then press the 3 key to enter the selected menu.

3. Press the 1() or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.

4. Press the 1() or 2 key to adjust/select the setting. Then press the 3 key to confirm.
   NOTE: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide to select the option or make adjustments.

5. Press the 4 key to return to the previous screen.
   NOTE: To exit the OSD Menu, press the 5() key.

On-Screen Display (OSD) Menu Tree

Specifications

¹Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display.
²Please use the power adapter from ViewSonic® or an authorized source only.
³ The test condition follows EEI standards.

Glossary

NOTE: Some terms may not be applicable to your monitor.

1. Advanced DCR
   Advanced DCR technology automatically detects the image signal and intelligently controls the backlight brightness and color to improve on the ability to make the black blacker in a dark scene, and make the white whiter in a bright environment.
   Audio Adjust
   Adjusts the volume, mutes the sound, or toggles between inputs if you have more than one source.
   Auto Detect
   If the current input source has no signal, the monitor will automatically switch to the next input option. This function, on some models, is disabled by default.
   Auto Image Adjust
   Automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion.
2. Brightness
   Adjusts background black levels of the screen image.
3. Color Adjust
   Provides several color adjustment modes, to help adjust the color settings to fit the user's needs.
   Color Space
   Allows users to choose which color space they would like to use for monitor color output (RGB, YUV).
   Color Temperature
   Allows users to select specific color temperature settings to further customize their viewing experience.

   Panel Default	Panel Original Status
   sRGB	Standard color space used for the Windows system.
   Bluish	Set the color temperature to 9300K.
   Cool	Set the color temperature to 7500K.
   Native	Default color temperature. Recommended for general use.
   Warm	Set the color temperature to 5000K.


   Contrast
   Adjusts the difference between the image background (black level) and the foreground (white level).

9. Information
   Displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. See your graphics cards's user guide for instructions on changing the resolution and refresh rate (vertical frequency).
   NOTE: VESA 1024 x 768 @ 60Hz, for example, means that the resolution is 1024 x 768 and the refresh rate is 60Hz.
   Input Select
   Toggles between the various input options that are available for the monitor.

• (Exception) This control does not affect changes made in the "Language Select" or "Power Lock" setting.
• Memory Recall is the default as-shipped display configuration and settings. Memory Recall is the setting in which the product qualifies for ENERGY STAR®. Any changes to default as-shipped display configuration and settings would change the energy consumption, and may increase energy consumption beyond the limits required for ENERGY STAR® qualification, as applicable. ENERGY STAR® is a set of power-saving guidelines issued by the U.S. Environmental Protection Agency (EPA). ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.


18. ecall
    Resets the ViewMode monitor settings.
    Resolution Notice
    The notice tells users that the current viewing resolution is not the correct native resolution. This notice will appear in the display settings window when setting up the display resolution.
    Response Time
    Adjusts the response time, creating smooth images without streaking, blurring, or ghosting. A low response time is perfect for the most graphicintense gaming, and provides amazing visual quality while watching sports or action movies.
19. Setup Menu
    Adjusts On-Screen Display (OSD) Menu settings. Many of these settings can activate on-screen display notifications so users do not have to reopen the menu.
    Sharpness
    Adjusts the picture quality of the monitor.

22. ViewMode
    ViewSonic's unique ViewMode feature offers "Game", "Movie", "Web", "Text", "MAC", and "Mono" presets. These presets are specifically designed to deliver an optimized viewing experience for different screen applications.

Troubleshooting

This section describes some common problems that you may experience when using the monitor.

Maintenance

General Precautions

• Make sure the monitor is turned off and the power cable is unplugged from the power outlet.
• Never spray or pour any liquid directly onto the screen or case.
• Handle the monitor with care, as a darker-colored monitor, if scuffed, may show marks more clearly than a lighter-colored monitor.

Cleaning the Screen

• Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
• If the screen is still not clean, apply a small amount of non-ammonia, nonalcohol based glass cleaner onto a clean, soft, lint-free cloth; then wipe the screen.

Cleaning the Case

• Use a soft, dry cloth.
• If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
