Motorola IMPRES 2, PMPN4523 Manual

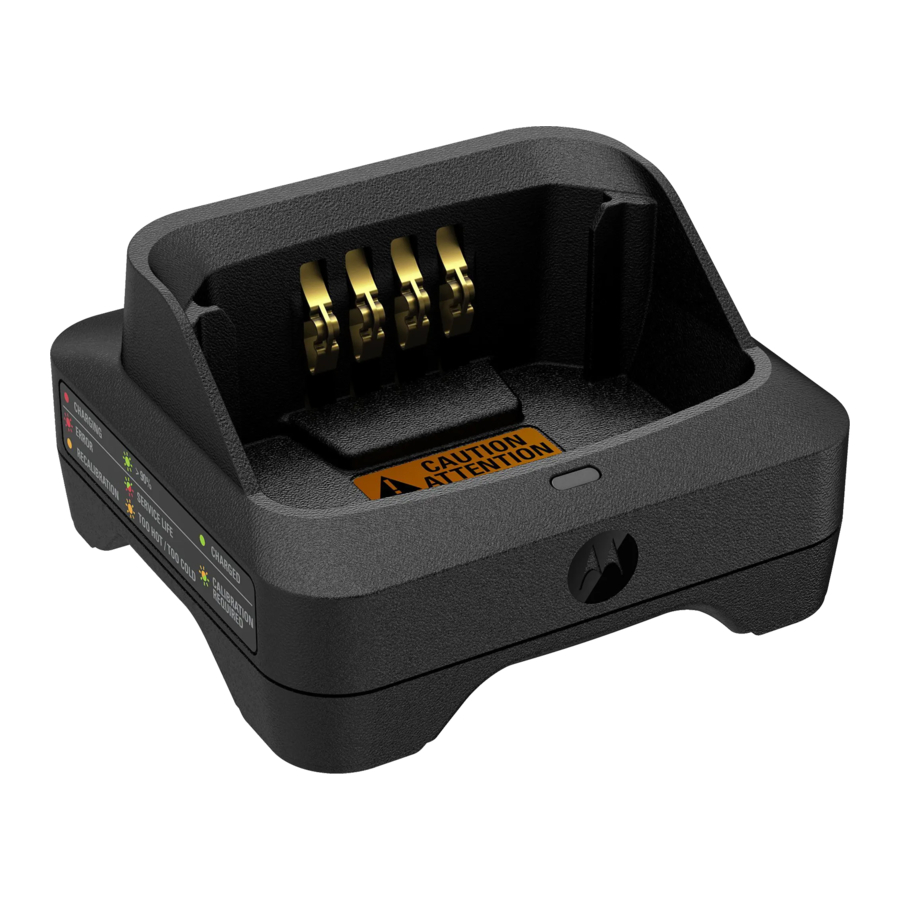

IMPRES 2 Batteries and Chargers

The IMPRES™ energy solution is an advanced energy system developed by Motorola Solutions.
The system includes the followings:

IMPRES 2 battery
IMPRES 2 adaptive charger

Charger Specification

Input: 14 V 1 A

Features and Benefits
Charging IMPRES 2 batteries using an IMPRES 2 Adaptive Charger yields the following benefits:

Maximize the battery life by significantly reducing heat during the trickle and post-charge cycles.
Determines the current battery status and giving an indication of the effective use time.
Provide higher-rate IMPRES 2 Lithium-Ion battery charging.
Minimizes the IMPRES 2 battery heating, regardless of how long the battery is left in the charger pocket.
Periodically charges a battery stored in the charger to maintain a high state of readiness.
Eliminates Nickel battery memory effect, eliminating the need to purchase special equipment, or train personnel in tasks to maintain battery life cycle.

Using this unique patented system, there is no requirement to track and record IMPRES 2 battery or remove batteries from chargers after charging completion.

Charging Radios and Batteries

The IMPRES 2 Adaptive Charger System is a fully automated system. The charger pockets accommodate either a radio with an attached Motorola Solutions-approved battery, or a Motorola Solutions-approved battery alone. Batteries charge best at room temperature.
Prerequisites: To ensure optimized charging performance, turn off the radio while charging unless the radio is transmitting data wirelessly on Wi-Fi or Bluetooth.

Procedure:

Plug the charger end of the power supply cord into the DC inlet (1) at the back of the charger.
Plug the wall power adapter into the appropriate Alternating Current (AC) outlet.
A successful power-up sequence is indicated by a single green blink on the charger indicator. Refer to the IMPRES 2 Battery Charging Indicators.
Insert a Motorola Solutions-approved battery, or a radio with a Motorola Solutions-approved battery into the charger pocket.
1. Align the battery contacts with the charger contacts.
2. Press the battery into the pocket, ensuring complete contact.
3. Once the Motorola Solutions-approved battery is properly seated into the pocket, the charger indicator illuminates, indicating the charger has recognized the presence of the battery.
To remove a radio or Motorola Solutions-approved battery from the charger, pull straight up until the battery completely clears the charger housing.

IMPRES 2 Battery Charging Indicators

Table 1: IMPRES 2 Battery Charging Indicators

Status	LED Indicator	Description
Charger Power On	Green for approximately one sec‐ ond	Successful charger power-up.
Rapid Charging	Steady Red	Battery in rapid charge mode.
Charged to 90% or more	Blinking Green	Battery is charged to 90% or greater capacity.
Charged to 95% or more	Steady Green	Battery is charged to 95% or greater capacity.
Fault	Blinking Red	Not chargeable; remove and reinsert radio or battery.
Standby	Blinking Amber	Battery is waiting to rapid charge. Battery may be too hot, too cold, or low voltage. Charger may be too hot.
End of Service Life	Alternating red and green	Battery remains usable but may be nearing the end of its rated service life.

IMPRES 2 Battery Initialization

For a full IMPRES 2 functionality, a new IMPRES 2 battery must be initialized by the charger.
The charger automatically detects the new IMPRES 2 battery, and automatically starts initialization.

IMPRES 2 Pocket Record

When charging the IMPRES 2 batteries, the IMPRES 2 charger records charging information in the battery memory.
Charging can resume if you remove the IMPRES 2 battery from the IMPRES 2 charger pocket and within 30 minutes, insert it into the same charger pocket.

Automatic IMPRES 2 Calibration and Reconditioning

IMPRES 2 batteries with the Self-Calibration and Recondition icon on the battery label does not require calibration and recondition. If the battery is not fully charged, the IMPRES 2 battery starts charging when docked in the charger. The LED indicates steady Red when charging and steady Green when charging is completed.

IMPRES 2 End of Service Life LED Indication
As batteries are used, normal wear reduces available capacity. IMPRES 2 chargers compare IMPRES 2 battery capacity to the battery Rated Capacity.
When the capacity is at a very low value, the IMPRES 2 battery may be nearing its End of Service.

Authorized Power Supplies and Batteries

This section list out authorized accessories that you can use with your charger.

Motorola Solutions Authorized Batteries

Table 2: Motorola Solutions Authorized Batteries

Single-Unit Charger	Battery	Battery Description
PMPN4523_	PMNN4803_	BATT IMPRES 2 LIION IP68
	PMNN4804_	BATT IMPRES 2 LIION TIA4950 IP68
	PMNN4805_	BATT IMPRES 2 LIION TIA4950 IP68

information NOTE: Only PMNN4803AW and PMNN4804AW batteries are imported to the Taiwan market.

Motorola Solutions Authorized Power Supplies

Table 3: Motorola Solutions Authorized Power Supplies

Power Supply	Power Supply Description	Country Plug
25009297001	14 W, 120 VAC	United States/Taiwan
PS000037A01	14 W, 207 V–253 V	Europe
PS000037A02	14 W, 207 V–253 V	United Kingdom/Hong Kong
PS000037A03	14 W, 207 V–253 V	Australia/New Zealand
PS000037A04	14 W, 207 V–253 V	Argentina
PS000037A06	14 W, 207 V–253 V	Korea
PS000037A07	14 W, 207 V–253 V	Brazil
PS000037A08	207 V–253 V	India BIS
PS000577A01	16 W, 100–120 VAC	United States/Taiwan/Japan
PS000576A02	16 W, 100–240 VAC	Europe
PS000576A03	16 W, 100–240 VAC	United Kingdom/Hong Kong
PS000576A04	16 W, 100–240 VAC	Australia/New Zealand
PS000576A05	16 W, 100–240 VAC	Argentina
PS000576A06	16 W, 100–240 VAC	China
PS000576A07	16 W, 100–240 VAC	Korea
PS000576A08	16 W, 100–240 VAC	Brazil
PS000576A09	16 W, 100–240 VAC	India BIS

Troubleshooting

Table 4: Troubleshooting

Problem	Causes	Solutions
No charger indication	No charger contact. No power to the charger.	Check that the radio with battery or the battery is inserted correctly. Make sure that the power cord is securely plugged into the charger and an appropriate AC outlet, and that there is power to the outlet.
Blinking red indication	No charger contact. Battery is not chargeable.	Remove the battery from the charger and replace it back into the charger. Verify that the battery is a Motor‐ ola authorized battery listed in. Other batteries may not charge. Remove power from the battery charger and, using a clean dry cloth, clean the gold metal charg‐ ing contacts of both the battery and the charger. Replace battery.
Blinking amber indication	Battery is waiting to charge. The battery temperature may be below 5°C (41°F) or above 40°C (104°F) or the battery volt‐ age may be lower than the predetermined threshold level for rapid charging.	When this condition is corrected, the battery charges automatically.

Service

The IMPRES Adaptive Chargers are not repairable. Order replacement chargers as necessary from your local Motorola Solutions Sales Representative.

Foreword

Important Safety Instructions

This document contains important safety and operating instructions. Read these instructions carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings on the charger, the battery, and the radio using the battery.

To reduce the risk of damage to the power cord, pull the plug rather than the cord when disconnecting the power cord from the Alternating Current (AC) outlet or the charger.

To reduce the risk of fire or electric shock, avoid using an extension cord. If an extension cord must be used, ensure that the cord size is 18 AWG for lengths of up to 6.5 ft (2.0 m), and 16 AWG for lengths up to 9.8 ft (3.0 m).
To reduce the risk of fire, electric shock, or injury, do not operate the charger if it is broken or damaged in any way. Take it to a qualified Motorola Solutions service representative.
To reduce the risk of fire or electric shock, do not disassemble the charger. It is not repairable and replacement parts are not available.
To reduce the risk of electric shock, unplug the charger power adapter from the AC outlet before attempting any maintenance or cleaning.
To reduce the risk of injury, charge only the rechargeable Motorola Solutions authorized batteries. Other batteries can explode, causing personal injury and damage.
To reduce the risk of fire, electric shock, or injury, only use the accessories recommended by Motorola Solutions.
Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment. This product is a Class A product. In a domestic environment, this product can cause radio interference in which case the user is required to take adequate measures.

Operating Guidelines

The followings are the operating guidelines for the charger.

This equipment is not suitable for outdoor use. Use only in dry locations and conditions.
Maximum ambient temperature around the charger must not exceed 40°C (104°F).
To ensure optimized charging performance, turn off the radio while charging unless the radio is transmitting data wirelessly on Wi-Fi or Bluetooth.
Connect the charger to an AC outlet using only a Motorola Solutions Authorized Power Supply.
The AC outlet to which the power supply is connected must be nearby and easily accessible.
Ensure that the power supply cord connected to the charger is not easily stepped on, tripped over, or subjected to water, damage, or stress.
Connect the power supply only to an appropriately fused and wired AC outlet with the correct voltage, as specified on the product.
Disconnect from the line voltage by removing the power supply from the AC outlet.
Connect not more than the appropriate number of charger power supplies to a 15 A and 20 A circuit, as limited by any certified power strip used.
The equipment shall be connected to a nearby and easily accessible socket outlet.
