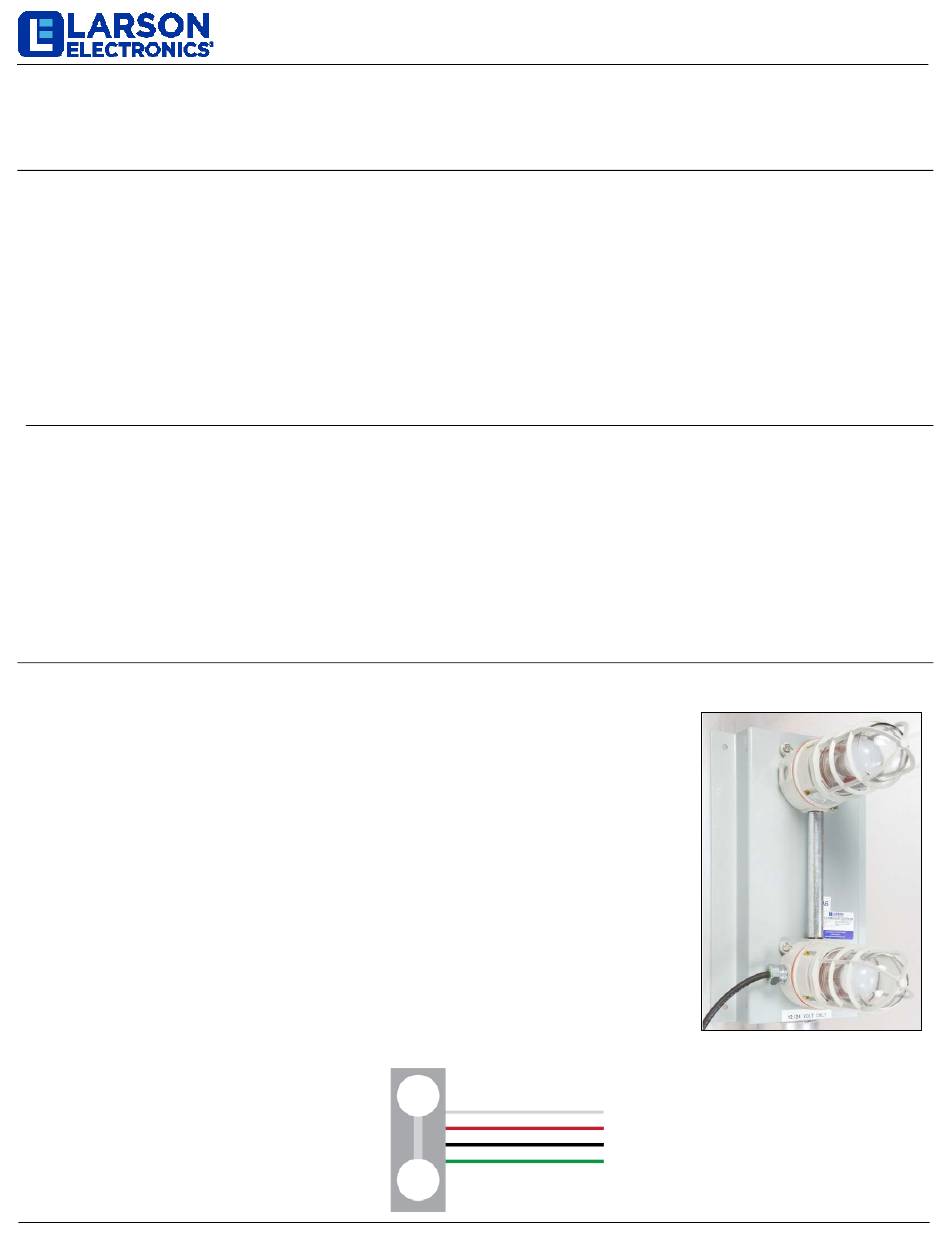

Larson Electronics HAL-TL-2X10W-C Instruction Manual

Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet. Read carefully before operating. Retain these instructions for future reference.
INSTALLATION PRECAUTIONS
•
Do not attempt installation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet.
•
Do not install fixture in any classified location where the marked operating temperature exceeds the ignition
temperature of the hazardous atmospheres. Consult fixture nameplate for suitability in specific hazardous
locations.
•
Do not install fixture in a location where the ambient temperature exceeds the maximum ambient temperature
shown on the fixture nameplate.
•
Refer to fixture nameplate for minimum supply wire temperature rating.
•
Verify that the supply voltage agrees with fixture rating as indicated on nameplate.
•
All local and national electrical/building codes must be followed when installing the lighting fixture. FOR CODE
INTERPRETATION, CONSULT YOUR LOCAL CODE AUTHORITY.
•
Product must be used only with globe intact and fully engaged. Replace cracked or damaged globe prior to use.
WARNINGS
•
Electrical power must be off before and during installation and maintenance.
•
Use only lamp size and wattage as shown on fixture nameplate.
•
Fire and Explosion Hazard: Breakage of glass globe and exposure of lamp to a combustible atmosphere
can result in an explosion and possible injury or death.
•
During installation or maintenance, care should be taken not to scratch, score, nick, or chip the glass globe.
•
Fixture must be grounded as required per paragraph 410-21 and article 250 National Electric Code and/or
rule 30-500 and section 10 of Canadian Electric Code. Failure to properly ground this fixture will create an
electrical shock hazard which can cause serious injury or death.
•
Do not energize the fixture until the globe assembly has been installed to avoid exposing hot surfaces or
electric arcing to hazardous atmosphere. Failure to comply with this warning can cause fire or explosion
which can result in serious injury or death.
INSTRUCTIONS FOR INSTALLATION
This unit ships with the selected mount pole size already installed.
1. There are mounting holes on either side of the unit for surface mounting to a
wall, ceiling or any flat surface. Mount in any direction on a surface that can
structurally support the load
2. Run 3/4" conduit to the junction box and wire the unit according to the attached
wire diagram.
3. Pull supply wires (use proper temperature rated wire).
NOTE: Fixture must be grounded. Check ground continuity before energizing the
fixture.
4. See wire labels for connections. Connect line lead to terminal marked "RED" or
"GREEN". Complete circuit by attaching common marked "NEUTRAL". Attach
additional line lead or switch to control colors independently.
CHECK PRODUCT LABEL FOR CORRECT VOLTAGE.
5. Visually inspect connections and ensure all proper electrical procedures for the
hazardous area have been followed.
Larson Electronics, LLC
20 Watt Explosion Proof Traffic Light
Instruction Manual
(877) 348-9680
Phone:
-Neutral
-Red Lamp
-Green Lamp
-Ground
