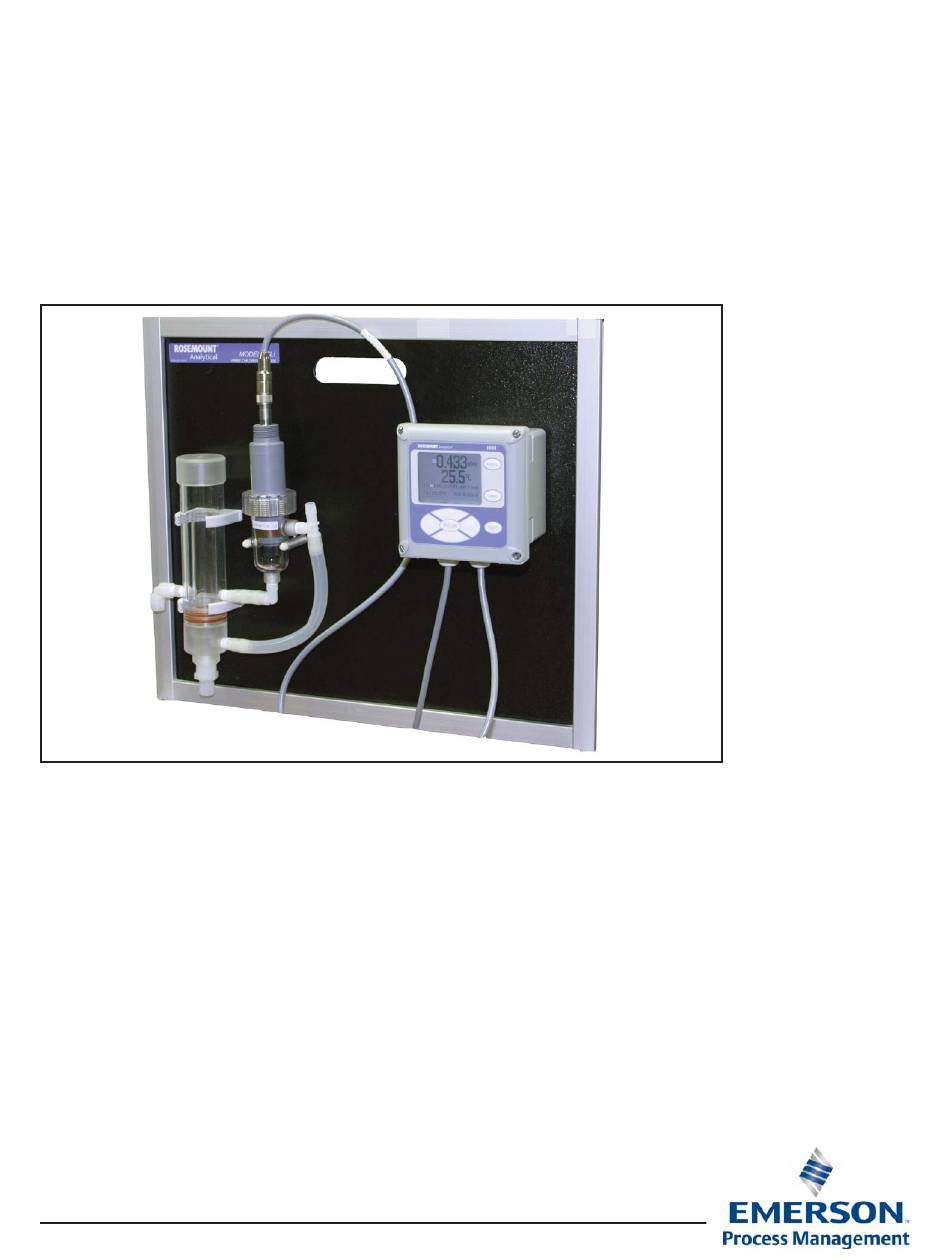

Instruction Manual
PN 51-FCLi-1056 rev.E
June 2013
FCLi with 1056 Analyzer

Advertisement

loading
Need help?

Need help?

Do you have a question about the FCLi-1056 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson FCLi-1056

Summary of Contents for Emerson FCLi-1056

  • Page 1 Instruction Manual PN 51-FCLi-1056 rev.E June 2013 FCLi with 1056 Analyzer...
  • Page 2 EN50081-2. Emerson Process Management 2400 Barranca Parkway Irvine, CA 92606 USA Tel: (949) 757-8500 Fax: (949) 474-7250 http://www.rosemountanalytical.com...
  • Page 3 QUICK START GUIDE FOR FCLi ANALYZER 1. Refer to Section 2.0 for installation instructions and Section 3.0 for wiring instructions. 2. Once connections are secured and verified, apply power to the analyzer. 3. When the analyzer is powered up for the first time, Quick Start screens appear. Using Quick Start is easy. a.
  • Page 4 MENU TREE Calibrate Sensor 1 (Free chlorine) Chlorine Zero In process Temperature Sensor 2 (pH) Buffer Cal Auto Select buffer (NIST, DIN19267, Ingold, Merck, or Fisher) Select stability criteria Manual Standardize Enter slope or offset Temperature Output 1 Output 2 Hold Sensor 1 Sensor 2...
  • Page 5 MENU TREE (continued) Program Outputs Range (assign values to 4 and 20 mA) Configure Output 1 or 2 Assign sensor and measurement Range Scale Dampening Fault mode (fixed or live) Fault value (output current) Simulate Alarms Configure/Setpoint Alarm 1, 2, 3, or 4 Setpoint Assign sensor and measurement High or low logic...
  • Page 6 About This Document This manual contains instructions for installation and operation of the Model FCLi-1056 The following list provides notes concerning all revisions of this document. Rev. Level Date Notes 1/08 This is the initial release of the product manual. The manual has been reformatted to reflect the Emerson documentation style and updated to reflect any changes in the product offering.
  • Page 7 MODEL FCLI-1056 TABLE OF CONTENTS FCLi-1056 TABLE OF CONTENTS Section Title Page DESCRIPTION AND SPECIFICATIONS ..............Applications and Features ..................Specifications ......................Ordering Information ....................INSTALLATION ....................... Unpacking and Inspection..................Installation........................ WIRING........................Preparing Conduit Openings..................Power, Alarm, Output, and Sensor Connections .............
  • Page 8 MODEL FCLi-1056 TABLE OF CONTENTS TABLE OF CONTENTS CONT’D Section Title Page DIGITAL COMMUNICATIONS ................MAINTENANCE ...................... Analyzer ........................Chlorine Sensor ....................... pH Sensor ........................ Constant Head Flow Controller................TROUBLESHOOTING ................... Overview ........................Using the Diagnostic Feature................... Troubleshooting When a Fault Message is Showing ..........
  • Page 9 MODEL FCLi-1056 TABLE OF CONTENTS LIST OF TABLES CONT’D 9.6.1 Calibration Error During Two-Point Calibration ............Troubleshooting When No Error Message is Showing - General......9.9.2 Simulating pH Input ....................9.10 Simulating Inputs Temperature................. LIST OF FIGURES Number Title Page Chlorine Sensor Parts ....................
  • Page 10 THIS PAGE LEFT BLANK INTENTIONALLY...
  • Page 11 Model FCLi-1056 SECTION 1.0 DESCRIPTION AND SPECIFICATIONS SECTION 1.0. DESCRIPTION AND SPECIFICATIONS • COMPLETE SYSTEM INCLUDES sensor, connecting cable, analyzer, and flow controller • SENSOR RESPONSE IS PRACTICALLY INDEPENDENT of pH between pH 6 and 10 • NO REAGENTS • NO AUXILIARY pH ELECTRODE •...
  • Page 12 MODEL FCLi-1056 SECTION 1.0 DESCRIPTION AND SPECIFICATIONS 1.2 SPECIFICATIONS — GENERAL SPECIFICATIONS — ANALYZER Sample requirements: Case: Polycarbonate, NEMA 4X/CSA4 (IP65) Pressure: 3 to 65 psig (122 to 549 kPa abs) Display: Monochromatic back-lit LCD. Main character height 0.6 in (15 mm). Display is user-programable.
  • Page 13 MODEL FCLi-1056 SECTION 1.0 DESCRIPTION AND SPECIFICATIONS 1.3 ORDERING INFORMATION FCLi Free Chlorine Measuring System. The FCLi is a complete system for the determination of free chlorine in aqueous samples. It consists of the sensor(s), analyzer, and constant head flow controller. All components are mounted on a backplate.
  • Page 14 MODEL FCLi-1056 SECTION 1.0 DESCRIPTION AND SPECIFICATIONS...
  • Page 15 MODEL FCLi-1056 SECTION 2.0 INSTALLATION SECTION 2.0. INSTALLATION 2.1 UNPACKING AND INSPECTION Inspect the shipping container. If it is damaged, contact the shipper immediately for instructions. Save the box. If there is no apparent damage, unpack the container. Be sure all items shown on the packing list are present.
  • Page 16 MODEL FCLi-1056 SECTION 2.0 INSTALLATION 2.2 INSTALLATION 2.2.1 General Information 1. Although the system is suitable for outdoor use, do not install it in direct sunlight or in areas of extreme temperature. CAUTION The FCLi free-chlorine system is NOT suitable for use in hazardous areas.
  • Page 17 MODEL FCLi-1056 SECTION 2.0 INSTALLATION fill plug membrane o-ring assembly cable auxiliary membrane electrode retainer cap FIGURE 2-1. Chlorine Sensor Parts 2. If you are using a pH sensor, remove the protective cap on the sensor. 3. Install the sensors in the flow cells as shown in Figures 2.2 and 2.3. For Model FCLi-02-221, the pH sensor must be installed as shown in Figure 2.3.
  • Page 18 MODEL FCLi-1056 SECTION 2.0 INSTALLATION INCH MILLIMETER CHLORINE SENSOR CHECK VALVE INLET DRAIN FIGURE 2-2. Model FCLi-01-220 INCH MILLIMETER CHLORINE SENSOR pH SENSOR CHECK VALVE INLET DRAIN FIGURE 2-3. Model FCLi-02-221...
  • Page 19 MODEL FCLi-1056 SECTION 3.0 WIRING SECTION 3.0. WIRING 3.1 POWER, ALARM, AND OUTPUT WIRING WARNING RISK OF ELECTRICAL SHOCK Electrical installation must be in accordance with the National Electrical Code (ANSI/NFPA-70) and/or any other applicable national or local code. 3.1.1...
  • Page 20 MODEL FCLi-1056 SECTION 3.0 WIRING 3.1.3 Alarm wiring. WARNING Exposure to some chemicals may degrade the sealing properties used in the following devices: Zettler Relays (K1-K4) PN AZ8-1CH12DSEA The alarm relay terminal strip is located just below the power connector on the power supply board. See Figure 3-2.
  • Page 21 MODEL FCLi-1056 SECTION 3.0 WIRING WHITE Figure 3-3. Wiring Diagram Figure 3-4. Wiring Diagram for Free Chlorine Sensor for 399VP-09 pH Sensor Figure 3-5. Wiring Diagram Figure 3-6. Wiring Diagram for 3900VP-10 pH sensor (gray cable) for 3900VP-10 pH sensor (blue cable)
  • Page 22 MODEL FCLi-1056...
  • Page 23 MODEL FCLi-1056 SECTION 4.0 DISPLAY AND OPERATION SECTION 4.0 DISPLAY AND OPERATION 4.1. DISPLAY The analyzer has a four line display. See Figure 4-1. The display can be customized to meet user require- ments. Refer to section 4.6. T1: 25.0 C O1: 12.00 mA...
  • Page 24 MODEL FCLi-1056 SECTION 4.0 DISPLAY AND OPERATION 4.2 KEYPAD Local communication with the analyzer is through the membrane keypad. Figures 4-4 and 4-5 explain the operation of the keys. FIGURE 4-4. Analyzer keypad. Four navigation keys move the cursor around the screen. The position of the cursor is shown in reverse video.
  • Page 25 MODEL FCLi-1056 SECTION 4.0 DISPLAY AND OPERATION 4.3 PROGRAMMING THE ANALYZER—TUTORIAL Setting up and calibrating the analyzer is easy. The following tutorial describes how to move around in the programming menus. For practice, the tutorial also describes how to assign ppm chlorine values to the 4 and 20 mA analog outputs 1.
  • Page 26 MODEL FCLi-1056 SECTION 4.0 DISPLAY AND OPERATION Output Range 7. The display returns to the summary screen at left. Note that the 20 mA setting for output1 has changed to 8.5 ppm. O1 S1 4mA: 0.000 ppm O1 S1 20mA: 08.50 ppm...
  • Page 27 MODEL FCLi-1056 SECTION 4.0 DISPLAY AND OPERATION 4.5 USING HOLD 4.5.1 Purpose To prevent unwanted alarms and improper operation of control systems or dosing pumps, place the alarms and outputs assigned to the sensor in hold before removing it for maintenance. Hold is also useful if calibration, for example, buffering a pH sensor, will cause an out of limits condition.
  • Page 28 MODEL FCLi-1056 SECTION 4.0 DISPLAY AND OPERATION 4.6 CONFIGURING THE MAIN DISPLAY The main display can be configured to meet user requirements. 1. Press MENU. The main menu screen appears. Move the cursor to Display and press ENTER. 2. The screen shows the present configuration. There are four items: Main Display Format, Language, Warning, and Contrast.
  • Page 29 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER SECTION 5.0 PROGRAMMING THE ANALYZER 5.1 GENERAL This section describes how to make the following program settings using the local keypad. a. Configure and assign values to the analog current outputs. b. Configure and assign values to the alarm relays (if the alarm board is installed).
  • Page 30 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER TABLE 5-1. DEFAULT SETTINGS ITEM CHOICES DEFAULT Sensor assignment chlorine chlorine 1. Sensor 1 2. Sensor 2 Outputs 1. Assignments (if FCLi-01) chlorine, temp chlorine a. output 1 chlorine, temp temp b. output 2 2.
  • Page 31 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER TABLE 5-1. DEFAULT SETTINGS (continued) ITEM CHOICES DEFAULT Measurement 1. Chlorine (sensor 1) a. units ppm or mg/L b. resolution 0.01 or 0.001 0.001 c. input filter 0 to 999 sec 5 sec 2.
  • Page 32 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.3 CONFIGURING, RANGING, AND SIMULATING OUTPUTS. 5.3.1 Purpose This section describes how to configure, range, and simulate the two analog current outputs. CONFIGURE THE OUTPUTS FIRST. 1. Configuring an output means… a. Assigning a sensor and measurement (chlorine, pH, or temperature) to an output.
  • Page 33 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.3.3. Procedure – Configure Outputs. 1. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER. 2. The cursor will be on Outputs. Press ENTER. Program Outputs Alarms...
  • Page 34 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.3.4. Procedure – Ranging Outputs. 1. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER. 2. The cursor will be on Outputs. Press ENTER. Program Outputs Alarms...
  • Page 35 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.3.5 Procedure – Simulating Outputs 1. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER. 2. The cursor will be on Outputs. Press ENTER. Program Outputs Alarms...
  • Page 36 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.4.2 Definitions 1. ASSIGNING ALARMS. There are four alarms relays. The relays are freely assignable to any sen- sor and to either the measurement (for example, chlorine) or temperature. Alarm relays can also be assigned to operate as interval timers or as fault alarms.
  • Page 37 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.4.3 Procedure – Configuring Alarms and Assigning Setpoints 1. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER. 2. Choose Alarms. Program Outputs Alarms Alarms Measurement Temperature 3.
  • Page 38 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.4.4 Procedure – Simulating Alarms 1. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER. 2. Choose Alarms. Program Outputs Alarms Alarms Measurement Temperature 3. Choose Simulate.
  • Page 39 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.4.4 Procedure – Synchronizing Timers 1. Synch Timers is available only if two or more alarm relays have been configured as interval timers. 2. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER.
  • Page 40 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.5 CONFIGURING THE MEASUREMENT. 5.5.1 Purpose This section describes how to do the following: 1. Program the analyzer to measure free chlorine using the pH-independent free chlorine sensor Model 498CL-01. This step is necessary because the analyzer can be used with other sensors to measure other chlorine oxidants.
  • Page 41 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.5.4 Procedure – Configuring the Measurement 1. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER. 2. Choose Measurement. Program Outputs Alarms Measurement Measurement Temperature 3. The screen at left appears only if you have an FCLi-02. Choose Sensor 1 Configure? (chlorine) or Sensor 2 (pH).
  • Page 42 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.6 CONFIGURING TEMPERATURE RELATED SETTINGS 5.6.1 Purpose This section describes how to do the following: 1. Choose temperature units. 2. Choose automatic or manual temperature correction for membrane permeability (chlorine sensor). 3. Choose automatic or manual temperature compensation for pH.
  • Page 43 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 3. The screen summarizes the present sensor configuration. There will be Temperature between three and five items. Units, S1 Temp Comp, and S2 Temp Units: Units: Comp always appear. If manual temperature compensation was selected,...
  • Page 44 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 3. The screen shows the existing security codes. To make a change, move Security the cursor to the desired line and press ENTER. A screen will appear in Calibration/Hold Calibration/Hold which the present setting can be edited. Press ENTER to store the change.
  • Page 45 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER 5.8.2 Procedure – Setting Up Diagnostics 1. Press MENU. The main menu screen appears. Move the cursor to Program and press ENTER. 2. Scroll to the bottom of the screen and continuing scrolling until Program Diagnostic Setup is highlighted.
  • Page 46 MODEL FCLi-1056 SECTION 5.0 PROGRAMMING THE ANALYZER RESETTING THE ANALYZER 5.9.1 Purpose This section describes how to clear user-entered values and restore default settings. There are three resets: 1. Resetting to factory default values clears ALL user entered settings, including sensor and analog output calibration, and returns ALL settings and calibration values to the factory defaults.
  • Page 47 MODEL FCLi-1056 SECTION 6.0 CALIBRATION SECTION 6.0 CALIBRATION 6.1 INTRODUCTION The calibrate menu allows the user to do the following: 1. Calibrate the temperature sensing element in the chlorine and pH sensors. 2. Calibrate the chlorine sensor. 3. Calibrate the pH sensor. Four methods are available.
  • Page 48 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.2.2 Procedure 1. Remove the sensor from the flow cell. Place it in an insulated container of water along with a calibrated thermometer. Submerge at least the bottom two inches of the sensor. 2. Allow the sensor to reach thermal equilibrium. The time constant for both the chlorine and pH sensor is about 5 min., so it may take as long as 30 min for equilibration.
  • Page 49 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.3 CALIBRATION — FREE CHLORINE 6.3.1 Purpose As Figure 6-1 shows, a free chlorine sensor generates a current directly proportional to the concentration of free chlorine in the sample. Calibrating the sensor requires exposing it to a solution containing no chlorine (zero standard) and to a solution containing a known amount of chlorine (full-scale standard).
  • Page 50 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 3. Press MENU. The main menu screen appears. The cursor will be on Calibrate. Press ENTER. 4. Choose the sensor you wish to calibrate. Sensor 1 is the chlorine sensor. Calibrate Sensor 2 (if present) is the pH sensor.
  • Page 51 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.3.2 Procedure-Calibrating the Sensor 1. Place the chlorine sensor in the chlorine flow cell. Adjust the sample flow until water overflows the inside tube in the constant head flow controller. 2. Adjust the chlorine concentration until it is near the upper end of the operating range. Wait until the analyzer reading is stable before starting the calibration.
  • Page 52 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.4 CALIBRATION – pH 6.4.1 Purpose A pH sensor consists of a glass and reference electrode. Usually, the two electrodes are combined into a single body, called a combination pH sensor. When the sensor is placed in an aqueous solution, it produces a voltage proportional to pH.
  • Page 53 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 5. USER ENTERED SLOPE AND OFFSET. If the slope and offset are known from other measurements, they can be directly entered in the analyzer. Enter the slope as a positive number corrected to 25ºC. To calculate the slope at 25ºC from the slope at temperature tºC, use the equation:...
  • Page 54 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 8. Choose Start Auto Cal. S2 pH Auto Cal Start Auto Cal Start Auto Cal If you wish to change the stability criteria or the pH buffer list from the Setup default values, choose Setup instead and go to step 14. The default stability is defined as a less than 0.02 pH change in 10 seconds.
  • Page 55 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.4.4 Procedure-Manual Calibration 1. Obtain two buffer solutions. Ideally, the buffer pH values should bracket the range of pH values to be measured. 2. Remove the sensor from the flow cell. If the process and buffer temperatures are appreciably different, place the sensor in a container of tap water at the buffer temperature.
  • Page 56 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 10. Watch the pH reading for sensor 2 (S2) at the top of the screen. Once Manual Buffer 1 the reading is stable, enter the pH value of the buffer at the buffer 0 7.00 pH temperature and press ENTER.
  • Page 57 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.4.5 Procedure-Standardization 1. The pH value measured by the analyzer can be changed to match the reading from a second or referee instrument. The process of making the two readings agree is called standardization. 2. Place the sensor in the flow cell. Wait until pH readings are stable.
  • Page 58 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.4.6 Procedure-Entering a Known Slope and Offset 1. Calibration data, i.e., slope and offset at pH 7, can be entered directly into the analyzer if the data for the sensor are already known. 2. Press MENU. The main menu screen appears. The cursor will be on Calibrate.
  • Page 59 MODEL FCLi-1056 SECTION 6.0 CALIBRATION 6.5 CALIBRATION – Analog Outputs 6.5.1 Purpose Although the analyzer analog outputs are calibrated at the factory, they can be trimmed in the field to match the reading from a standard milliammeter. Both the low (0 or 4 mA) and high (20 mA) outputs can be trimmed.
  • Page 60 MODEL FCLi-1056...
  • Page 61 MODEL FCLi-1056 SECTION 7.0 DIGITAL COMMUNICATIONS SECTION 7.0 DIGITAL COMMUNICATIONS THE ANALYZER SUPPLIED WITH THE FCLi DOES NOT HAVE THE DIGITAL COMMUNICATIONS OPTION.
  • Page 62 MODEL FCLi-1056...
  • Page 63 MODEL FCLi-1056 SECTION 8.0 MAINTENANCE SECTION 8.0 MAINTENANCE 8.1 ANALYZER The analyzer used with the FCLi needs little routine maintenance. Clean the analyzer case and front panel by wiping with a clean soft cloth dampened with water ONLY. Do not use solvents, like alcohol, that might cause a buildup of static charge.
  • Page 64 MODEL FCLi-1056 SECTION 8.0 MAINTENANCE 8.2 CHLORINE SENSOR 8.2.1 General. When used in clean water, the 498CL-01 chlorine sensor requires little maintenance. Generally, the sensor needs maintenance when the response becomes sluggish or noisy or when readings drift following calibration. For a sen- sor used in potable water, expect to clean the membrane every month and replace the membrane and electrolyte slurry every three months.
  • Page 65 MODEL FCLi-1056 SECTION 8.0 MAINTENANCE fill plug membrane o-ring assembly auxiliary membrane electrode retainer cap FIGURE 8-1. Chlorine Sensor Parts SPARE PARTS 33970-00 Fill Plug 33521-03 Membrane retainer cap 23501-10 pH-independent free chlorine membrane assembly, includes one membrane assembly and O-ring...
  • Page 66 MODEL FCLi-1056 SECTION 8.0 MAINTENANCE 2. If the sensor was powered up during storage, the cathode is probably coated with metallic copper. Disconnect the sensor from the analyzer. Remove the membrane and clean out the fill slurry. Immerse the mesh cathode in 10% nitric acid solution (10 mL of concentrated nitric acid in 90 mL of water) for about five minutes.
  • Page 67 MODEL FCLi-1056 SECTION 8.0 MAINTENANCE TABLE 8-2. Replacement parts for constant head flow controller assembly (Model FCLi-01) Location in Shipping Figure 8-2 Description Weight 24039-00 Flow cell for chlorine sensor with bubble shedding nozzle 1 lb/0.5 kg 24040-00 O-ring kit, two 2-222 and one 2-024 silicone O-rings, 1 lb/0.5 kg...
  • Page 68 MODEL FCLi-1056 SECTION 8.0 MAINTENANCE TABLE 8-3. Replacement parts for constant head flow controller assembly (Model FCLi-02) Location in Shipping Figure 8-3 Description Weight 24039-00 Flow cell for chlorine sensor with bubble shedding nozzle 1 lb/0.5 kg 24039-01 Flow cell for pH sensor 1 lb/0.5 kg...
  • Page 69 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING SECTION 9.0 TROUBLESHOOTING 9.1 OVERVIEW The analyzer continuously monitors itself and the sensor(s) for problems. When the analyzer identifies a problem, the word warning or fault appears intermittently in the lower line of the main display. When the fault or warning message appears, press the DIAG (diagnostic) key for more information.
  • Page 70 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.3 TROUBLESHOOTING WHEN A FAULT MESSAGE IS SHOWING Fault message Explanation Section Main Board CPU Error Main board software is corrupted 9.3.1 Main Board Factory Data Main board factory eeprom data is corrupted 9.3.1 Main Board User Data Main board user eeprom data is corrupted 9.3.1...
  • Page 71 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.3.4 Sensor Incompatible This error message means that the sensor board software is not supported by the main board software. Either the sensor board or the main board software is too old. Replace the main board with one compatible with the sensor board. Call the factory for assistance. You will be asked for the main and sensor board software revision numbers.
  • Page 72 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.3.10 Sensor RTD Out of Range Both the chlorine and pH sensor contain a Pt 100 RTD (resistance temperature device) for measuring temperature. If the measured resistance is outside the expected range, the analyzer will display the out of range error message.
  • Page 73 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.4 TROUBLESHOOTING WHEN A WARNING MESSAGE IS SHOWING Warning message Explanation Section Sensor No Solution Gnd pH sensor may be miswired. 9.4.1 Sensor Need Factory Cal The sensor board was not calibrated at the factory.
  • Page 74 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.4.6 Sensor Temperature High or Low The sensor RTD is most likely miswired. Check wiring connections. Check resistance between RTD in and return leads. The resistance should be close to the values given in Section 9.10.2.
  • Page 75 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.5.2 Zero current is unstable Is the sensor properly wired to the analyzer? See Section 3.2. Verify that all wiring connections are tight. Readings are often erratic when a new or rebuilt sensor is first placed in service. Readings usually stabilize after about an hour.
  • Page 76 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.5.6 Sensor does not respond to changes in chlorine level. Is the grab sample test accurate? Is the grab sample representative of the sample flowing to the sensor? 2. Is sample flowing past the sensor? Be sure the liquid level in the constant head flow controller is level with the central overflow tube and that excess sample is flowing down the tube.
  • Page 77 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.6 TROUBLESHOOTING WHEN NO ERROR MESSAGE IS SHOWING — pH. Problem See Section Calibration Error warning during two-point calibration 9.6.1 Offset Error warning during standardization 9.6.2 Sensor does not respond to known pH changes 9.6.3 Calibration was successful, but process pH is slightly different from expected value 9.6.4...
  • Page 78 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.6.2 Calibration Error during Standardization. During standardization, the millivolt signal from the pH cell is increased or decreased until the pH agrees with the pH reading from a referee instrument. A unit change in pH requires an offset of about 59 mV. The analyzer limits the offset to ±60 mV.
  • Page 79 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.6.5 Calibration Was Successful, but Process pH Is Grossly Wrong and/or Noisy. Grossly wrong or noisy readings suggest a ground loop (measurement system connected to earth ground at more than one point), a floating system (no earth ground), or noise being brought into the analyzer by the sensor cable.
  • Page 80 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.7 TROUBLESHOOTING WHEN NO ERROR MESSAGE IS SHOWING — GENERAL Problem See Section Difference between analyzer and standard thermometer greater than 3°C 9.7.1 Current output is too low 9.7.2 Alarm relays do not operate when setpoint is exceeded 9.7.3...
  • Page 81 MODEL FCLi-1056 SECTION 9.0 TROUBLESHOOTING 9.10 SIMULATING INPUTS — TEMPERATURE 9.10.1 General. The analyzer accepts a Pt100 RTD (for pH and chlorine sensors). The Pt100 RTD is in a three-wire configura- tion. See Figure 9-4. 9.10.2 Simulating temperature To simulate the temperature input, wire a decade box to FIGURE 9-4.
