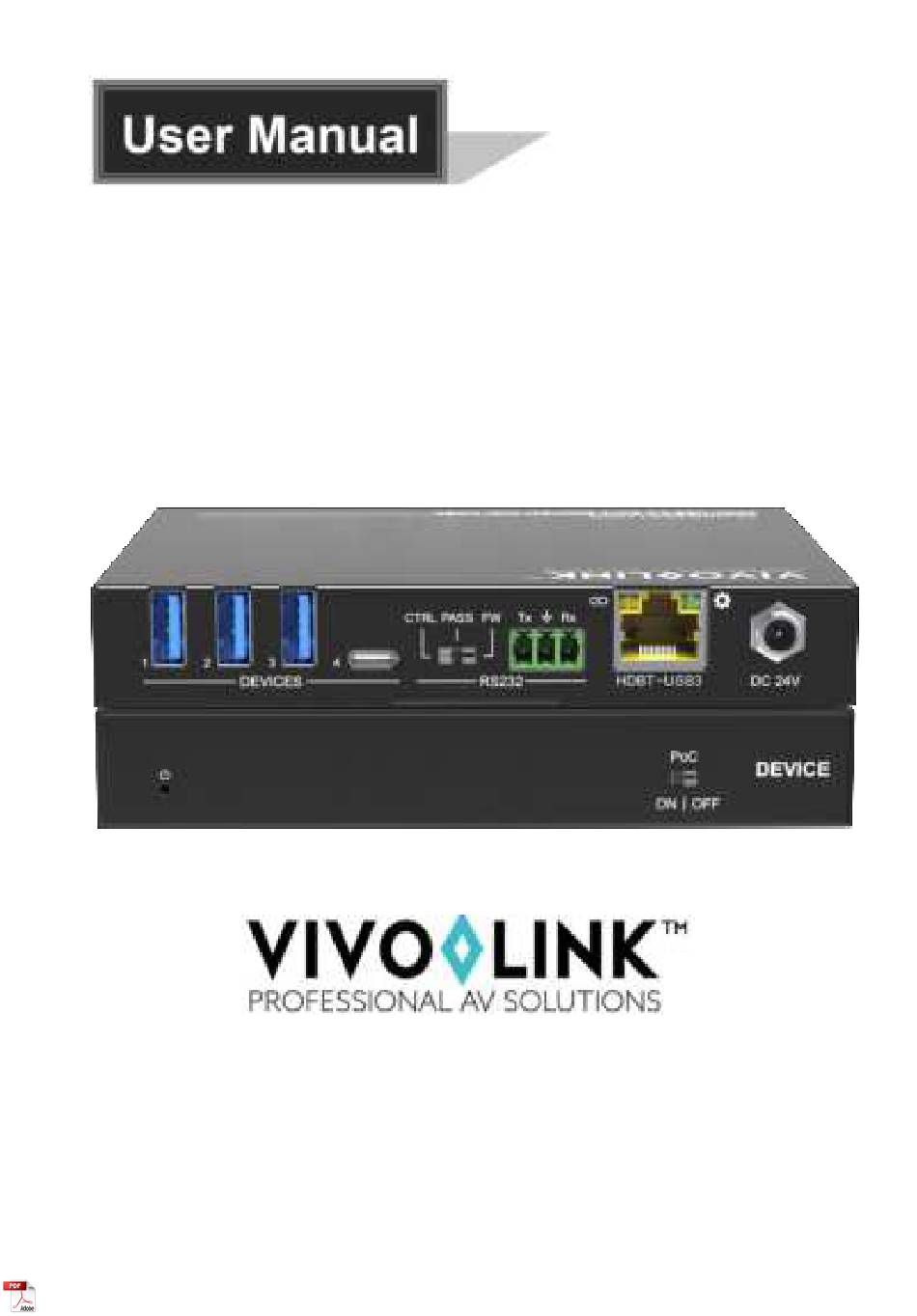

- Page 1 VLUSB3EXT100D 100m USB3.2 Gen1 Extender over HDBT All Rights Reserved Version: VLUSB3EXT100D_2024V1.0...
-
Page 2: Safety Precautions
100m USB 3.2 Gen1 Extender over HDBT Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated till January, 2023. - Page 3 100m USB 3.2 Gen1 Extender over HDBT Elektro- und Elektronikgeräte Informationen für private Haushalte Das Elektro- und Elektronikgerätegesetz (ElektroG) enthält eine Vielzahl von Anforderungen an den Umgang mit Elektro- und Elektronikgeräten. Die wichtigsten sind hier zusammengestellt. 1. Getrennte Erfassung von Altgeräten Elektro- und Elektronikgeräte, die zu Abfall geworden sind, werden als Altgeräte bezeichnet.
- Page 4 100m USB 3.2 Gen1 Extender over HDBT Endnutzer abgegeben wird. Wenn ein neues Gerät an einen privaten Haushalt ausgeliefert wird, kann das gleichartige Altgerät auch dort zur unentgeltlichen Abholung übergeben werden; dies gilt bei einem Vertrieb unter Verwendung von Fernkommunikationsmitteln für Geräte der Kategorien 1, 2 oder 4 gemäß § 2 Abs. 1 ElektroG, nämlich „Wärmeüberträger“, „Bildschirmgeräte“...
-
Page 5: Table Of Contents
100m USB 3.2 Gen1 Extender over HDBT Table of Contents ......................1 1. Product Introduction ......................... 1 1.1 Features ......................1 1.2 Package List ........................2 2. Specification ....................... 3 3. Panel Description ......................3 3.1 Front Panel ......................3 3.2 Rear Panel ...................... -
Page 6: Product Introduction
Thanks for choosing the 100m USB 3.2 Gen1 extender. The extender is designed to transmit USB signal up to 100m distance. VLUSB3EXT100D is the device port of the extender, it contains four USB ports. Applications include extending USB 3 conferencing cameras, video capture devices, and audio devices for boardrooms and conference rooms. -
Page 7: Specification
100m USB 3.2 Gen1 Extender over HDBT 2. Specification VLUSB3EXT100D Devices Connector (3) Type-A USB (1) Type-C USB Devices share 3A current limit; Devices Power Single port power supply maximum limit 1.7A. USB Version USB 3.2 Gen1 Control Part Control... -
Page 8: Panel Description
100m USB 3.2 Gen1 Extender over HDBT 3. Panel Description 3.1 Front Panel Power LED: The LED illuminates green when the unit is power on. PoC: 1x DIP switch, turn on/off the PoC. 3.2 Rear Panel Devices: 3x USB-A and 1x USB-C 3.2 gen1 for connecting KVM devices, cameras or other USB devices. -
Page 9: System Connection
100m USB 3.2 Gen1 Extender over HDBT 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 10: Rs232 Control
100m USB 3.2 Gen1 Extender over HDBT 5. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending RS232 commands. 5.1 RS232 Control Software Installation: Copy the control software file to the control PC. ... -
Page 11: Rs232 Command
5.2.1 System Control Example & Command Command Description Feedback >Help >Help Query commands -------- >GetStatus <VLUSB3EXT100D <FW Version: V1.0.0a <POC Off <AutoSwitch Mode Off <USB 01 >GetStatus Query status <Device Power Follow Host Mode Off <Device1 Power On <Device2 Power On <Device3 Power Off... - Page 12 100m USB 3.2 Gen1 Extender over HDBT <FactoryReset >SetDeviceFollow On Set the devices power mode: Param = On (Follow mode, turn off the >SetDeviceFollow power when no host <Set Device Power Follow [Param1] connect) Host Mode On Param = Off (Always on, always provide the power to devices)
-
Page 13: Panel Drawing
100m USB 3.2 Gen1 Extender over HDBT 6. Panel Drawing...
