Summary of Contents for VivoLink VLHDMIEXTFIB
- Page 1 User Manual VLHDMIEXTFIB All Rights Reserved Version: VLHDMIEXTFIB_2017V1.0...
- Page 2 Trademarks Product model, Vivolink and its logo are trademarks of Vivolink. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without the prior written consent of Vivolink.

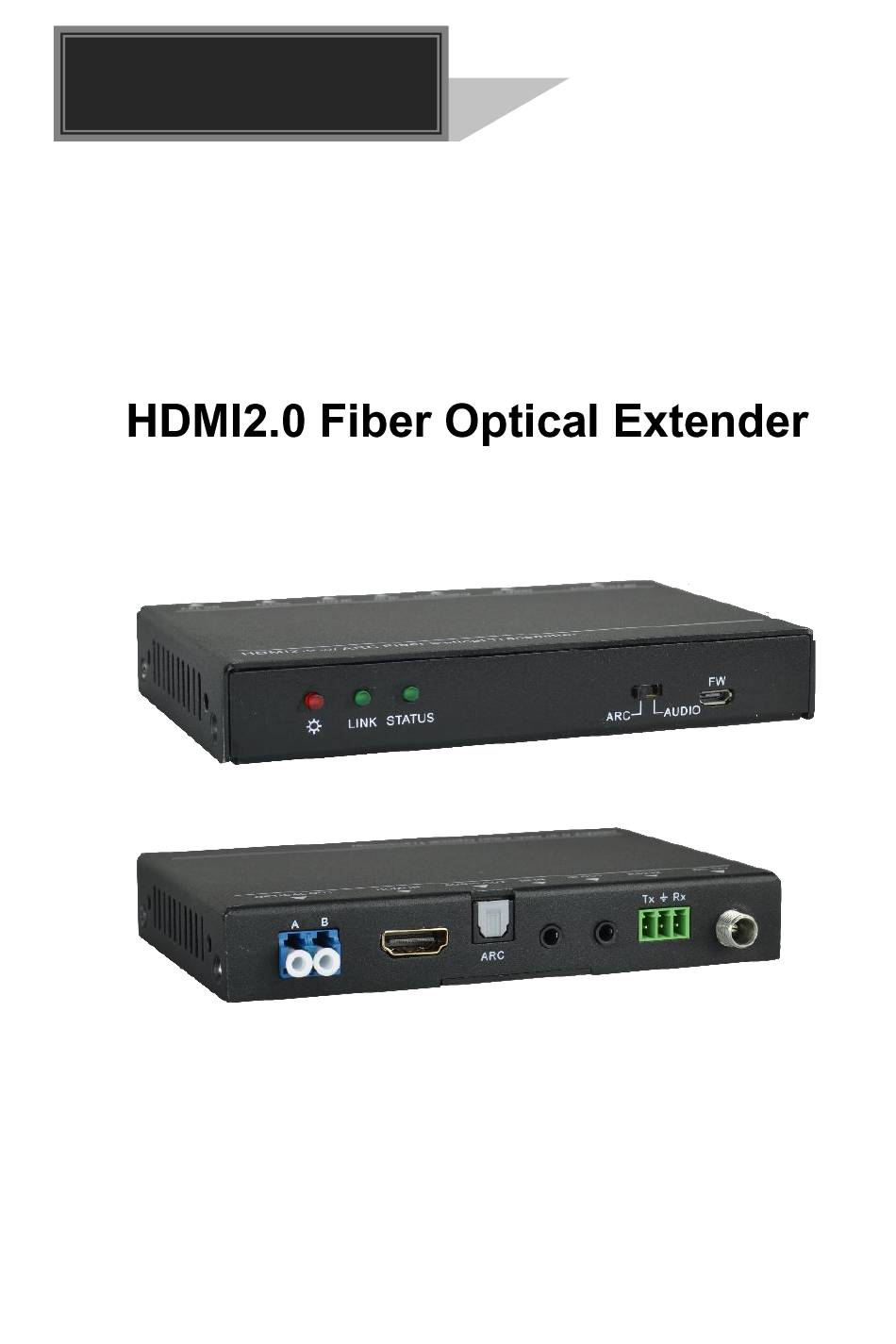

- Page 3 HDMI2.0 Fiber Optical Extender SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ...
-
Page 4: Table Of Contents
HDMI2.0 Fiber Optical Extender Contents 1. Introduction ......................... 1 2. Features ........................1 3. Package List ....................... 1 4. Panel Description ......................2 4.1 Transmitter ......................2 4.2 Receiver ......................3 5. System Connection ..................... 4 6. Panel Drawing ......................8 7. -
Page 5: Introduction
HDMI2.0 Fiber Optical Extender 1. Introduction The extender set consists of a Transmitter and Receiver. It is designed to extend HDMI signal (Max 4Kx2K 60Hz 4:4:4) up to 984ft (300m) from Transmitter to Receiver via two single mode or OM3/OM4 multi-mode fiber cables. The extender set also allows for bi-directional IR and RS232 control signal across the fiber cable, and supports ARC. -
Page 6: Panel Description
HDMI2.0 Fiber Optical Extender 4. Panel Description 4.1 Transmitter LINK STATUS AUDIO Name Description ① Power LED Turns red when DC power present. Turns green when the Transmitter and Receiver link ② Link status LED successful. Turns green when the signal data is transmitted between ③... -
Page 7: Receiver
HDMI2.0 Fiber Optical Extender 4.2 Receiver LINK STATUS AUDIO 1 2 3 Name Description ① Power LED Turns red when DC power present. Turns green when the Transmitter and Receiver link ② Link status LED successful. Turns green when the signal data is transmitted between ③... -
Page 8: System Connection
HDMI2.0 Fiber Optical Extender 5. System Connection Usage Precautions: ▪ Verify all components and accessories included before installation. ▪ System should be installed in a clean environment with proper temperature and humidity. ▪ All of the power switches, plugs, sockets, and power cords should be insulated and safe. - Page 9 HDMI2.0 Fiber Optical Extender ① Transmitter: ARC; Receiver: ARC The audio signal is transmitted from the HDTV display back to HDMI IN and AUDIO OUT ports. 300m HDMI: Audio: Optical: Control: Transmitter : ARC Receiver: ARC TV Remote Speaker IR Emitter Blu-Ray DVD APMLIFIER Speaker...
- Page 10 HDMI2.0 Fiber Optical Extender ② Transmitter: ARC; Receiver: AUDIO The audio signal is transmitted from the AUDIO IN to HDMI IN port. 300m HDMI: Audio: Optical: Control: Transmitter: ARC Receiver:AUDIO TV Remote Speaker Blu-Ray DVD APMLIFIER TV Remote HDTV Digital Radio IR Emitter ③...
- Page 11 HDMI2.0 Fiber Optical Extender ④ Transmitter: AUDIO; Receiver: AUDIO The audio signal is transmitted from the AUDIO IN to the AUDIO OUT port. 300m HDMI: Audio: Optical: Control: Transmitter: AUDIO Receiver: AUDIO TV Remote Blu-Ray DVD Digital Radio Speaker TV Remote HDTV IR Emitter...
-
Page 12: Panel Drawing
HDMI2.0 Fiber Optical Extender 6. Panel Drawing HDMI2.0 w/ ARC Fiber Optical Transmitter 130 mm LINK STATUS AUDIO 6-1 Transmitter HDMI2.0 w/ ARC Fiber Optical Receiver 130 mm LINK STATUS AUDIO 6-2 Receiver... -
Page 13: Specification
HDMI2.0 Fiber Optical Extender 7. Specification Transmitter Input (1) HDMI IN Input Connector (1) Type A Female HDMI Output (2) OPTICAL OUT; (1) AUDIO OUT Output Connector (2) LC Connector; (1) Toslink Connector Control (1) IR IN; (1) IR OUT; (1) RS232 Control Connector (2) 3.5mm Mini Jacks;... -
Page 14: Troubleshooting & Maintenance
HDMI2.0 Fiber Optical Extender 8. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or vague/ Poor quality of the optical Change for qualified OM3 double image in HDMI fiber cable cable. display Not been powered Power up the unit Power led is off, Make sure power adapter is operations don’t work... -
Page 15: Customer Service
HDMI2.0 Fiber Optical Extender 9. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed 3 (three) years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
