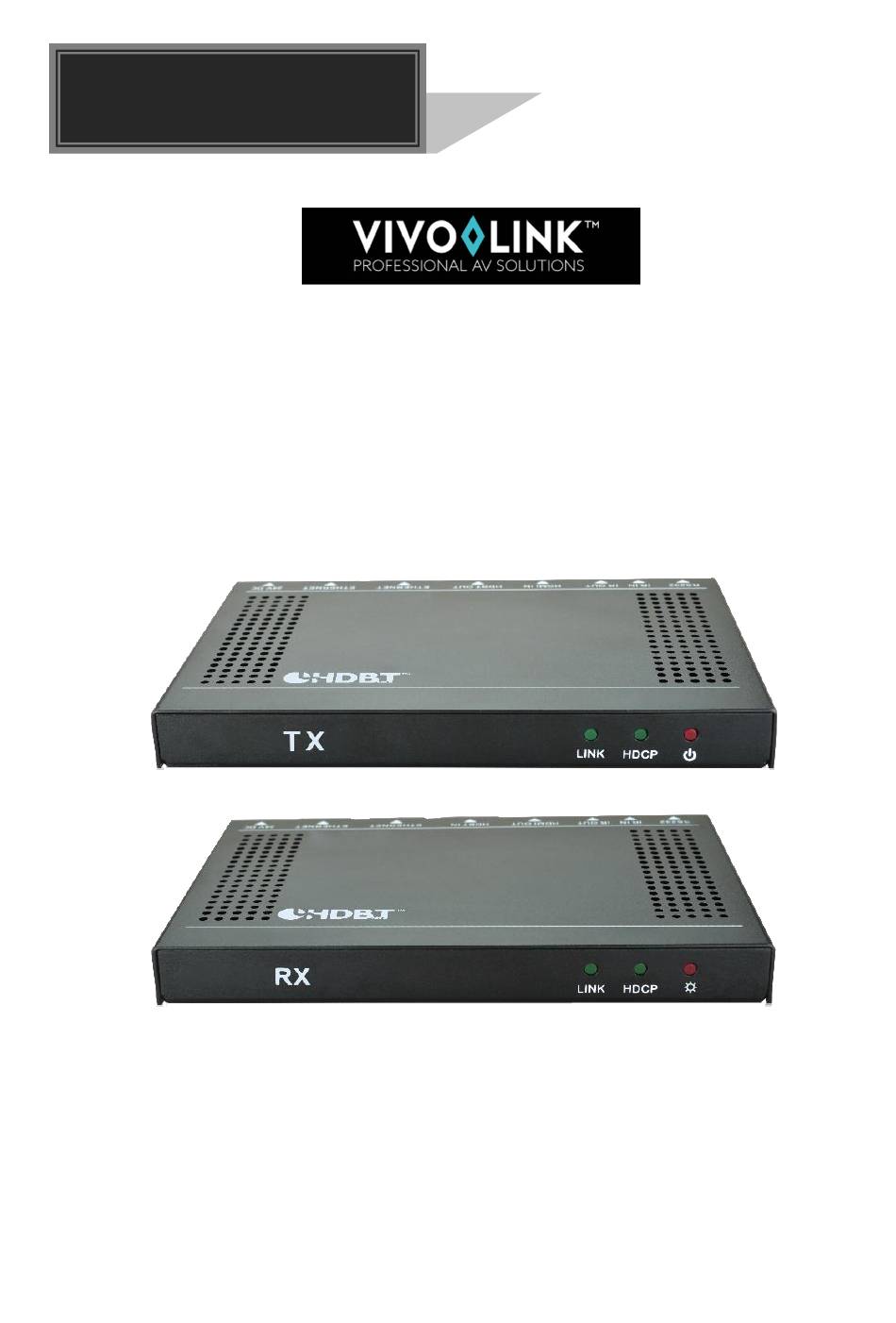

- Page 1 User Manual VLHDMIEXT422 Ultra-thin HDBaseT Extender All Rights Reserved Version: VLHDMIEXT422_V1.2...
- Page 2 Ultra-thin HDBaseT Extender Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till July 11, 2017.
- Page 3 Ultra-thin HDBaseT Extender SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ...
-
Page 4: Table Of Contents
Ultra-thin HDBaseT Extender Contents 1. Introduction ......................... 1 1.1 VLHDMIEXT422 ....................1 1.2 Feature ......................1 1.3 Package Content ....................1 2. Panel Description ......................2 2.1 VLHDMIEXT422T Transmitter ..................2 2.2 VLHDMIEXT422R Receiver ..................3 2.3 Twisted Pair Cable Description ................4 3. -
Page 5: Introduction
Ultra-thin HDBaseT Extender 1. Introduction 1.1 Introduction to VLHDMIEXT422 The VLHDMIEXT422 is an ultra-thin HDBaseT Extender set consist of VLHDMIEXT422T Transmitter and VLHDMIEXT422R Receiver. It distributes HDMI signal via CAT5e/CAT6a cable at 100m/PoH, and enables IR and RS232 pass-through to control remote displays. It also supports 4 Ethernet interface for network. -
Page 6: Panel Description
Ultra-thin HDBaseT Extender 2. Panel Description 2.1 VLHDMIEXT422T Transmitter LINK HDCP Name Description HDBT Link status indicator: OFF: No Link ① LINK GREEN:Link Successful Blinking GREEN: Link abnormal HDCP compliant indicator OFF: No HDMI traffic (no picture) ... -
Page 7: Receiver
Ultra-thin HDBaseT Extender blink and the green ones will keep on when working. Connect with DC24V 1.25A power adaptor. (Not necessary if ⑪ DC 24V receiver connects with power). 2.2 VLHDMIEXT422R Receiver LINK HDCP Name Description HDBT Link status indicator: OFF: No Link ... -
Page 8: Twisted Pair Cable Description
Ultra-thin HDBaseT Extender ⑨ Ethernet ports, when need to work in a LAN, one of these 4 ports ETHERNET (both the Ethernet ports of transmitter and receiver) should be used for internet access, and the others can be connected with computers. -
Page 9: System Connection
Ultra-thin HDBaseT Extender 3. System Connection 3.1 Usage Precautions System should be installed in a clean environment and has a prop temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safety. - Page 10 Ultra-thin HDBaseT Extender Emitter must be connected to “IR OUT” of transmitter. Step5. To set as a LAN, one of the four ETHERNET ports of transmitter and receiver should be used for Internet access, and the others can be connected with computers.
-
Page 11: Specification
Ultra-thin HDBaseT Extender 4. Specification VLHDMIEXT422T Transmitter Input (1) HDMI; (1) IR; (1) RS232 (1) Female HDMI; (1) 3.5mm mini jack; Input Connector (1) 3p captive screw connector Output (1) HDBaseT (1) IR; (1) RS232 (1) RJ-45; (1) 3.5mm mini jack; (1) 3p captive screw Output Connector connector Ethernet... -
Page 12: Panel Drawing
Ultra-thin HDBaseT Extender 5. Panel Drawing LINK HDCP RS232 IR IN IR OUT HDMI IN HDBT OUT ETHERNET ETHERNET DC 24V 152 mm 5-1 VLHDMIEXT422T Transmitter LINK HDCP RS232 IR IN IR OUT HDMI OUT HDBT IN ETHERNET ETHERNET DC 24V 152 mm 5-2 VLHDMIEXT422R Receiver... -
Page 13: Troubleshooting & Maintenance
Ultra-thin HDBaseT Extender 6. Troubleshooting & Maintenance Problems Causes Solutions Incorrect setting on the Check the display’s setting display Output image with white noise. Try another high quality A cable of bad quality connection cable Check with oscilloscope or No signal at the input / output multimeter if there is any signal at the input / output end. -
Page 14: After-Sales Service
Ultra-thin HDBaseT Extender 7. After-sales Service If there appear some problems when running please check the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years.
