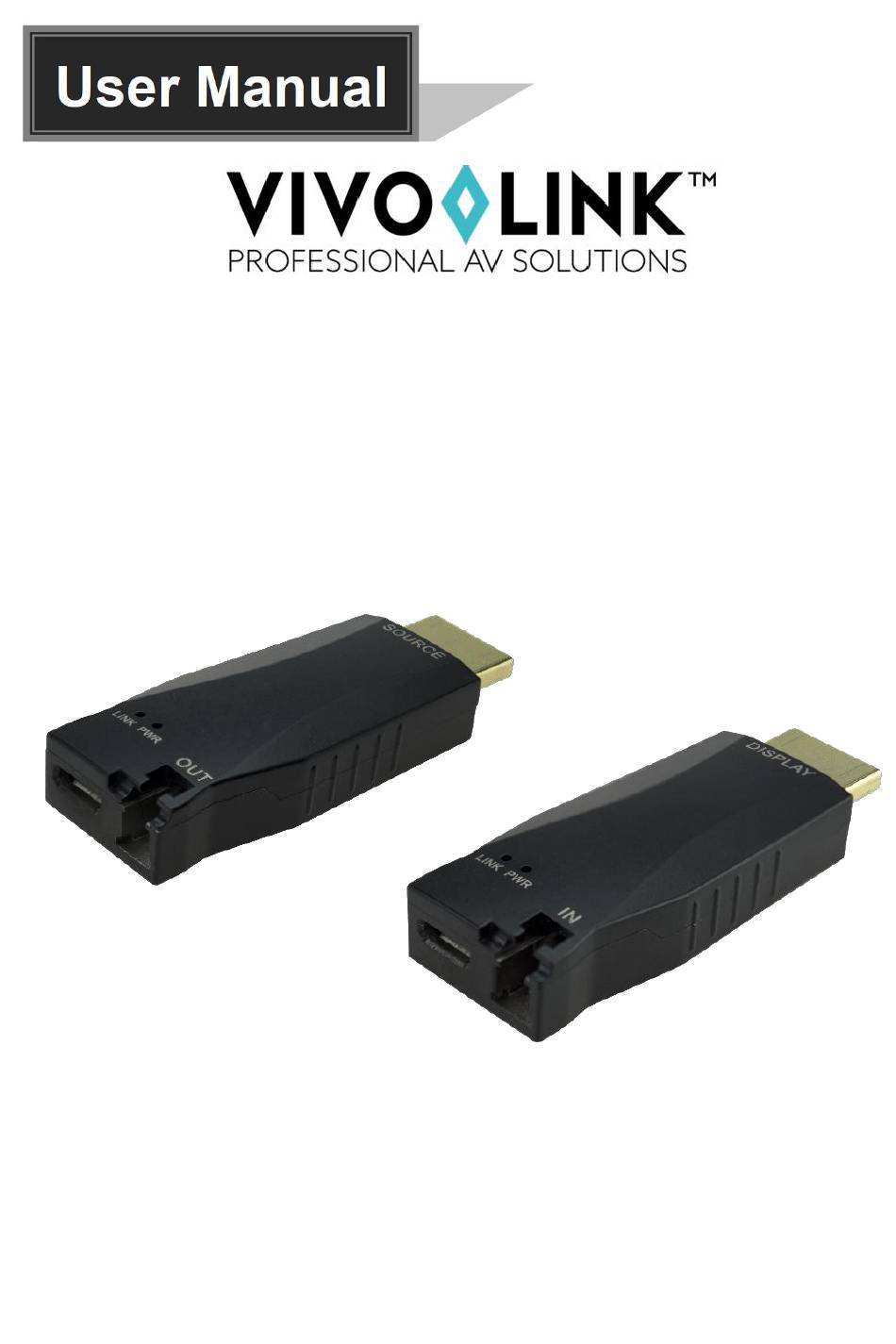

- Page 1 VLHDMIEXTDGL100 4K Optical Fiber Extender All Rights Reserved Version: VLHDMIEXTDGL100_2022V1.6...
-
Page 2: Fcc Statement
4K Optical Fiber Extender Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. -
Page 3: Safety Precautions
4K Optical Fiber Extender SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ... - Page 4 4K Optical Fiber Extender Elektro- und Elektronikgeräte Informationen für private Haushalte Das Elektro- und Elektronikgerätegesetz (ElektroG) enthält eine Vielzahl von Anforderungen an den Umgang mit Elektro- und Elektronikgeräten. Die wichtigsten sind hier zusammengestellt. 1. Getrennte Erfassung von Altgeräten Elektro- und Elektronikgeräte, die zu Abfall geworden sind, werden als Altgeräte bezeichnet.
- Page 5 4K Optical Fiber Extender bei rücknahmepflichtigen Vertreibern unter anderem dann, wenn ein neues gleichartiges Gerät, das im Wesentlichen die gleichen Funktionen erfüllt, an einen Endnutzer abgegeben wird. Wenn ein neues Gerät an einen privaten Haushalt ausgeliefert wird, kann das gleichartige Altgerät auch dort zur unentgeltlichen Abholung übergeben werden;...
-
Page 6: Package List
4K Optical Fiber Extender Introduction The extender set transmits HDMI signal using a Fiber Optic cable. The extender set supports up to 4k resolutions. It extends signals up to 2000m/300m via single mode or multi-mode cable. To achieve the best performance, it is recommend the product be used with OM2 or greater multimode fiber. - Page 7 Connection: The figure below illustrates a typical connection that can be utilized with VLHDMIEXTDGL100: Step1. Insert the transmitter into the HDMI port of a HDMI source device (e.g. a PC). Step2. Connect the OUT port of the transmitter to the IN port of the receiver with an optical fiber cable.
-
Page 8: Specification
4K Optical Fiber Extender Specification Transmitter (1) HDMI Input Signal (1) 19-pin Type A male HDMI Input Connector Input Signal HDMI 1.4 Output (1) Optical Fiber (1) LC connector Output Connector Output Signal Optical Fiber Receiver (1) Optical Fiber Input Signal (1) LC connector Input Connector Input Signal... -
Page 9: Troubleshooting And Maintenance
4K Optical Fiber Extender Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or vague/ Poor quality of the HDMI double image in HDMI Change for qualified cable. cable (if used) display Not been powered Power up the unit Power led is off, operations Make sure power adapter don’t work Poor contact of USB port... -
Page 10: Customer Service
4K Optical Fiber Extender Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
