- Page 1 User Manual VLHDMIEXTHDB2.0 Ultra-thin HDMI2.0 Extender 131ft/40m 4K UHD All Rights Reserved Version: VLHDMIEXTHDB2.0_2017V1.0...
- Page 2 1 x User Manual Introduction The VLHDMIEXTHDB2.0 is an ultra-thin HDMI2.0 Extender consist of transmitter and receiver. It extends 1080p/4K HDMI signal over CAT5e/CAT6a cable up to 70m /40m (PoC), and enables IR and RS232 pass-through to control source or display device remotely. It also adopt a visually lossless video compression technology (VLC) to ensure the HD lossless transmission of HDR and 4K@60Hz/4:4:4 over CAT5e/CAT6a cable.
-

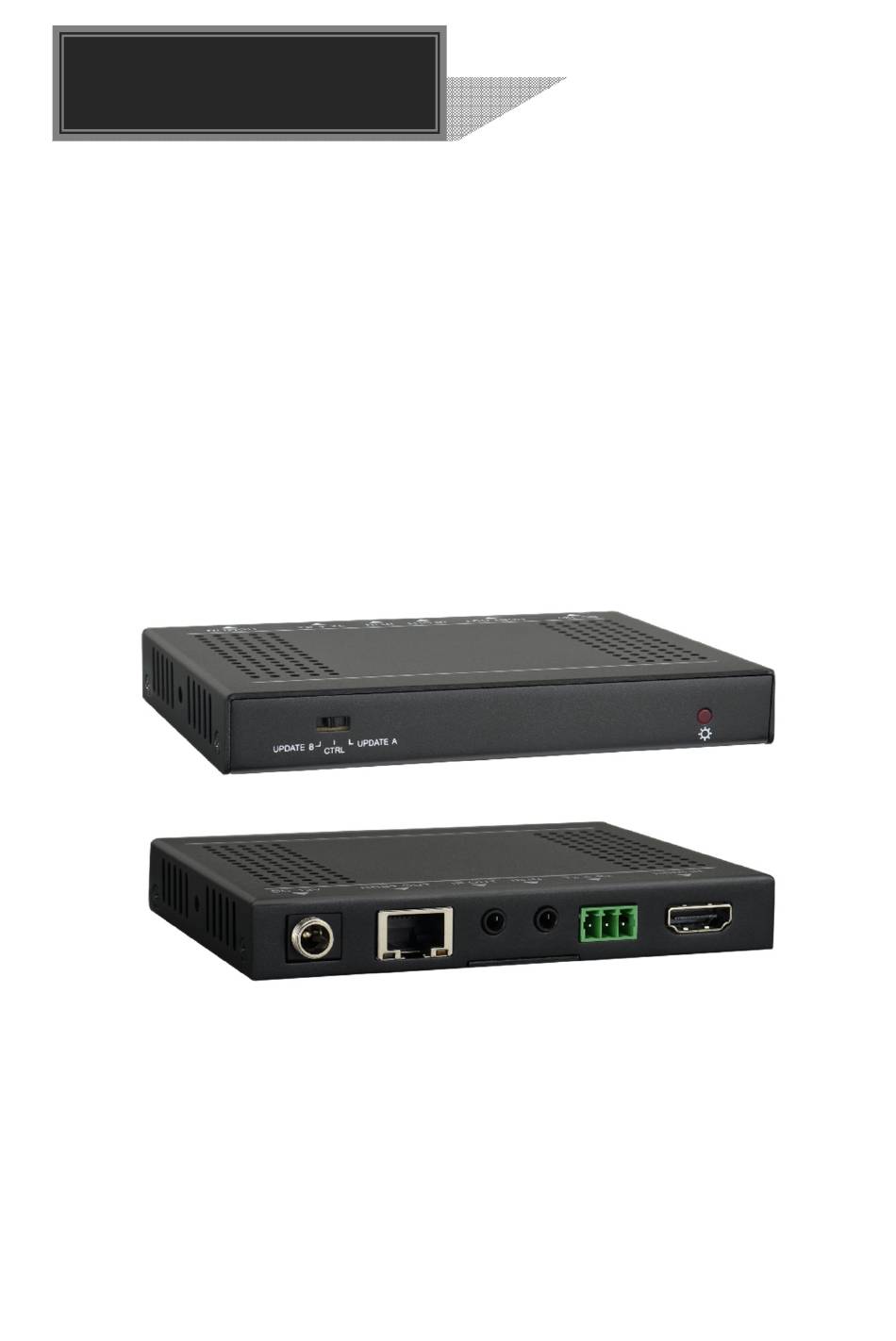

Page 3: Panel Description
Ultra-thin HDMI2.0 Extender Features Supports 4K/UHD/60Hz/4:4:4. Supports HDMI2.0 & HDCP2.2, and is backward compatible to the previous version. Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p. Supports CEC, IR and RS232 pass-through for long-distance control. Supports bi-directional PoC for simplified wiring. -
Page 4: System Diagram
Ultra-thin HDMI2.0 Extender Specification Model Transmitter Receiver Spec Input HDMI IN HDBT IN Output HDBT OUT HDMI OUT Control Ports IR IN, IR OUT, RS232 IR IN, IR OUT, RS232 General Transmission Mode & Distance HDBaseT; 1080p ≤ 70m; 4K×2K ≤ 40m Resolution Up to 4K×2K@60Hz 4:4:4 Bandwidth...
