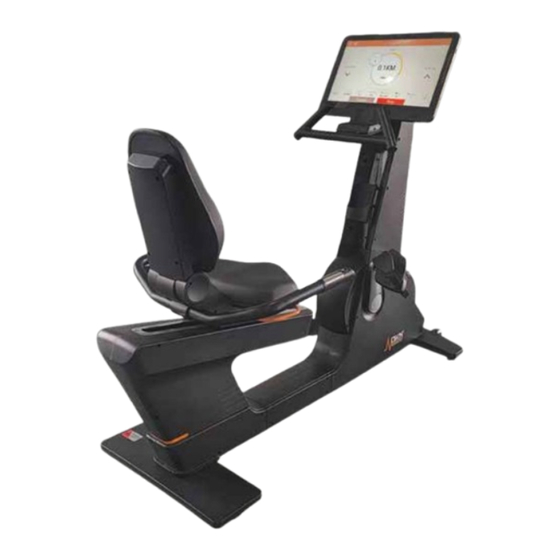

DKN technology RB PRO Owner's Manual

Hide thumbs

Advertisement

Table of Contents

1
RB PRO
OWNER'S MANUAL
OWNER'S MANUAL
WEBSITE
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB PRO and is the answer not in the manual?

Questions and answers

Related Manuals for DKN technology RB PRO

Summary of Contents for DKN technology RB PRO

  • Page 1 RB PRO OWNER’S MANUAL OWNER’S MANUAL WEBSITE MANUAL...
  • Page 2 IMPORTANT! Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are subject to change without notice.

  • Page 3: Important Safety Notice

    Before You Start Thank you for purchasing this Product! For your safety and benefit, read this manual carefully before using the machine. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. Assembly instructions are described in the following steps and illustrations. IMPORTANT SAFETY NOTICE PRECAUTIONS BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR OPERATE...
  • Page 4 WARNING! Consult your physician before starting with any exercise program. He can advise on the kind of training and which impact is suitable. WARNING! This machine is not suitable for therapeutic or medical purpose. WARNING! Over exercising may result in serious injury or death. If you experience dizziness, nausea, chest pain, or any other abnormal symptoms STOP EXERCISING IMMEDIATELY AND CONSULT A PHYSICIAN WITHOUT DELAY.

  • Page 5: Exploded Diagram

    EXPLODED DIAGRAM - 3 -...

  • Page 6: Parts List

    PARTS LIST Part Part Description Description Main frame Bearing 608ZZ Handlebar post Wireless transmitter panel Handlebar connecting tube 35L/R Upright tube cover Seat slider Upright tube front cover Connecting bracket Upright tube rear cover Back bracket Console cover Handlebar 39L/R Seat cover Small handlebar Backrest cover...
  • Page 7 Spring washer D10 61L/R Pulse wire Spring washer D8 Control extension wire 1 Nylon nut M8 Control extension wire 2 Handle tighten screw NOTE: Most of the listed assembly hardware has been packaged separately, but some hardware items have been preinstalled in the identified assembly parts. In these instances, simply remove and reinstall the hardware as assembly is required.
  • Page 8 Step 2: Attach the Rear stabilizer (12) and Front stabilizer (11) to the Main frame (1) with the screw (16), Spring washers (29) and Flat washers (27). Fix the Foot pad (45) to the Main frame (1). Adjust the Foot pad (45) to be parallel to the foot pad of Rear stabilizer (12) and Front stabilizer (11).
  • Page 9 Step 3: Attach the Pedals (51L/R) to the Cranks (52L/R) respectively with wrench . Note: The marks “L “and “R” on the pedal are for left and right side of the crank. The pedal (L) should be turned counter-clockwise to the crank (L). On the contrary, the pedal (R) should be turned clockwise to the crank (R).
  • Page 10 Step 4: Pre lock the Connecting bracket (5) to Seat slider (4) with screw (19), Spring washer (30) and Flat washer (28). - 8 -...
  • Page 11 Step 5: Put through Pulse wire (61L/R) to Connecting bracket (5), then lock Handlebar (7) to Connecting bracket (5) with screw (17), Spring washer (30) and Flat washer (28). Lock Back bracket (6) to Connecting bracket (5) with screw (19), Spring washer (30) and Flat washer (28).
  • Page 12 Step 6: Back-out Screws (56) on Adjustable handle sleeve (13). Lock Seat cover (39L/R) to Seat slider (4) with Screw (15) and Screw (25). Insert Adjustable handle (10) to Adjustable handle sleeve (13), and then lock tightly with Screw (56), at last, lock Adjustable handle (10) to Seat slider (4) with Screw (56), Plastic spacer (59), Wave washer (57) and Screw (32).
  • Page 13 Step 7: Attach the Backrest (42) to the Back bracket (6) with Screw (19) , Flat washers (28) and Spring washer (30). Attach the Seat (43) to the Seat slider (4) with Screw (19), Flat washers (28) and Spring washer (30). - 11 -...
  • Page 14 Step 8: Connect wires of Wireless transmitter panel (34) with Pulse wire (61L/R), then Lock Backrest cover (40) to Backrest (42) with Screw (25). Life up Adjusting handle (10) to adjust the seat to the rear end, then lock Handlebar post cover (41) to Handlebar (7) with Screw (25).
  • Page 15 Step 9: Attach the Handlebar post (2) to Main frame (1) with Allen bolt (20), Flat washers (28) and Spring washer (30). Lock Fixed plate(9) to Handlebar post (2) with Allen bolt (20) and Screw (23). Connect Control extension wire 1(62) with Control extension wire 2(63). - 13 -...
  • Page 16 Step 10: 1.Lock Small handlebar (8) to Handlebar connecting tube (3) with 2. Insert the Back bracket (10) to the support tube of Seat slider (9) ,and then fix Back bracket (10) to Seat slider (9) with Allen bolt (17),Spring washer (26) and Flat washer (23). 3.
  • Page 17 Step 11: Pre lock Upright tube front cover (36) to Handlebar post (2) with Screw (25) (Note: Do not lock tightly, make sure the Upright tube front cover (36) can move up and down.) Insert Upright tube cover (35L/R) to Upright tube front cover (36), then lock them tightly with Screw (15) and Screw (25).
  • Page 18 Step 12: Align Upright tube front cover (36) with Upright tube rear cover (37), and then lock tightly to Handlebar post (2) with Screw (26). Align Upright tube front cover (36) with Upright tube rear cover (37), and then lock Upright tube rear cover (37) to Handlebar post (2) tightly with Screw (25).
  • Page 19 Step 13: Connect Control extension wire (63) and Extension wire (53) with related wires of Computer (44), and then lock Computer (44) tightly to Handlebar post (2). Lock Console cover (38) to Handlebar post (2) with Screw (25). Lock Bottle holder (49) to Upright tube front cover (36) with Screw (25). - 17 -...
  • Page 20 DISPLAY 1. POWER ON ( Home page): 2. Function Spec Description: A. MY TRAINING：Displays total motion data B. GET STARTED： QUICK START / INTERVAL / MAP YOUR ROUTE /Constant Power/Program/Heart rate Control Total six modes of exercise for choose C. System Setting ：This page can operate login account/home page/historical data/new linked account/Settings and other functions D.
  • Page 21 Data&time setting WIFI setting BT PULSE 2023/8/7P2/20...
  • Page 22 3. Display Range ： ： ITEM Description DISTANCE ‧ Display the movement distance ‧ Display value range 0.0 ~ 99.9 in Cycle SPEED ‧ Display the movement speed ‧ Display Value range 0.0 ~ 99.9 ‧ Display RPM ‧ Value range 0 ~ 999 TIME ‧...
  • Page 23 5. SYSTEM SETTING OPERATION : A. LOGO IN: ( photo) Personal information login and create, login account (Email application, FB , We Chat , GOOGLE login) B . HOME: Back to home page C.TRAINING HISTORY: Exercise information enquiry (login required) D.
  • Page 24 GOOGLE /FACEBOOK/WECHAT CREATE ACCOUNT 2023/8/7P5/20...
  • Page 25 B. TRAINING HISTORY C C . . S S E E T T T T I I N N G G : : 2023/8/7P6/20...
  • Page 26 Click SYSTEM SETTINGS to enter into system setting (wifi brightness ,volume ,BT, Language ,KM/ML) a.Brightness b.Volume 2023/8/7P7/20...
  • Page 27 c.WIFI d. bluetooth device 2023/8/7P8/20...
  • Page 28 e. language f.Distance Unit 2023/8/7P9/20...
  • Page 29 SYSTEM UPGRADE into APP updata 2023/8/7P10/20...
  • Page 30 Multimedia mode (slide the page left and right to select the APP icon you want to use) A. Select APP :NETLIX、YOUTUBE、SPOTIFY、KINOMAP、CHROME、FACEBOOK、 TWITTER、 、 INSTAGRAM、 、 AMAZON PRIME VIDEO、 、 AMAZON SHOPPING 2023/8/7P11/20...
  • Page 31 Multimedia mode, user can press “ “ to display or hide the movement value, press “ ” back to the last system function page., press “ ” to the home page , press “ “to start training ,press” “ stop exercise.
  • Page 32 7、 、 Function Introduction Quick Start / Interval /Map Your Route/Constant Power/Program/Heart rate Control 2023/8/7P13/20...
  • Page 33 QUICK START MODE： ： 1. Setting the exercise value (DIST/TIME/CAL)，Press “START” go to training, data start to counting . 2. When start training can adjust the LEVEL UP&DOWN /FAN，press “PAUSE” enter into break mode, press “STOP” to exit this mode. When finished, the SUMMARY displays .
  • Page 34 B. INTERVAL MODE： ： A. Can set the functions value of CYCLE /TIME /LEVEL /TARGET RPM separately，press “START” go to training. Warm up first, then start INTERVAL mode C. In high intensity time can adjust the load level (display the level as set ) When in rest time adjust the load level，keep display the level as set .
  • Page 35 2023/8/7P16/20...
  • Page 36 C.MAP YOUR ROUTE MODE： ： 1. After entering this mode, it will detect the current region, click “ ” load the preset link,distinguish Chinese and non-Chinese region.; click “ ” can switch to the world map(GOOGLE MAP) or China Map. preset “...
  • Page 37 D、 、 Constant Power MODE: 1. User can set TIME/TARGET POWER/TARGET CADENCE , then press “START” go to training. 2. LEVEL will be adjusted according to the value of WATT. 3. Press “ Pause ‘”go to break mode, press “ Stop “ leave this mode. When finished, the SUMMARY displays .
  • Page 38 E.PROGRAM MODE: 1. Set the TIME and select P1~P12 PROGRAM，press “ START” go to training. 2. When start user can adjust the LEVEL UP&DOWN /FAN，level will be adjusted according to the PROGRAM. 3. Press “PAUSE” enter into break mode, press “ STOP” leave this mode. When finished, the SUMMARY displays .
  • Page 39 F. HEART RATE CONTROLMODE: 1. User can set the AGE/ TIME/ TARGET 55% 75% 90% TAG PULSE，press “ START” go to training. 2. LEVEL will be adjusted according the goal value of heart rate, if not reached the goal value , the load level will increase ,if over the goal value level will decrease automatically.
  • Page 40 CAUTION When heart rate do not display with hands on position E, please check wires of Wireless transmitter panel (34) and Pulse wire (61L/R) well connected, if wires well connected but still without heart rate display, please change batteries in battery case (F). battery will naturally...

  • Page 41: Warm-Up And Cool-Down

    WARM-UP and COOL-DOWN A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.

  • Page 42: Bluetooth Function

    BLUETOOTH FUNCTION Check the DKN-Technology website for more information about which apps the Recumbent Bike is compatible with. Turn on Bluetooth function on your tablet or smartphone to connect it with the machine (pairing is not required). Download the app, open it on your device and follow the steps to set it up. For any technical questions on third party app functionality do consult the FAQ section on the specific app developper’s website.

  • Page 43: Warranty

    WARRANTY DKN-Technology warrants this product to be free from defects in material at the time of the product’s tender of delivery. This ‘Carry-in’ Limited Warranty applies for a period of two (2) years, beginning on the date mentioned on your product invoice or proof of purchase of product issue by DKN-Technology.
  • Page 44 WEBSITE Make an Appointment to Visit our Showroom...
