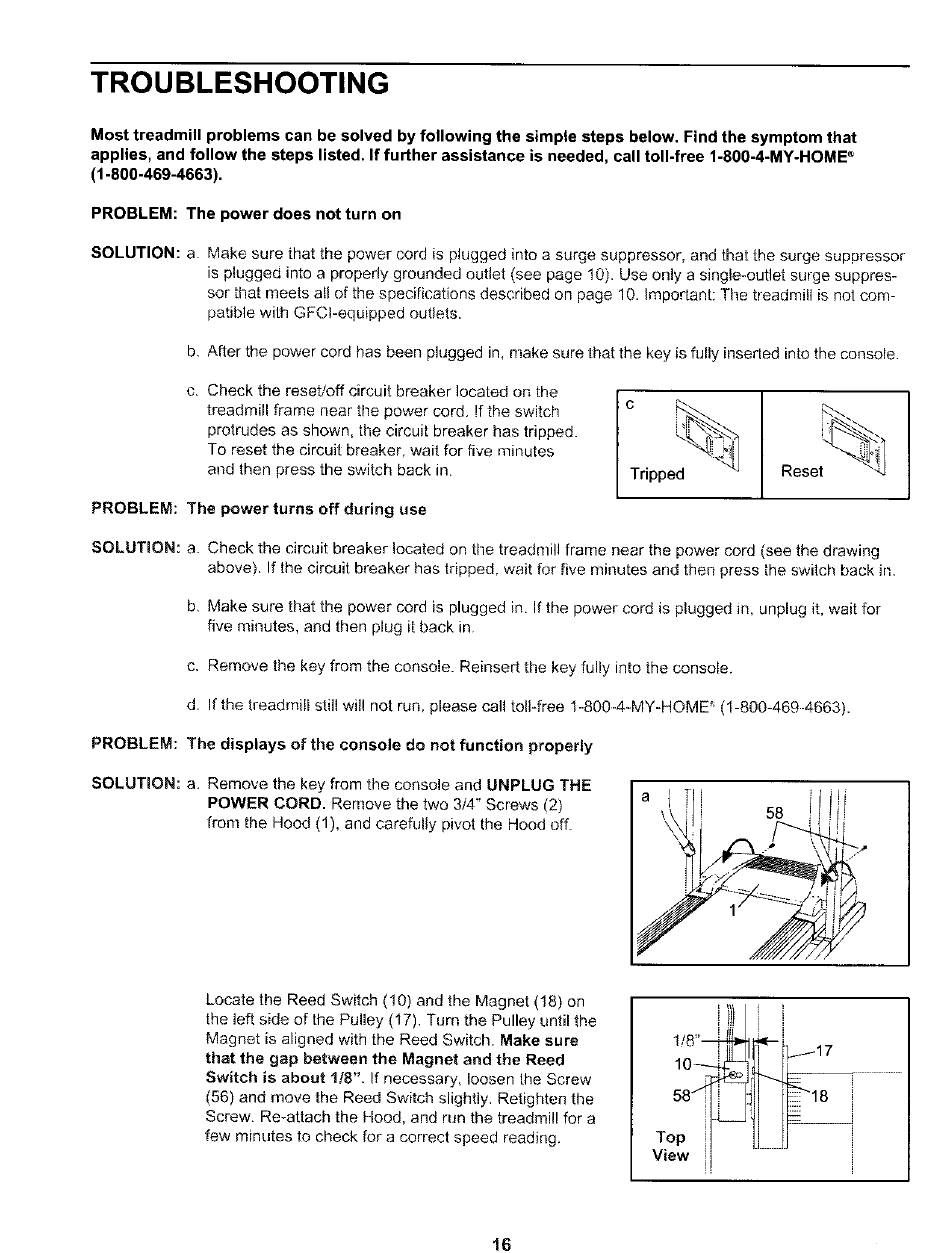

TROUBLESHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call toll-free 1-800-4-MY-HOME ®
(1-800-469-4663).
PROBLEM: The power does not turn on
SOLUTION: a Make sure that the power cord is plugged ir_toa surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres-
sor that meets al! of the specifications described on page 10. Important: The treadmill is not com-
patible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
C.
Check the reseVoff circuit breaker located on the
treadmill frame near the power cord. !f the switch
protrudes as shown, lhe circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
Tripped
Reset''_" _ _°_
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above}. If the circuit breaker has tripped, wait for .riveminutes and thee press the switch back in,
b, Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call toll-flee 1--800-4-MY-HOME', 1-800-469-4663).
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the two 3i4" Screws (2)
I'rom the Hood (1), and carefully pivot the Hood off.
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1!8". If necessary, loosen the Screw
(56) and move the Reed Switch slightly. Retighten the
Screw Re-attach the Hood, and run the treadmill for a
few minutes to check for a correct speed reading.
1 " !!!_. i i
1'0 _ ! '_17
°iu,l_
Top H !l i
Viewii i
16
