Setup Guide — DVI DA2 and DVI DA4
W Installation and service must be performed by
authorized personnel only.
These instructions provide a quick setup guide for the
Extron DVI DA2 and DVI DA4. They are for use by
experienced installers.
To install, cable, and power on the DVI DA2 and DVI DA4:
Step 1 — Installation
Install the DVI DA2 or DVI DA4 on a desk, mount it under a desk or mount it in a rack.

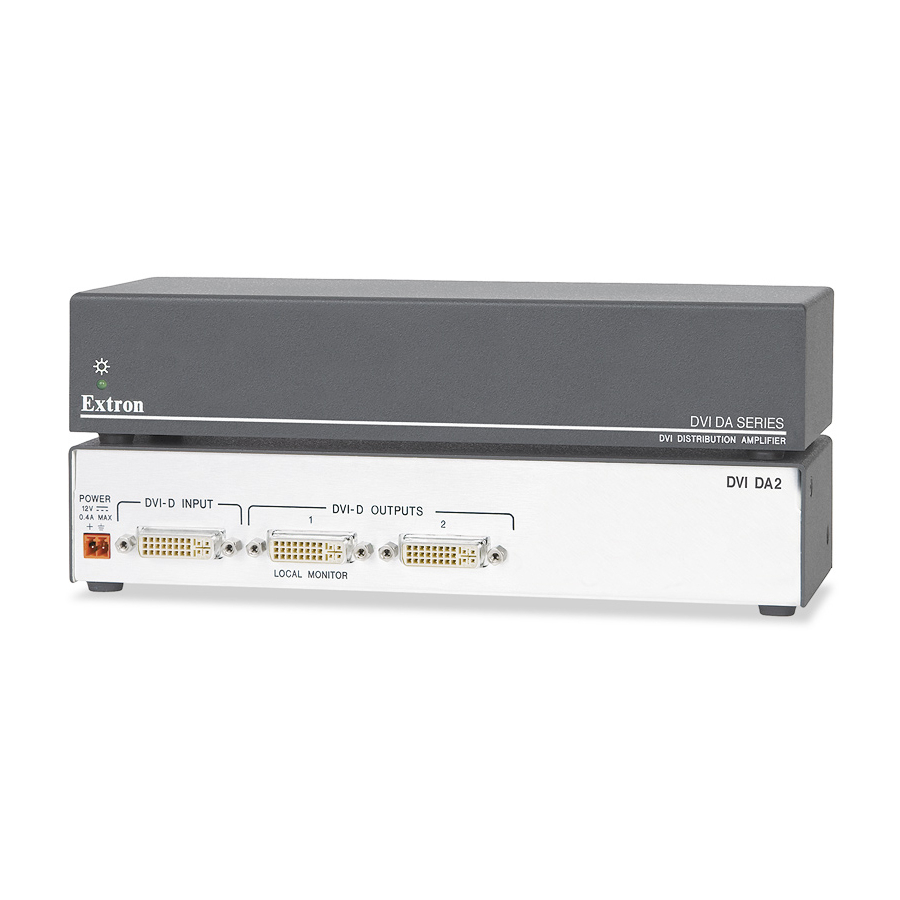

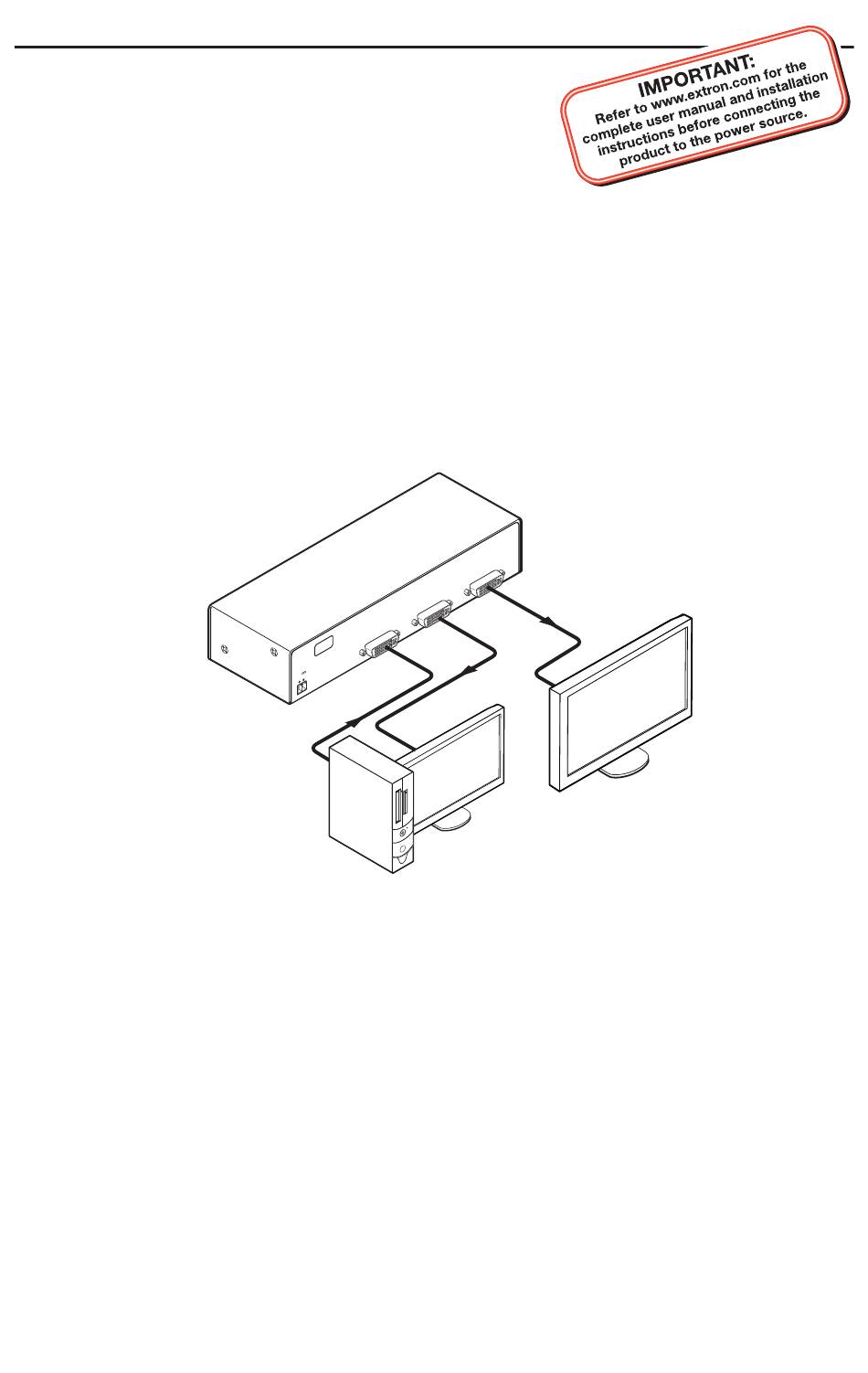

Step 2 — DVI Input/Output Cable Connections
Connect these cables, but do not power on the equipment yet:
• Connect a DVI cable from the Input connector to the video source device.
• Connect a DVI cable from the Local Output connector to the desired local output device.
• Connect a DVI cable(s) from the Output connector(s) to the desired display device(s).
Extron
DVI DA2
DVI Distribution
Amplifier
T
P U
U T
L O
C A
L O
T
P U
I N
T S
O R
P P L Y
O N
S U
I- D
D V
R
W E
P O
V X
1 2 M A
A
0 .4
"Local Output"
Monitor
PC
A 2
I D
D V
U T
T P
O U
LCD
Flat Panel
Display
(Continued on reverse side)
