Shinhoo PFM 03-30 EC Installation And Operating Instructions Manual

Multistage centrifugal frequency pressure maintain pump

Advertisement

Quick Links

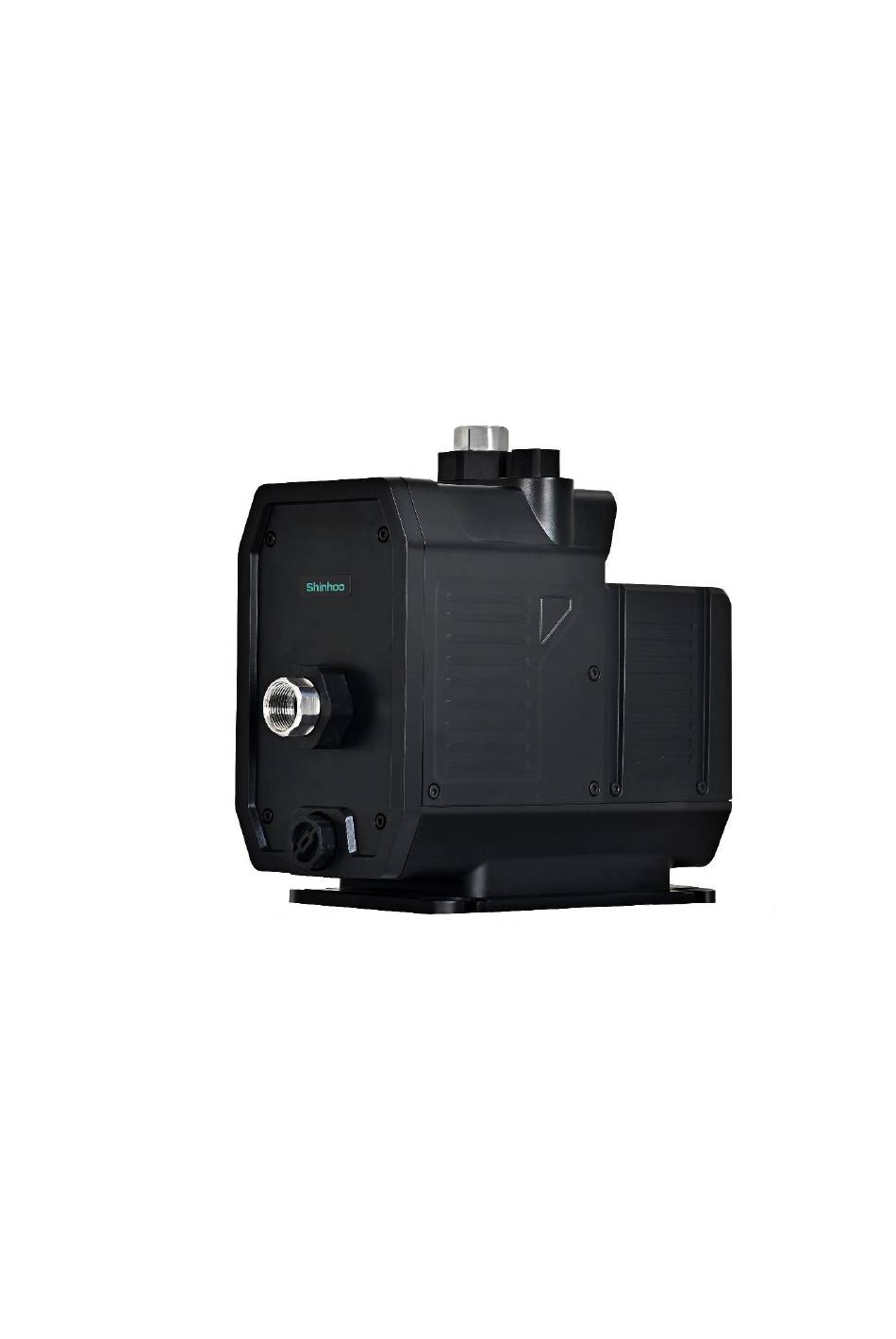

Multistage centrifugal frequency
pressure maintain pump
Installation and operating instructions
Product Type: PFM 03-30 EC
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFM 03-30 EC and is the answer not in the manual?

Questions and answers

Summary of Contents for Shinhoo PFM 03-30 EC

  • Page 1 Multistage centrifugal frequency pressure maintain pump Installation and operating instructions Product Type: PFM 03-30 EC - 1 -...
  • Page 2: Table Of Contents

    Table of contents Company Statements Notes 1.Product Introduction 1.1 Type key 1.2 Applications 1.3 Technical data 1.4 Pumped liquids 1.5 Environment requirements 1.6 Storing requirements 2.Product list、dimensions &construction 2.1 Product list 2.2 Dimensions 2.3 Construction 3.Performance Curve 4.System application 4.1 Installation requirements 4.2 How to installa 4.3 Mains water pressure boosting 4.4 Suction from well or tank...
  • Page 3: Company Statements

    Company Statements ◆ Please read the instructions carefully before use. Installation and use of equipment must comply with local regulations and applicable operating standards for proper use of water pumps. ◆ Please observe the instructions with various signs such as warnings and cautions for the purpose of using the product correctly and preventing damage.
  • Page 4: Notes

    : Notes Before installation and use, please read the installation manual carefully. (1)Any failure to comply with the contents marked in the safety warning mark may cause personal injury, pump damage and other property damage, for which the factory does not assume any responsibility and compensation.
  • Page 5 measures should be taken to keep children out of reach. (17)This product should be placed in a dry, ventilated, cool place, and stored at room temperature. (18)Disasters or losses that occurred due to the following non-compliance with the contents of this manual are not covered by the company's warranty: 1) The pump cannot be used normally due to the disassembly, maintenance or use of the pump out of the operating conditions of the pump by unqualified personnel.
  • Page 6: Product Introduction

    Product Introduction 1.1 Type Key PFM 03-30 E C equipped with check valve External Norminal head: 30m Norminal flow: 3 m 3 /h Multistage centrifugal frequency pressure maintain pump 1.2 Applications ⚫ Pressure boosting of city mains water ⚫ Water supply from shallow wells ⚫...
  • Page 7: Technical Data

    1.3 Technical Data Rated voltage:220V Rated current:2.9A Frequency:50Hz Max.input Max. flow:5.5m³/h Max. head:45m power:600W Norminal flow :3m³/h Norminal head:30m IP rating:IP44 System pressure:≤10bar Max.Suction Insulation class:F (inlet pressure≤0.6bar) head:8m Direction: Inlet and outlet Counterclockwise when interface:G1 internal viewed from pump inlet thread 1.4 Pumped liquids Temperature range: 0 to +50 ℃...
  • Page 8: Dimensions

    2.2 Dimensions Note Fixed water pump foot bolts can be M8 and below specifications. 2.3 Construction Caution Water pump wearing parts: check valves, joints, joint nuts, mechanical seals, etc., need to regularly check whether the operation is abnormal to prevent leakage。...
  • Page 9: Performance Curve

    2.4 Gear selection According to the water consumption model construction and calculation, the default setting of 3.0bar pressure gear can meet most household water consumption scenarios。 3. Performance Curves - 9 -...
  • Page 10: System Application

    Note: The above performance curves are in non-priming state 4. System Application a) Installation requirements Caution (1)Check whether the power supply voltage and frequency of the installation site are consistent with the voltage and frequency identified by the pump. (2)The environmental factors of the installation site should be within the scope of the pump use requirements.
  • Page 11 (5)When installing the water pump in the pipeline, it is necessary to confirm whether the inlet of the check valve rebounds normally. (6)The pump should be installed on the water collection device, and drainage measures should be done in the installation area to prevent damage caused by pipeline or pump leakage.
  • Page 12: How To Installa

    b) How to installa The connectors, hoses, brackets, etc. in the picture need to be purchased separately by the user. Precautions for installation of water pump connection Caution iii. When connecting external piping to the pump connection, ensure that tools such as pipe pliers are stuck on the metal joint (left-hand panel) to prevent damage to the joint sealing structure.
  • Page 13 Pump water injection and drainage operation method ➢ Before the pump is powered on, make sure that clean water (about 1L) has been added to the pump. The filling method is shown in the figure, now unscrew the water injection screw plug counterclockwise, then fill clean water through the water injection hole until it overflows, and finally tighten the water injection screw plug clockwise.
  • Page 14: Mains Water Pressure Boosting

    4.3 Mains water pressure boosting - 14 -...
  • Page 15: Suction From Well Or Tank

    Pos. Description Highset tapping point Pipe hangers and supports Optional pressure-reducing valve on the inlet side if the pressure can exceed 10 bar Valves Pressure gauge Flexible hoses Mains water pipe Rubber Pad 4.4 Suction from well or tank - 15 -...
  • Page 16: Control Function

    Pos. Description Highset tapping point Flexible hoses Pipe hangers and supports Inlet filter(If the water may contain sand, gravel or other debris,please install a filter on the inlet side to protect the pump and installation) Foot valve with strainer Maximum suctionlift is 8 m Inlet pipe must be submersed at least 0.5 m 5.
  • Page 17: Setting The Product

    5.2 Setting the product (1)Starting the pump(The factory pressure setting is 3 bar.) For example:“Pressure 0.6bar,Temperature 12.4℃” (2)Setting the outlet pressure: Users tap the " " once in a row, when the "pressure" indicator lights up and flashes, then adjust the outlet pressure by pressing "▲/▼" . - 17 -...
  • Page 18 (3)Check the input power: Users tap the " " twice in a row, when the "power" indicator lights up and flashes, then check the input power. (4)Check the liquid temperature: Users tap the " " third in a row, when the "temperature" indicator lights up and flashes, then check the liquid temperature.
  • Page 19 (5)Setting the scheduled operation: User tap " " forth in a row, and when the "time" indicator lights up and flashes, the timing running time can be adjusted by tapping "▼/▲", and the unit is set to one hour. Note:Timing mode means that the pump automatically stops after the set time of operation, and if the pump needs to be started, it needs to be manually restarted.
  • Page 20: Fault Finding Chart

    6. Fault Finding chart Warning! ! Before preparing to make any repairs to the pump, make sure that the power supply has been disconnected and cannot be accidentally switched on. When the pump is running abnormally, the cause of the fault can be found according to the corresponding fault phenomenon and fault indications/code in the table (shown as the basis), and corresponding countermeasures can be made.
  • Page 21 high. liquid or ambient temperature exceeds the limit Immediately power off, Temperature sensor open the inner box cover failure to see if the temperature sensor and pressure sensor have come off, if none of them fall off, check Pressure sensor whether the temperature failure of the liquid and the...
  • Page 22 Prime the inlet and the (4)There is air in pump. the inlet pipe or the Check the inlet pump. conditions of the pump. Turn on the water source, the pump runs for a (1)There is air in while, and the air is There is some the pump.
