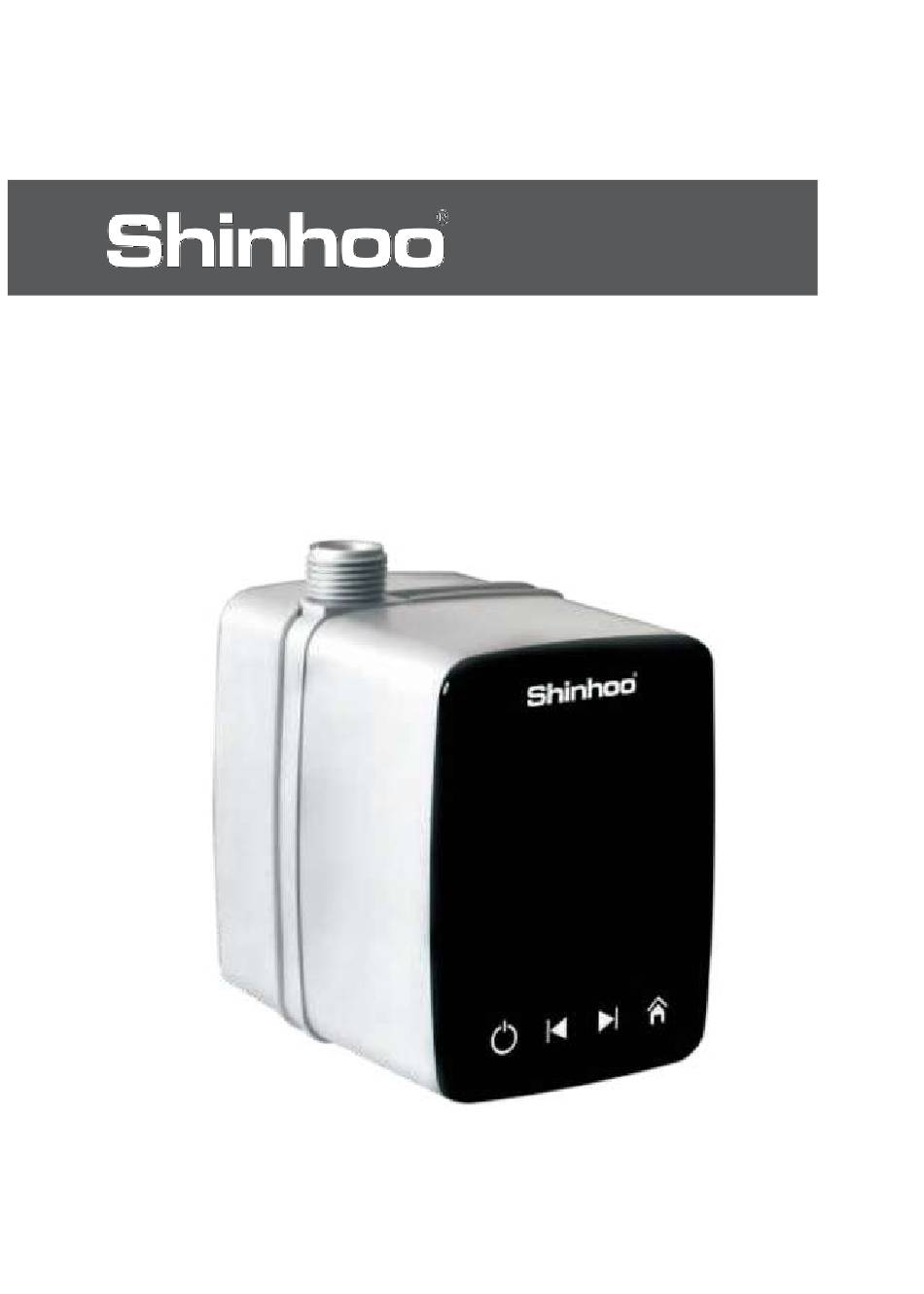

- Page 1 Installation and operation instructions Household zero cold water shielded electric pump SPA15-12E External zero cold water shielded electric pump Anhui Shinhoo Canned Motor Pump Co., Ltd...
-
Page 2: Cautions For Use
CAUTIONS FOR USE Read the installa�on instruc�ons carefully before installa�on and ◆ use. Any failure to comply with the contents of the safety warning mark ◆ may cause personal injury, pump damage and other property losses, for which the manufacturer shall not assume any responsibility and compensa�on. - Page 3 In winter, if the pump system is not running or the ambient ◆ temperature is below 0 ° C, the liquid in the pipeline system should be emp�ed to avoid freezing and cracking of the pump body. If the pump is not used for a long �me, close the water pipe valve ◆...
-
Page 4: Table Of Contents
Cautions for use 1.Safety instructions 2.Transportation and storage 3.Meaning of symbols and inscriptions 4.General information about product 4.1 Product model descrip�on 4.2 SPA15-12E pump parameters 4.3 SPA15-12E pump advantages 4.4 Condi�ons of use 4.5 Condi�ons of storage 4.6 Performance curve 4.7 Nameplate 4.8 Technical data... -
Page 5: Safety Instructions
1. Safety instructions ◆Please read the instruc�ons carefully before use, the installa�on and use of the equipment must comply with local regula�ons and applicable opera�ng standards, in order to correctly use the pump. ◆In the manual, there are various signs such as warning/a�en�on, the purpose is to use the product correctly and prevent harm and loss, please strictly abide by it. -
Page 6: General Information About Product
Warning Persons (including children) with reduced physical strength,lethargy or mental impairment, lack of experience and relevant knowledge must be supervised and guided by the person responsible for their safety before using this electric pump. Warning There will be high temperature and high pressure hot water in the pump. -
Page 7: Spa15-12E Pump Parameters
4.2SPA15-12E pump parameters Flow(Max): Head(Max): Voltage: Current(MAX): 20 l/min 12 m AC 220V 0.5A Rated flow: Rated head： Power(Max)： Noise： 10 l/min 60 W ＜42dB（A） Temperature Protec�on Design pressure : Insula�on level： ra�ng :TF80 level:IP44 10bar Overall dimension：140mm*115mm*85mm 4.3SPA15-12E pump advantages This product is easy to install and use. -
Page 8: Nameplate
Fig. 2 Performance curve 4.7Nameplate Fig. 3 Nameplate 4.8Technical data Power voltage 220-240V，50/60Hz IP44 Protec�on level Insula�on level Ambient rela�ve air ≤95% humidity（RH） System pressure level 10bar Inlet pressure Liquid temperature Inlet pressure（Min） ≤+60℃ 0.1 bar 0.28 bar ≤+80℃ Noise level ＜42dB（A）... -
Page 9: Installa�On Dimensions
4.9Installation dimensions Fig. 4 Installa�on dimensions 5. Packing and moving 5.1Packaging Upon receipt of the equipment, inspect the packaging and the equipment itself for any damage that may have occurred during transporta�on. Before disposing of the packaging, carefully check for any documents or small parts that may have been le�... -
Page 10: Area Of Application
6. Area of application 6.1Application SPA15-12E household zero cold water shielded electric pump is mainly used for water circula�on or pressuriza�on in domes�c hot water systems, the front of the product is equipped with an opera�on panel, which is easy for users to operate. -
Page 11: Principle Of Action
Usage scenario 3 （The waterway has a return pipe , the pump has the func�on of circula�on and pressuriza�on ） Fig. 7 Usage Scenario 3 Note：Valves need to be installed on both sides of the pump for easy maintenance Usage scenario 4（The waterway has a return pipe , the pump has the func�on of circula�on ）... -
Page 12: Mechanical Installation
8. Mechanical installation ◆Install SPA15-12E series household zero cold water shielded electric pump. The arrow on the pump housing indicates the direc�on of liquid flowing through the pump body. ◆When installing the electric pump in the pipeline, the inlet and outlet shall be fi�ed with the two gaskets provided. -
Page 13: Connection Of Electrical Equipment
9. Connection of electrical equipment Fig. 10 Wiring Diagram Check that the supply voltage and frequency are consistent with the parameters indicated on the pump Prohibit live opera�on nameplate. Use the adapter that comes with the pump to connect to the power supply. The light on the control panel indicates that the power is on. -
Page 14: Operation
11. Operation 11.1All on interface and function area description Fig. 11 Display and func�on area Posi�on Instruc�ons Displays the current running mode and Pa�ern area mode selec�on Displays the current water temperature in Running display the pump and pump opera�on indica�on Displays other control modes Display pump fault code, fault indica�on Temperature se�ng ligh�ng area... - Page 15 11.2Display interface and function description when pump is running One-click start function：A�er the user touches the "Start" bu�on, the pump starts to run. When the water temperature reaches the set temperature upper limit or there is no flow in the pipeline, the pump stops running.
-
Page 16: Pump Opera�On And Fault Self-Test
11.3Pump operation and fault self-test A�er the power is turned on, the corresponding mode light will be on in the mode area, and the water temperature and running indicator will be on in the opera�on display area. The failure of the electric pump to work normally is displayed as follows on the display interface: Fault code Protec�on mode Fault type... - Page 17 The water pump will stop working a�er Stalled rotor protec�on the rotor locked 3 second， Pump will stop working，and restart a�er 8s. The water pump will be completely protected and will not be restarted unless the power is re-energized if the protec�on accumulates to 5 �mes.
-
Page 18: Pump Parameter Se�Ng
11.4Pump parameter setting “One-click start”parameter setting A�er the screen is lit up, hold down the "HOME" bu�on for 2 seconds, then the corresponding mode on the screen starts to blink, tap the "HOME" bu�on, select the " one-bu�on start" mode to blink, tap the " Forward"... -
Page 19: Startup And Mode Selec�On
Time calibration (time alignment) A�er the screen is lit up, hold down the "HOME" bu�on for 2 seconds, then the corresponding mode on the screen starts to blink. Tap the "HOME" bu�on and select "Time Se�ngs" to blink. Tap "Forward" to select a parameter to be set, the corresponding parameter blinks a�er selec�on, tap the "Back"... -
Page 20: Fault Checklist
not flow, the pump stops. Suitable for home water level is low, do not need temperature control func�on occasions. Time set up Set the �me before the product is used, so that the pump �me is consistent with the current �me, and avoid the �ming mode inconsistent with the expected se�ng �me. - Page 21 No power in the Check if power is socket off Electric pump Replace the failure electric pump Display Pump idling (no Open water valve “E3” water in the line) Display Pump motor failure Replace the pump “E4” Display Electric pump rotor Remove impuri�es “E5”...
-
Page 22: Anhui Shinhoo Product Warranty
The parts warranty is free of charge. ◆Anhui Shinhoo Canned Motor Pump Co., Ltd. does not accept claims for damages that should be the responsibility of a third party or caused by the failure of any other company's products. - Page 23 Anhui Shinhoo Canned Motor Pump Co., Ltd No.780 Mingchuan Road, Hi-tech Development Zone, Hefei, Anhui TEL：0551-62379882 shinhoopump.
