Summary of Contents for Shinhoo Master SD PWM

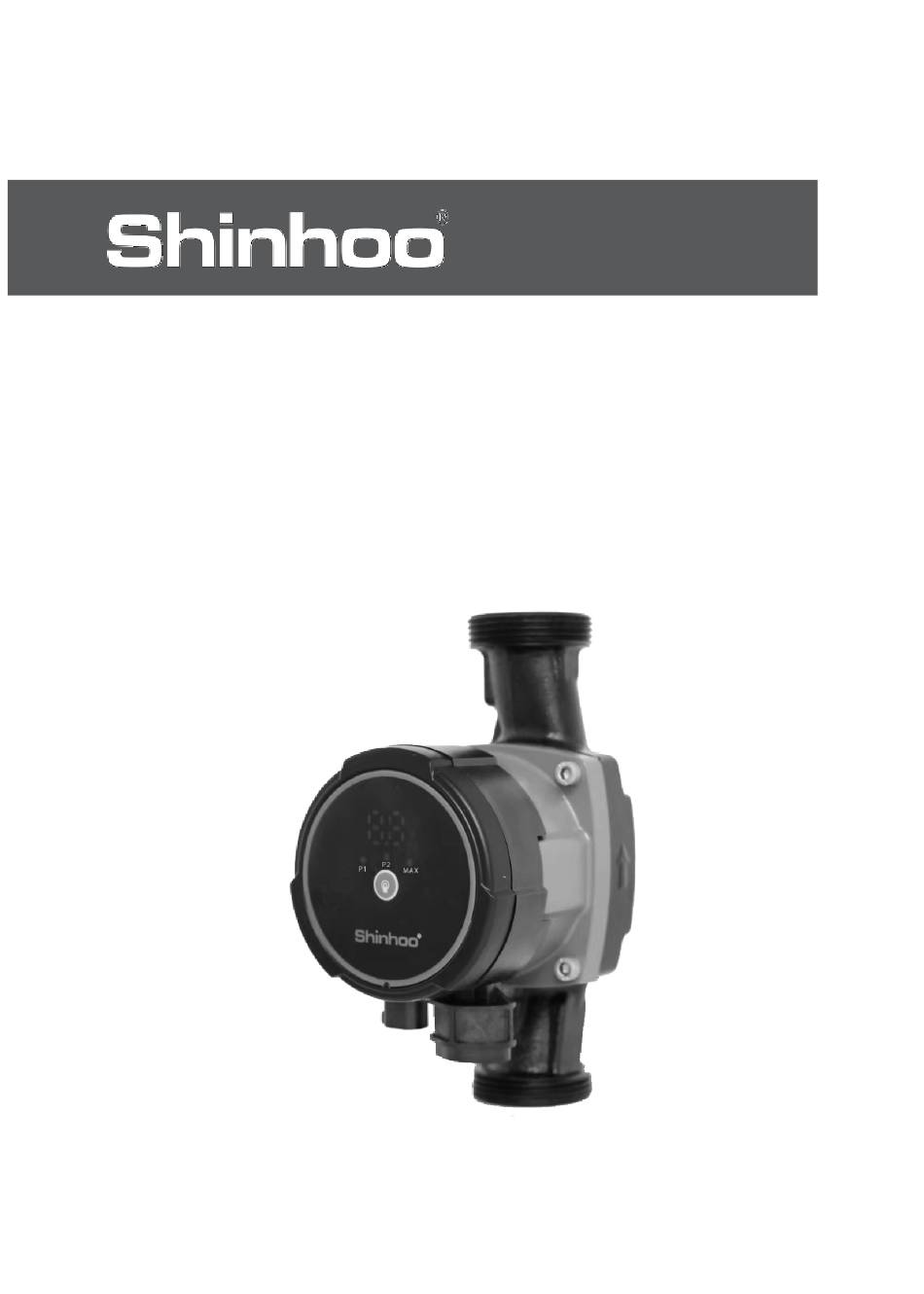

- Page 1 Master SD PWM Installa�on and Opera�on Manual...
-
Page 2: Table Of Contents
Installa�on and Opera�on Manual CONTENTS. 1.Safety instructions General informa�on about the document Meaning of symbols and on the product Qualifica�on and training of service personnel Dangerous consequences of non-observance of the safety instruc�ons Performing work in compliance with safety regula�ons Safety instruc�ons for the user or opera�ng personnel Safety instruc�ons for maintenance, inspec�ons and installa�on 5 Independent conversion and manufacture of spare assemblies... -
Page 3: Safety Instructions
CONTENTS. Pump se�ng Control modes PWM signal control 12.Maintenance 13.Decommissioning 14.Low temperature protection 15.Technical data Pump opera�on at high and low supply voltages Opera�ng characteris�cs, dimensions and weight 16.Troubleshooting Ac�ons in case of contamina�on of the pump's flow path 17.Disposal of the product 18.Information on recycling packaging Warning Before starting work on the installation of the... -
Page 4: General Informa�On About The Document
General information about document The Data Sheet, Installa�on and Opera�ng Instruc�ons contain fundamental informa�on that must be observed during installa�on, opera�on and maintenance. It is therefore essen�al that the relevant opera�ng personnel or the user familiarizes themselves with them before installa�on and commissioning. Meaning of symbols and inscriptions on the product Instruc�ons placed directly on the equipment, e.g: •... -
Page 5: Safety Instructions For Maintenance, Inspection And Installation Work
• ineffec�veness of prescribed maintenance and repair methods; • a dangerous situa�on for the health and life of personnel due to electrical or mechanical factors. Performing work in compliance with safety techniques The safety instruc�ons in this document, the exis�ng na�onal safety regula�ons as well as any internal work, opera�ng and safety regula�ons applicable to the user must be observed during the work. -
Page 6: Unacceptable Opera�Ng Modes
Self-conversion and manufacture of spare parts and components Conversion or modifica�on of the devices may only be carried out in agreement with the manufacturer. Original spare parts and components as well as components authorized by the manufacturer are designed to ensure reliable opera�on. -
Page 7: Meaning Of Symbols And

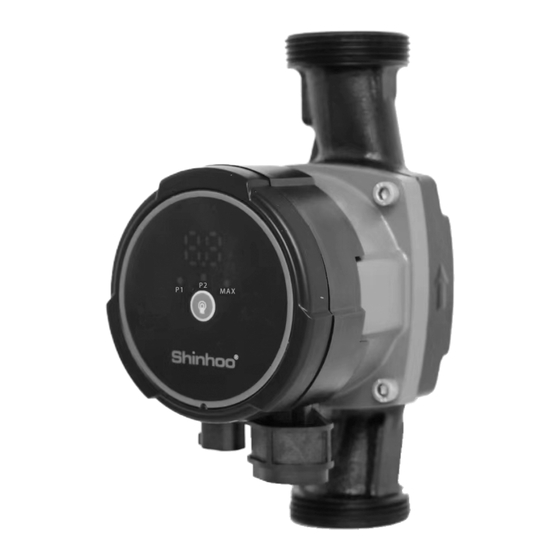

Contact with hot fluids or equipment surfaces can cause burns and serious injury. 4. General information about product This document applies to Master SD PWM circula�on pumps. Master SD PWM pumps are designed to work in all types of hea�ng... -
Page 8: Design
The scope of delivery includes: Master SD PWM, plug, rubber seals, threaded pipe connec�ons, technical documenta�on.The equipment is not supplied with accessories and tools for adjustments, maintenance and intended use. Use standard tools in accordance with the safety requirements of the manufacturer. -
Page 9: Nameplate
Branded plate I1/1 Min. 0,05 Max. 0,35 MASTER SD 25-6 PWM EEI ≤ 0.20 - Part 2 Date of manufacture: XXXX 1x230V , 50Hz IP44, Tmax = 110 ℃ PN: 71111001 No: XXXX Made in PRC Fig. 1 Pos. Name Minimum amperage Maximum amperage Minimum power consump�on... -
Page 10: Packing And Moving Packaging
Do not lift the pump by the supply cable. Attention 6. Area of application Master SD PWM pumps (hereina�er referred to as pumps) are designed for circula�on of liquids in hea�ng systems. The motor speed can be controlled either by the built-in control modes or by a low-voltage PWM signal from an external controller (see sec�on PWM Control). - Page 11 Glycol Master SD PWM pumps can be used for pumping glycol solu�ons with a concentra�on of up to 50 %. The maximum viscosity of a 50% glycol solu�on at -10 °C is approximately 32 cSt.
-
Page 12: Principle Of Action
Attention pump. Principle of action The Master SD PWM pumps work by increasing the pressure of the liquid moving from the inlet connec�on. The liquid flows through the pump inlet into the rota�ng impeller. The centrifugal forces increase the speed of the liquid. - Page 13 Install the pump so that the posi�on of the motor sha� and pump head meet the requirements in the sec�on 3. Tighten the fi�ngs (see Fi g . Fi g . Fig. 2 Direc�on of flow...
- Page 14 Fig. 3 Moun�ng the pump Fig. 4 Tightening the fittings...
-
Page 15: Pump Loca�On Requirements
Location requirements pump The pump must always be mounted so that the motor sha� is horizontal to the ground Fig. posi�on see hanging the Fig. Figure Examples of correct pump installa�on are shown in Fi g . Fi g . Fig. -
Page 16: Changing The Posi�On Of The Pump Head Installing The
Changing the position of the pump head Warning Turn off the power to the pump before performing any work on the pump. Once the power has been turned off, make sure that it cannot be accidentally turned back on. Warning The pump casing may be hot due to the high temperature of the liquid it is pumping. -
Page 17: Insula�Ng Jacket
Step Action Illustration Turn the pump head in the sha� axis to the desired posi�on without removing it from the cochlea. Re install the moun�ng screws and �ghten crosswise. Open the taps on the inlet and pressure side, make sure there are no leaks. -
Page 18: Connection Of Electrical Equipment
Fig. 7 Installing the insula�ng jacket Do not cover the control panel with insulation. Attention 9. Connecting electrical equipment Warning Electrical equipment must be wired in accordance with local codes and regulations. Warning Turn off the power to the pump before performing any work on the pump. -
Page 19: Connecting Plug
Connecting plug Fig. 8 Pump connec�on diagram PWM signal connection Master SD PWM pumps can be controlled by a PWM signal generated by a third party controller. A signal cable with a Mini Superseal connector is required to connect the PWM signal (se Fi g. -
Page 20: Commissioning
Procedure for connec�ng the cable: Step Action Ensure that the pump is turned off by a PWM signal generated by a third party controller. Connect the cable with Mini Superseal connector to the pump. Turn on the power. The pump will automa�cally detect the presence of a suitable PWM signal connec�on and will go to the to the appropriate opera�ng mode. -
Page 21: Launch
To put the Master SD PWM pumps into opera�on, the mains switch must be turned to posi�on"On." The indicator light on the control panel will indicate that the power is on. If necessary, the pump and system must be vented before opera�on. -
Page 22: Ven�Ng The System
Removing air from system Fig. 11 Ven�ng the system Air is removed from the hea�ng system by means of an automa�c air release valve,installed at the top point of the system. A�er filling the hea�ng system with working fluid, the following steps must be carried out: 1. -
Page 23: Operation
11. Operation Do not use the pump to bleed the entire system. Do not operate a pump that is not filled with operating Attention fluid. The pump must not be operated for long periods of �me without water in the system or without the minimum permissible inlet pressure (see sec�on 15. -
Page 24: Signal Connection
Gear Mode Switching Instruc�ons: 1. The MAX gear is displayed by default. 2. PWM signal switching: 2.1. MAX mode→PWM1: A�er the PWM signal is turned on, it will automa�cally switch into PWM1 mode, disconnect the PWM signal and switch to MAX mode. 2.2. - Page 25 PWM output interface circuit Electric control instructions PWM 1 signal input Under fixed frequency, different duty cycles correspond to different motor given speed signals.Inverse propor�onal control mode is adopted. The specific control logic is as follows：...
- Page 26 PWM1 Input Signal (%) Pump Status the pump switches to non-PWM mode (normal mode), and the default system will have no PWM signal input. ≤10 the pump runs at the highest velocity the pump curve will drop from the highest to the lowest ＞10/≤84 the pump runs at the lowest velocity ＞84/≤91...
- Page 27 PWM input signal parameter Current isola�on in pump Frequency input 100 – 4000 Hz Input voltage high level 4.0 – 24 V Input voltage low level ≤ 0.7V Max 10 mA@100Ohms Input current high level Input PWM duty cycle 0 – 100 % Signal polarity Fixed changeless Rise �me...
-
Page 28: Technical Maintenance
The water pump does not operate. In this case, the fault has been detected, Warning (overvoltage protec�on and but the fault is not cri�cal. It can s�ll undervoltage protec�on) work normally a�er the protec�on value is restored. 0-70W（slope 1 W/% PWM）±1% Recogni�on accuracy:±1（Example: When the PWM input signal is 20%, the actual duty cycle is in the range of 19% ～21% ）... - Page 29 Warning Before starting any work on the pump, make sure that the power supply is switched off so that it cannot be switched on accidentally. Warning Provision must be made to protect personnel from injury and to prevent equipment damage from fluid escaping from the pump during maintenance work.
-
Page 30: Technical Data
15. Technical data Performance data Does not exceed 45 dB(A). Sound pressure level Measurement uncertainty characteris�c (parameter K) is 3 dB. 95% max, Relative humidity non-condensing environment environment System pressure PN 10: Maximum 1 MPa (10 bar) Pump inlet pressure Maximum 1 MPa (10 bar) Liquid Pressure... - Page 31 Electrical data Rated supply voltage 1x230 V ±10 %, 50 Hz, PE Heat resistance class of insula�on materials Pump power consump�on when the pump is switched ≤ 3 W off Inrush current < 10 А Pump on/off frequency No special requirements General data No addi�onal protec�on required Engine protec�on...
- Page 32 16. Detecting and eliminating If the pump has detected one or more alarms, the LEDs on the control panel flash con�nuously and an error code is displayed. The type of alarm can be determined from Table 1. If more than one alarm occurs at the same �me, the LEDs will indicate the error with the highest priority.
- Page 33 4. Phase loss protec�on: When the motor is out of phase, the gear indicator flashes 4 �mes at the same �me, and the display board displays E4. The pump stops working immedi- ately, and the pump restarts a�er 8s. A�er the consecu�ve number of protec�on reaches 5 �mes, the pump is complete- ly protected and no longer restarted.
-
Page 34: Disposal Of Product
Warning Before starting work, make sure that the power to the pump is switched off and take measures to prevent it from being switched on accidentally. Actions in case of contamination of the flow part of pump In case of contamina�on of the flowing part of the pump, it must be cleaned: Before star�ng work, close the gate valves on each side of the pump, disconnect the power supply. - Page 35 18. Information on recycling packaging General information on labeling any type of packaging The packaging is not intended to come into contact with foodstuffs Letter designation of the material Name of from which the packaging / packaging/ Packing material packaging aids packaging aids are made Boxes/boxes, liners,...
- Page 36 Letter designation of the material Name of from which the packaging / packaging/ Packing material packaging aids are packaging aids made Sealing gaskets (made of film materials), including (high-density air gaskets. polyethylene) bubble wrap, clamps, stuffing material HDPE Sealing gaskets made of (polystyrene) foamed plastics Combination...
- Page 37 Anhui Shinhoo Canned Motor Pump Co. , Ltd. Address:NO.780, MINGCHUAN ROAD, HI-TECH DEVELOPMENT ZONE, HEFEI, ANHUI, CHINA Tel:0086 551 6237 9807 Fax:0086 551 6237 9801 E-mail:info@shinhoopump.com shinhoopump.
