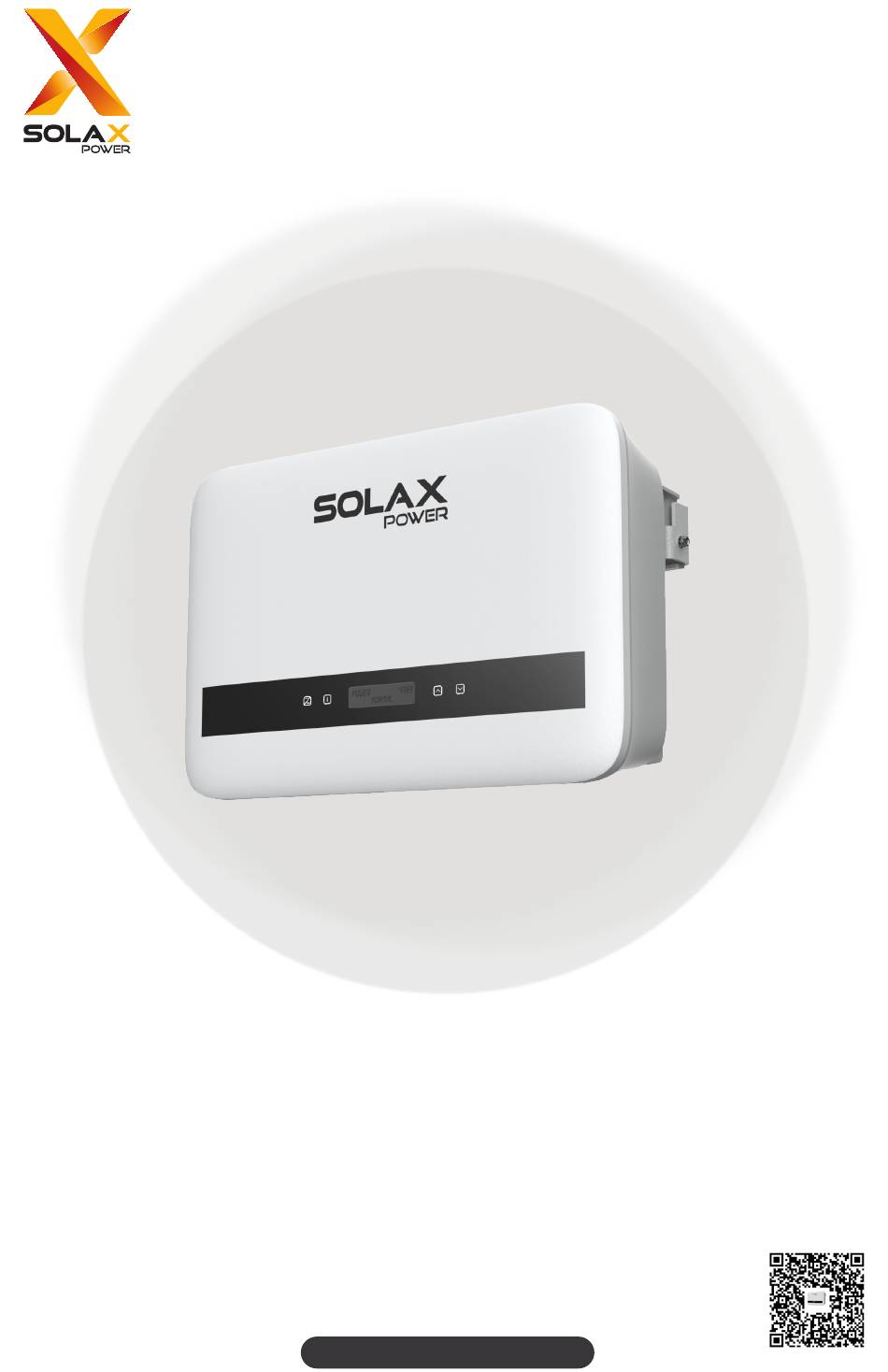

- Page 1 X1-BOOST G4 2.5 kW / 3 kW / 3.3 kW / 3.6 kW / 4 kW / 4.2 kW / 5 kW / 6 kW Installation Manual Version 1.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
- Page 2 Safety General Notice 1. Contents may be periodically updated or revised. SolaX reserves the right to make improvements or changes in the product(s) and the program(s) described in this manual without the prior notice. 2. The installation, maintenance and grid-related setting can only be performed by qualified personnel who: •...
- Page 3 DANGER! Lethal danger from electrical shock due to the inverter • Only operate the inverter when it is technically faultless. Otherwise, electric shock or fire may occur. • Do not open the enclosure in any case without authorization from SolaX. Unauthorized opening will void the warranty and cause lethal danger or serious injury due to electric shock.
- Page 4 Packing List Self-tapping screw Expansion tube Inverter Bracket Documents Expansion bolt AC connector Removal tool for AC Earth terminal connector M5*L12 screw Negative PV connector Postive PV connectors Allen key RJ45 terminal Negative PV pin contact Positive PV pin contact RJ45 coupler (optional) CT (optional) Dongle (optional)
-
Page 5: Installation Site
Installation Site -25°C - +60°C IP66 0-100%RH Avoid direct sunlight Avoid rain exposure Avoid snow lay up Near combustibles Near antenna NOTICE! • For outdoor installation, precautions against direct sunlight. rain exposure and snow accumulation are-recommended. • Exposure to direct sunlight raises the temperature inside the device. This temperaturerise poses no safety risks, but may impact the device performance. -
Page 6: Terminal Description
Terminal Description DC switch DC input Dongle COM/CT Ground AC output (optional) terminal terminal terminal Installation Angle ≤5° Installation Space ≥30 cm ≥30 cm ≥30 cm ≥35 cm ≥35 cm ≥35 cm ≥30 cm ≥30 cm Single inverter Multiple inverters... -
Page 7: Communication Cable
Installation Tools Hammer drill Multimeter Measuring tape Rubber mallet Crimping tool Marker Cross screwdriver Wire stripper Torque wrench Crimping tool for PV (10 mm) terminal Heat gun Diagonal pliers Heat shrinking Crimping tool Allen key (4 mm) tubing (Ø6 mm) Spirit level for RJ45 Safety goggles... -
Page 8: Mechanical Installation
Mechanical Installation 223 mm Depth: ≥60 mm 10 mm 4 mm Allen key 1.2±0.1 N·m PE Connection 6 mm 28~29 mm PE line: 4~6 mm (2.5K~4K); Heat-shrink tubing 5~6 mm (4.2K~6K) (Ø6 mm) 8~9 mm... -
Page 9: Ac Side Connection
Crimping tool 2±0.1 N·m AC Side Connection Outer jacket Separate these parts 52.5 mm Ø9-18 mm 6 mm 55 mm L/N/PE line: 4~6 mm (2.5K~4K); 5~6 mm (4.2K~6K) * The cross-sectional area of PE line should be the same as that of L/N line. AC cable 0.5±0.1 N·m... -
Page 10: Dc Side Connection
Click DC Side Connection Positive PV pin contact Negative PV pin contact PV line: 4~6 mm (2.5K~4K); 5~6 mm (4.2K~6K) Crimping tool for PV terminal Click！ Positive PV connector Negative PV connector Click！... -
Page 11: Communication Connection
<600 V Click * Remove the terminal caps. Communication Connection COM/CT port on the inverter RJ45 terminal *Ensure that all cables are of the Screw cap same length *Wiring according to 568B standard... - Page 12 0.5±0.1 N·m Hand-tight • Pin definition Heat RS485/ RS485/ Heat Function Pump Meter Meter Pump Heat Heat Pin Definition DRM0 485_A 485_B +3.3V Pump- Pump+ *Note: DRM0 here is for AS4777.2 AU/NZ . • For RS485: RS485 to USB RS485 port of the inverter USB port of the computer...
- Page 13 • For meter: i. For meter with CT Inverter Load Electric grid Single Phase meter bidirectional *The meter used should be provided by SolaX. ii. For meter without CT Inverter Load Electric grid Single Phase meter bidirectional *The meter used should be provided by SolaX.
-
Page 14: Power On The System
• For direct CT connection: Inverter RJ45 Coupler RJ45 Coupler Load Electrical grid Home Electric Meter Important: The arrows direction on the COM/CT port on the CT must point to the public grid side. bottom of the inverter L line Inverter Public grid electricity... - Page 15 Step 2: Turn on AC breaker. Turn on AC breaker Inverter Electrical grid Load AC breaker Home Main breaker Electric Meter LCD Panel Real-time output power Status or error information Power Normal Operating Error Up/ESC Down/Enter indicator indicator LCD screen button button light...
-
Page 16: General Setting
General Setting Date Time Language > 2000-01-01 00 : 00 > Date&Time Language Status > English > Language Set the system time, date and language Settings > >Safety > Settings 2 0 1 4 Export Control Safety Country > VDE 4105 < Set the corresponding safety standards according to different countries Settings >... -
Page 17: Technical Data
Technical Data • DC input X1-BOOST- X1-BOOST- X1-BOOST- Model X1-BOOST-3K-G4 2.5K-G4 3.3K-G4 3.6K-G4 Max. PV array input power [Wp] 6000 6000 6600 7200 Max. PV voltage [d.c.V] Startup voltage [d.c.V] Nominal input voltage [d.c.V] MPPT voltage range [d.c.V] 40-560 40-560 40-560 40-560 No. - Page 18 X1-BOOST- Model X1-BOOST-4K-G4 X1-BOOST-5K-G4 X1-BOOST-6K-G4 4.2K-G4 ITHDi (rated power) [%] <3 Nominal AC Voltage [a.c.V] 220/230/240 Current (inrush) [a.c.A] Maximum output fault current [a.c.A] 58 (15 ms) Maximum output overcurrent protection [a.c.A] Note: 1. 4048 (3680 for G98, TOR and PPDS) 2.
- Page 19 X1-BOOST- Model X1-BOOST-4K-G4 X1-BOOST-5K-G4 X1-BOOST-6K-G4 4.2K-G4 Max. efficiency [%] Euro. efficiency [%] Standby consumption [W] @Night Ingress protection IP66 Protective class Overvoltage category II (DC), III (AC) Operating ambient temperature -25-60 range [°C] Max. operation altitude [m] 4000 Humidity [%] 0-100 Typical noise emission [dB] Storage temperature [°C]...
- Page 20 • The device meets the basic requirements and other relevant provisions of 2014/53/ EU directive. • The device is allowed to be used in all EU member states. • Manufacturer: SolaX Power Network Technology (Zhejiang) Co., Ltd. Product type: Pocket WiFi [CE DECLARATION OF COMFORMITY]: https://www.solaxpower.com/uploads/file/ pocket-wifi-ce-declaration-of-conformity-en.pdf...
-
Page 21: Packing List
FCC RULES Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 22: Installation
Installation Installation steps WARNING! • Ensure that all power has been turned off at least 5 minutes prior to installation. Step 1: For the -P/-E version of Pocket WiFi, screw the antenna to the end of the shell. (Skip this step if you didn’t buy the -P/-E version). -P External antenna -E Extended antenna Step 2: Plug the Pocket WiFi into the correct port of inverter. - Page 23 Installation requirements For Wi-Fi mode, the longest connection distance between the router and the equipment should be no more than 100 meters; if there is a wall between the router and the equipment, the longest connection distance is 20 meters. 24CM concrete wall (example) <20 m <100 m...
- Page 24 Indicator description Indicator status Description Inverter connected; Blinks quickly (on and off every second) Server disconnected Inverter disconnected; On for 3 s and off for 200 Server connected Inverter disconnected; On and off every 3 s Server disconnected Constant on Normal connection Technical Data Product Name...
-
Page 26: Warranty Registration Form
Warranty Registration Form For Customer (Compulsory) Name Country Phone Number Email Address State Zip Code Product Serial Number Date of Commissioning Installation Company Name Installer Name Electrician License No. For Installer Module ( If Any ) Module Brand Module Size(W) Number of String Number of Panel Per String Battery ( If Any ) - Page 27 SolaX Power Network Technology (Zhejiang) Co., Ltd. ADD.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320102130501...
