Summary of Contents for Adrenaline NFS Heat Takedown Motion

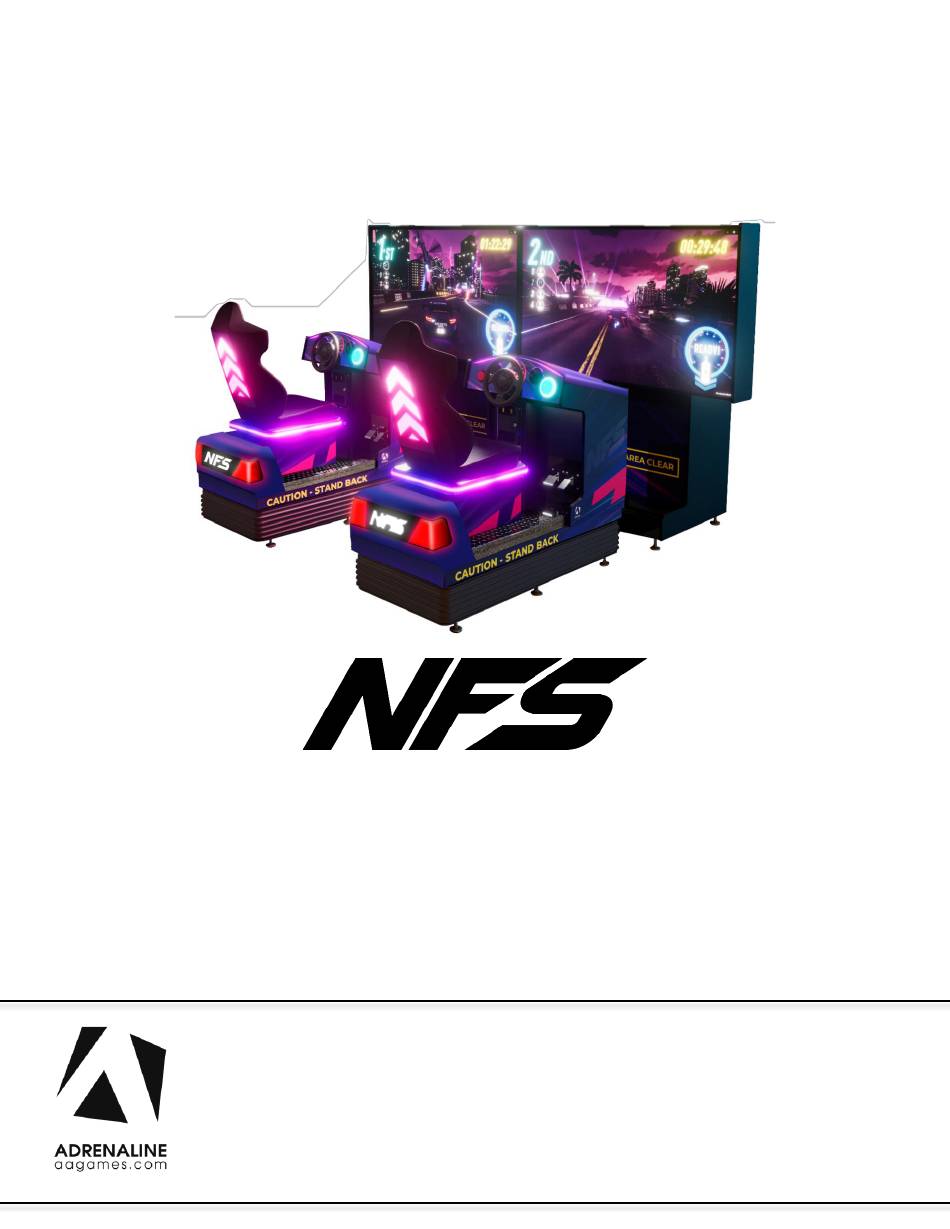

- Page 1 Heat Takedown MOTION NFSM-75-100X (X can be 1 to 9) Operation & Service Manual...
-
Page 2: General Remark
If you encounter any difficulties or if you need upport on how to update and/ or install your Hot Wheels King of the Road product, we invite you to contact your local distributor or reach us at techsupport@aagmes.com or by calling our support line +1-450-824-1671 Adrenaline Amusements Team Adrenaline Amusements 2273 Antonio-Héroux street Terrebonne, QC... -
Page 3: Table Of Contents
Table of Contents Contents: General Remark Table of Contents Chapter 01 - Preface Chapter 02 - Game Features Chapter 03 – Unit Features Chapter 04 – Unit Installation Chapter 05 – Operator Menu Chapter 06 - Parts Chapter 07 – Diagrams & Schematics Chapter 08 –... -
Page 4: Chapter 01 - Preface
● Do not block cooling vents. Precaution for Game Operation Adrenaline Amusements Inc. assumes no liability for injuries incurred while playing our games. Operators should be aware that certain health and physical conditions may make people susceptible to injury when playing video games. -
Page 5: Environmental Conditions
If a power cord is damaged, it must be replaced by the equivalent power cord available from your distributor. Adrenaline Amusement Inc. assumes no liability for any damages or injuries incurred while setting up or servicing the cabinet. Only qualified service personnel should perform installation or service procedures. -
Page 6: Chapter 02 - Game Features
Chapter 02 - Game Features Are you fast enough to scape the cops? Do you have the skills to take the wheels and drift? Push the Nitrous and takedown your enemies on the streets and become the king of Palm City. How to Play ●... -
Page 7: Chapter 03 - Unit Features
Chapter 03 – Unit Features Hardware Features ● 1 to 2 Players Game ● Steering wheels & accelerator pedals for each player ● 75 inches LCD Screen Cabinet Facts – 1 player version Cabinet Dimensions 7” Depth = 103.15” [2620 mm] Width = 65.87”... - Page 8 Cabinet Facts – 2 players assembly Cabinet Dimensions 5” Depth = 103.15” [2620 mm] Width = 161.27” [3346.43 mm]...
-
Page 9: Chapter 04 - Unit Installation
Chapter 04 – Unit Installation... - Page 10 How to assemble your NFS Heat Takedown - Motion 1) Start by removing the base cover. Unscrew the 4 black screws and lift up the cover, keep the screws for step 6. 2) Open the upper back door and install the screen using the MS-PP-ZS-M8X45MM bolts and the FW-Z-3/8-1 washers.
- Page 11 4) Place the seat module in front the screen and install it using the HS-HH-ZS-3/8-16X1 bolts and the NN-ZS-3/8-16 Nylon-locknuts. 5) Connect the cables and the air tube from the seat module to the screen module. -USB Cable -LED’s power source -I/O board cable -Power cable -AIR Tube...
- Page 12 6) Install the wire cover using four BS-HRO-BS-1/4-20x1 screws and the base cover using the screws from step 1. 7) Go to the back of the machine and install the TV’s power and the HDMI cable and plug in the USB Key NFSM Monitor Setting.
- Page 13 Plug the arcade into the power source. It’s important to connect the air compressor to a separate power intel without being on the same 15 Amp breaker. 15 Amp 20 Amp 15 Amp Power on the TV and press “HOME” on the remote control. Select the Clone Product menu.
- Page 14 Then select the “Import from External Storage” option. The settings transfer is done once you see this message on the screen. Select OK to restart and apply the changes. If no buttons are pressed in the next 10 seconds, your product will restart automatically.
- Page 15 How to assemble and connect two NFS Heat Takedown - Motion 1) Place the machines beside each one. The first arcade to the left will be the player #1. 2) When you are pleased by the arrangement of the machines, secure them by fixing all the leveling mounts of each arcade.
- Page 17 3) Connect the two machines together by using the ethernet cable. 4) Use the operator menu to change the ID of each machine. To access the operator menu, push the white bottom who is inside the coin door of each machine.
-
Page 18: Chapter 05 - Operator Menu
Chapter 05 – Operator Menu Operator Menu Access the Operator Menu by pressing the white operator menu button behind the coin door. -
Page 19: What It Does
Settings Operator Menu Values What It Does Game Audio Volume 1-20 Adjusts the in-game audio volume. “0” will mute the game. Attract Audio Volume 0-20 Adjusts the volume of the voice attract loop. “0” will mute Language English/Français Switches the game and the menu’s language Take Picture On / Off Takes pictures of each player at the start of the game... - Page 20 Payments Operator Menu Values What It Does Credit per Game 1-20 Set Price per Play Payment Type Credit / Card Changes the credit type. “Credits” = Coins and “Card” = Card Reader. This will change the in-game text accordingly. Clear Credits Resets the Inserted credits to 0 if more than 40 credits are entered.
-
Page 21: Network Connections
Network Connections The left menu The left menu is a quick status overview of the state of the cabinet. BUILD This is the version number of the game software DEVICE ID The unique ID of your machine TYPE This will tell you if this machine is the server or a client MULTIPLAYER If the cabinet is connected or not to other games. - Page 22 Red cabinet indicates that this cabinet is not plugged to the rest of the network via the network switch and green indicates that everything is fine. Available wi-fi The lower part of the screen will allow you to connect to an available WIFI network. The network must be password protected.
-
Page 23: Chapter 06 - Parts
Chapter 06 - Parts Motion cabinet Part Description Part # Speaker Mounting Panel Melamine Dash & Coin Cabinet NFSM-02-0031-15 Printed Plywood Left Sides Dash & Coin Cabinet NFSM-02-0031-11 Cash Cover Mounting Panel Melamine Dash & Coin Cabinet NFSM-02-0031-06 Right Side Printed Melamine Dash & Coin Cabinet NFSM-02-0031-10 Left Side Printed Melamine Dash &... -
Page 24: Seat Cabinet
Seat Cabinet Part Description Part # Top Back Melamine Seat Cabinet NFSM-02-0032-08 Back Melamine Seat Cabinet NFSM-02-0032-04 Left Seat Reinforcement NFSM-01-0029 Printed Melamine Left Side Seat Cabinet NFSM-02-0032-02 Plywood Floor Seat Cabinet NFSM-02-0032-01 Front Melamine Seat Cabinet NFSM-02-0032-05 Printed Melamine Right Side Seat Cabinet NFSM-02-0032-03 Right Seat Reinforcement NFSM-01-0028... - Page 25 Screen Cabinet Part Description Part # Upper Cover Stopper Screen Melamine Cabinet NFSM-02-0003-13 Upper Cover Screen Melamine Cabinet NFSM-02-0003-10 Upper Cover Support Screen Melamine Cabinet NFSM-02-0003-12 Upper Middle Back Screen Melamine Cabinet NFSM-02-0003-9 Lower Middle Back Screen Melamine Cabinet NFSM-02-0003-8 Left Side Screen Melamine Cabinet NFSM-02-0003-2 Lower Cover Stopper Screen Melamine Cabinet...
-
Page 26: Seat Assembly
Screen Melamine Top Cabinet NFSM-02-0003-3 Seat assembly Part Description Part # Rounded Head Screw, Phillips, Black M4-0.7X6MM MS-PRO-BS-M4-0.7X6MM Back Seat Led Cover NFSM-07-0017 Back Upper Arrow LED Shim NFSM-02-0006-01... - Page 27 Back Middle Arrow LED Shim NFSM-02-0006-02 Back Bottom Arrow LED Shim NFSM-02-0006-03 Seat Sticker Cover NFSM-09-0002 Top Seat Base NFSM-02-0002-01 Bottom Seat Base NFSM-02-0002-02 Back Seat RGB Strip Start, NFS AAG-14-0021 Back Seat RGB Strip End AAG-14-0020 Seat Slider AAG-01-0007 Hex Head Screw, Yellow Zinc, 3/8-16x3/4'' HS-HH-YS-3/8-16x3/4 Flat Washer, 3/8'', USS, Zinc, 1'' OD...
-
Page 28: Plastic Parts
Plastic Parts Part Description Part # Car Hood NFSM-07-0026 Push Button PCB Holder NFSM-07-0001 Rear Seat Right Cover NFSM-07-0036 Rear Seat Base Cover NFSM-07-0040 Rear Seat Center Cover NFSM-07-0037 Rear Seat Left Cover NFSM-07-0035 Dash Cadran Center NFSM-07-0045 Dash, Need for Speed Motion NFSM-07-0022... -
Page 29: Metal Parts
Metal Parts Part Description Part # Rear Frame NFSM-01-0042 Front Rear Cover Bracket NFSM-01-0025 Rear Cover Bracket NFSM-01-0026 Seat Plate NFSM-01-0036 Front Base Frame NFSM-01-0043 Pedal Floor Protector NFSM-01-0015 Steering Wheelbase NFSM-01-0012 LED Side Cover NFSM-01-0061 Front Dash Bracket NFSM-01-0013 Screen Rear Cover Plate NFSM-01-0033 Base Cover for Cabinet... - Page 30 Electronics’ location Part Description Part Number 7.1 Audio Amplifier Board, Need for Speed AAG-04-0066 Programmed I/O Board 1 Motor Output For NFS/NFSM AAG-04-0076-PROG-NFS RGB Led Controller Board Assembly 12V AAG-04-0015-12RL Fuse Board for NFS Motion AAG-04-0072...
- Page 31 7-Port USB, 3.0 Hub, Type A Female USB AAG-11-0011 RGB Led Controller Board Assembly 12V AAG-04-0015-12RL Pc Box for Need for Speed Motion, With Asrock B660M and SSD ADR-11-1022-NFSM Power Bar, 5 Outlets INV-05-1242 Switching Power Supply 12V, 350W, 110/220V Manual Selection AAG-13-0029 Switching Power Supply 24V, 350W, 110/220V Manual Selection AAG-13-0028...
-
Page 32: Pneumatic System
Pneumatic system... -
Page 33: Mechanical Parts
Part Description Part Number Accordion Seal, 0.65'' x 4'' With Steel AAG-05-0049 Center Bottom Plate, Need for Speed Motion NFSO-01-0011 Upper Frame Weld, Need for Speed Motion NFSO-01-0020 2.0 Gallon Air Tank AAG-05-0041 Male, Straight Push in Fittings, 3/8”, 1/4 NPT AAG-05-0035 Optical Sensor, 4-30 Cm, Analog AAG-05-0054... -
Page 34: Sound System
Sound system Part Description Part # Round Black Speaker, 8 Ohm, 3.3'' AAG-13-0025 GSR 8SW-4 8’’ Poly Cone Subwoofer 4 Ohm ADR-292-480 Audio Bass Shaker 50 Watts AAG-13-0027 7.1 Audio Amplifier Board, Need for Speed AAG-04-0066 Electronic boards Part Description Part #... -
Page 35: Computer Parts
Programmed I/O Board 1 motor Output for NFS/NFSM AAG-04-0076-PROG-NFS NFS Motion Dash Speedometer AAG-14-0017 Back seat Arrow, NFS AAG-14-0022 Push-Button RGB Led Ring, NFS AAG-14-0011 Back Seat RGB Strip Start, NFS AAG-14-0021 Side Seat RGB Strip, NFS AAG-14-0018 Front Seat RGB Strip, NFS AAG-14-0019 Back Seat RGB Strip End AAG-14-0020... - Page 36 DisplayPort Male to HDMI Male Cable, 28AWG INV-DP-HDMI-06K Miscellaneous electronics parts Part Description Part Number Power Bar 5 positions INV-05-1242 Multi-Stage Filter 10A ADR-817-1321-ND Switching Power Supply 12V, 320W AAG-13-0029 Switching Power Supply 24V, 320W AAG-13-0028 Kit for Fan 138CFM With Harness, 120mm ADR-FAN-120MM-02-KIT Miniature Round Pushbutton, White Center ADR-49-0577-01...
-
Page 37: Steering Wheels
Steering wheels Part Description Part Number Steering Wheel with Motor Assembly AAG-13-0002 Center Wheel Sticker, Need for Speed NFS-09-0003 Dual Pedal with Potentiometer On Gas, Need for Speed AAG-13-0023... - Page 38 Steering Mechanism Assembly Parts available from Suzohapp...
-
Page 39: Hardware Kit
Doors Part Description Part Number Door Assembly with Two Upper Mech Holder, Round Corner, Universal Logo ADR-40-0038-KA Door and Frame Assembly with Blank Upper and Bottom Door, Round Corner ADR-40-0128-00KA Door Assembly with One Upper Mech Holder, Round Corner, Universal Logo, ADR-40-0512-06NMKA NO Bottom Door Round Corner Blank Door Only... -
Page 40: Chapter 07 - Diagrams & Schematics
Chapter 07 – Diagrams & Schematics Computer section Figure 8.1 : Computer interconnection diagram Figure 8.2: Computer connections... - Page 41 Item Description AC Power Inlet USB port to USB hub USB port to Windows license dongle Ethernet network port HDMI port not used DVI port connected to (Item 5) Display port to 75" monitor (HDMI) RJ45 port not used 12V Power-supply connector to 12V fan...
- Page 42 I/O board section The following figure shows all the items connected to the IO board. Figure 8.4: I/O board interconnection diagram Figure 8.5.1: I/O board connectors locations...
- Page 43 Pin Definition: J1: Operator Button (AAG-03-0160) Definition OPER. Color BLACK J3: Boost Button (AAG-03-0147) Definition OUTB OPTOB Color BLACK WHITE GREEN *Note: pin 1-2 push-button light, pin 3-4 push-button contact. J4: Brake Pedal switch (AAG-03-0144) Definition OPTOB Color BLACK J6: Gaz Pedal potentiometer (AAG-03-0145) Definition V.POT S.POT...
- Page 44 Color GREEN BLACK Coin door wiring connection Figure 8.6: Coin door harness AAG-03-0136 Connection Chart Wire color From Function Green P1-1 12V coin counter Brown P1-2 Coin counter output 2 Orange P1-3 Coin counter output 1 Blue P1-4 P5-P6 Common coin input 1 & 2 Yellow P1-5 Coin input 2...
-
Page 45: Audio Section
Audio section Figure 8.7: Audio connection diagram... - Page 46 Figure 8.8: Audio amplifier connector location Pin Definition: J18: 24V Supply (AAG-03-0139) Definition Color BLACK BLACK J23: Shaker, Subwoofer & seat speakers (AAG-03-0137) Definition SHAKER+ SUB+ SEAT L+ SEAT R+ Color Definition SHAKER- SUB- SEAT L- SEAT R- Color BLACK BLACK BLACK BLACK...
- Page 47 SW1-1 SW1-2 SW1-3 SW1-4 SW2-1 SW2-2 SW2-3 SW2-4 SW3-1 SW3-2 SW3-3 SW3-4 SW4-1 SW4-2 SW4-3 SW4-4...
- Page 48 Led controller section The following figure shows all the items connected to led controller present in the motion cabinet. Figure 8.9: “Motion cabinet” led controller connection diagram. Figure 8.10: “Motion cabinet” led controller connectors description.
- Page 49 Pin description J4: 12V Supply (AAG-03-0133) Definition Color BLACK J5: Seat RGB strip lower row "CH4" (AAG-03-0164) Definition DOUT WHIT Color BROWN BLUE J6: Seat RGB strip upper row "CH3" (AAG-03-0164) Definition DOUT GREE Color BLACK J7: Motion Cabinet RGB strip “CH2” (AAG-03-0161) Definition DOUT GREE...
- Page 50 Figure 8.11: “Screen cabinet” led controller connection diagram. Figure 8.12: “Screen cabinet” led controller connectors description.
- Page 51 Pin description J4: 12V Supply (AAG-03-0038) Definition Color BLACK J8: Side screen RGB strip “CH1" (AAG-03-0191) Definition DOUT GREE Color BLACK SW2: Configure card-ID The led controller present in the screen cabinet should have its card-ID set to #2. Set Dip-switch position 2 to ON and leave all the others to OFF.
- Page 52 Pneumatic controller section Figure 8.13.1: Pneumatic controller connection diagram. Figure 8.13.1: Pneumatic controller...
- Page 53 Figure 8.14: Pneumatic controller connectors description. J14: 12V Supply (AAG-03-0173) Definition Color BLACK P2: Air spring BLUE P3: Air spring RED P4: Air spring GREEN P5: Air spring YELLOW P6: Air spring BLACK Valve 2 Valve 1 Valve 1 Valve 2 Definition Coil A Coil A...
- Page 54 Definition Color BLACK J13: Emergency Push-Button (AAG-03-0154) Definition LIGHT- LIGHT+ Color BLACK WHITE GREEN...
-
Page 55: Chapter 08 - Software Recovery
Chapter 08 – Software Recovery If your unit software needs to be restored, please follow those instructions. Connect a USB keyboard to the motherboard. Connect the provided USB Recovery flash disk is in a Black USB port. Power on the unit and press F11 on the keyboard to display the boot menu. Choose the UEFI: USB device ~16GB The process takes 25-30 minutes, and the unit will reboot back in the game at the end. -
Page 56: Chapter 09 - Card Reader
Configure your Operator settings as seen in Chapter 5 - Operator Menu. Embed System If you are using an Embed system, you need to connect your harnesses to Adrenaline Amusements I/O board & harnesses. You should refer to the Embed instructions manual for wiring pin-out. -
Page 57: Chapter 10 - Troubleshooting
Chapter 10 – Troubleshooting Troubleshooting * NOTE: When requesting a warranty replacement, you will be asked to give the unit’s serial number from the back of the unit. Video Troubleshooting There might have loose or faulty connections between the monitor and the computer. - Page 58 If the sound still not playing in all the speakers, please do the following procedure: 1. Right click on the sound icon in the task bar and select “Open Sound settings.” 2. Click on the “Sound Control Panel”. 3. Select “Speakers USB Sound Device” and click on “Configure”.
- Page 59 4. Select “5.1 Surround” and click on “Next”. 5. Select “Center”, “Subwoofer”, “Rear pair” and click on “Next”.
- Page 60 6. Select “Front left and right”, “Surround speakers” and click on “Next”.
- Page 61 7. Click on “Finish” Computer not powering at boot. If your computer is not powering on by itself at boot, you’ll need to verify the Bios Setting. -Power off the computer. -Plug a USB keyboard and a USB mouse. -Press the power button on the computer. Press and hold F2 on the keyboard until you see the Bios screen.
- Page 62 -Press on F6 or using a mouse click on advanced. -Then click on Chipset Configuration.
- Page 63 -Go to the bottom of that page, click/select the line Restore AC Power Loss, click on the drop box where it displays “Power Off” and select Power On. -On your keyboard press on and then click on OK to confirm and save the settings. Or go to the Exit tab, click save and Exit.
-
Page 65: Limited Warranty Policies
This unit has a 1-year warranty against defective hardware from date of delivery. Other than abuse or improper servicing, Adrenaline Amusements covers at no charge the replacement parts including standard shipping.
