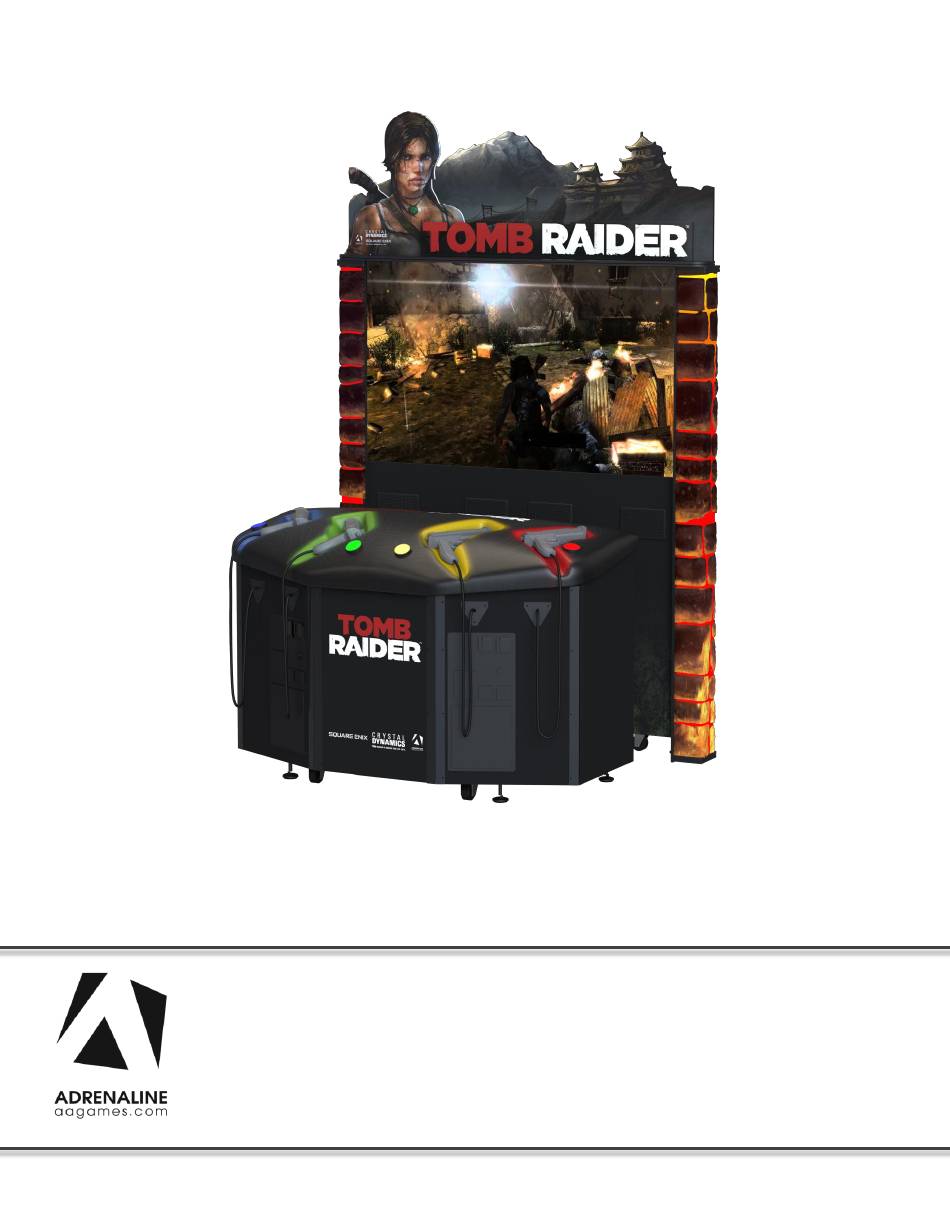

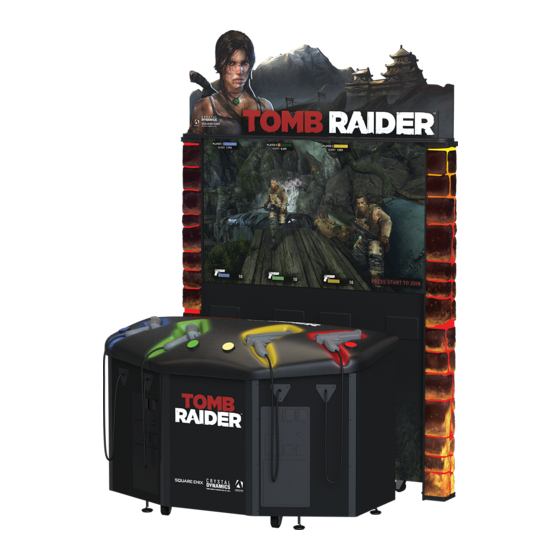

Tomb Raider 65"
TR-65-1001
Operation & Service Manual
Version 2.0
* Read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tomb Raider 65" and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Adrenaline Tomb Raider 65"

Summary of Contents for Adrenaline Tomb Raider 65"

  • Page 1 Tomb Raider 65” TR-65-1001 Operation & Service Manual Version 2.0 * Read this manual before use...

  • Page 2: General Remark

    If you encounter any difficulties or if you need support on how to update and/ or install your Tomb Raider product, we invite you to contact your local distributor or reach us at support@aagames.com or by calling our support line +1-450-824-1671 Adrenaline Amusements Team Adrenaline Amusements 1150 Levis, Suite 302 Terrebonne, Qc...

  • Page 3: Table Of Contents

    Tomb Raider 65” Manual V2.0 Table of Contents Contents General Remark ....................2 Table of Contents ....................3 Chapter 01 - Preface ................... 5 Precaution for Game Operation ....................5 Safety ............................6 Environmental Conditions ......................6 Operating & Voltage ........................6 Chapter 02 –...
  • Page 4 Tomb Raider 65” Manual V2.0 Replacing RGB LED PCBs......................28 Wireless Internet Configuration ....................29 Operator Settings keeps resetting trouble ................30 Computer not powering at boot ....................31 Chapter 06 - Parts ..................... 34 Cabinet Parts ..........................34 Computer & Electronics ......................36 Header &...

  • Page 5: Chapter 01 - Preface

     Do not block cooling vents. Precaution for Game Operation Adrenaline Amusements Inc. assumes no liability for injuries incurred while playing our games. Operators should be aware that certain health and physical conditions may make people susceptible to injury when playing video games.

  • Page 6: Safety

    If a power cord is damaged, it must be replaced by the equivalent power cord available from your distributor. Adrenaline Amusement Inc. assumes no liability for any damages or injuries incurred while setting up or servicing the cabinet. Only qualified service personnel should perform installation or service procedures.

  • Page 7: Chapter 02 - Unit Features

    Tomb Raider 65” Manual V2.0 Chapter 02 – Unit Features Chapter 02 – Unit Features Hardware Features  4 Players Game  65 inches LCD Screen  Unique Sensor Tracker “Gun” Technology! Cabinet Facts Cabinet Dimensions Depth = 54.24” [1377.62mm] Width = 65.90”...

  • Page 8: Chapter 03 - Unit Installation

    Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation Chapter 03 – Unit Installation Assembling your Tomb Raider 65” Unit **You need to be 2 persons to assemble the unit** 1. Carefully remove the cabinet from the shipping skid, giving you enough space. 2.
  • Page 9 Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation 6. Lower the Level adjustors until the Pivot Wheels are slightly above the floor. Page 9 of 58...

  • Page 10: Header Assembly

    Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation Header Assembly **You need to be 2 persons to install the header on the monitor** 1. Tool needed: Phillips #2 screwdriver (Do not use a drill) -Lay down the “Tomb Raider” acrylic header on a flat surface. -Remove the protective tape.
  • Page 11 Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation 2. Tool needed: 2 Ladders -Insert the “Tomb Raider” header on the wooden plate front slot. -Using 2x Phillips #6 x 3/8” screws affix the angle bracket to the wooden plate as seen below. Page 11 of 58...
  • Page 12 Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation 3. Install 1x 2½” x 2½” metal angle bracket behind the “Lara” header using 2x Phillips #6 x 3/8” screws in the predrilled holes as seen below. Page 12 of 58...
  • Page 13 Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation 4. Insert the “Lara” Header on the middle wooden plate slot. Using 2x Phillips #6 x 3/8” screws affix the angle bracket to the wooden plate as seen below. 5. Connect the header12V Barrel connector with the connector coming out from the top of the monitor.
  • Page 14 Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation 6. Insert the 2x plastic push rivets from the front through the predrilled holes of the mountains header to affix 2x ¾” x ¾” metal angle brackets in the back as seen below. Page 14 of 58...
  • Page 15 Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation 7. Insert the “mountains” header in the last slot of the wooden support. There is a small notch on the bottom right of the mountain header that will go above the metal bracket that holds the “Lara”...

  • Page 16: How To Open The Dash Board

    Tomb Raider 65” Manual V2.0 Chapter 03 – Unit Installation How to open the Dash Board: To open the dash and access the electronics, open the cash box doors to get access to the 2 Draw Latches inside the cabinet. Page 16 of 58...

  • Page 17: Chapter 04 - Operator Menu

    Tomb Raider 65” Manual V2.0 Chapter 04 – Operator Menu Chapter 04 – Operator Menu Operator Menu Access the Operator Menu by pressing the Operator button located inside the drawer on the I/O board directly. Oper: Open the Operator Menu Up: Scroll Up &...
  • Page 18 Exits the Operator Menu and returns to the game Quit Game Exits the game and returns to the Windows desktop *Units can be another Adrenaline Amusements Tomb Raider (65” / 120”) or Rabbids Hollywood (65” / 120”) arcades. Page 18 of 58...

  • Page 19: Chapter 05 - Service & Repair

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Chapter 05 – Service & Repair Computer Connections Description PCI-e Video Adapter DVI to Monitor DVI Audio Jack to Amplifier #1 USB to Gun Controller 1 USB to Gun Controller 2 USB to Gun Controller 3 USB to Gun Controller 4 USB to STEM Base...

  • Page 20: Gun Tracking Hardware Troubleshooting Guide

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Gun tracking Hardware Troubleshooting Guide The gun tracking system consists of 3 main components. 1. Gun base board, under center plastic console 2. Tracking coil, which is connected to the base board 3.

  • Page 21: Gun Controller Id Remapping

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Gun Controller ID Remapping Each gun controller has an ID # to be identified as Player 1 to Player 4. If a Stem Stick is replaced and/or has a wrong ID, it needs to be remapped. If a gun controller is not detected in the game, first verify within the Operator menu “Gun Tool”...
  • Page 22 Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair To remap an ID, double click with the mouse to select the good Stem Stick ID. Click in the “Change ID (1-4)” box with your mouse and enter the good ID number (1 to 4) that matches the player position.

  • Page 23: Troubleshooting

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Troubleshooting * NOTE: When requesting a warranty replacement you will be asked to give the unit’s serial number from the back of the unit. Video Troubleshooting There might have loose or faulty connections between the monitor and the computer.

  • Page 24: Rgb Led Troubleshooting

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair RGB Led Troubleshooting If the RGB LEDs in the building are not working properly verify that the RGB LED Controller is connected on a valid COM Port. Press the Operator Button and Quit/Exit the game to Windows Desktop. Connect a USB mouse.
  • Page 25 Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Expand the “Ports (COM & LPT)” line by clicking on the >. Verify that the “USB Serial Device” is set between COM2 to COM9. Page 25 of 58...
  • Page 26 Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair If it’s outside this range, double-click on it to open its properties. Select the “Port Settings” Tab. Click on “Advanced…” Page 26 of 58...
  • Page 27 Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Click on the COM Port Number scrolling menu and select COM9. Click on OK. Click on OK again. Close the Device Manager window and restart Windows. Page 27 of 58...

  • Page 28: Replacing Rgb Led Pcbs

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Replacing RGB LED PCBs If you need to replace the building RGB LED PCBs, verify the connections so that the arrows point always in the same direction. Page 28 of 58...

  • Page 29: Wireless Internet Configuration

    If not, here’s how to configure your wireless network with your own existing Wi-Fi network. -Start the unit. -There will be Adrenaline Amusements wallpaper with a 150 seconds delay before the attract mode shows up. It gives enough time for a wireless network to connect.

  • Page 30: Operator Settings Keeps Resetting Trouble

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Operator Settings keeps resetting trouble Operator Settings keeps resetting back to default values after powering off the breakers. The Windows & SSD Device write cache needs to be disabled: -Exit the game to Windows.

  • Page 31: Computer Not Powering At Boot

    Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair Computer not powering at boot If your computer is not powering on by itself at boot you’ll need to verify the Bios Setting. -Power off the computer. -Plug a USB keyboard and a USB mouse. -Power on the computer, press and hold on the keyboard until you see the Bios screen.
  • Page 32 Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair -Using a mouse, click on Advanced tab, then click on APM Configuration. -On the line Restore AC Power Loss, click on the drop box where it displays “Power Off” and select Power On.
  • Page 33 Tomb Raider 65” Manual V2.0 Chapter 05 – Service & repair -On your keyboard press on and then click on OK to confirm and save the settings. Page 33 of 58...

  • Page 34: Chapter 06 - Parts

    Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Chapter 06 - Parts Cabinet Parts Page 34 of 58...
  • Page 35 Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Part Description Part # Monitor 65” with Black Frame and tempered RAM-10-0001 Glass Below Monitor PVC Buildings Print TR65-09-0005 w/ Speakers Cut-out Thermoformed Dash with Prints TR65-09-0006 Left Stones Acrylic TR65-09-0007L Right Stones Acrylic TR65-09-0007R Coin Door Assembly with 2 Upper Mech...

  • Page 36: Computer & Electronics

    Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Computer & Electronics Part Description Part Number Power Bar IEC5GLM INV-05-1242 I/O Board – 4 Players/Motors – Ver. 5.0 ADR-04-1003-RHW Sound Amplifier 2X15W INV-14-0005 +12V / 5A Power Supply for INV-14-0006 Sound Amplifiers +5V/320W Power Supply SF-14-0010...
  • Page 37 Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Part Description Part Number Gun Assembly /w Hose – Player 1 TR65-05-0011-1 Gun Assembly /w Hose – Player 2 TR65-05-0011-2 Gun Assembly /w Hose – Player 3 TR65-05-0011-3 Gun Assembly /w Hose – Player 4 TR65-05-0011-4 Part Description Part Number...
  • Page 38 Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Part Description Part Number Quantity 1 Compression Spring (Reload) TR-05-0001 2 Trigger Black ADR-96-2515-06 3 Vibration Motor 34mm INV-15-0006 4 Trigger Return Spring ADR-96-0005-00 5 Hex Drive Rounded Head Screw INV-92095A471 6 Trigger Switch ADR-95-4142-10 TR-05-0002 (L/H)
  • Page 39 Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Part Description Part Number Sphere White Coil 90mm INV-05-1246 Stem Controller Base Board INV-04-1301-01 +15V 40W Base Power Supply INV-05-1245 Page 39 of 58...

  • Page 40: Header & Leds

    Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Header & LEDs Part Description Part Number “Lara Croft” Header TR65-09-0001 “Tomb Raider” Header TR65-09-0002 “Mountain” Header TR65-09-0003 Melamine Header Support TR65-09-0004 Side RGB LEDs PCB 25Leds INV-14-1028 Side RGB LEDs PCB 17Leds INV-14-1028-02 Page 40 of 58...

  • Page 41: Cabling

    Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Cabling Part Description Part Number DVI Cable, 10’ INV-DVI-DD1-10 USB “AB” cable, 3’ INV-USB-AB1-3 USB “AB” cable, 6’ INV-USB-AB1-6 USB A Male to Mini-B 5-pins male, 6’ INV-USB-AM51-06 Audio Cable 3.5mm Male To 2x RCA Male, 6’ INV-35mm-RCAE-06 Power Cord IEC-C13 To IEC-C14, 18AWG, 2’...

  • Page 42: Wiring Harness

    Tomb Raider 65” Manual V2.0 Chapter 06 – Parts Wiring Harness Part Description Part Number Harness for Power - Led Controller TR-03-0001 Harness Start Button & Gun TR-03-0002 Harness for EMI Filter to Power Bar TR-03-0003 Harness I/O Board to Coin Doors TR-03-0004 Harness for Gun Ground TR-03-0005...

  • Page 43: Chapter 07 - Diagrams & Schematics

    Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Chapter 07 – Diagrams & Schematics I/0 Board ADR-04-1003 Page 43 of 58...
  • Page 44 Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics No Use Keypad No Use Power Aux. 1. (Blue) Operator 1. (Red) +12V 2. Not Connected 2. (Black) GND 3. Not Connected 3. (Red) +12V 4. Not Connected 4. (Black) GND 5.

  • Page 45: I/O Board - Detailed Wiring

    Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics I/O Board – Detailed Wiring Page 45 of 58...
  • Page 46 Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Player 1 Player 2 Page 46 of 58...
  • Page 47 Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Player 3 Player 4 Page 47 of 58...
  • Page 48 Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Page 48 of 58...
  • Page 49 Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Speakers Wiring Colors Page 49 of 58...

  • Page 50: Power Distribution Schematics

    Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Power Distribution Schematics Page 50 of 58...
  • Page 51 Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Page 51 of 58...
  • Page 52 Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Page 52 of 58...

  • Page 53: Rgb Led Schematics

    Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics RGB LED Schematics Each side has 2 strips of RGB PCB LED assembly. (Ref p.27) Each strips has 3x 25LEDs PCB (INV-14-1028) and 1x 17LEDs PCB (INV-14-1028-02) Page 53 of 58...

  • Page 54: Channel 1

    Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Channel 1 Page 54 of 58...

  • Page 55: Channel 2

    Tomb Raider 65” Manual V2.0 Chapter 07 – Diagrams & Schematics Channel 2 Page 55 of 58...

  • Page 56: Chapter 08 - Software Recovery

    Tomb Raider 65” Manual V2.0 Chapter 08 – Software Recovery Chapter 08 – Software Recovery If your unit software needs to be restored please follow those instructions. Connect a USB keyboard to the motherboard. Connect the provided USB Recovery flash disk is in a Black USB port. Power on the unit and press F8 on the keyboard to display the boot menu.

  • Page 57: Chapter 09 - Card Reader

    Configure your Operator settings as seen in Chapter 04. Embed System If you are using an Embed system, you need to connect your harnesses to Adrenaline Amusements I/O board & harnesses. You should refer to the Embed instructions manual for wiring pin-out.

  • Page 58: Limited Warranty Policies

    Improper servicing or abuse will VOID existing warranties. All warranty request needs to be validate with our technical support department. After the 1 year warranty, Adrenaline Amusements offers repairs & sales services options. Please contact the technical support department for information.
