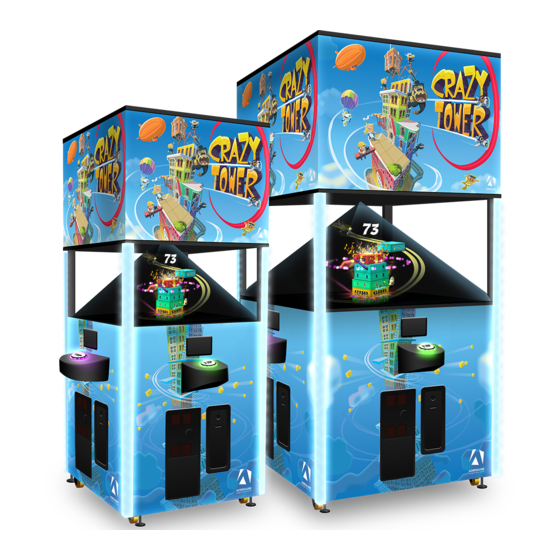

- Page 1 Crazy Tower Arcade Standard Version: CZT-36-1001 Mega Crazy Tower: MCZT-48-1001 Low Height Version: CZT-36-1003 Operation & Service Manual Version 7.1 * Read this manual before use...
-
Page 2: General Remark
General Remark If you encounter any difficulties or if you need support on how to update and/ or install your Crazy Tower Arcade product, we invite you to contact your local distributor or reach us at support@aagames.com or by calling our support line +1-450-824-1671... -
Page 3: Table Of Contents
Crazy Tower Arcade Manual V7.1 Chapter 01 - Preface Table of Contents Contents General Remark ....................2 Table of Contents ....................3 Chapter 01 - Preface ................... 5 Precaution for Game Operation ....................5 Safety ............................6 Environmental Conditions ......................6 Chapter 02 - Game Features ................ - Page 4 Crazy Tower Arcade Manual V7.1 Chapter 01 - Preface Operator Settings keeps resetting back to default values after powering off the breakers..25 Headers & Projectors ........................ 26 Chapter 07 - Parts ..................... 27 Cabinet Parts ..........................27 Cabinet Doors ..........................28 Pyramid &...
-
Page 5: Chapter 01 - Preface
• Do not block cooling vents. Precaution for Game Operation Adrenaline Amusements Inc. assumes no liability for injuries incurred while playing our games. Operators should be aware that certain health and physical conditions may make people susceptible to injury when playing video games. -
Page 6: Safety
If a power cord is damaged, it must be replaced by the equivalent power cord available from your distributor. Adrenaline Amusement Inc. assumes no liability for any damages or injuries incurred while setting up or servicing the cabinet. Only qualified service personnel should perform installation or service procedures. -
Page 7: Chapter 02 - Game Features
Crazy Tower Arcade Manual V7.1 Chapter 02 – Game Features Chapter 02 - Game Features Introducing the first holographic redemption game! Playing an addictive game in a see-through 3D display. Just out of this world How to Play • Stack floors on top of each other to create the highest tower! •... -
Page 8: Chapter 03 - Unit Features
Crazy Tower Arcade Manual V7.1 Chapter 04 – Unit Installation Chapter 03 – Unit Features Hardware Features • 4 Players Game • Amazing hologram display with RGB LEDs animations. • Optimized footprint; 4 players game in 20 sq² • 100% Skill Game, challenge your friends! Cabinet Facts: Standard version (36’’) -
Page 9: Cabinet Facts: Mega Crazy Tower (48'')
Crazy Tower Arcade Manual V7.1 Chapter 04 – Unit Installation Cabinet Facts: Mega Crazy Tower (48’’) Cabinet Dimensions Depth = 65.5’’ / 166.37 cm Width = 65.5’’ / 166.37 cm Shipping Dimensions Width = 60” Depth = 60” Height = 87”... -
Page 10: Cabinet Facts: Low Height Version
Crazy Tower Arcade Manual V7.1 Chapter 04 – Unit Installation Cabinet Facts: Low Height Version Cabinet Dimensions Depth = 53.50” / 1358.9 mm Width = 53.50’’ / 1358.9 mm Shipping Dimensions Width = 45” Depth = 41” Height = 98”... -
Page 11: Chapter 04 - Unit Installation
Crazy Tower Arcade Manual V7.1 Chapter 04 – Unit Installation Chapter 04 – Unit Installation Assembling your Crazy Tower Unit 1. Carefully remove the Cabinet from the shipping container, giving you enough space. Move the cabinet to the desired location. - Page 12 Crazy Tower Arcade Manual V7.1 Chapter 04 – Unit Installation 4. Each side has his specific button color onscreen; here are the player references that are assigned. This is very important for any troubleshooting steps (Ref.: Troubleshooting Chapter). Player 1 is the Red player; it’s on the drawer side.
- Page 13 Crazy Tower Arcade Manual V7.1 Chapter 04 – Unit Installation 5. Locate the holes on the bracket that will hold in place the player boxes, two on each side. 6. Before sliding the player box on the bracket, connect the cable from the cabinet to the cable inside the player box.
- Page 14 Crazy Tower Arcade Manual V7.1 Chapter 04 – Unit Installation 7. When the cables are connected, gently slide the player box on the bracket until you see the holes alignment. Then, affix the 4 bolts 10-24 X 3/4lg and tighten them.
-
Page 15: Chapter 05 - Operator Menu
Crazy Tower Arcade Manual V7.1 Chapter 05 – Operator Menu Chapter 05 – Operator Menu Operator Menu Access the Operator Menu by pressing the Operator button located inside the drawer on the I/O board directly. Up/Down: Scroll Up/Down & Increase/ Decrease Value... - Page 16 Crazy Tower Arcade Manual V7.1 Chapter 05 – Operator Menu Operator Menu Values What it does Adjusts the number of credits required to play. “0” sets Credits Per Game 0 – 20 the unit in free play mode. Adjusts the in-game audio volume. “0” will mute the Game Audio Volume 0 –...
-
Page 17: Station Reassignment
Crazy Tower Arcade Manual V7.1 Chapter 05 – Operator Menu Reboot the unit to update the game via a previously Update By USB downloaded file copied on a USB flash drive. Shows the Stats Screen. Game Stats Resets the Inserted credits to 0 if more than 40 credits Clear Credits are entered. -
Page 18: Chapter 06 - Service & Repair
Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair Chapter 06 - Service & Repair Computer Connections Version GTX 1050 video card 18 | P a g e... -
Page 19: Version Gtx 1060 Video Card
Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair Version GTX 1060 video card 19 | P a g e... -
Page 20: Troubleshooting
Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair Troubleshooting * NOTE: When requesting a warranty replacement, you will be asked to give the unit’s serial number from the back of the unit. Video Troubleshooting There could be loose or faulty connections between a projector and the computer. - Page 21 Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair All 4 sides display “HDMI / MHL – Searching” - No power to computer. • Verify that the computer is powered ON. Open the drawer; you should see the fans spinning.
- Page 22 Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair Below are the other Projector Settings Screens as references 22 | P a g e...
-
Page 23: Audio Troubleshooting
Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair Audio Troubleshooting Increase the volume in the game by pressing the Operator Button and adjusting the volume options in the Operator Menu. You might also Quit the game to Windows desktop and increase the volume via the Speaker icon on the bottom right of your screen. -
Page 24: Wireless Internet Configuration
If not, here is how to configure your wireless network with your own existing Wi-Fi network. -Start the unit. -There will be Adrenaline Amusements wallpaper with a 150 seconds delay before the attract mode shows up. It gives enough time for a wireless network to connect. -
Page 25: Operator Settings Keeps Resetting Back To Default Values After Powering Off The Breakers
Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair Operator Settings keeps resetting trouble Operator Settings keeps resetting back to default values after powering off the breakers. The Windows & SSD Device write cache needs to be disabled: -Exit the game to Windows. -
Page 26: Headers & Projectors
Crazy Tower Arcade Manual V7.1 Chapter 06 – Service & Repair Headers & Projectors If you need to access the projectors for adjustment or replacement, you will before need to unscrew the top screw to be able to slide the acrylic panel. -
Page 27: Chapter 07 - Parts
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Chapter 07 - Parts Cabinet Parts Part Description Part # Speakers 4” ADR-50-9986-00 Round Jumbo UFO LED Button with Sticker ADR-75-0029-00-KIT Sticker for Tap Button FT-09-TAP Complete Thermoformed Playable Platform CZT-05-1001-KIT Including Button, Fan and Harness Leg Leveler 1/2"-13 x 4"... -
Page 28: Cabinet Doors
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Cabinet Doors Part Description Part # Ticket Dispenser Door Including LEDs, Without Dispenser ADR-40-0540-00KA Door and Frame Assembly with Blank Upper and Bottom Door ADR-40-0745-20KA Door Assembly With 2 Upper Mech Holder,... -
Page 29: Pyramid & Misc. Parts
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Pyramid & Misc. Parts Part Description Part Number Pyramid Glasses, with oleophobic coating for 36’’X36’’ Model CZT-10-1001 Pyramid Glasses, with oleophobic coating for 48’’X 48’’ Model MCZT-10-1001 Canvas for Projector with Velcro and Snaps, 36’’ x 36’’... -
Page 30: Computer & Electronics
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Computer & Electronics Part Description Part Number Switching Power Supply, 12 V, 5A, 2.1 x 5.5mm Plug INV-14-0006 Power Bar 5 positions INV-05-1242 Switching Power Supply, 130W, +5V/15A, +12V/4A, -5v/1A ADR-80-0210-00 I/O Board, 4 Players, 4 Motor Control, Version 5.0... -
Page 31: Wood Parts
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Wood Parts Cabinet Part Description Part Number CZT-02-1001-ITEM-01 Melamine 5/8 MCZT-02-0001-ITEM-01 CZT-02-1001-ITEM-02 Melamine 5/8 MCZT-02-0001-ITEM-02 CZT-02-1001-ITEM-03 Melamine 5/8 MCZT-02-0001-ITEM-03 CZT-02-1001-ITEM-04 Melamine 5/8 MCZT-02-0001-ITEM-04 CZT-02-1001-ITEM-05 Melamine 5/8 MCZT-02-0001-ITEM-05 CZT-02-1001-ITEM-06 Plywood 5/8 MCZT-02-0001-ITEM-06... -
Page 32: Decal Prints & Header
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Decal Prints & Header Standard Version (36’’) Part Description Part Number Top Header for Crazy Tower including LEDs cable and Tape CZT-09-1001-KIT Melamine Decal Kit, Crazy Tower CZT-09-1002 LEDs for Top Header, Crazy Tower and Mega Crazy Tower MCZT-14-1001 Mega Crazy Tower (48’’) -
Page 33: Cabling
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Cabling Standard (36’’) and Low Height Versions Part Description Part Number Splitter Cable Barrel connector 2.1mm Female to 4x 2.1mm Male INV-CN-DCF-4M HDMI Cable, 15' INV-HDMI-140-15K Power Cord IEC-C13 to IEC-C14, 18AWG, 2’... -
Page 34: Wiring Harness
Crazy Tower Arcade Manual V7.1 Chapter 07 – Parts Wiring Harness Part Description Part Number Harness for Power Supply 5-12 CZT-03-0001 Harness for Power Supply to IO Board CZT-03-0002 Harness for Button Player 1 To 4 CZT-03-0003 Harness For I/O Board to Player 1 only... -
Page 35: Chapter 08 - Diagrams & Schematics
Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Chapter 08 – Diagrams & Schematics I/0 board ADR-04-1001 Rev. 1 No Use Keypad No Use Player 1 Ticket 1. (Blue) Enter 1. (Red) +12V 2. (Green) Down 2. (White) OUT 3. - Page 36 Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Player 2 Buttons Player 3 Buttons Player 4 Buttons 5V/12V Input DC 1. (Red) +12V 1. (Red) +12V 1. (Red) +12V 2. (Blue) OUT 2. (Blue) OUT 2. (Blue) OUT 3.
-
Page 37: Former I/O Board: Adr-04-1001
Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Former I/O Board: ADR-04-1001 Version 1 Wiring Colors No Use Keypad No Use Player 1 Ticket 1. (Blue) Enter 1. (Red) +12V 2. (Green) Down 2. (White) OUT 3. (Red) Select 3. - Page 38 Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics USB To Computer Coin Door Player-1 Coin Door Player-2 Coin Door Player-3 1. (White) +12V 1. (White) +12V 1. (White) +12V 2. (Black) GND 2. (Black) GND 2. (Black) GND 3.
- Page 39 Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Version 2 Wiring Colors No Use Keypad No Use Player 1 Ticket 1. (Blue) Enter 1. (Red/White) +12V 2. (Green) Down 2. (White/Black) OUT 3. (Red) Select 3. (Green/White) OPTO1 4.
- Page 40 Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Coin Door Player-4 1. (White) +12V 2. (Black) GND 3. (Red) IN1 4. (Orange/Red) IN2 5. (Blue) GND 6. (Red/Green) OUT1 7. (Orange) OUT2 8. (Green) +12V 40 |...
-
Page 41: Power Distribution Schematics
Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Power Distribution Schematics 41 | P a g e... -
Page 42: Players Wiring
Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Players Wiring Current version 42 | P a g e... - Page 43 Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Players Wiring Version 1 (Discontinued) 43 | P a g e...
-
Page 44: Coins & Ticket Wiring
Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Coins & Ticket Wiring The wiring is the same for each player. The difference is that Player-1 (Drawer) uses harness CZT-03-0006 while Players-2-3-4 uses harness CZT-03-0005. 44 | P a g e... - Page 45 Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics Coins & Ticket Wiring Version 1 (Discontinued) 45 | P a g e...
-
Page 46: Rgb Led Wiring
Crazy Tower Arcade Manual V7.1 Chapter 08 – Diagrams & Schematics RGB LED Wiring 46 | P a g e... -
Page 47: Chapter 09 - Software Recovery
Crazy Tower Arcade Manual V7.1 Chapter 09 – Software Recovery Chapter 09 – Software Recovery If your unit software needs to be restored please follow those instructions. Connect a USB keyboard to the motherboard. Connect the provided USB Recovery flash disk is in a Black USB port. -
Page 48: Chapter 10 - Card Reader
Crazy Tower Arcade Manual V7.1 Chapter 10 – Card Reader Chapter 10 – Card Reader If you use a card reader system, it is important to follow those instructions. You need to install 4 card readers, one for each player. You need to buy the optional Black Door to install. -
Page 49: Embed System
Chapter 10 – Card Reader Embed System If you are using an Embed system, you need to connect your harnesses to Adrenaline Amusements I/O board & harnesses. You should refer to the Embed instructions manual for wiring pin-out but here’s... - Page 50 Crazy Tower Arcade Manual V7.1 Chapter 10 – Card Reader The Embed settings are Standard except: -Ticket Mech Type: Dumb DC -Drive Polarity: Positive -Notch Polarity: Negative -Game ticket notch width = 10 -Game ticket notch spacing = 15 -Game Drive Threshold = 1.5V...
-
Page 51: Limited Warranty Policies
Improper servicing or abuse will VOID existing warranties. All warranty request needs to be validate with our technical support department. After the 1 year warranty, Adrenaline Amusements offers repairs & sales services options. Please contact the technical support department for information.
