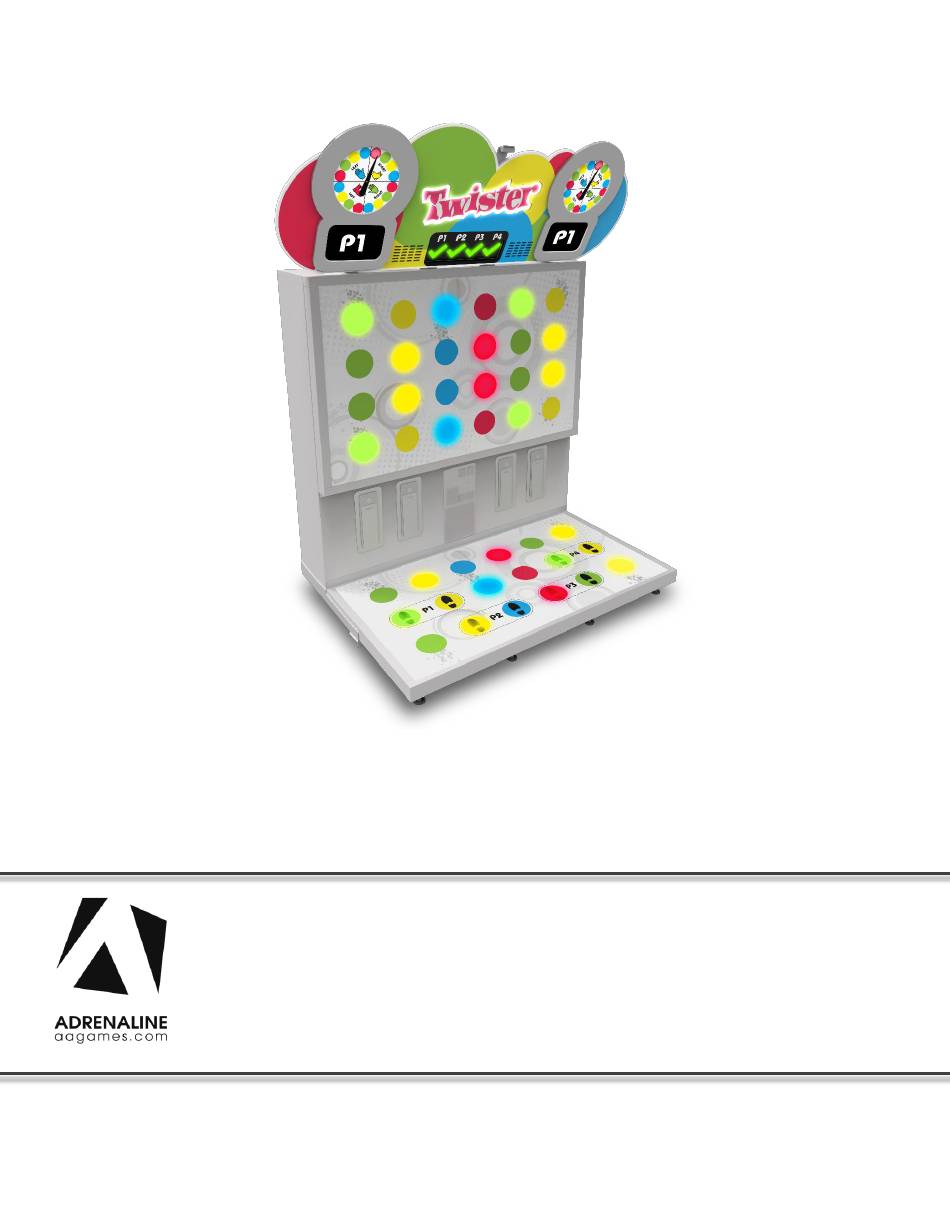

- Page 1 Twister TWI-28-4001 Operation & Service Manual Version 1.0 * Read this manual before use...
-
Page 2: General Remark
If you encounter any difficulties or if you need support on how to update and/ or install your Twister product, we invite you to contact your local distributor or reach us at support@aagames.com or by calling our support line +1-450-824-1671 Adrenaline Amusements Team Adrenaline Amusements 2273 Antonio-Héroux street Terrebonne, QC... -
Page 3: Table Of Contents
Twister Manual V1.0 Table of Contents Contents General Remark ....................2 Table of Contents ....................3 Chapter 01 - Preface ................... 5 Precaution for Game Operation ....................5 Safety ............................6 Environmental Conditions ......................6 Operating & Voltage ........................6 Chapter 02 - Game Features ................ - Page 4 Twister Manual V1.0 Chapter 07 - Parts ..................... 25 Wood Module ........................... 25 Game Wall Assembly ......................... 26 Game Floor Assembly ........................ 27 Light Assembly ........................... 28 Cabinet Brackets ........................28 Computer & Electronics ......................29 Cabinet Doors ..........................30 Other Cabinet Parts ........................
-
Page 5: Chapter 01 - Preface
• Do not block cooling vents. Precaution for Game Operation Adrenaline Amusements Inc. assumes no liability for injuries incurred while playing our games. Operators should be aware that certain health and physical conditions may make people susceptible to injury when playing video games. -
Page 6: Safety
If a power cord is damaged, it must be replaced by the equivalent power cord available from your distributor. Adrenaline Amusement Inc. assumes no liability for any damages or injuries incurred while setting up or servicing the cabinet. Only qualified service personnel should perform installation or service procedures. -
Page 7: Chapter 02 - Game Features

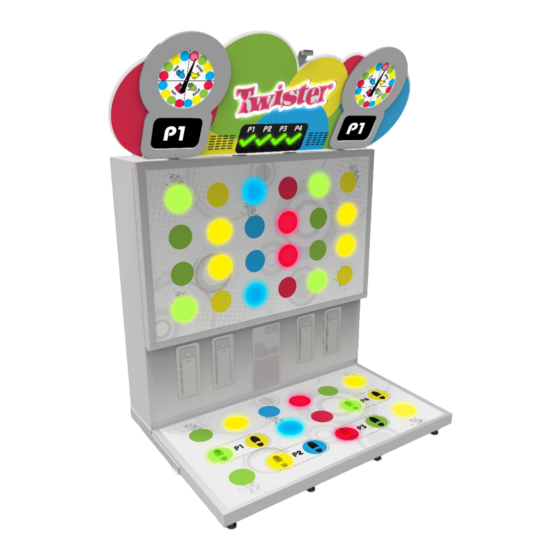

Twister Manual V1.0 Chapter 02 – Game Features Chapter 02 - Game Features Twister is a physical skill game where your hand and feet coordination can earn you a lot of tickets. How to Play • Get on your player’s spot. •... -
Page 8: Chapter 03 - Unit Features
Twister Manual V1.0 Chapter 03 – Unit Features Chapter 03 – Unit Features Hardware Features • 4-players game • 2 overhead LCD monitors • 42 colored circles Cabinet Facts Cabinet Dimensions Depth = 57.00” [1447.80mm] Width = 90.58” [2300.73mm] Shipping Dimensions Width = 80”... -
Page 9: Chapter 04 - Unit Installation
Twister Manual V1.0 Chapter 04 – Unit Installation Chapter 04 – Unit Installation How to assemble your Twister unit Warning: At least 2 people are required to perform the following operations Structural Parts 1) Position the floor assembly on the cabinet assembly 2) Secure the floor assembly with the provided white 10-24 x 1¼... - Page 10 Twister Manual V1.0 Chapter 04 – Unit Installation 4) Slightly lower the levellers until they touch the floor. 5) Position both top display brackets on each side using hexagonal ¼-20 screws Make sure that the colored stickers match with the ones on each side of the cabinet 6) Position the 2 side headers by installing M4 screws between the brackets and the monitors 10 | P a g e...
- Page 11 Twister Manual V1.0 Chapter 04 – Unit Installation 7) Position and secure the center header by installing #8 x ¾ black screws 8) Secure the center header with black 10-24 machine screws. ===================================================================================== Electronic Parts 9) Connect all 3 harnesses coming from the floor assembly to the cabinet For each connector, connect it with the one identified with the same number 11 | P a g e...
- Page 12 Twister Manual V1.0 Chapter 04 – Unit Installation 10) For each side header, connect the HDMI and power cables from the monitors to their extensions 11) Connect the longest USB extension to the camera USB cable Connect the shortest USB extension to the LED Matrix USB Cable Camera LED Matrix 12) Connect both 4 pins and 2 pins connectors to their extensions...
-
Page 13: Chapter 05 - Operator Menu
Twister Manual V1.0 Chapter 05 – Operator Menu Chapter 05 – Operator Menu Operator Menu Access the Operator Menu by pressing the white operator menu button behind the center door of the cabinet. Navigate through the operator menu by using your keyboard’s numerical pad keys “1”,”2” and “3”. PREVIOUS SELECT NEXT 13 | P a g e... - Page 14 Twister Manual V1.0 Chapter 05 – Operator Menu 14 | P a g e...
- Page 15 Twister Manual V1.0 Chapter 05 – Operator Menu SETTINGS Operator Menu Values What It Does Game Audio Volume 0-20 Adjusts the in-game audio volume. “0” will mute the game. Voice Attract Volume 0-20 Adjusts the in-game voice volume. “0” will mute the voice Attract Audio Volume 0-20 Adjusts the volume of the voice attract loop.
-
Page 16: Chapter 06 - Service & Repair
Twister Manual V1.0 Chapter 06 – Service & repair Chapter 06 – Service & Repair Computer Connections Description Green Audio Jack 3.5 mm for Top Speakers USB Port to I/O Board USB Port to USB Hub Power Button AC Inlet Power Supply AC Power Switch USB Port to RGB Controller USB Port to Bus Master Board... -
Page 17: Troubleshooting
Twister Manual V1.0 Chapter 06 – Service & repair Troubleshooting * NOTE: When requesting a warranty replacement, you will be asked to give the unit’s serial number from the back of the unit. Video Troubleshooting There might have loose or faulty connections between the monitor and the computer. -
Page 18: Rgb Led Troubleshooting
Twister Manual V1.0 Chapter 06 – Service & repair RGB Led Troubleshooting If the RGB LEDs are not working properly verify that the RGB LED Controller is connected on a valid COM Port. Press the Operator Button and Quit/Exit the game to Windows Desktop. Connect a USB mouse. - Page 19 Twister Manual V1.0 Chapter 06 – Service & repair Expand the “Ports (COM & LPT)” line by clicking on the >. Verify that the “USB Serial Device” is set between COM2 to COM9. 19 | P a g e...
- Page 20 Twister Manual V1.0 Chapter 06 – Service & repair If it’s outside this range, double-click on it to open its properties. Select the “Port Settings” Tab. Click on “Advanced…” 20 | P a g e...
- Page 21 Twister Manual V1.0 Chapter 06 – Service & repair Click on the COM Port Number scrolling menu and select COM9. Click on OK. Click on OK again. Close the Device Manager window and restart Windows. 21 | P a g e...
-
Page 22: Wireless Internet Configuration
If not, here’s how to configure your wireless network with your own existing Wi-Fi network. -Start the unit. -There will be Adrenaline Amusements wallpaper with a 150 seconds delay before the attract mode shows up. It gives enough time for a wireless network to connect. -
Page 23: Operator Settings Keeps Resetting
Twister Manual V1.0 Chapter 06 – Service & repair Operator Settings keeps resetting Operator Settings keeps resetting back to default values after powering off the breakers. The Windows & SSD Device write cache needs to be disabled: -Exit the game to Windows. -Press on Start -Right click on My Computer -Choose Properties... -
Page 24: Computer Not Powering At Boot
Twister Manual V1.0 Chapter 06 – Service & repair Computer not powering at boot If your computer is not powering on by itself at boot you’ll need to verify the Bios Setting. -Power off the computer. -Plug a USB keyboard and a USB mouse. -Press the power button on the computer. -
Page 25: Chapter 07 - Parts
Twister Manual V1.0 Chapter 07 – Parts Chapter 07 - Parts Wood Module Part Description Part # Cabinet Floor Plywood ¾ TWI-02-0005-01 Lower Back Panel Melamine ¾ TWI-02-0005-02 Front Doors Melamine ¾ TWI-02-0005-03 Cabinet Top Melamine ¾ TWI-02-0005-04 Cabinet Back Melamine ¾ TWI-02-0005-05 Left Access Door Melamine ¾... -
Page 26: Game Wall Assembly
Twister Manual V1.0 Chapter 07 – Parts Game Wall Assembly Part Description Part # Printed Sticker for Game Wall TWI-07-0004 Wall Panel No Print PETG 3/16 TWI-07-0003 Game Wall Top Bracket TWI-07-0041 Light Support TWI-07-0005 Game Wall Wood Panel TWI-02-0002 Game Wall Side Bracket TWI-07-0042 Game Wall Bottom Bracket... -
Page 27: Game Floor Assembly
Twister Manual V1.0 Chapter 07 – Parts Game Floor Assembly Part Description Part # Game Floor Left Side Bracket TWI-01-0019 Printed Sticker for Game Floor TWI-07-0002 Floor Panel No Print PETG 3/16 TWI-07-0001 Game Floor Back Bracket TWI-01-0008 Game Floor Inner Side Bracket TWI-01-0001 Game Floor Right Side Bracket TWI-01-0009... -
Page 28: Light Assembly
Twister Manual V1.0 Chapter 07 – Parts Light Assembly Part Description Part # Programmed Capsense MCU Board for Twister AAG-04-0020-PROG Capsense Antenna Board for Twister AAG-04-0021 Light Support TWI-07-0005 Cabinet Brackets Part Description Part # Floor Light Cover TWI-07-0044 Left Floor Side Bracket TWI-01-0006 Front Bottom Module Bracket TW-01-0007... -
Page 29: Computer & Electronics
Twister Manual V1.0 Chapter 07 – Parts Computer & Electronics Part Description Part Number Power Bar 5 positions INV-05-1242 I/O Board, 4 Players, 4 Motor Control, Version 5.0 for Twister ADR-04-1003-TWI 2X15 Watt Class D Audio Amplifier Board INV-14-0005 7-Port USB, 3.0 Hub, Type A Female USB AAG-11-0011 Switching Power Supply, 12 V, 5A, 2.1mm x 5.5mm Plug INV-14-0006... -
Page 30: Cabinet Doors
Twister Manual V1.0 Chapter 07 – Parts Cabinet Doors Part Description Part Number Ticket Dispenser Door Including LEDs, Without Dispenser ADR-40-0540-00KA Door and Frame Assembly with Blank Upper and Bottom Door ADR-40-0745-20KA Door Assembly With 2 Upper Mech Holder, ADR-40-3000-06LKA 1 Validator Cut Out, Blank Bottom Door Door Assembly with One Upper Mech Holder, Round Corner, ADR-40-0512-06NMKA... -
Page 31: Header Assembly
Twister Manual V1.0 Chapter 07 – Parts Header Assembly Part Description Part Number Top Left Header White Printed PVC 3/4 TWI-07-0008 28’’ Monitor GF28H24W12 AAG-10-0003 Screen Cover Left and Right, White Printed PVC 3/4 TWI-07-0007 Top Center Header White Printed PVC 3/4 TWI-07-0006 Intel Depth Programmed Camera BLX-10-0001-PROG... -
Page 32: Cabling
Twister Manual V1.0 Chapter 07 – Parts Cabling Part Description Part Number Splitter Cable Barrel Connector, 2.1mm Female to 2 x 2.1mm Male, 300mm TF-05-1223 Harness for PSU Power, Blox Breaker BLX-03-0014 INV-PW-100-06 INV-PW-100-06 Power Cord IEC-C14 to IEC-C7, 18AWG, 3’ INV-PW-117-03 Cable Power Splitter, C14 to 2x C13, 2' INV-PW-200B-02... -
Page 33: Hardware Kit
Twister Manual V1.0 Chapter 07 – Parts Hardware Kit Part Description Part Number Pan Philips Machine Screws Zinc M4 x 10 mm MS-PP-ZS-M4-0.4x10MM Pan Head Machine Screw, Phillips, Black, 10-24 x 1-1/4" MS-PP-BS-10-24X1-1/4 Hex Head Screw, Zinc, Grade 5, 1/4-20 x 3/4'' HS-HH-Z-1/4-20X3/4 Pan Phillips White Head M/S Zinc 10/24 X 1 1/4 MS-PP-WHS-10-24X1-1/4... -
Page 34: Chapter 08 - Diagrams & Schematics
Twister Manual V1.0 Chapter 08 – Diagrams & Schematics Chapter 08 – Diagrams & Schematics I/0 Board ADR-04-1003-RL 34 | P a g e... -
Page 35: I/O Board Connections
Twister Manual V1.0 Chapter 08 – Diagrams & Schematics I/O Board Connections 1. (Red) OPERATOR 2. Not Connected 3. Not Connected 4. Not Connected 5. (Black) GND 6. Not Connected (White) 12V 1. (White) 12V (White) 12V (Red) OUT 2. (Red) OUT (Red) OUT (Black) OPTO1 3. -
Page 36: Speakers Wiring Colors
Twister Manual V1.0 Chapter 08 – Diagrams & Schematics Speakers Wiring Colors Top Speaker R/H Top Speaker L/H Cabinet Speaker R/H Cabinet Speaker L/H 36 | P a g e... -
Page 37: Power Distribution Schematics
Twister Manual V1.0 Chapter 08 – Diagrams & Schematics Power Distribution Schematics Page 37 of 41... -
Page 38: Tray Assembly Schematics
Twister Manual V1.0 Chapter 08 – Diagrams & Schematics Tray Assembly Schematics Page 38 of 41... -
Page 39: Chapter 09 - Software Recovery
Twister Manual V1.0 Chapter 09 – Software Recovery Chapter 09 – Software Recovery If your unit software needs to be restored, please follow those instructions. Connect a USB keyboard to the motherboard. Connect the provided USB Recovery flash disk is in a Black USB port. Power on the unit and press F11 on the keyboard to display the boot menu. -
Page 40: Chapter 10 - Card Reader
Configure your Operator settings as seen in Chapter 5 - Operator Menu. Embed System If you are using an Embed system, you need to connect your harnesses to Adrenaline Amusements I/O board & harnesses. You should refer to the Embed instructions manual for wiring pin-out. -
Page 41: Limited Warranty Policies
This unit has a 1-year warranty against defective hardware from date of delivery. Other than abuse or improper servicing, Adrenaline Amusements covers at no charge the replacement parts including standard shipping. We offer an advanced replacement program and the customers have 30 days from delivery date to return back the defective equipment at their fees or they will be charged automatically for the replacement parts.
