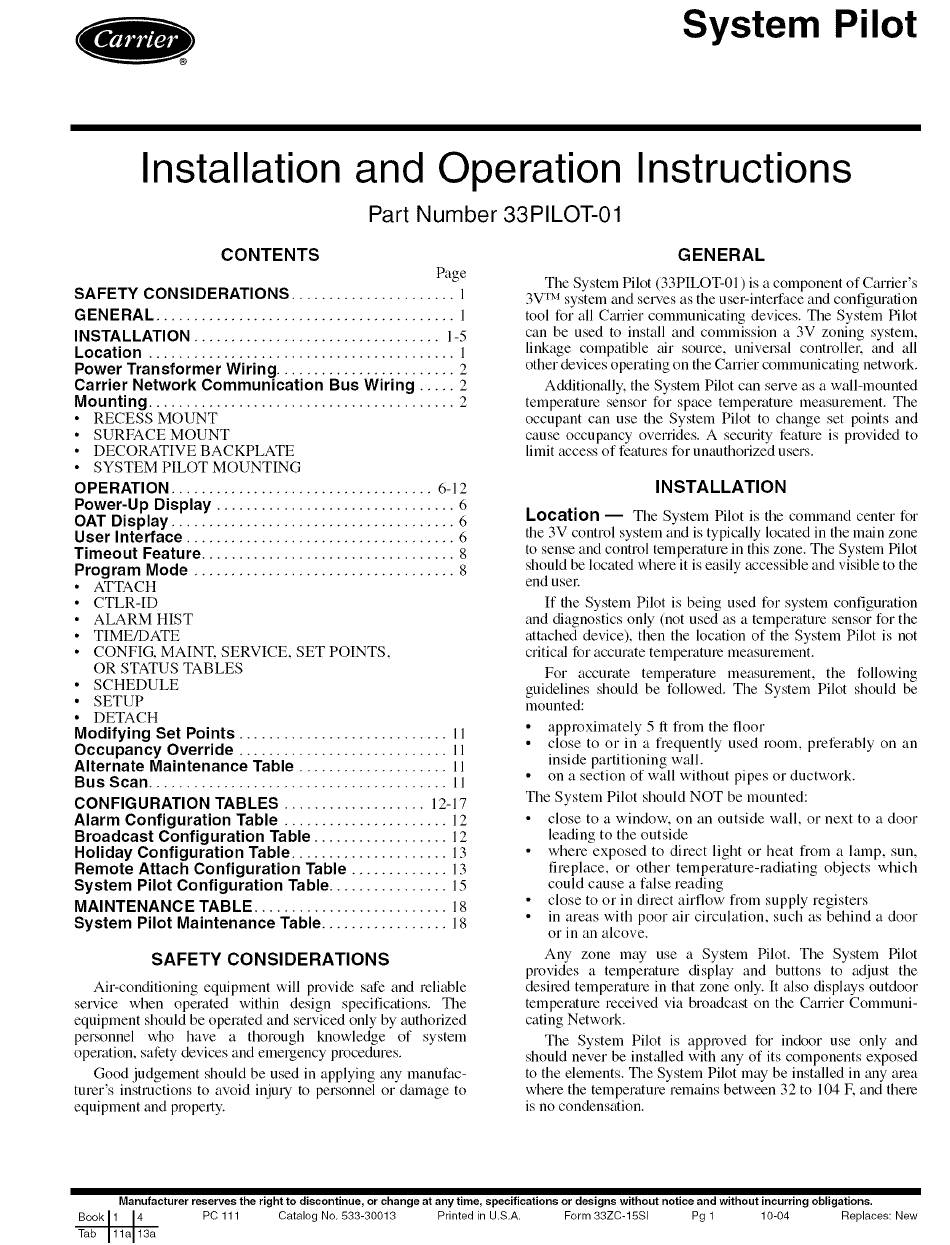

System Pilot
Installation and Operation Instructions
Part Number 33PILOT-01
CONTENTS
Page
SAFETY
CONSIDERATIONS
......................
1
GENERAL
........................................
l
INSTALLATION
.................................
1-5
Location
.........................................
1
Power Transformer
Wiring ........................
2
Carrier
Network
Communication
Bus Wiring
.....
2
Mounting
.........................................
2
RECESS
MOUNT
SURFACE
MOUNT
DECORATIVE
BACKPLATE
SYSTEM
PILOT MOUNTING
OPERATION
...................................
6-12
Power-Up
Display
................................
6
OAT Display
......................................
6
User Interface
....................................
6
Timeout
Feature
..................................
8
Program
Mode ...................................
8
• ATTACH
• CTLR-[D
• ALARM
HIST
• TIME/DATE
• CONFIG. MAINT, SERVICE, SET POINTS,
OR STATUS
TABLES
• SCHEDULE
• SETUP
DETACH
Modifying
Set Points ............................
11
Occupancy
Override
............................
11
Alternate
Maintenance
Table
....................
11
Bus Scan ........................................
11
CONFIGURATION
TABLES
...................
12-17
Alarm Configuration
Table
......................
12
Broadcast
Configuration
Table ..................
12
Holiday
Configuration
Table .....................
13
Remote
Attach
Configuration
Table
.............
13
System
Pilot
Configuration
Table ................
15
MAINTENANCE
TABLE ..........................
18
System
Pilot
Maintenance
Table .................
18
SAFETY
CONSIDERATIONS
Air-conditioning
equipment
will provide
safe and reliable
service
when
operated
within
design
specifications.
The
equipment
should be operated and serviced only by authorized
personnel
who
have
a
thorough
knowledge
of system
operation,
safety devices and emergency
procedures.
Good judgement
should be used in applying any manufac-
turer's instructions
to avoid injury to personnel
or damage to
equipment
and property.
GENERAL

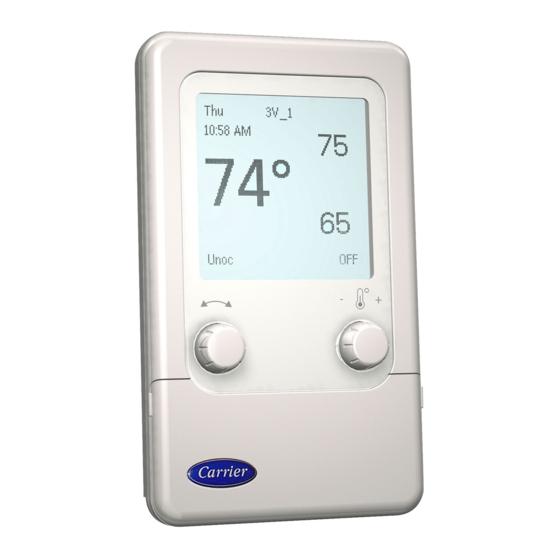

The System Pilot (33PILOT-01)
is a component
of Canier's
3V
TM
system and serves as the user-interface
and configuration
tool for all Cmrier communicating
devices. The System
Pilot
can be used to install and commission
a 3V zoning system,
linkage
compatible
air source,
univel.sal
controllel:
and all
other devices operating on the Carrier communicating
network.
Additionally,
the System
Pilot can serve as a wall-mounted
temperature
sensor for space temperature
measurement.
The
occupant
can use the System
Pilot to change set points and
cause occupancy
overrides.
A security
feature is provided
to
limit access of features for unauthorized
users.
INSTALLATION
Location
--
The System
Pilot is the command
center for
the 3V control system and is typically located in the main zone
to sense and control telnperature
in this zone. The System Pilot
should be located where it is easily accessible
and visible to the
end usec
If the System
Pilot is being used for system configuration
and diagnostics
only (not used as a temperature
sensor for the
attached device),
then the location of the System Pilot is not
critic_d for accurate temperatme measurement.
For
accurate
temperature
measurement,
the
following
guidelines
should be followed.
The System
Pilot should
be
mounted:
approximately
5 ft from the floor
close to or in a frequently
used room, preferably
on an
inside partitioning
wall.
on a section of wall without
pipes or ductwork.
The System
Pilot should NOT be mounted:
close to a window,
on an outside
wall, or next to a door
leading to the outside
where exposed
to direct light or heat from a lamp, sun,
fireplace,
or other temperature-radiating
objects
which
could cause a false reading
close to or in direct airflow
from supply registers
in areas with poor air circulation,
such as behind a door
or in an alcove.
Any
zone may
use a System
Pilot. The
System
Pilot
provides
a temperature
display
and
buttons
to adjust
the
desired temperature
in that zone only. [t also displays outdoor
temperature
received
via broadcast
on the Carrier Communi-
cating Network.
The System
Pilot is approved
for indoor use only and
should never be inst_dled with any of its components
exposed
to the elements.
The System Pilot may be installed in any area
where the temperature
remains between 32 to 104 E and the]e
is no condensation.
Manufacturer
reserves the right to discontinue, or change at any time, specifications
or designs without notice and without incurring obligations.
Book
1
14
PC 111
Catalog No, 533-30013
Printed in U.S.A.
Form 33ZC-15SI
Pg 1
10-04
Replaces:
New
I
Tab
11a 13a
