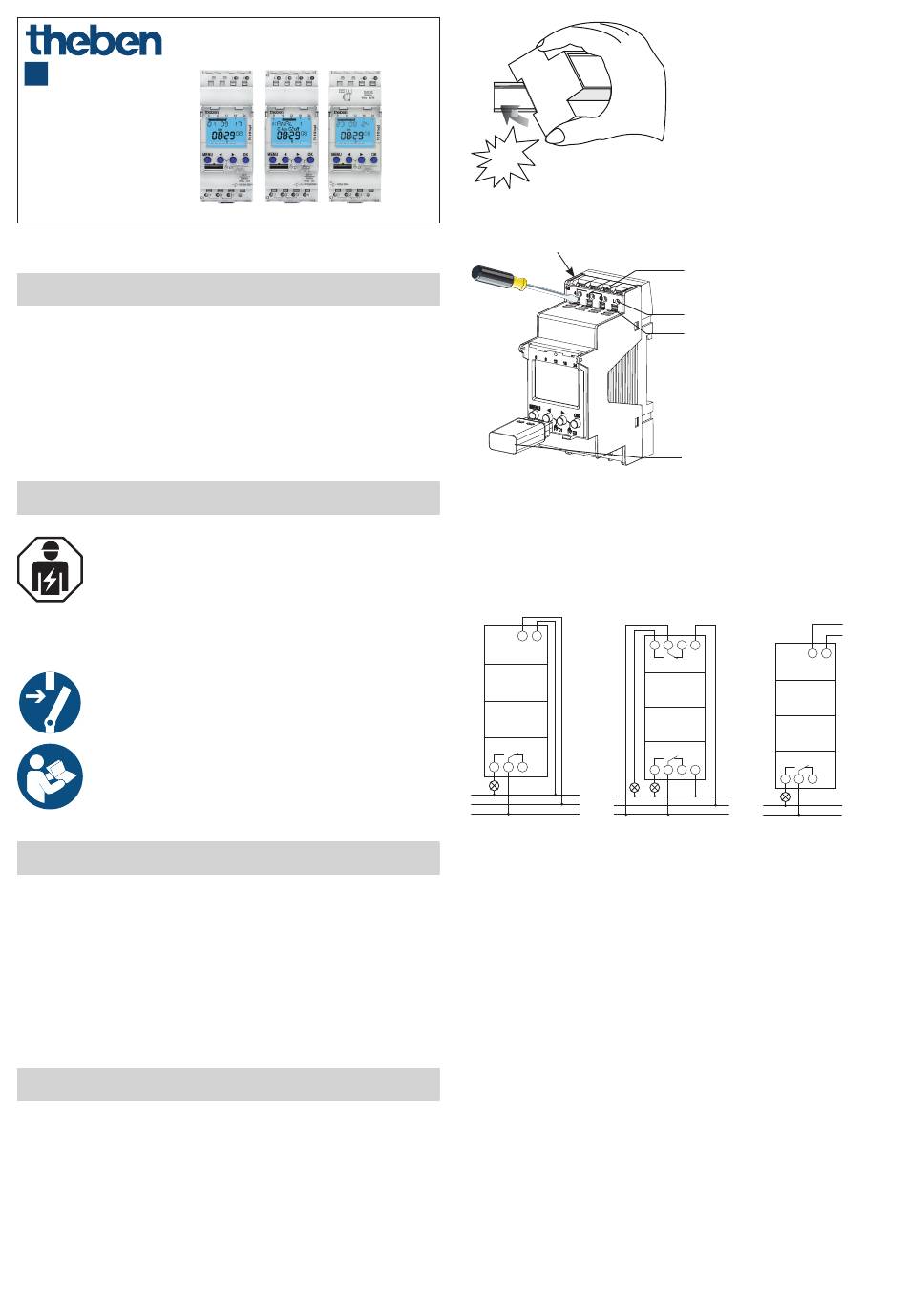

Time switch
EN

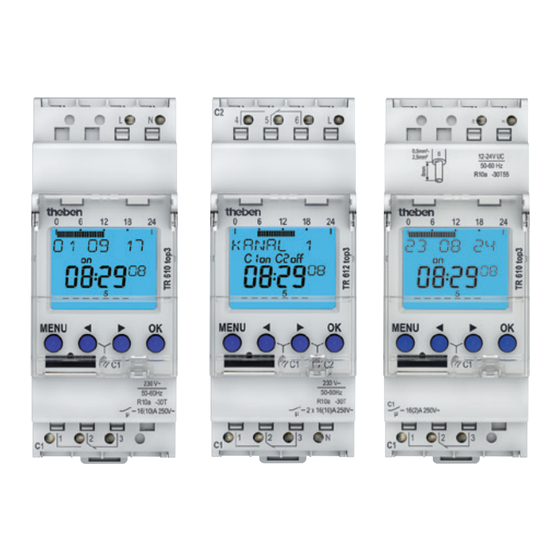

TR 610 top3
6100130
TR 612 top3
6120130
TR 610 top3 12–24V
6104130
1. General information
The device is designed for installation on DIN rails (in
accordance with EN 60715)
The device corresponds to type 1.B.S.T.U in accordance
with IEC/EN 60730-2-7
Power reserve (10 years) is reduced if memory card is
inserted (using battery power)
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
the entire manual and follow the instructions.
3. Proper use
The time switch is used for lighting, ventilation and
flushing applications etc.
Interface for Bluetooth OBELISK top3 (app)
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment etc.
4. Installation and connection
Mounting the time switch
Mount on DIN rails.
307253 04
21.03.2025
clic
45° cable
!
Check the depth of the control cabinet when OBELISK
top3 is connected. The depth must be > 94 mm.
Connecting the time switch
L N
C1
1 2 3
TR 610 top3
Connecting the cable
Strip cable to 8 mm (max. 9).
Insert cable in the open DuoFix plug-in terminal at 45°.
L 2 cables per terminal position possible.
To open the DuoFix plug-in terminal, press screwdriver
downwards.
Disconnecting the cable
Use the screwdriver to push the spring plug-in terminal
downwards.
TH 35-7,5
(DIN EN 60715)
DuoFix plug-in
terminal
Test tap
Plug-in screwless
terminal NC contact
Bluetooth OBELISK
top3 (9070130)
4 5 6
L
C2
C1
1 2 3
N
N
N
L
L
L
L
TR 612 top3
+ ~
12–24 V
– ~
+ ~ – ~
C1
1 2 3
N
L
TR 610 top3 12–24V
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6104130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Theben 6104130

  • Page 1 TR 610 top3 6100130 TR 612 top3 clic TH 35-7,5 6120130 (DIN EN 60715) TR 610 top3 12–24V 6104130 45° cable DuoFix plug-in 1. General information terminal Test tap • The device is designed for installation on DIN rails (in...
  • Page 2: Device Description

    5. Device description Overview of navigation menu MENU Display & buttons PROGRAM TIME/DATE MANUAL CHANNEL C1 TIME CHANNEL C1 SET DATE PERM ON Programmed CHECK SU--WI PERM OFF switching times MODIFY WEEK OVERR ON Date display Time display DELETE HOLIDAY FORM DATE Channel status Days of the week...
  • Page 3: Settings And Functions

    6. Settings and functions L You can either change or delete a block, i.e. a switching time copied for several days (e.g. Mon-Fri) or a single switching time. Set switching time Change individual switching times Press MENU. † MENU Select PROGRAM and press OK to confirm. †...
  • Page 4: Setting Holiday Function

    All functions can also be transferred to the time switch using the Bluetooth OBELISK top3 memory card (9070130). Activating PIN code The PIN code is set in OPTIONS via the menu. L If you have forgotten your PIN, call the Theben Hotline. L Have the serial number ready. MENU OPTIONS...
  • Page 5: Resetting The Time Switch

    6104130 : 12–24 V AC/DC, +10 %/–15 % Frequency: 50–60 Hz Standby: 0,4 W (6104130: 0,15–max. 0,3 W) Max switching capacity: 16 A (at 250 V, cos ϕ = 1) Switching capacity: * 10 A (at 250 V, cos ϕ = 0,6) 6104130: 2 A Min.
  • Page 6: Cleaning And Service

    Pollution degree: Software: Class A Contact: Two way switch Glow lamp load: 2600 W (6104130: 1400 W) Halogen lamp load: 2600 W (6104130: 1400 W) Fluorescent lamp load: uncorrected: 2600 VA (6104130: 1400 VA) Series corrected: 2600 VA (6104130: 1400 VA) parallel-corrected: 1300 W (130 µF)

This manual is also suitable for:

Tr 612 top3Tr 610 top3 12-24v61001306120130Tr 610 top3
