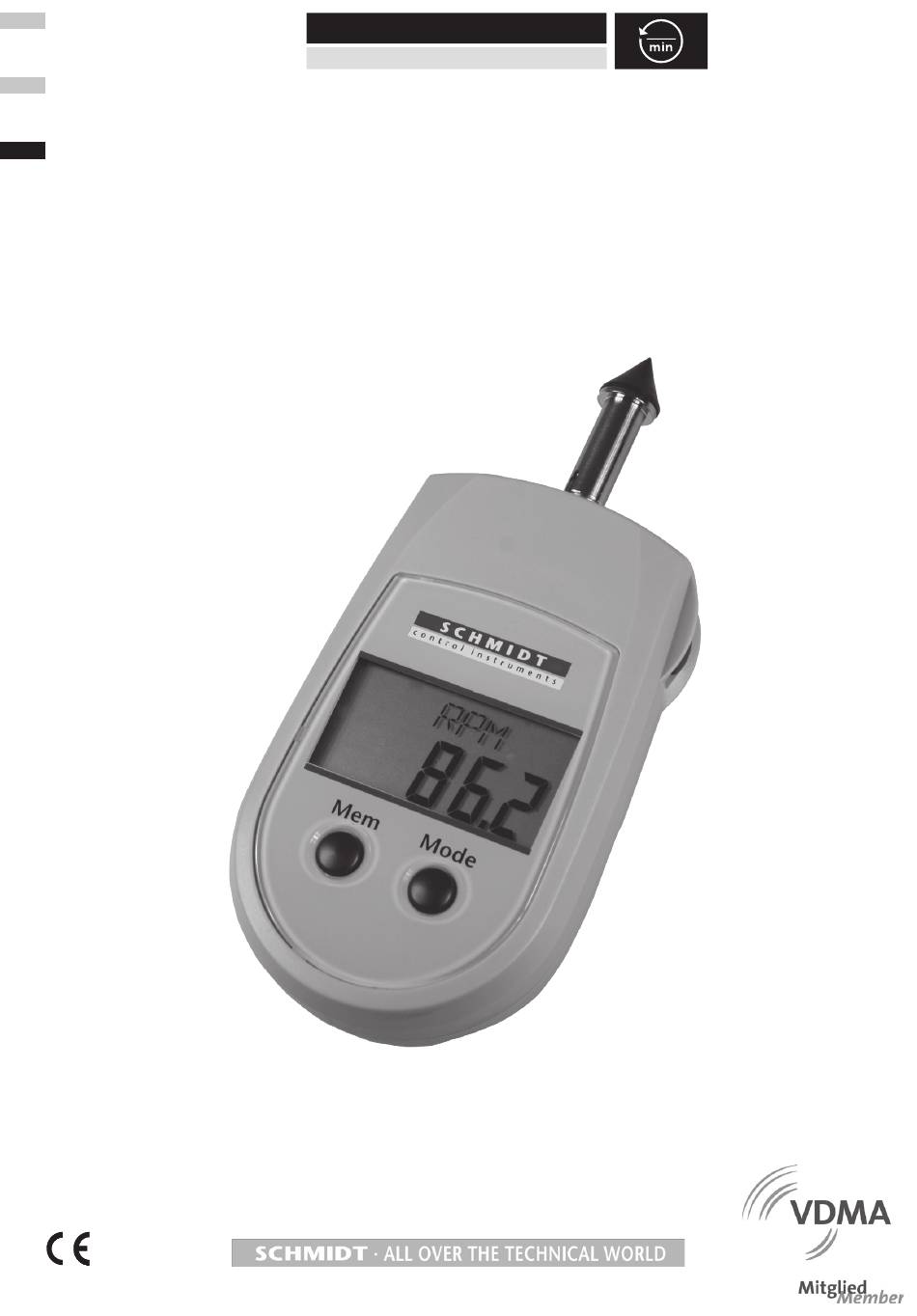

- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition PH 03.1.E PH Series Model PH-100A Instruction Manual Valid as of: 01.10.2008 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and liability ....................3 1.1 Notices within the instruction manual ..............3 1.2 Responsibilities of the operating company ............. 3 1.3 Responsibilities of the personnel ................3 1.4 Informal safety measures ..................4 1.5 Training of the personnel ..................4 1.6 Intended use ...................... -
Page 3: Warranty And Liability
1 Warranty and liability In principle, the supply of the device is subject to our “General Conditions of Sale and Delivery.” These have been provided to the operating company on conclusion of the contract, at the latest. Warranty: - Tacho meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. -
Page 4: Informal Safety Measures
The device is intended exclusively rotation speeds and surface speeds. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall Hans Schmidt & Co GmbH be held liable for damage resulting from misuse. The intended use also includes: - Complying with all notices included in the instruction manual and observing all inspection and maintenance works. -
Page 5: Specifications
2 Specifications Display ranges: see page 6 Accuracy: see page 6 Measuring units: Rotation speed: Total revolutions (rev counter): rev Surface speed: m/min, f/min, y/min, i/min Length: m, i, ft, yrd Display: 5 digit, 12 mm high, LCD with floating point system Update time: 1 sec Detection:... -
Page 6: Range And Accuracy
2.1 Range and accuracy Revolutions Range Accuracy Display (rev/min) 1.0 - 599.0 ± 1 rpm, ± 1 Digit 600 - 25000 ± 0.01 % full scale, ± 1 Digit (revolutions) 0.1 - 99999 ± 0.01 % of reading, ± 1 Digit Surface Speed Meters: m Range... -
Page 7: Initial Setup And Operating Procedure
Initial setup and operating procedure 3.1 Notes before starting measurement Have you read and understood the instruction manual, in particular chapter 1 “Warranty and liability” ? You are not permitted to operate the tension meter before doing so. Before working with the instrument you must put on your personal protective clothing, if necessary. -
Page 8: Operating Elements
Operating elements Shaft with cone tip adapter Memory Measure button switch (power) (Mem) Measuring Unit Battery compartment selector switch (rear side) (unit) 3.2.1 Battery replacement Low battery voltage is indicated by flashing on the display. Open the cover of the battery compartment in the direction indicated by the arrow and remove the batteries. -
Page 9: Operating Procedure
Operating procedure 3.3.1 Measuring RPM 1. Select either cone tip adapter or funnel tip adapter and carefully place it on the shaft. Make sure to align the pin on the shaft with the slot on the adapter. 2. Set the measuring unit selector switch to the desired measuring unit. -
Page 10: Built-In Memory System
Built-in memory system The following data are automatically stored in memory for 5 minutes after release of the measure button: Last reading MAX reading MIN reading AVE (average) value of all stored measurements Up to ten separate readings can additionally be stored by pressing the memory switch momentarily when the desired reading appears on the display. -
Page 11: Service And Maintenance
Please indicate in your order whether you require a calibration certificate with calibration report. Service address: Hans Schmidt & Co GmbH Schichtstr. 16 D-84478 Waldkraiburg Germany... - Page 12 Yarn Package Durometer and Shore Durometer Sample Cutter Balance Moisture Meter Leak Tester More than 75 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: P. O. B. 11 54 Phone: e-mail: 84464 Waldkraiburg Germany int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
