  • Page 1 Paper Schmidt PS8000 Quick Reference...
  • Page 2: Instrument Overview

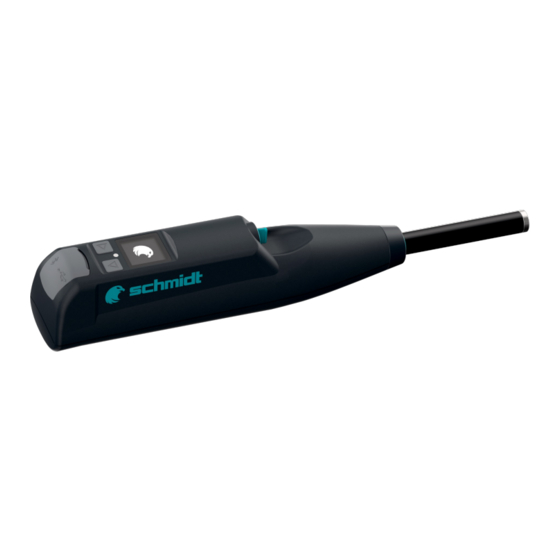

    Instrument - Overview On/Off, Navigation buttons Screen Micro USB slot and Battery slot Plunger Bluetooth dongle...
  • Page 3: Buttons - Overview

    Buttons - Overview Device ON/OFF Operation Short push Power ON Short push Scroll down Long push Power OFF Long push Backlight on/off (>5s) (>1.4s) Long push Power OFF Operation (>5s) Short push Scroll right, select, adjust Long push Start new series (>1.4s) (Store current series and start new series)
  • Page 4: Main Screen Overview

    Main Screen - Overview Battery indicator Mode Last Measurement Impact no. Series ID...
  • Page 5: Main Menu Overview

    Main Menu - Overview Mode Configuration of operation mode LIVE using the app PRINT using a BT printer Limits Limit settings UPPER Limit à Maximum allowed value LOWER Limit à Minimum allowed value None à no pass/fail criteria Clear memory Memory Show device information Info...
  • Page 6: Menu Navigation

    Menu - Navigation HOME/MEASUREMENT screen MAIN MENU Mode Selection SCROLL SELECT Standard selection SCROLL SELECT/ADJUST Clear Memory SCROLL Unsynchronized SELECT data will be lost Info SCROLL SELECT HOME/MEASUREMENT screen...
  • Page 7 Measurements Rebound value Rebound value Mean rebound value SCROLL Delete last measurement Delete whole series SELECT/ADJUST Series ID Auto-switch off Current series is saved No activity > 5 minutes Current series is closed Power off...
  • Page 8: Viewing Results

    Viewing Results Scroll through results Return to series Delete whole series SCROLL Start new series SELECT/ADJUST...
  • Page 9: Printing Results

    Printing Results Scroll through results Return to series Print series SCROLL Delete whole series SELECT/ADJUST Start new series Further Information Requires a BT printer à available as accessory Configuration for printing à Mode selection...
  • Page 11 For more information on the product use of the product, please refer to the Paper Schmidt PS8000 documentation It is available for download on www.screeningeagle.com/en/products /paper-schmidt-ps8000 For safety and liability information, please download at https://www.screeningeagle.com/en/about-us/gtc-and-certificates Subject to change. Copyright © 2022 by Proceq SA, Schwerzenbach. All rights reserved.
