Item # 0000 000 000
Model # FRS71075AL-ST1

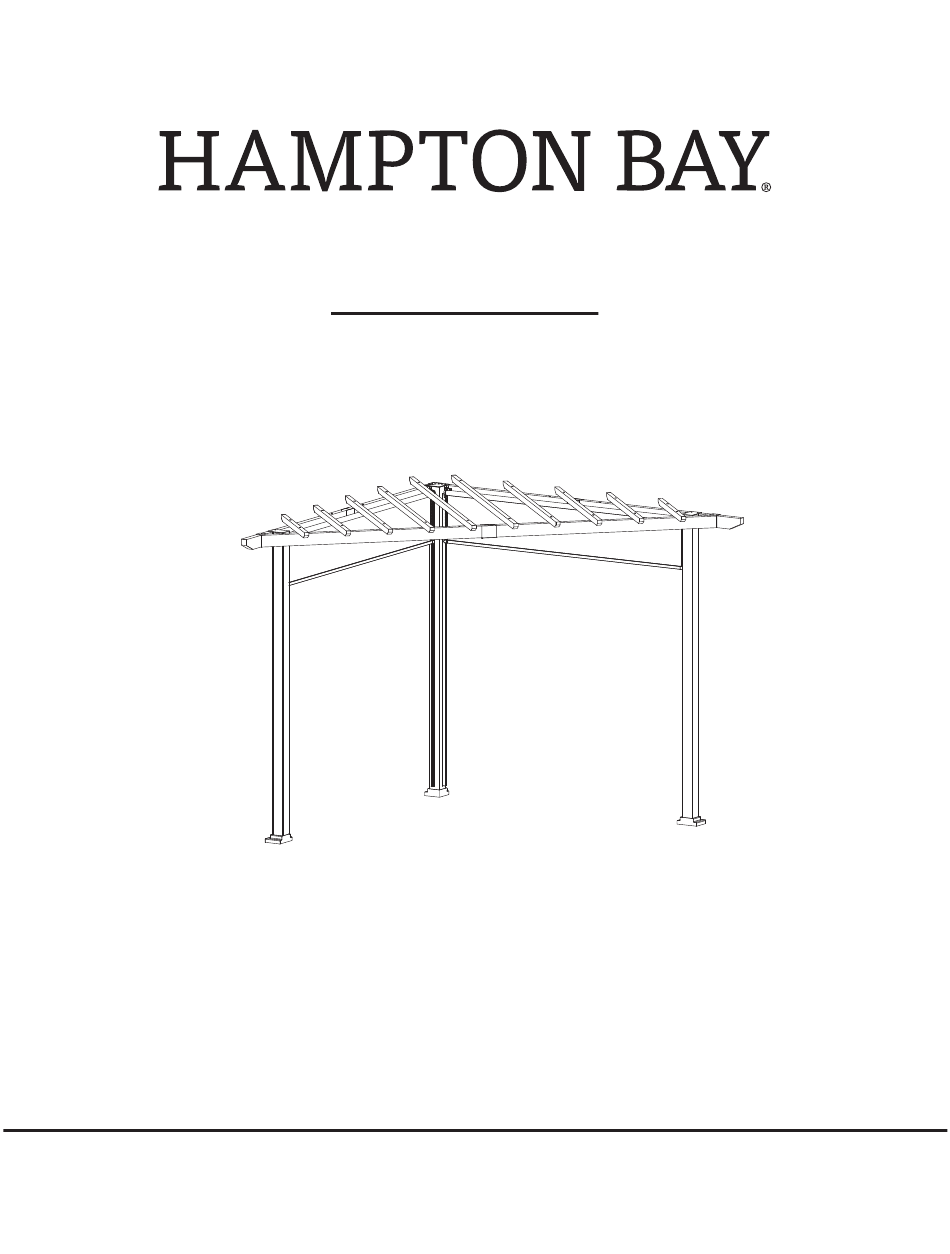

USE AND CARE GUIDE
TUSCAN HILL CORNER GAZEBO WITH 5-PIECE CHAT SET
- GAZEBO
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this gazebo. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUSCAN HILL FRS71075AL-ST1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY TUSCAN HILL FRS71075AL-ST1

Summary of Contents for HAMPTON BAY TUSCAN HILL FRS71075AL-ST1

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this gazebo. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents ............2 Pre-Assembly ............... 3 Planning Assembly ..............3 Safety Instructions ............. 2 Hardware Included ..............3 Save These Instructions ............2 Package Contents ..............4 Read All Instructions Before Use ..........2 Assembly ................ 5 Warranty ................

  • Page 3: Warranty

    Warranty 2 YEAR FRAME AND FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for two years, and the fabric to have two year limited warranty. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Post Leg 1 Long Ring Beam 1 Post Leg 2 Long Ring Beam 2 Post Leg 3 Guide Rail Foot Plate 1 Top Beam 1 Foot Plate Cover 1 Top Beam 2 Foot Plate 2 Top Beam 3 Foot Plate Cover 2...

  • Page 5: Assembly

    Assembly Attaching the Foot Plate Covers and the Foot Plates to the Post Leg 1 and Post Leg 2 Insert the foot plate cover 2 (C2) into the post leg 1 (A1) from the bottom. Attach the post leg 1 (A1) to the foot plate 2 (B2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF).
  • Page 6 Assembly (continued) Attaching the Foot Plate Cover and the Foot Plate to the Post Leg 3 Insert the foot plate cover 1 (C1) into the post leg 3 (A3) from the bottom. Attach the post leg 3 (A3) to the foot plate 1 (B1) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF).
  • Page 7 Assembly (continued) Inserting the Lining Ring Beam into the Side Left Beam and the Side Right Beam Insert the lining ring beam (E) into the side left beam (D1) and the side right beam (D2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF).
  • Page 8 Assembly (continued) Attaching the Assembled Side Beam to the Post Legs Attach the assembled side beam (D1&D2) to the two post legs (A1&A2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF). D1&D2 A1&A2...
  • Page 9 Assembly (continued) Inserting the Lining Ring Beam into the Ring Beams Insert the lining ring beam (E) into the short ring beam 1 (F1) and long ring beam 1 (F3) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF). Repeat this step for the other short ring beam 2 (F2) and long ring beam 2 (F4).
  • Page 10 Assembly (continued) Attaching the Ring Beam to the Post Legs Attach the assembled ring beam (F2&F4) to the post leg 3 (A3) using M6x15 combination bolts (AA). Attach the long ring beam 2 (F4) to the side right beam (D2) and post leg 2 (A2) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF).
  • Page 11 Assembly (continued) Attaching the Ring Beam to the Post Legs Attach the assembled ring beam (F1&F3) to the post leg 3 (A3) using M6x15 combination bolts (AA). Attach the long ring beam 1 (F3) to the side left beam (D1) and post leg 1 (A1) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF).
  • Page 12 Assembly (continued) Inserting the Stakes Lift the foot plate covers 2 (C2) rst. Insert the stakes (EE) through the foot plates 2 (B2) into the ground. Repeat this step for the posts (A2&A3).
  • Page 13 Assembly (continued) Attaching the Guide Rails to the Post Legs Attach the guide rails (G) to the post legs (A1&A2&A3) using M6x35 combination bolts (BB) as shown below. Fully tighten the bolts using the hex wrench (FF). A1&A2&A3 HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Assembly (continued) Attaching the Top Beam to the Side Beams and Ring Beams Attach the top beams (H1&H2&H3&H4&H5) to the side left beam (D1) and ring beams (F1&F3) using M6x55 combination bolts (CC). Fully tighten the bolts using the hex wrench (FF). Repeat this step for the other right beam (D2) and ring beams (F2&F4).
  • Page 15 Assembly (continued) Attaching the Connecting Parts to the Ring Beams Attach the connecting part 1 (I) to the long ring beam 1 (F3) using screw (DD). Attach the connecting part 2 (J) to the short ring beam 1 (F1) using screw (DD). Fully tighten the screws using the screwdriver (GG).
  • Page 16 Assembly (continued) Inserting the Roller Shades to the Connecting Parts Inserting the roller shade (K) to the connecting part 1 (I) and the connecting part 2 (J). Repeat this step for the other connecting part 1 (I) and the connecting part 2 (J).
  • Page 17 Assembly (continued) Attaching the Corner Cover to the Post Leg Attaching the corner cover (L) to the post leg 3 (A3) using M6x15 combination bolts (AA). Fully tighten the bolts using the hex wrench (FF). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 18: Care And Cleaning

    Care and Cleaning For best results, clean the gazebo with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. Keep the gazebo away from fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.
  • Page 19 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use.
