Item # 1001 580 434
1001 580 435
Model # FRS70546E-ST
FRS70546E-STW

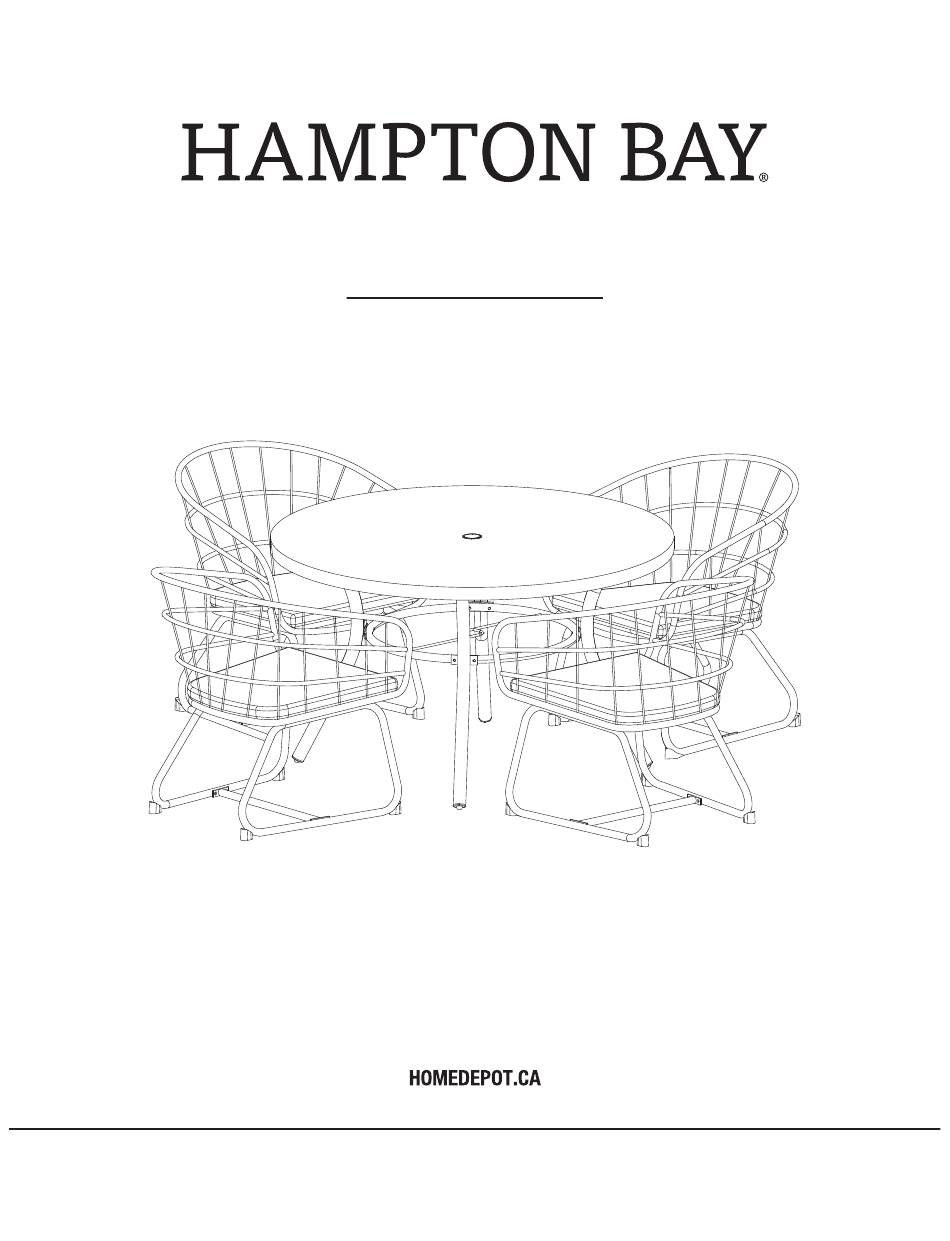

USE AND CARE GUIDE
CAYMAN 5-PIECE ROUND DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FRS70546E-ST
Summary of Contents for HAMPTON BAY FRS70546E-ST
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a three year limited warranty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 24+2 M6x35 Combination Bolt 24+2 Plastic Washer M6 Nut Hex Wrench Wrench CHAIR PACKAGE CONTENTS Part Description Quantity Chair Frame Chair Base Support Bar Seat Cushion... - Page 5 Pre-assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Umbrella Cover Table Top Table Leg Leg Connection Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 6: Chair Assembly
Chair Assembly Connecting the Chair Base to the Chair Frame NOTE: Loosely tighten all bolts using the hex wrench (EE) . Place the chair frame (A) upside down on a soft surface. Attach the chair base (B) to the chair frame (A) using M6x35 combination bolts (BB), Do not tighten any of the bolts at this step. - Page 7 Chair Assembly (continued) Placing on the Seat Cushion Turn the chair right side up. Place on the seat cushion (D) to finish the assembly of the chair. Ensure all connections are secure before use. Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Table Assembly Connecting the Table Leg to the Table Top NOTE: Loosely tighten all bolts using the hex wrench (EE) . Place the table top (F) upside down on a soft surface. Attach the table legs (G) to the table top (F) using M6x15 combination bolts (AA). Do not fully tighten the bolts at this step.
-
Page 9: Care And Cleaning
Table Assembly (continued) Tightening the Bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE) and wrench (FF). Turn the table right side up. Place the umbrella cover (E) to finish the assembly of the table. Ensure all connections are secure before use. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON Retain this manual for future use. For certification use only...
