HAMPTON BAY CHAT SET FRS60704R-ST Use And Care Manual

HAMPTON BAY CHAT SET FRS60704R-ST Use And Care Manual

Coastal wood look mixed material 5pc chat set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 0000 000 000
Model # FRS60704R-ST

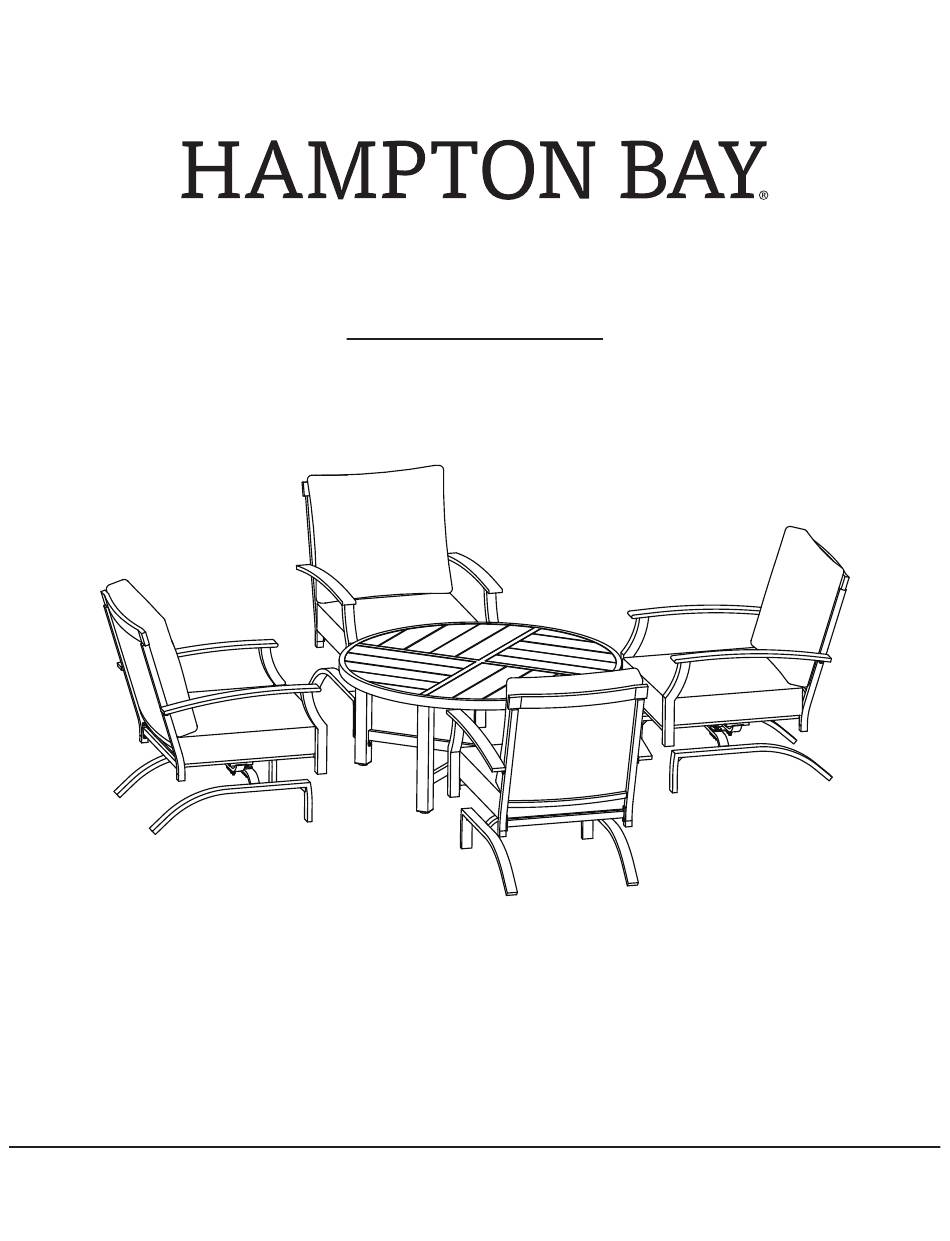

USE AND CARE GUIDE
COASTAL WOOD LOOK MIXED MATERIAL 5PC CHAT SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading

Related Manuals for HAMPTON BAY CHAT SET FRS60704R-ST

Summary of Contents for HAMPTON BAY CHAT SET FRS60704R-ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.

  • Page 3: Warranty

    Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Hardware Included

    Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 52+1 M8x20 Combination Hex Bolt 16+1 Hex Wrench Wrench CHAIR PACKAGE CONTENTS Part Description Quantity Right Arm Left Arm Seat Back Back Cushion Seat Cushion...
  • Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table Top Leg Connector Table Leg HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Chair Assembly

    Chair Assembly Attaching The Chair Seat To The Chair Back Place the chair bucket (D) upside down on a soft surface. Attach the chair seat (C) to the chair back (D) using M6x15 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (CC). Attaching The Left Arm To The Chair Seat And Chair Back Attach the left arm (B) to the chair seat (C) and chair back (D) using M6x15 combination bolts (AA).
  • Page 7 Chair Assembly (continued) Attaching The Right Arm To The Chair Seat And Chair Back Attach the right arm (A) to the chair seat (C) and chair back (D) using M6x15 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (CC). Attaching The Leg To The Chair Seat Attach the leg (E) to the chair seat (C) using M8x20 combination hex bolts (BB).
  • Page 8 Chair Assembly (continued) Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (CC) and the wrench (DD). Put the back cushion (F) and seat cushion (G) on the chair. Ensure all connections are secure before use.
  • Page 9 Table Assembly Connecting The Upper Leg To The Table Top Place the table top (H) upside down on a soft surface. Attach the table legs (J) and the table top (H) using M6x15 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (CC). Connecting The Leg Connector To The Table Leg Connect the leg connector (I) to the table legs (J) using M6x15 combination bolts (AA).

  • Page 10: Care And Cleaning

    Table Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (CC). Turn the table right side up. Ensure that all connections are secure. Care Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly.
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
