Item #0000 000 000
Model # FRS80812C-STG

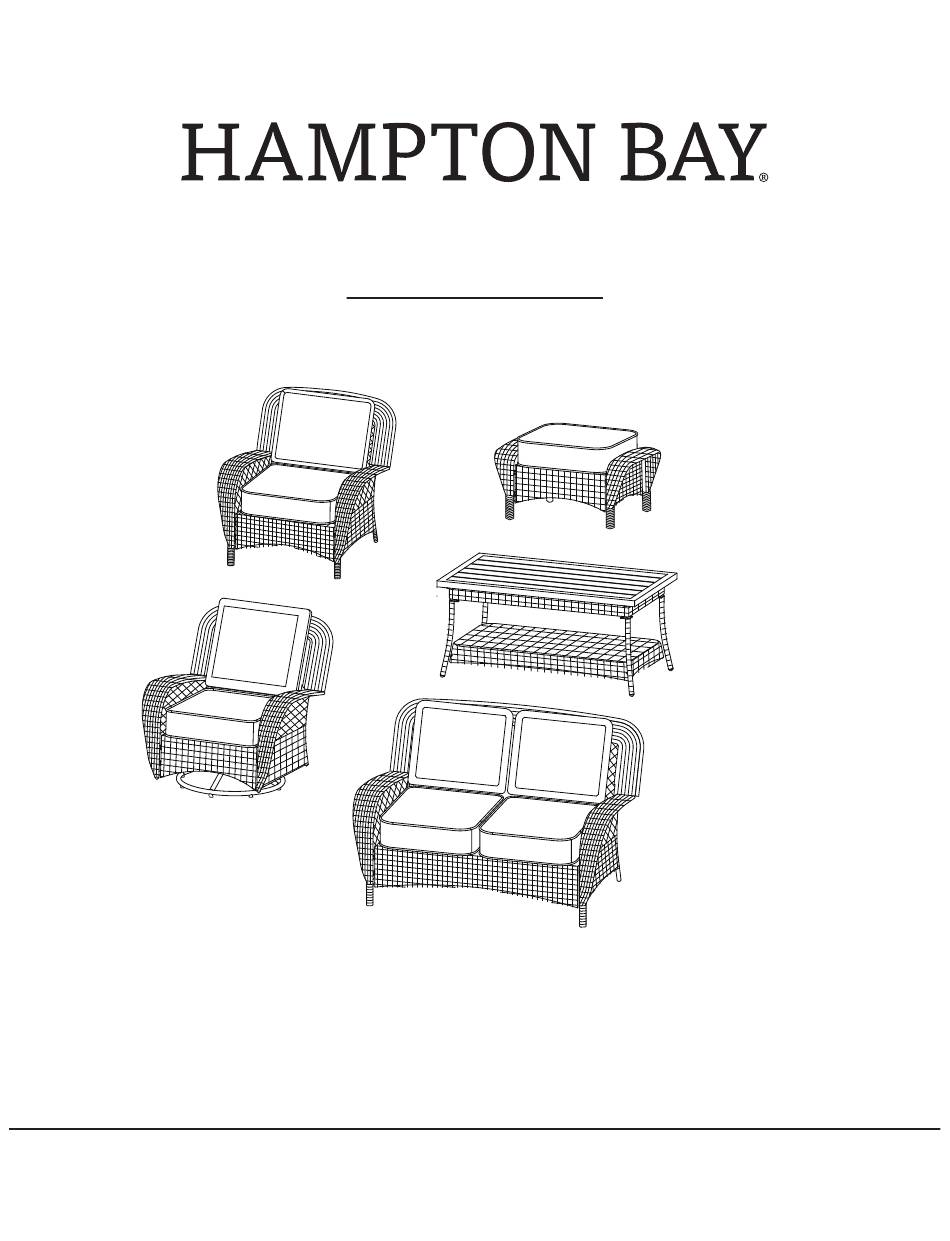

USE AND CARE GUIDE
BEACON PARK 5PC DEEP SEATING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading

Related Manuals for HAMPTON BAY FRS80812C-STG

Summary of Contents for HAMPTON BAY FRS80812C-STG

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.

  • Page 3: Warranty

    Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Chair Package Contents

    Pre-assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Arm Chair Right Arm Arm Chair Left Arm Chair Seat Chair Back Back Cushion Seat Cushion...

  • Page 5: Swivel Chair Package Contents

    Pre-assembly (continued) SWIVEL CHAIR PACKAGE CONTENTS Part Description Quantity Swivel Chair Right Arm Swivel Chair Left Arm Chair Seat Chair Back Back Cushion Seat Cushion Glider Base Swivel Base HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Loveseat Package Contents

    Pre-assembly (continued) LOVESEAT PACKAGE CONTENTS Part Description Quantity Right Arm Left Arm Loveseat Seat Loveseat Backrest Back Cushion Seat Cushion...

  • Page 7: Ottoman Package Contents

    Pre-assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table Top Table Leg Parcel Shelf OTTOMAN PACKAGE CONTENTS Part Description Quantity Ottoman Cushion Ottoman Arm Ottoman Seat HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 8: Chair Assembly

    Chair Assembly Attaching The Right Arm To The Seat Place the right arm (A) on a soft surface. Align the holes on the right panel of the chair seat (C) to the holes on the front of the right arm (A), and secure with M6x20 combination bolts (AA).
  • Page 9 Chair Assembly (continued) Connecting The Left Arm To The Seat And The Backrest Connect the left arm (B) to the chair seat (C) and the chair back (D) using M6x20 combination bolts (AA). Do not fully tighten all bolts at this step. NOTE: Loosley tighten all the bolts using the hex wrench (GG).
  • Page 10 Chair Assembly (continued) Tightneing The Bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (GG). Place the seat cushion (F) and the back cushion (E) on to finish the assembly of the chair. Ensure all connections are secure before use.

  • Page 11: Swivel Chair Assembly

    Swivel Chair Assembly Attaching Swivel Chair Right Arm To The Seat Place the swivel chair right arm (I) on a soft surface. Align the holes on the right panel of the seat (C) to the holes on the front of the swivel chair right arm (I), and secure by using M6x20 combination bolts (AA).
  • Page 12 Swivel Chair Assembly (continued) Connecting The Swivel Chair Left Arm To The Seat And The Backrest Connect the swivel chair left arm (J) to the seat (C) and the backrest (D) using M6x20 combination bolts (AA). Do not fully tighten all bolts at this step. NOTE: Loosley tighten all the bolts using the hex wrench (GG).
  • Page 13 Swivel Chair Assembly (continued) Attaching The Glider Base To The Arms Attach the glider base (K) to the swivel chair arms (I & J) using M6x18 combination bolts (EE) and M6 plastic washers (FF). Do not fully tighten all bolts at this step. NOTE: Loosley tighten all the bolts using the hex wrench (GG).
  • Page 14 Swivel Chair Assembly (continued) Checking The Chair Place the seat and the back cushion (F & E) to finish the assembly of the chair. Ensure all connections are secure before use.

  • Page 15: Loveseat Assembly

    Loveseat Assembly Attaching The Right Arm To The Loveseat Seat Place the right arm (A) on a soft surface. Align the holes on the right panel of the loveseat seat (G) to the holes on the front of the right arm (A), and secure with M6x20 combination bolts (AA) using the hex wrench (CC).
  • Page 16 Loveseat Assembly (continued) Attaching The Left Arm To The Loveseat Seat And The Lovesat Backrest Connect the left arm (B) to the loveseat seat (G) and the loveseat back (H) using M6x20 combination bolts (AA). Do not fully tighten all bolts at this step. NOTE: Loosley tighten all the bolts using the hex wrench (GG).
  • Page 17 Loveseat Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (GG). Place the back cushion (E) and seat cushion (F) onto the loveseat chair. Ensure all connections are secure before use. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 18 Table Assembly Connecting The Table Leg To The Table Top Place the table top (P) upside down on a soft surface. Attach the table legs (Q) to the table top (P) using the M6x20 combination bolt (AA). Do not fully tighten all bolts at this step. NOTE: Loosley tighten all the bolts using the hex wrench (GG).
  • Page 19 Table Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (GG). Turn the table right side up. Ensure that all connections are secure. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 20: Ottoman Assembly

    Ottoman Assembly Attaching The Ottoman Seat To The Ottoman Arm Place the ottoman arm (M) on a soft surface. Attach the ottoman seat (N) to the ottoman arm (M) using the M6x15 combination bolts (AA). Do not fully tighten the bolts at this step. NOTE: Loosley tighten all the bolts using the hex wrench (GG).

  • Page 21: Care And Cleaning

    Ottoman Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten the bolts. Turn the ottoman right side up. Ensure all connections are secure before use. Place the ottoman cushion (O) on to finish the assembly of the ottoman. Care Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly.
  • Page 22 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
