Item #0000 000 000
Model #FRS70546B-ST
USE AND CARE GUIDE

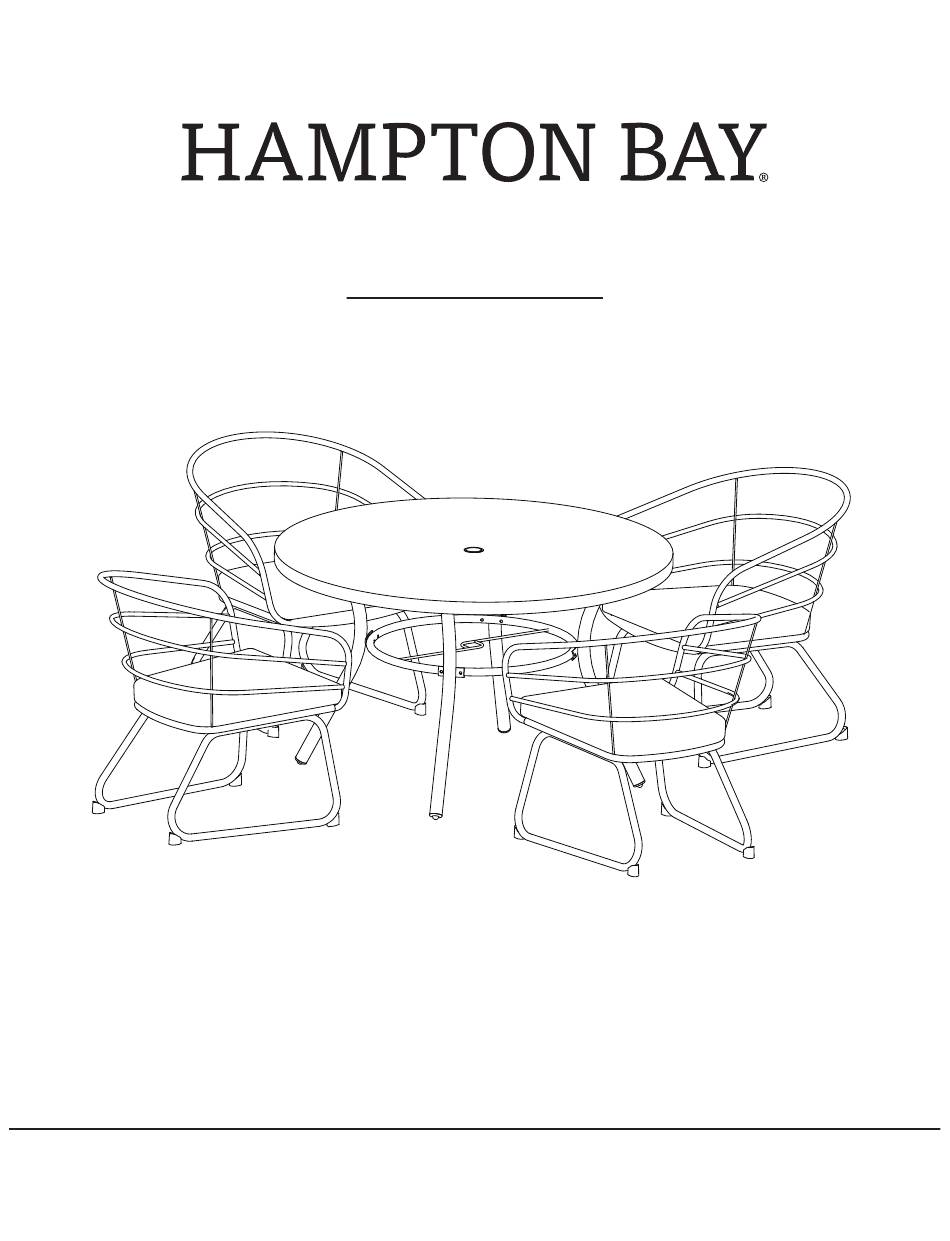

CAYMAN STEEL WICKER 5PC DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FRS70546B-ST
Summary of Contents for HAMPTON BAY FRS70546B-ST
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
- Page 2 Table of Contents Table of Contents........2 Pre-Assembly.
- Page 3 Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.
- Page 4 Pre-assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Chair Frame Chair Base Seat Cushion TABLE PACKAGE CONTENTS Part Description Quantity Umbrella Cover Table Top Table Leg Leg Connection...
- Page 5 Chair Assembly Attaching The Chair Base To The Chair Frame Place the chair frame (A) upside down on a soft surface. Attach the chair base (B) to the chair frame (A) using M6x35 combination bolts (BB). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE). Checking The Chair Turn the chair right side up.
- Page 6 Table Assembly Connecting The Table Leg To the Table Top Place the table top (E) upside down on a soft surface. Attach the table legs (F) to the table top (E) using M6x15 combination bolts (AA). Do not fully tighten the bolts at this step. NOTE: Loosley tighten all the bolts using the hex wrench (EE).
- Page 7 Table Assembly (continued) Checking The Table Turn the table right side up. Place the umbrella cover (D) to finish the assembly of the table. Ensure all connections are secure before use. Care Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
