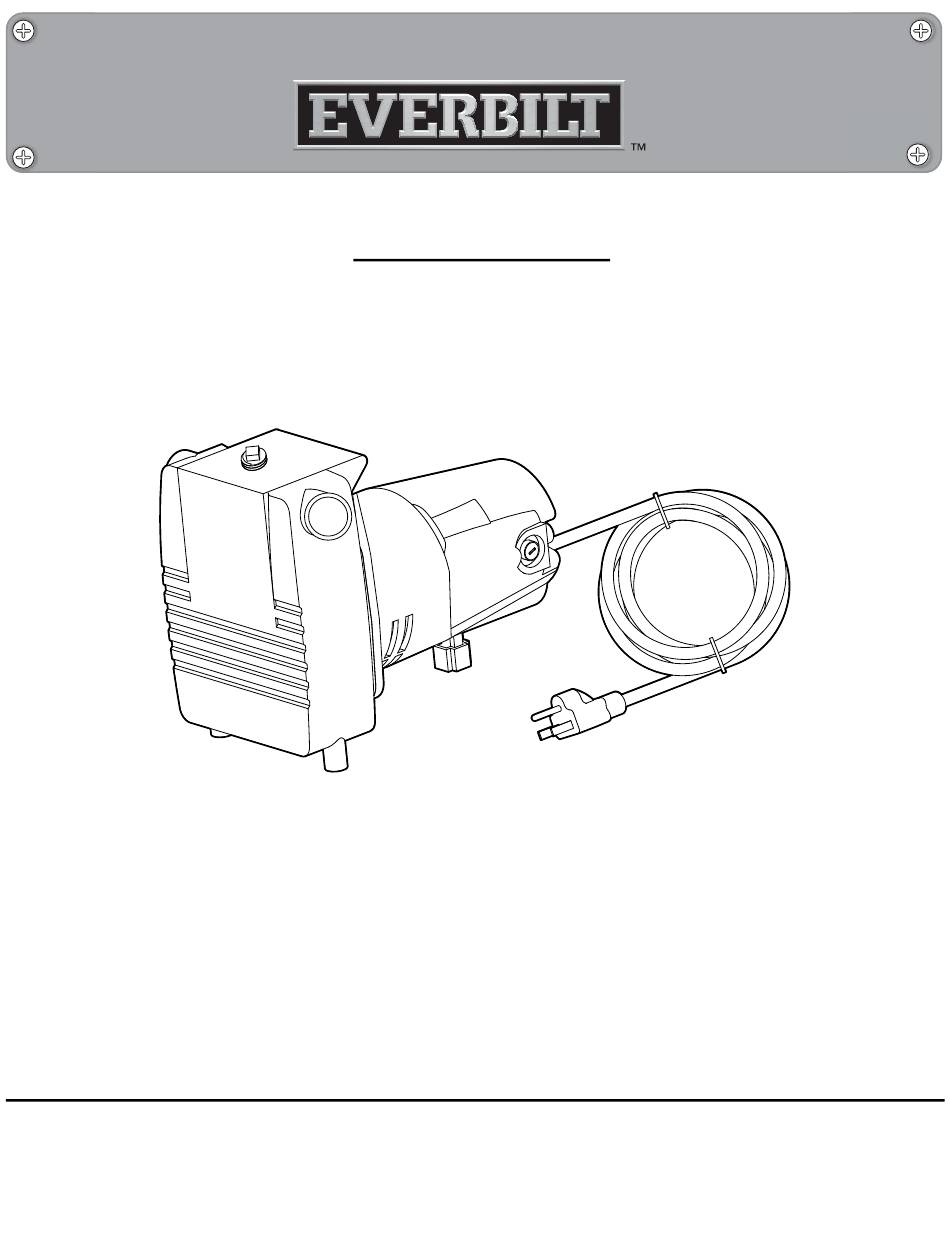

Item # 1000 500 565
Model #PUP57-HDC
USE AND CARE GUIDE
SELF-PRIMING PORTABLE UTILITY PUMP
Questions, problems, missing parts? Before returning to the store,
call Everbilt Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-844-883-1872
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Everbilt through the purchase of this pump. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for
choosing Everbilt!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Everbilt PUP57-HDC
Summary of Contents for Everbilt PUP57-HDC
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Everbilt through the purchase of this pump. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Installation ..............5 Safety Information ............2 Operation ............... 6 Warranty ................. 3 Automatic Thermal Protection ..........7 Pre-installation .............. 4 priming the pump ..............7 Before You Begin ..............4 Maintenance ..............7 Extension Cord Guidelines ............4 Care and Cleaning ............ -
Page 3: Warranty
Safety Information (continued) CAUTION: To avoid the risk of serious bodily injury and/or WARNING: Hazardous voltage. Risk of electric shock, property damage, read these safety instructions before personal injury, or death. Ground the pump properly before installing, operating, or servicing this pump: plugging in to power. -
Page 4: Pre-Installation
Cast Iron Motor Shaft SS430 Motor Bearings Permanently-lubricated dual ball PERFORMANCE DATA GPH of Water @ Total Feet of Lift Volt Amps Max. Lift 0 ft. 20 ft. 40 ft. 60 ft. 80 ft. PUP57-HDC 115V 1500 1080 101 ft. -
Page 5: Package Contents
Pre-installation (continued) PACKAGE CONTENTS Part Description Quantity Pump Adaptor Screen Installation PUMPING FROM PONDS, STREAMS, AND LAKES Place the pump as close as possible (vertically) to the water source in order to maintain a suction lift (distance from the water to the pump) as short as possible. -
Page 6: Operation
Installation (continued) PIPING The figure below shows a typical installation. Threaded adaptors for connecting a garden hose are included. However, when using the flexible hose as the suction line, only use reinforced hose to avoid hose collapse during operation. Rigid pipe is recommended for the suction line. -
Page 7: Automatic Thermal Protection
Operation (continued) AUTOMATIC THERMAL PROTECTION CAUTION: Do not cycle or continue to run the pump following an overload condition. Thermal overloads are designed to protect the product and user during an extreme condition where normal operating parameters are exceeded. Determine the cause of an overload condition immediately after detection and resolve prior to operating the pump again. -
Page 8: Troubleshooting
Troubleshooting Symptom Possible Cause Corrective Action The pump will not start or run. There is a blown fuse or tripped breaker. If blown, replace with a proper sized fuse or reset breaker. The voltage line is low. If the voltage is under 108 volts, check the wiring size. -
Page 9: Service Parts
Service Parts Repair parts are available in kit form only. Parts shown without a reference number are not available for repair. Replace the pump if those parts fail. Description Part Number Quantity Brush HDBRUK001 Fittings kit HDFITK001 HOMEDEPOT.COM Please contact 1-844-883-1872 for further assistance. - Page 10 Questions, problems, missing parts? Before returning to the store, call Everbilt Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-844-883-1872 HOMEDEPOT.COM Retain this manual for future use.
- Page 14 1000...
