Summary of Contents for Blue-White FLEXFLO A-100NA S

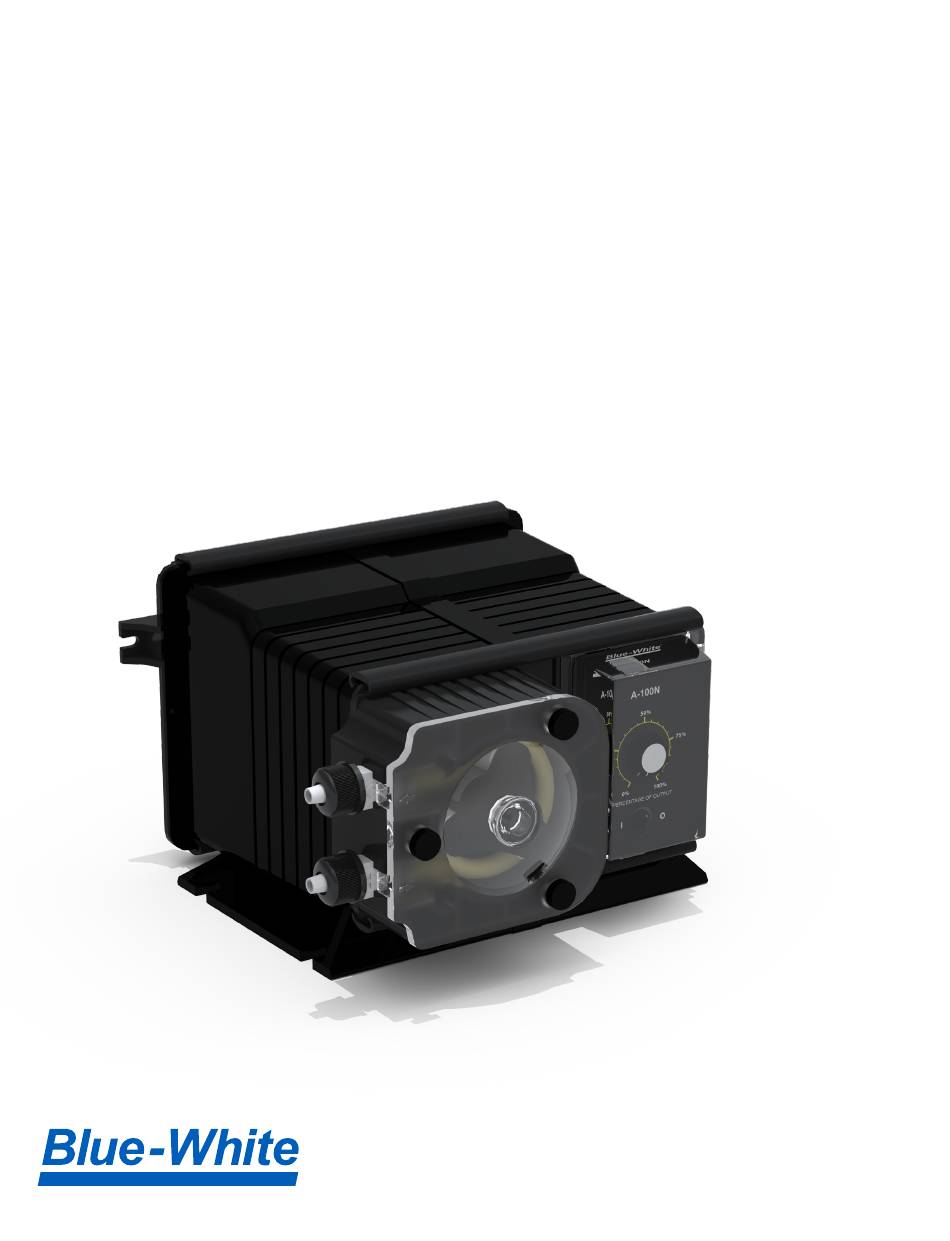

- Page 1 Operating Manual FLEXFLO ® A-100NA (S, C, X) Peristaltic Metering Pump ®...
- Page 2 READ THE ENTIRE OPERATING MANUAL PRIOR TO INSTALLATION AND USE. +1 (714) 893 - 8529 sales@blue-white.com customerservice@blue-white.com 5300 Business Drive Huntington Beach, CA 92649...
-
Page 3: Table Of Contents
Table of Contents 1.0 Introduction 1.1 Features 1.2 What’s in the Box? 1.3 Storage and Handling 1.4 Product Matrix 1.5 Application Guides 1.6 Accessories and Options 2.0 Engineering Specifications 2.1 Output Specifications 2.2 Materials of Construction 2.3 Dimensions 3.0 Installation 3.1 Mounting Location 3.2 Input Power Connection 3.3 A-100N CIRCUIT BOARD... -
Page 4: Introduction
Home/TOC Website Contact Us Help Center 1.0 Introduction Congratulations on purchasing the A-100N Peristaltic Metering Pump! The A-100N is designed to inject chemicals into piping systems. The A-100N is capable of pumping a variety of chemicals and solutions. Fixed Cycle Time - The fixed speed pumping mechanism is turned on and off by an electronic timer. The total cycle time is factory set. -
Page 5: What's In The Box
Contact factory if pump or components have sustained damage. Shipping damage is not covered under warranty and will be addressed according to Blue-White freight terms and policy. If the pump will not be installed at time of arrival, store the pump in original packaging indoors in an air conditioned environment. -
Page 6: Product Matrix
Other concerns - Visit our Help Center where you can review specific information about the A-100N pump and ask Oswald AI Chat questions. www.blue-white.com/resources/help-center/ P.N. 83000-059 A-100NA REV 9 20241119 5300 Business Drive, Huntington Beach, CA 92649 TEL 714-893-8529 | FAX 714-894-9492 | www.blue-white.com | sales@blue-white.com... -
Page 7: Accessories And Options
Home/TOC Website Contact Us Help Center 1.6 Accessories and Options WALL MOUNT BRACKET The Wall Mount Bracket is a simple way to mount your pump with- out using valuable floor space. The bracket is sturdy and versatile and allows the pump to be mounted at a convenient height for oper- ation and service. -
Page 8: Engineering Specifications
Home/TOC Website Contact Us Help Center 2.0 Engineering Specifications Max. Working Pressure 6T Tube = 100 psig (6.9 bar)(except 60 rpm = 75 psi), 7T tube = 50 psig (3.4 bar) Max. Fluid Temperature 130° F (54° C) Max. Ambient Temperature 14 to 110°... -
Page 9: Materials Of Construction
Home/TOC Website Contact Us Help Center 2.2 Materials of Construction Non-wetted Components: Wetted Components: Enclosure: Valox (PBT) thermoplastic ® Tubing: Flex-A-Prene ® Pump Tube Assembly*: Pump Head: Valox (PBT) thermoplastic ® Adapter Fittings: PVDF Clear Acrylic Body & Insert: Polypropylene Pump Head Cover: Permanently lubricated sealed motor shaft Check Ball: Ceramic... -
Page 10: Installation
Home/TOC Website Contact Us Help Center 3.0 Installation CAUTION: Proper eye protection must be worn at all times when installing and servicing the pump. Note: All diagrams are strictly for guideline purposes only. Always consult an expert before installing the pump into specialized systems. The pump should be serviced by qualified persons only. - Page 11 Home/TOC Website Contact Us Help Center Rear Shroud - This shroud is designed to weather-proff the A-100N pump. If the pump is wall mounted, the shroud is not necessary and will be considered weather-proof.
-
Page 12: Input Power Connection
Home/TOC Website Contact Us Help Center 3.2 Input Power Connection WARNING! Risk of Electrical Shock • Be certain to connect the pump to the proper supply voltage. Using the incorrect voltage will damage the pump and may result in injury. The voltage requirement is printed on the pump serial label. -
Page 13: Fvs, Alarm Output, And Motor Active Wiring
FVS - FLOW VERIFICATION SENSOR INPUT Accepts a pulse signal from an optional Blue-White sensor confirming that fluid is passing through the pump. Triggers the AL alarm output if fluid is not detected. AL - ALARM OPEN COLLECTOR OUTPUT The output (purple wire) sinks to DC ground when an alarm condition exists. -
Page 14: How To Install Tube And Fittings
Home/TOC Website Contact Us Help Center 3.5 How to Install Tube and Fittings CAUTION: Proper eye and skin protection must be worn when installing and servicing the pump! Inlet Tubing - Locate the inlet fitting of the Pump Tube. Remove the tube nut. -
Page 15: A100N Controls
Home/TOC Website Contact Us Help Center 4.0 A100N Controls A-100NA PARTS LOCATOR DRAWING * Slide both top and bottom clamps to the left only far enough to open the control cover 4.1 A100NA Pump Output Adjustment and Controls Turn Pump On/Off To activate pump, flip swith to “ON”. -
Page 16: Tfd (Tube Failure Detection)
Home/TOC Website Contact Us Help Center 4.2 TFD (Tube Failure Detection) TFD (Tube Failure Detection) - The pump is equipped with a Tube Failure Detection System which is designed to stop the pump and provide an open collector (sinking) output signal in the event the pump tube should rupture and chemical enters the pump head. - Page 17 Home/TOC Website Contact Us Help Center Confirm the FVS flow range - The Flow Verification Sensor (FVS) will only function within its op- erating range. Sensor model FV-101 has an operating range of 30-300 ml/min (1-10 oz/min). If the pump’s output is less than 30 ml/min (0.5 ml/sec), the sensor will not detect chemical and a signal will not be sent to the pump.
-
Page 18: Operation
Home/TOC Website Contact Us Help Center 5.0 Operation Once the pump has been installed and wired properly, it can be put into operation. Be sure you are familair with all control features before using the pump. 5.1 Operating the A-100NA Pump Priming the Pump Before priming the pump, or starting the pump, be sure that all suction and discharge lines are con- nected properly and that proper valves are open. -
Page 19: Maintenance
Home/TOC Website Contact Us Help Center 6.0 Maintenance 6.1 Routine Inspection and Maintenance The pump requires very little maintenance. However, the pump and all accessories should be checked weekly. This is especially important when pumping chemicals. Inspect all components for signs of leaking, swelling, cracking, discoloration or corrosion. -
Page 20: How To Replace The Pump Tube
Home/TOC Website Contact Us Help Center 6.3 How to Replace the Pump Tube The pump tube assembly will eventually break if not replaced. The tube has been designed for a minimum service life of 500 hours. However, the life of the tube is affected by many factors such as the type of chemical being pumped, the amount of back pressure, the motor RPM, temperature and others. -
Page 21: Tube Care And Use Guide
Care and Use Guide • Blue-White Tube Assemblies are specifically designed, tested, and intended for use only in Blue-White peristaltic pumps. Users assume the risk of using Blue-White Tube Assemblies for any other purpose. • Blue-White peristaltic metering pumps are designed to operate with Tube Assemblies manufactured by Blue-White only. -
Page 22: Tube & Roller Use Log
Home/TOC Website Contact Us Help Center 6.5 Tube & Roller Use Log Pump Name/Model: Tube/Roller Part Number Qty Purchased / Used Reason Date... - Page 23 Home/TOC Website Contact Us Help Center NOTES:...
-
Page 24: Parts And Accessories
Home/TOC Website Contact Us Help Center 7.0 Parts and Accessories 7.1 Replacement Parts Drawing A-100N... -
Page 25: Parts List And Accessories A-100N
Home/TOC Website Contact Us Help Center 7.2 Parts List and Accessories A-100N Qty. Qty. Item Part No. Product Name Item Part No. Product Name Req. Req. C-324N 71000-214 Enclosure Back With Gasket, P/head, 10-32 X .50 Screw 90011-094 Washer, #10 Stainless A-031 Spacer, Rotor 90011-091... -
Page 26: Troubleshooting
Home/TOC Website Contact Us Help Center 8.0 Troubleshooting Common Issues Air is entering the pump. Check suction lines to make sure all connections are tight. Check the level of the chemical tank. Remove obstructions and clean strainers. Pump is not accurate. Check the suction line and clean the strainer. Check for obstructions in suction lines, discharge lines, and injectors. -
Page 27: System
AUTHORIZED SERVICE CENTERS To find an authorized service center near you, please call Blue-White Industries at (714) 893-8529 or e-mail us at customerservice@blue-white.com... -
Page 28: Warranty
LIMITED WARRANTY Your Blue-White product is a quality product and is warranted for a specific time from date of purchase (proof of purchase is required). The product will be repaired or replaced at our discretion. Failure must have occurred due to defect in material or workmanship and not as a result of operation of the product other than in normal operation as defined in the product manual. - Page 29 White tests its products with water only. The chemical resistance information included in this instruction manual was supplied to BLUE-WHITE by reputable sources, but Blue-White is not able to vouch for the accuracy or completeness thereof. While BLUE-WHITE will honor all of its product warranties according to their terms and conditions, Blue-White shall only be obligated to repair or replace its defective parts or products in accordance with the associated product warranties.
- Page 30 Home/TOC Website Contact Us Help Center NOTES:...
- Page 31 Home/TOC Website Contact Us Help Center NOTES:...
- Page 32 P.N. 80000-327 A-100NA (S, C, X) Pump REV 20 20250403 5300 Business Drive, Huntington Beach, CA 92649 TEL 714-893-8529 | FAX 714-894-9492 | www.blue-white.com | sales@blue-white.com...
