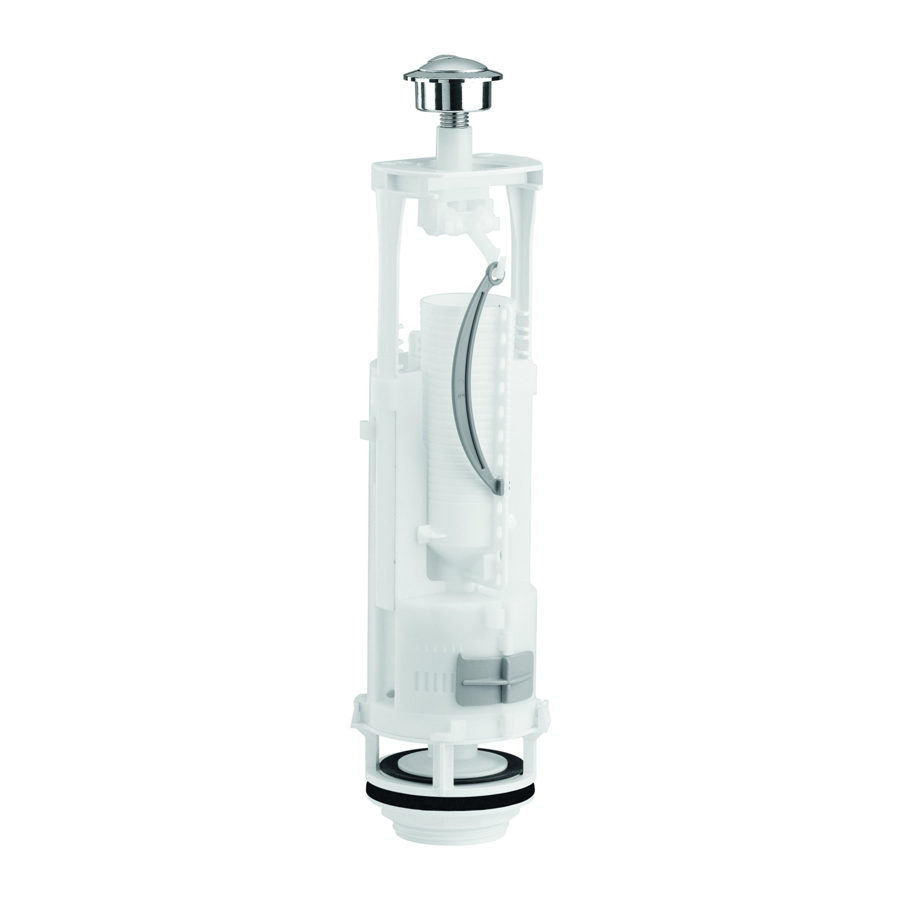

Siamp OPTIMA 49 Manual

OVERVIEW

OVERVIEW

PREPARING THE MECHANISM

Measure the cistern

  • H (from the top of the lid to the inside base of the cistern)
  • D (diameter of the hole in the lid)

warningCheck the position of the stirrup
If the stirrup (m) is correctly positioned on the basis of the below table, proceed to step . Otherwise, carry out all of the following steps:
PREPARING THE MECHANISM - Step 1
PREPARING THE MECHANISM - Step 2

  1. Unclip the lift rod (c)
  2. Remove the stirrup (m), by pressing on the two catch clips (k)
  3. Cut the overflow (l) if necessary according to the table
  4. Reposition the stirrup in its seat and slide it to the required position (desired setting notch number visible)
  5. Clip lift rod (c) back into the hole of the overflow (l) which has the same number as that of the setting notch
  6. Unscrew the strainer nut (f)

Stirrup notch Cut on overflow tube
3 C mark visible
2 F mark visible
1 I mark visible
Mini L mark visible

INSTALLATION

INSTALLATION
Position the mechanism in the cistern and secure it in place with the nut (f) Manually screw the flush valve nut (f) until it is in contact with the ceramic. If necessary give an extra quarter turn (maximum) with the appropriate spanner. NB: Excessive tightening can damage the mechanism and would not be covered by the guarantee.

ASSEMBLING BOWL AND CISTERN

  1. Fix screws at the bottom of the cistern (see order of parts below)
    ASSEMBLING BOWL AND CISTERN - Step 1
  2. Position the latex foam gasket on the nut (f)
  3. Position the cistern on the bowl and secure it with wing nuts
    ASSEMBLING BOWL AND CISTERN - Step 2

INSTALLATION OF BUTTON

INSTALLATION OF BUTTON

  1. Once the set-up has been completed, put on the lid on the cistern
  2. If the hole in the lid (D) is > 38 mm and < 45 mm, remove the escutcheon (b)
  3. Position the button on the lid and screw until tight.

SETTING WATER LEVEL

After having connected your ballcock to the water supply, open the tap and set the level of the long flush using the ballcock (see overleaf).
Note: The max. water level should be 20 mm lower than the overflow tube (l).
SETTING WATER LEVEL
To adjust the water level of the short flush, slide the cursor along (j). Immerse the cursor of 40 mm.
Note : The closer the cursor is to 18, the more water will be flushed.

In some (rare) cases, the residual water level (amount of water remaining after the long flush) must be increased to ensure more efficient cleaning. To do this, move the sliding valve (d) to the left (the more it is open, the more the residual water increases). Note: Increasing the residual water reduces the volume of water flushed. If necessary, readjust the max. water level using the ballcock.

MAINTENANCE

Changing the valve gasket

  1. After having opened the cistern, turn the mechanism 90° to separate it from its strainer
  2. Change the valve gasket
  3. Reposition the mechanism, locking it into the strainer
  4. Close the cistern again.

INSTALLING THE FLOAT VALVE

ROBECO 06 and STANDARD 15EL
INSTALLING THE FLOAT VALVE - Part 1

  1. Position valve
  2. Fasten with nut
  3. Connect to water supply
  4. Adjust water level with the adjustment screw (15 EL) or by bending the rod (06)

Manually screw the backnut until it is in contact with the ceramic. If necessary give an extra quarter turn (maximum).
N.B.: Excessive tightening can damage the mechanism and would not be covered by the guarantee.
Ensure tightness of connection to cistern with filter gasket.

COMPACT 95L
INSTALLING THE FLOAT VALVE - Part 2

  1. Position valve
  2. Fasten with nut
  3. Connect to water supply
  4. Adjust water level with the adjustment screw

  1. Do not overtight in any case.
  2. Do not use any sealing paste and/or compound in any case
  3. Do not use connector handling the internal part of the inlet valve.

SIAMP will be not responsible in case these warnings are not respected.

COMPACT 99B and HANDY 93B

MAINTENANCE (95L & 99B)

4, quai Antoine 1er - BP 219 - MC 98007 MONACO Cedex
Tél. 00 377 93 15 53 75 - Fax: 00 377 92 05 71 04 - E-mail: contact@siamp.com
Siamp UK Ltd - Unit C2 - Meadowbank Business Park - Tweedale Way
Hollinwood - Oldham - Greater Manchester - OL9 8EH
Telephone: 0161 681 2120 - Fax: 0161 681 2130 - aftersales@siamp.co.uk
