Summary of Contents for Siamp SCU 350

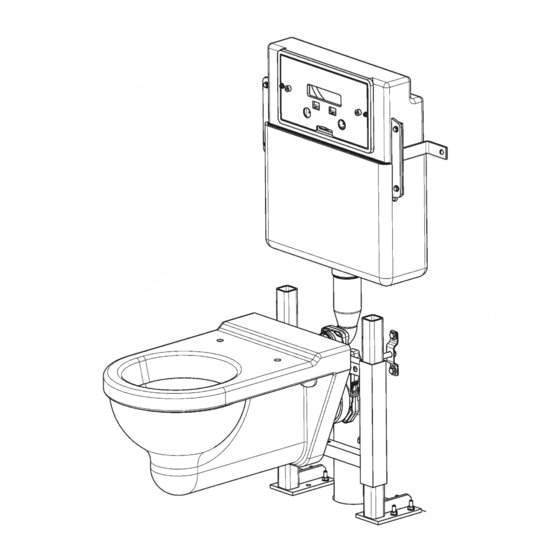

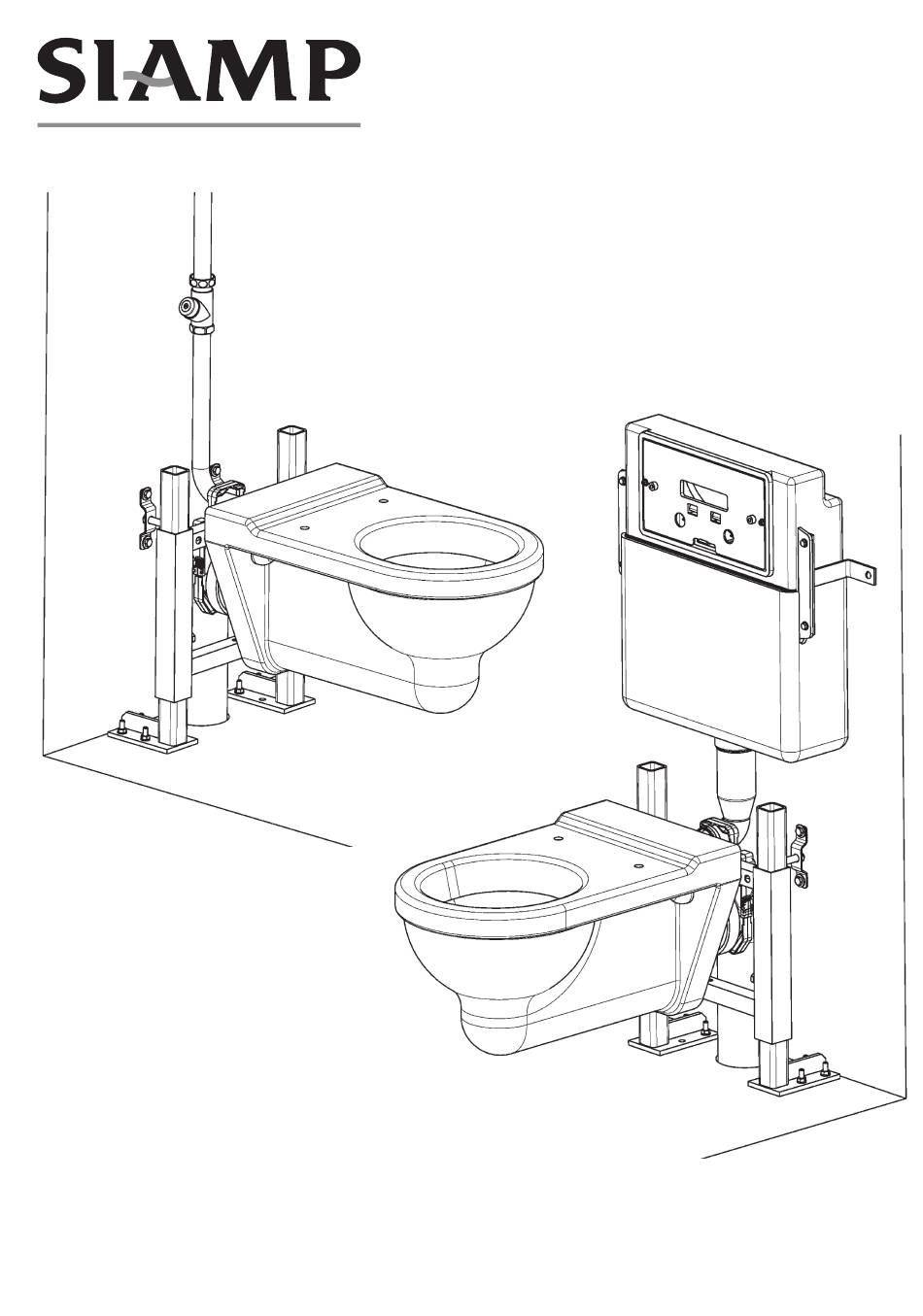

- Page 1 BATICUVETTE/BIDET SCU 350 ASSEMBLY INSTRUCTIONS...
- Page 2 DESCRIPTION...
-
Page 3: Accessories (Not Supplied)
Elbow bend fixation clip Wall brackets (x2) Elbow bend fixation Washer (x4) Pipe fixation clip Wall screw (x4) Pipe fixation Wall plugs (x4) Fixation screw and washer ( x4) Collar bidet (x1) Bowl fixing strip (x2), length 400mm Flexible sleeve (x 2) Bowl fixing kit Metal pegs (x6) Adjustable legs (x2) -
Page 4: Types Of Installation
TYPES OF INSTALLATION Fixed to a thin partition wall Built in to the rising column ➊ ➋ USEFUL MEASUREMENTS I - Minimum depth of the frame = 140mm II - Thickness of the cladding Y – 400 – 80- x mm Or, x = thickness of the cera- mics at the bowl fixation level This calculation does not take... - Page 5 I - ASSEMBLING THE BOWL FIXATION RODS ➋ ➊ Measure the between-axis of the bowl (A) ➊ Place the rods (f) in the holes in the frame ➋ corresponding to the between-axis and fix them in place with 2 nuts. II - ADJUSTING THE FRAME HEIGHT Place the frame in its final position ➊...
- Page 6 III - PREPARING THE FIXATION ➌ ➋ Mark the drilling points ➊ ➊ Remove the frame and drill to a depth of 55 mm at ➋ maximum, using an 8 mm diameter drill bit for ground metal plugs. For wall plugs use a 10 mm diameter drill bit, and drill to a depth of 70 mm Move the frame back in place, position the metal pegs ➌...
- Page 7 V - PREPARING THE BOWL EVACUATION CONNECTION Measure the diameter of the evacuation pipe at the place ➊ where it will be attached to the fixation clip. Attach the fixation clip using 2 screws and washers (e) and ➋ adjust the height according to the measured diameter. Marks are engraved on the clip to guide you.
- Page 8 VI - PUTTING THE FRAME INTO PLACE Put the frame into its final place and ➊ attach it with the metal pegs, they must be inserted into the holes without any effort. VII - CONNECTING THE WATER SUPPLY AND BOWL EVACUATION Put the evacuation pipe into place ➊...
- Page 9 VIII - WATER TRIALS ➊ Insert the water supply pipe and the evacuation ➊ pipe into the holes on the bowl. Place the bowl in the frame ➋ Turn the water on and flush ➌ Check that the arrival and evacuation pipes are ➍...
- Page 10 X - CONNECTING THE BOWL Read the instructions for the bowl and lid before starting. Using a ruler placed as in the drawing below, make a Take the pipes off the bowl and insert them into the ➊ ➋ mark on the bowl side of the 2 supply pipes.
- Page 11 X - CONNECTING THE BOWL (continued) B + 20 mm Inser t the water supply and ➓ evacuation pipes into the bowl. Then place the bowl on the two fixation rods. To make insertion of the supply and evacuation pipes easier, use soapy water.
-
Page 12: Final Installation
Uninstall bidet from the frame. You have just installed a “baticuvette” toilet from SIAMP’s range and we would like to thank you for putting your trust in us. We are specialists in bathroom technical equipment and accessories and have taken the utmost care in the design and manufacturing of this product, which we guarantee for 10 years, excluding rubber parts and man hours.
