G E N E S Y S D E L U X E
This child restraint complies with ECE regulations for use by children:
For children 15 months to approx. 12 years
Do not install or use this child restraint until you read and understand
the instructions in this manual and in your vehicle owner's manual.
FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE
RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN
IF YOU HAVE ANY PROBLEMS, PLEASE DO NOT RETURN THIS
STOP
PRODUCT TO THE PLACE OF PURCHASE. PLEASE CONTACT
CUSTOMER SERVICE AT WWW.HARMONYJUVENILE.COM
®Harmony Juvenile Products

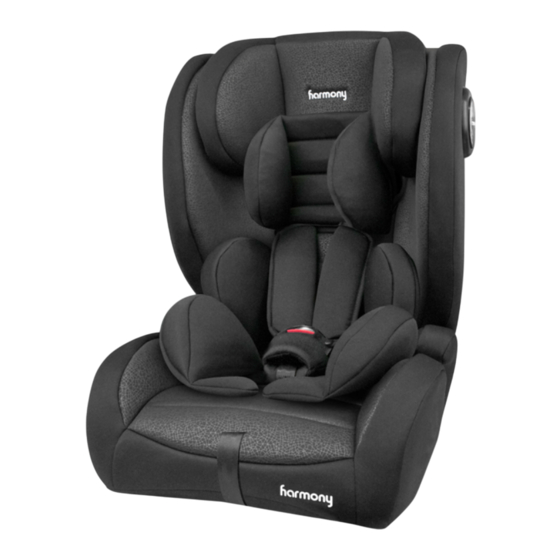

i - S I Z E C A R S E A T
I N S T R U C T I O N M A N U A L
• Height: 76 to 150 cm
from 76 to 105 cm / ≤24 kg (i-Size seat)
from 100 to 150 cm (i-Size booster seat)
READ THIS MANUAL
STOP OR CRASH.
HMYGENHRB-UK2
24/03
UK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Harmony GENESYS DELUXE
Summary of Contents for Harmony GENESYS DELUXE
- Page 1 RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN STOP OR CRASH. IF YOU HAVE ANY PROBLEMS, PLEASE DO NOT RETURN THIS STOP PRODUCT TO THE PLACE OF PURCHASE. PLEASE CONTACT CUSTOMER SERVICE AT WWW.HARMONYJUVENILE.COM ®Harmony Juvenile Products HMYGENHRB-UK2 24/03...
- Page 2 Visit www.harmonyjuvenile.com/uk/register to register your child restraint online, mail-in the registration card or send your name, address, the restraint’s model number, manufacturing date and date of purchase to: Harmony Juvenile Products UK 10 Beach Priory Gdns. Southport, UK PR8 1RT For recall information, any questions you may have, or to make a change of address or contact information, please visit us online at www.harmonyjuvenile.com.
- Page 3 P A R T S L I S T Headrest Fabric Cover (pre-installed) Backrest Fabric Cover (pre-installed) Base Fabric Cover (pre-installed) Shoulder belt guides Harness Straps, Buckle and Clips Shoulder Pads Crotch Strap and Pad Harness Metal Adjustment Button (above strap, under fabric) Up-front Harness Adjustment Strap Infant Head Insert Cushion Infant Body Insert Cushion...
- Page 4 P R E P A R I N G C H I L D R E S T R A I N T F O R U S E...
- Page 5 A DJ U S T I N G C R O T C H S T R A P P O S I T I O N I N S TA L L I N G W I T H I S O F I X S Y S T E M & T O P T E T H E R i - S I Z E S E A T ( 7 6 T O 1 0 5 C M / ≤...
- Page 6 ...
- Page 7 U S I N G C H I L D R E S T R A I N T W I T H B U I LT- I N H A R N E S S...
- Page 8 R E M O V I N G / I N S T A L L I N G H A R N E S S...
- Page 9 R E M O V I N G T O P T E T H E R S EC U RI N G C H I LD A N D BO O ST ER S E AT I N V E H ICL E...
- Page 10 I N S TA L L I N G W I T H I S O F I X S Y S T E M & V E H I C L E S E A T B E LT i - S I Z E B O O S T E R S E A T ( 1 0 0 T O 1 5 0 C M ) ...
- Page 11 The Enhanced Child Restraint IS CERTIFIED for use in the following classes of vehicles ONLY: multi-purpose passenger vehicles, passenger cars, and trucks. Harmony Juvenile Products has also validated compliance through independent laboratory testing. This restraint is NOT CERTIFIED for aircraft use.
- Page 12 IMPORTANT – DO NOT USE BEFORE THE CHILD’S AGE EXCEEDS 15 MONTHS. P R E P A R I N G C H I L D R E S T R A I N T F O R U S E WARNING! INCORRECT USE OF THE HARNESS SYSTEM IS THE MOST COMMON MISTAKE PEOPLE MAKE.
- Page 13 A D J U S T I N G C R O T C H S T R A P P O S I T I O N The crotch strap has two (2) positions. 1. Remove fabric crotch pad. 2.
- Page 14 Top Tether Isofix anchor points anchor points Vehicle seat crease WARNING: CONSULT YOUR VEHICLE OWNER’S MANUAL FOR THE EXACT PLACEMENT OF THESE ELEMENTS IN YOUR VEHICLE, AND FOR MAXIMUM ISOFIX WEIGHT ALLOWANCES PRIOR INSTALLATION SOME MANUFACTURERS HAVE LOWER MAXIMUM WEIGHT ALLOWANCES FOR ISOFIX USAGE.
- Page 15 I N S TA L L I N G W I T H I S O F I X S Y S T E M & T O P T E T H E R i - S I Z E S E AT ( 7 6 T O 1 0 5 C M / ≤ 2 4 K G ) 1.
- Page 16 Snugly adjust the harness provided with this child restraint around your child. A snug strap is one with no slack. It should not press on the child’s flesh or cause your child’s body to be in an unnatural position. You should only be able to slide (17) ONE FINGER between the shoulder straps and the child’s shoulder Avoid unnecessary bulky clothing.
- Page 17 IF YOUR CHILD HAS REACHED 100 CM, YOU CAN USE THE SEAT IN BOOSTER MODE. Harmony Juvenile Products advises that your child remains in a 5-point harness for as long as possible per the height and mass requirements of the child restraint.
- Page 18 WARNING! ENSURE THAT THE BUCKLE CLIPS AND CROTCH BUCKLE ARE FACING FORWARD AND THAT THE STRAPS ARE NOT TWISTED. R E M O V I N G T O P T E T H E R 1. Remove backrest plate and locate the metal locking plate for the top tether strap on the top of the backrest.
- Page 19 . If so, remove the vehicle headrest. DO NOT use any load bearing contact points other than those described in the instructions and marked in the child restraint. IF IN DOUBT ABOUT THESE POINTS OR ANY QUESTIONS RELATED TO INSTALLATION, PLEASE CONTACT HARMONY JUVENILE PRODUCTS.
- Page 20 I N S TA L L I N G W I T H I S O F I X S Y S T E M & V E H I C L E S E A T B E LT i - S I Z E B O O S T E R S E A T ( 1 0 0 T O 1 5 0 C M ) WARNING! DUE TO VARYING ANGLES OF VEHICLE SEAT BELT RETRACTORS,...
- Page 21 R E M OVI N G / I N STA L LI N G FA B RI C S E AT COV ER Headrest: • Gently slide the fabric cover downwards off the top of the headrest. • Unhook the elastic loops from each headrest shoulder belt guide opening on (38) the bottom of the headrest Backrest:...
- Page 22 3. Properly securing both your child and the child restraint in the vehicle. Many seat belts are NOT safe to use with this child restraint. If in doubt about installing this child restraint, consult the vehicle owner’s manual or contact the Harmony Customer Service Department.
- Page 23 Harmony Juvenile Products advises against loaning or passing along a child restraint. DO NOT USE A SECOND-HAND CHILD RESTRAINT or a child restraint whose history you do not know. When disposing a child restraint system, ensure to dispose of the unit in a way others cannot reuse it (e.g.
- Page 24 I N J U R Y W A R N I N G S INJURIES MAY OCCUR EVEN IF YOU ARE NOT IN A CRASH if the child restraint is not properly installed or if your child is not properly secured in the child restraint. The rigid items and plastic parts of an Enhanced Child Restraint System shall be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of the vehicle.
- Page 25 If a vehicle’s front seat location must be used, ALWAYS disable the airbag. Failure to disable the airbag system can result in serious injury or death. Follow the vehicle owner’s manual for instructions on disabling the front airbag system. Please refer to your vehicle owner’s manual for airbag type, and for appropriate use with child restraints.
-
Page 26: Warranty Limitations
Harmony Juvenile Products to purchase a replacement harness or buckle. W A R R A N T Y This child restraint was manufactured by Harmony® Juvenile Products (HJP). HJP warrants this product to the original retail purchaser as follows: LIMITED 2-YEAR WARRANTY The following warranty conditions only apply to the country in which this product was first sold through retail channels to a consumer.
