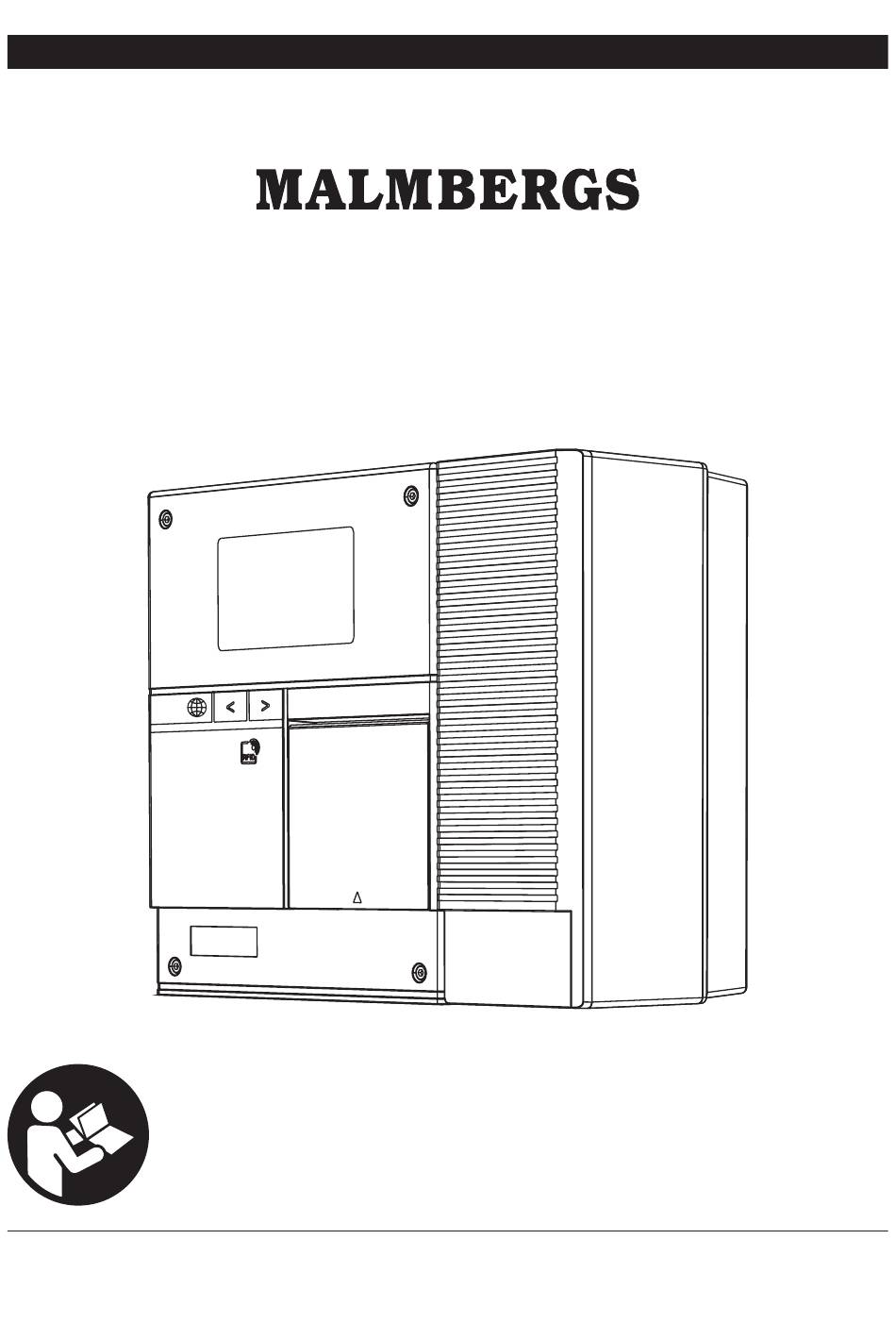

- Page 1 Modell / Malli / Model: xxxxx 27 012 00-07, 11, 16, 24, 31-35 Evon Pro WiFi/Bluetooth/4G NOTE! Please read through the manual carefully before using the appliance and keep it for future reference.
-
Page 2: Table Of Contents
WiFi Charging Station for Electric Vehicles Content SAFETY AND WARNINGS Product Introduction 2.1 Product Overview 2.2 Product Dimensions ACCESSORIES TECHNICAL SPECIFICATIONS INSTALLATION 8-16 5.1 Required Cable and Accessory 5.2 Installation Procedure 9-16 EVCHARGO CLOUD PLATFORM BUTTON DESCRIPTION INDICATOR TROUBLESHOOTING ROUTINE MAINTENANCE STORAGE AND TRANSPORTATION DISASSEMBLY DISPOSAL/SCRAPPING... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS Caution • Failure to follow instructions may result in danger. • Children are prohibited from touching the charging station. • Do not disassemble the charging station while connected to the mains. • Install the charging station away from pyrotechnics, dusty or corrosive places. •... -
Page 4: Product Introduction
PRODUCT INTRODUCTION Evon Pro is a versatile and advanced EV charger, suitable for commercial use, offering up to 22kW of superfast charging. This OCPP-compliant unit supports plug to charge or pay-to-charge options through a mobile app or RFID, managed via any OCPP back-office system. -
Page 5: Product Dimensions
2.2 Product Dimensions 170 mm 135 mm 170 mm 298 mm ACCESSORIES When you receive the product, please ensure that the accessories are complete; if any are missing, please contact us. Wire ferrule Cable clip (big) Cable clip (small) Wall plug M4x32 screw (x5) (x4) -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS Art.no. 27 012 00 27 012 01 27 012 02 27 012 03 27 012 04 27 012 05 Power supply 3P+N+PE Rated voltage 400V AC Input Rated current Frequency 50/60Hz Output voltage 400V AC Maximum current Output power 22kW 22kW 22kW... - Page 7 27 012 06 27 012 07 27 012 11 27 012 16 27 012 24 27 012 31 27 012 32 27 012 33 27 012 34 27 012 35 3P+N+PE 400V AC 50/60Hz 400V AC 2x32A 22kW 22kW 11kW 22kW 22kW 11kW...
-
Page 8: Installation
For and on behalf of: IEC 62321-3-1:2013, IEC 62321-4:2013+A1:2017, IEC 62321-5:2013, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-6:2015, IEC 62321-8:2017 Malmbergs Elektriska AB, Sweden. RF & Health Mr. Anders Folke / Product Manager EN 300 328 V2.2.2:2019, EN 300 330 V2.1.1:2017, Date: 17/03/2025 EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.1.1:... -
Page 9: Installation Procedure
5.2 Installation Procedure Take down the back plate 1. Remove the enclosure first. 2. Loosen the four screws securing the core box to the back plate to separate the wall box from the back plate. Please loosen the M4x45 mm from the screw holes labeled with '1', '2', '3', '4'. Install the back plate 1. - Page 10 Connect power cable Top cabling • Confirm the cable routing Rear cabling As shown below, the cable can be routed into the charger from Top, Rear and Bottom. Bottom cabling • Cascade connection of power cable If both chargers operate at their rated power of 22kW, the cables shall be routed from bottom. Please refer to the wiring method 1.
- Page 11 • Confirm the grid type The following cables comply with the IEC 60446 standard. Cable colors may vary according to different regions. Different grid type supports different wiring methods: TN and TT systems are configured with neutral conductors. IT systems do not have neutral conductors.
- Page 12 • Connect power cable to the terminal block If 5G 16 cable is used, please secure it with one cable clip. If 5G6 cable is used, please secure it with two cable clips. 5G16 Connect communications cable & Insert 4G card CT2 port CT1 port SIM card...
- Page 13 • Confirm the cabling of the communication cable There are two routing methods availavble for the communication cables (Ethernet, RS485, CT): • From top • From bottom • Connect Ethernet cable for networking Daisy chain T568A T568B Router/Switch Please ensure ethernet signal strength not below 100Mbps for every charger and charger work fine.
- Page 14 • Insert SIM card Press and slide downwards to open the flip cover. Carefully insert the SIM card as illustrated, then securely close the cover and gently push it upwards. Attach the core box back to the back plate Connect the RS485 cable of the meter to the port as indicated before attaching the core box to the back plate.
- Page 15 Login and access to the AP mode: • Make sure that the WLAN and Bluetooth are turned on. • Power on the charger to activate the Wi-Fi hotspot of the charger. • On your phone, search for the charger's Wi-Fi hotspot in your Wi-Fi list. The Wi-Fi name will be the charger's serial number, starting with "SN..."..
-
Page 16: Evchargo Cloud Platform
Paste sticker The accessory bag contains four stickers featuring QR codes. These can be affixed to the exterior of the charger, making them easily visible to users. With the App installed, scanning the QR code will direct you to the app itself. RCBO &... -
Page 17: Button Description
BUTTON DESCRIPTION Press the button to change the language on the screen. Please note that the language can be changed once within 15s. This function is only applicable to the charger with screen. INDICATOR Indicator color EV charger status Indicator status Standby Cycle: slow flashing: on for 1s, then off for 3s. -
Page 18: Troubleshooting
TROUBLESHOOTING Indicator color EV charger status Indicator status Relay adhesion Steady red Cycle: on for 500ms, then off for 500ms, once; Leakage current fault followed by 3s off. Cycle: on for 500ms, then off for 500ms, 2 times; CP fault followed by 3s off. -
Page 19: Routine Maintenance
ROUTINE MAINTENANCE Chargers do not need special maintenance. You are advised to check and clean the enclosure of the charger and accessories such as the charging connector every six months. Check whether the charger and cables are damaged. Use a dry cloth to clean the surface of the charger. Do not spray water directly on the charger. Do not use corrosive cleaners, glass cleaners, or organic solvents. - Page 20 Malmbergs Elektriska AB, PO Box 144, SE-692 23 Kumla, SWEDEN Phone: +46 19 58 77 00 info@malmbergs.com www.malmbergs.com...
