Ruijie Reyee RG-RAP1200(F)

Access Point

Installation Guide

Document Version: V1.3

Date: July 22, 2024

Need help?

Do you have a question about the Reyee RG-RAP1200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruijie Reyee RG-RAP1200

Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
Page 3 Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  Official Website of Ruijie Reyee: https://reyee.ruijie.com  Technical Support Website: https://reyee.ruijie.com/en-global/support  Case Portal: https://www.ruijienetworks.com/support/caseportal  Community: https://community.ruijienetworks.com ...
Page 4 Contents Preface ................................ I Product Overview ..........................1 Technical Specifications ....................... 1 Product Image ........................2 LED Indicator and Button ..................... 3 Preparing for Installation ........................4 Installation ..........................4 Movement ..........................4 EMI ............................4 Ventilation ..........................5 Temperature and Humidity ....................5 Cleanness ..........................

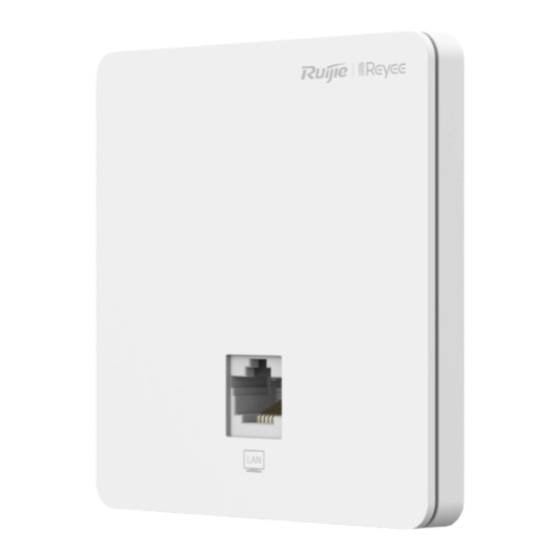

Page 5 Product Overview 1 Product Overview Featuring leading 802.11a/b/g/n/ac Wave1/Wave2 and MU-MIMO, Ruijie SME RG-RAP1200(F) Wall AP is designed for wireless deployment in hotels, offices, villa and apartment buildings alike. RG-RAP1200(F) supports 2 spatial streams and delivers up to 400Mbps at 2.4GHz and 867Mbps at 5GHz. The overall dual-radio dual-band performance speeds up to 1.267Gbps per device.
Page 6 Installation Guide Product Overview Rear: One 10/100Mbps PoE port Management Ports LED Indicators Support Power Supply PoE 802.3af/802.3at ≤ 8W Power Consumption Operating: 0° C to 40° C (32° F to 104° F) Temperature Storage: -40° C to 70° C (-40° F to 158° F) Operating: 5% to 95% RH (non-condensing) Humidity Storage: 5% to 95% RH (non-condensing)
Page 7 Meaning Indicator The AP is not receiving power. Solid blue Normal operation. Blinking 0.5Hz Normal operation, but the AP is not connected to Ruijie Cloud. Fast blinking Possible cases: Power Restoring the factory default settings 10Hz Upgrading the firmware Restoring the image file...
Page 8 Installation Guide Preparing for Installation · 2 Preparing for Installation To prevent device damage and bodily injury, please read carefully the safety recommendations described in this chapter. The recommendations do not cover all possible hazardous situations. 2.1 Installation The AP must be installed indoors. To ensure normal operation, the installation site must meet the following requirements. ...
Page 9 Installation Guide Preparing for Installation ·  Find out the location of the emergency power supply switch in the room before installation. First cut off the power supply in case of an accident.  Be sure to make a careful check before you shut down the power supply. ...
Page 10 Installation Guide Preparing for Installation · Besides, the contents of salts, acids and sulfides in the air are also strictly limited for the equipment room. These substances can accelerate metal corrosion and the aging of some parts. Table 2-3 describes the limit of some hazardous gases such as SO S, NO and Cl...
Page 11 Installation Guide Installing the Access Point · 3 Installing the Access Point Make sure you have carefully read Chapter 2, and be sure that the requirements set forth in Chapter 2 have been met. 3.1 Installation Flowchart 3.2 Before You Begin Before installing the AP, verify that: ...
Page 12 Installation Guide Installing the Access Point ·  Keep the device clean and dust-free.  Disconnect the device before cleaning it.  Do not wipe the device with a damp cloth.  Do not wash the device with liquid.  Do not open the enclosure when the AP is working.
Page 13 Connect the UTP/STP to the WAN/PoE port on the AP. See Appendix A for the supported wiring for twisted pairs. Avoid bending the cable in a small radius close to the connector. Ruijie recommends that you do not use Ethernet cables with protective sleeves as they could make installation of Ethernet cables more difficult.
Page 14 Installation Guide Installing the Access Point · Bundling Steps Bundle the drop UTP/STP cables and route them to the WAN/PoE port. Attach the cables in the cable tray of the rack. Extend the cables under the AP and run in a straight line. 3.7 Checking after Installation Checking the Cabinet ...
Page 15 Installation Guide Troubleshooting · 4 Troubleshooting 4.1 Troubleshooting Flowchart 4.2 Troubleshooting LED does not light up after the AP is powered on Verify that the power source is IEEE 802.11af compliant. And then verify that the cable is connected properly. Orange LED blinks after the Ethernet cable is connected Verify that the device at the other end of the Ethernet cable is working properly.
Page 16 Installation Guide Appendix A Connectors and Media · Appendix A Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet).
Page 17 Installation Guide Appendix B Cabling Recommendations · Appendix B Cabling Recommendations During installation, route cable bundles upward or downward along the sides of the rack depending on the actual situation in the equipment room. All cable connectors should be placed at the bottom of the cabinet rather than be exposed outside of the cabinet.
Page 18 Installation Guide Appendix B Cabling Recommendations ·  If cables are to be bent, bind them first but do not tie cable ties within the bend to avoid stress on the cables, which may otherwise cause the wires inside to break, as shown in Figure B-3. Figure B-3 Do Not Tie Cable Ties within the Bend ...
Page 19 Installation Guide Appendix B Cabling Recommendations · 3. Spring washer Note 1. Flat washer 4. Flat washer 2. Nut  When using a stiff cable, fix it near the cable lug to avoid stress on the lug and cable.  Do not use self-tapping screws to fasten terminals.
