- Page 1 HMS-2000 Fume Hood Controller LIT-12014488 User Guide February 2025...
- Page 2 IMPORTANT: Do not install or use this HMS-2000 Fume Hood Controller in or near environments where corrosive substances or vapors could be present. Exposure of the HMS-2000 Fume Hood Controller to corrosive environments may damage the device’s internal components and will void the warranty.
- Page 3 HMS-2000 Fume Hood Controller’s electrical ratings. IMPORTANT: Do not install the HMS-2000 Fume Hood Controller where the maximum temperature exceeds 125°F (52°C). Installing the device where maximum temperatures exceed 125°F (52°C) may cause damage to the HMS-2000 Fume Hood Controller and may void the warranty.
- Page 4 IMPORTANT : Seul le personnel qualifié peut installer et entretenir les produits Johnson Controls. Ces instructions constituent un guide pour ce type de personnel. Suivez attentivement toutes les instructions de ce document et toutes les instructions du HMS-2000 Fume Hood Controller.
- Page 5 Ne dépassez pas les spécifications électriques du HMS-2000 Fume Hood Controller. IMPORTANT : N’installez pas le contrôleur d’environnement critique HMS-2000 où la température maximum dépasse 52 °C (125 °F). Installer l’appareil dans un environnement où la température maximum dépasse 52 °C (125 °F) peut endommager HMS-2000 Fume Hood Controller et peut annuler la garantie.
-
Page 6: Table Of Contents
HMS-2000 Table of contents Introduction ....................................8 Display overview ..................................8 Initial setup ....................................12 Configuration ..................................... 12 Global settings ................................... 12 Choosing a unit of measure ..............................12 Choosing a language ................................12 Turn Keyboard clicks on or off .............................. 12 Adjusting the screen brightness ............................ - Page 7 Setting the actuator to auto-stroke ..........................32 Overriding relay outputs ............................. 32 Saving settings ..................................32 Restoring settings................................. 32 Resetting the HMS-2000 controller and display ........................32 Troubleshooting Guide ................................33 Restricted user access ................................34 Setting the time and date ..............................34 Adjusting the alarm mode..............................
-
Page 8: Introduction

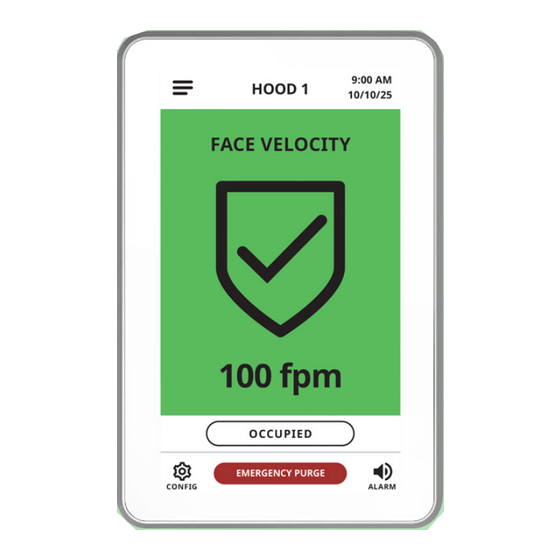

The HMS-2000 provides maximum fume hood status awareness with color coded visual alarms both on screen and with the 360° Safety Halo illuminated edge. When the 360° Safety Halo is enabled, staff can easily monitor fume hoods in large laboratory spaces. - Page 9 HMS-2000 Figure 2: Alarm screen Figure 3: Standby mode Figure 4: Emergency Purge mode Figure 5: Normal occupied LIT-12014488...
- Page 10 HMS-2000 Figure 6: HMS-2000 Fume Hood Controller overview Note: Purchase of the HMS-2000 includes the display, controller, and a sidewall sensor with an optional sash position sensor. Table 2: HMS-2000 system diagram Item Component HMS-2000 Display Power supply Controller Optional occupancy switch...
-
Page 11: Sensor Descriptions
HMS-2000 Table 3: Icon overview Icon Sensor descriptions Sensor readings in acceptable range Warning or alarm depending on status color Neutral isolation mode Audible alarm Muted alarm Night mode Home screen Start Stop Revert Information Switch is off Switch is on... -
Page 12: Initial Setup
Initial setup When the HMS-2000 Fume Hood Controller starts for the first time, you can configure the device language, units of measurement, network address, and any required calibration procedures. See Table 4 for definitions of occupied, unoccupied, and standby operating modes. -
Page 13: User Accounts
User accounts Setting up users and passwords restricts the use of the HMS-2000 Fume Hood Controller to specific groups of people. This is not mandatory, but if you do not create users and passwords, anyone can access all functions of the HMS-2000 controller. The following access levels are available: •... -
Page 14: Creating A Restricted User And Pin
If admin users forget their password, they have to complete the following procedure: Contact support and provide them with the device identifier listed on the screen of each HMS-2000 Fume Hood Controller. See Contact information at the end of the User’s Guide for more details. -
Page 15: Network Setup
The device ID (or instance number) is a number used to identify a BACnet device object. Each BACnet device on a site must have a unique device ID. The HMS-2000 creates a default device ID of 85,000 plus the current MAC address. For example, if the MAC address is 25, the default device identifier becomes 85,025. -
Page 16: Bacnet Objects
HMS-2000 BACnet objects Table 5: Analog inputs for integration in a BAS Object Analog inputs Read or write AI-1 Analog input 1, default: face velocity Read only AI-2 Analog input 2, default: sash postion Read only AI-3 Analog input 3, duct static pressure... -
Page 17: Analog Values
HMS-2000 Table 9: Analog values for integration in a BAS continued Object Analog values Read or write AV-12 Alarm relay 1 low setpoint Read or write AV-13 Alarm relay 2 high setpoint Read or write AV-14 Alarm relay 2 low setpoint... - Page 18 HMS-2000 Table 9: Analog values for integration in a BAS continued Object Analog values Read or write AV-57 AO-4 override level Read or write AV-58 AI-1 deadband setting Read or write AV-59 AI-2 deadband setting Read or write AV-60 AI-3 deadband setting...
-
Page 19: Analog I/O
Admin users can set up analog inputs (AI) AI-1 to AI-4, analog outputs (AO) AO-1 to AO-4, and map analog inputs to any of the four analog outputs. See Table 11 for more information about which parameter can be configured to which analog input. Refer to the HMS-2000 Fume Hood Controller Installation Guide for more information. -
Page 20: Configuring Analog Inputs To Measure Pressure
Configuring analog inputs to measure pressure To configure the HMS-2000 controller for pressure, you can use AI-2, AI-3 and AI-4. Analog Input 1 is only configured for monitoring face velocity and is pre-configured by the factory. If you are using a third-party pressure sensor you need to select pressure from the list of input types. -
Page 21: Specifying The K-Factor
HMS-2000 Specifying the K-Factor The default value for the K-Factor is 1.0, but the manufacturer of the sensor can provide a different K-Factor to serve as a correction factor for the actual output of the sensor. If you do not receive a different K-Factor from the manufacturer, leave the K-Factor at its default value. -
Page 22: Zero Calibration
Setting the alarms The HMS-2000 Fume Hood Controller supports alarming across all four analog inputs, including the face velocity input. You can disable the alarms for AI-2, AI-3, and AI-4 if required. For users’ safety, you cannot disable the alarms for the face velocity input. -
Page 23: Configuring The Analog Input To Measure Air Flow
HMS-2000 Configuring the analog input to measure air flow You can display room cfm in AI-2, AI-3 and AI-4 with either a DP transmitter or a flow sensor. Configuring the analog input to measure air flow On the home screen, tap the CONFIG icon to enter the CONFIGURATION menu. -
Page 24: Setting Up The Duct Area To Measure Air Flow
HMS-2000 Setting up the duct area to measure air flow If you are using a DP transmitter, specify the cross-sectional duct area in square inches. This duct area converts a differential pressure or a velocity to a real-time volumetric flow. For round ducts, the cross-sectional area is determined by multiplying the square of the radius by pi. -
Page 25: Enabling The Alarm And Changing The Alarm Limits For Air Flow
Naming the air flow input Set up a name for the analog that input you want to appear on the home screen. If your HMS-2000 controller is in portrait mode, you can have up to 16 characters. If your HMS-2000 controller is in landscape mode, you can have up to 12 characters. -
Page 26: Configuring Digital Inputs For Flow Switch Mode
HMS-2000 Configuring digital inputs for flow switch mode Configure one of the secondary digital inputs for flow switch mode. In this mode an external signal from a flow switch can trigger the alarm to indicate insufficient air flow in the exhaust duct. -
Page 27: Configuring The High And Low Setpoints
Configuring the high and low setpoints When using the setpoint trigger mode, the HMS-2000 controller has to be in either occupied or unoccupied mode to enter the high and low relay setpoints. If the system is in standby operating mode, then setpoint entry is not available. The high setpoint determines the threshold that the relay is activated if in direct acting mode, or gets deactivated if in reverse acting mode. -
Page 28: Configuring The Pid Loop
HMS-2000 Configuring the PID Loop If you configure any of the analog outputs in PID mode, you can use the PID Loop Setup menu to fine-tune the PID constants that the closed-loop control scheme uses. See Table 14 for information on default values. -
Page 29: Home Screen Viewing Modes
HMS-2000 Home screen viewing modes The viewing mode controls how the home screen looks and what parameter triggers the 360° Safety Halo. Figure 8: Main status screen monitoring face velocity Figure 9: Monitoring face velocity and exhaust air flow Figure 10: Monitoring face velocity, sash position, and exhaust air flow... -
Page 30: Diagnostics
HMS-2000 Diagnostics On the Diagnostics screens, you can find information about your particular HMS-2000 Fume Hood Controller model. You can also find more information to help with troubleshooting during the installation process. Viewing the About This HMS information When you contact technical support, use the About this HMS section to reference specific details about your controller. You can also view the present value, setpoint, deadband, and alarm settings for each of the analog inputs you have configured. -
Page 31: Adjusting The Pid Loop For Analog Outputs 2, 3, And 4 In The Real-Time View
HMS-2000 Adjusting the PID loop for analog outputs 2, 3, and 4 in the real-time view On the home screen, tap the CONFIG icon. On the CONFIGURATION screen, scroll down and tap Diagnostics. On the DIAGNOSTICS screen, tap the Real-Time View arrow. -
Page 32: Setting The Actuator To Auto-Stroke
To perform a soft reset of both the controller and the display, complete the following steps: On the home screen, tap the CONFIG icon. On the CONFIGURATION screen, scroll down and tap Diagnostics. On the DIAGNOSTICS screen, tap the Reset Controller arrow. On the RESET CONTROLLER screen, tap Proceed. The HMS-2000 controller reboots. LIT-12014488... -
Page 33: Troubleshooting Guide
“States Text” that defaults to Inactive or Active and feature for the mapper object of each point and masks this issue, but if the HMS-2000 is mapped to the binary point mappers have TrueText and a non-Metasys supervisory device then the binary FalseText attributes that can be edited after points may not show the present value. -
Page 34: Restricted User Access
HMS-2000 Restricted user access Restricted level users have access to the user menu and the quick links on the home screen for operating mode, emergency purge mode, and alarm mode. In the user menu, restricted level users can make basic adjustments on the following features: •... -
Page 35: Setting The Audible Alarm Delay
Note: To change the operating mode quickly, tap the operating mode quick link on the Home screen. Accessing the user guide demonstration video The short demonstration video is aimed at the end user and highlights the basic functionality of the HMS-2000. On the Home screen, tap the User Menu icon. -
Page 36: Quick Links
See the HMS-2000 Fume Hood Controller Installation Guide (LIT-12013508) for more information. If you upgrade an existing HMS-1655 Fume Hood Controller display with the HMS-2000 controller display and do not plan to update the original HMS-1655 controller, the following considerations apply: •... -
Page 37: Hardware Resource Functionality
HMS-2000 Hardware resource functionality Table 17: AI functionality AI Functionality AI_1 AI_2 AI_3 AI_4 Face velocity Sash position Pressure Air flow Table 18: AO functionality AO Functionality AO_1 AO_2 AO_3 AO_4 Direct Mode PID Mode Table 19: DI functionality DI Functionality... -
Page 38: Technical Specifications
HMS-2000 Technical specifications Table 21: Technical specifications Intended use Indoor use Overvoltage category Altitude Up to 2000 m (6562 ft) Face velocity range 0 fpm to 200 fpm (1.016 mps) Alarm range 0 fpm to 200 fpm (1.016 mps) Display range 0 fpm to 200 fpm (1.016 mps) -
Page 39: Cleaning The Display
Contact Johnson Controls: www.johnsoncontrols.com/contact-us Building Technologies & Solutions Headquarters: Milwaukee, Wisconsin, USA Branch Offices: Principal Cities World-wide © Copyright 2025 Johnson Controls. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
