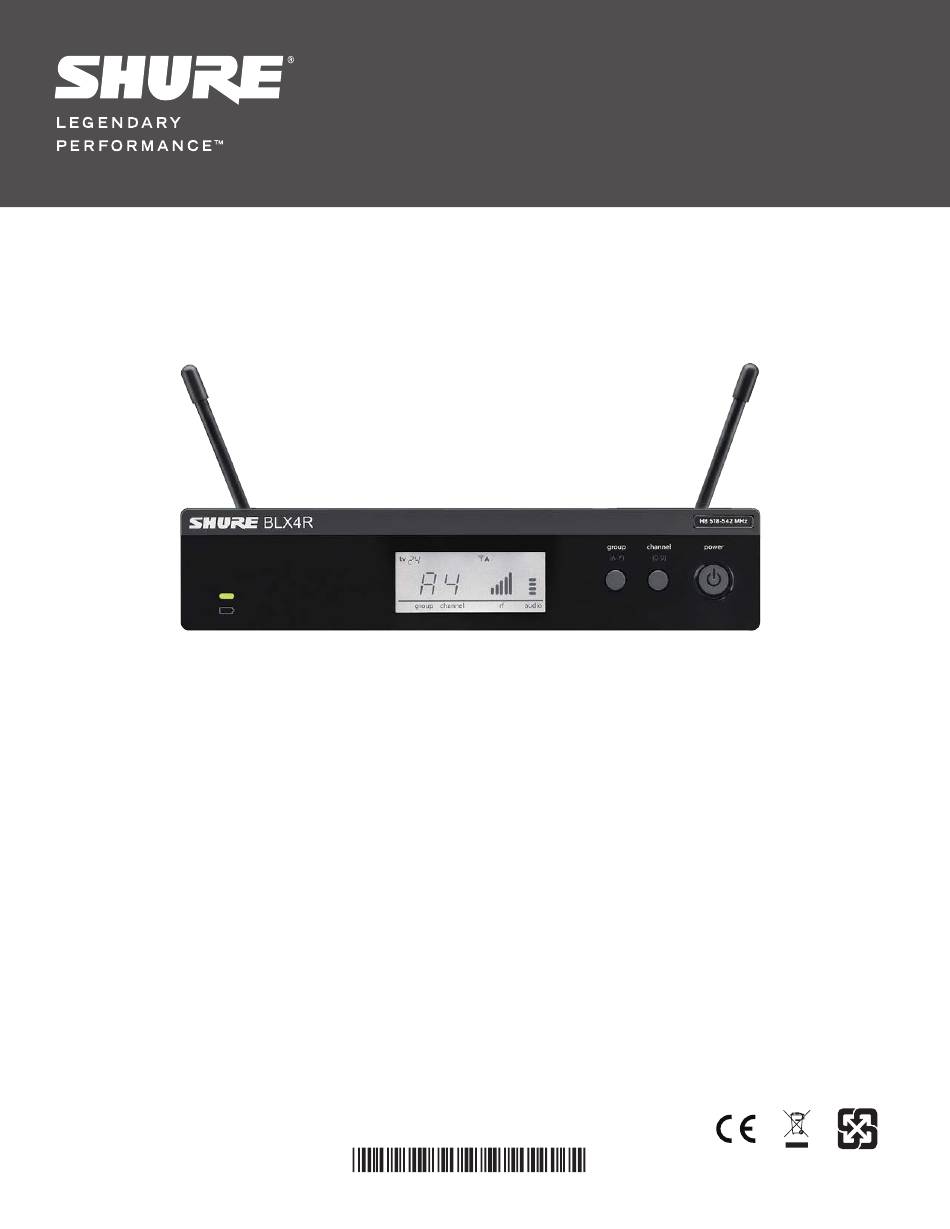

- Page 1 BLX4R Wireless Microphone System Système de microphone sans fil BLX4R Sistema de micrófonos inalámbricos BLX4R Sistema de Microfone Sem Fio BLX4R ©2014 Shure Incorporated Printed in U.S.A. 27A21195 (Rev. 5)
- Page 2 IMPORTANT SAFETY INSTRUCTIONS 14. REFER all servicing to qualified service personnel. Servicing is required when the ap- paratus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been READ these instructions.
- Page 3 Quick Start Guide Connect receiver to power source. Brancher le récepteur à une source d'alimentation. Conecte el receptor a la fuente de alimentación. Conecte o receptor à fonte de alimentação. ① ② ANTENNA B POWER MIC OUT INSTRUMENT OUT VOLUME ANTENNA A Connect receiver to mixer or amplifier.
- Page 4 Install batteries and turn on transmitter. Installer les piles et allumer l’émetteur. Instale las baterías y encienda el transmisor. Instale as pilhas e ligue o transmissor. group channel (A-Y) (0-9) On the transmitter, set the group and channel to match the receiver. The RF bars and battery LED on the receiver should illuminate.
- Page 5 If setting up additional systems, leave the first transmitter and receiver on. For each additional receiver, manually set the group to match the first receiver. Note: The receiver will automatically perform a channel scan to find an available fre- quency after the group has been selected. Set the transmitter frequency to match the receiver. Si l'on configure d'autres systèmes, laisser les premiers émetteur et récepteur allumés.
- Page 6 BLX4R Receiver Front Panel Rear Panel BLX4R group channel (A-Y) (0-9) ANTENNA B POWER MIC OUT INSTRUMENT OUT VOLUME ANTENNA A ① Transmitter Battery LED ⑧ Strain-relief loop for power cord ④ channel Button • Green = Runtime greater than 1 hour •...
-
Page 7: Transmitter Led Indicators
Transmitters BLX1 ① LED Indicator BLX1 Displays power and battery status (see table). ② power Switch ④ Toggles power on or off. ② ③ 4-Pin Microphone Input Jack (TA4 connector) ④ Antenna ⑤ group Button Changes group setting. ⑥ LED Display Displays group and channel setting. -
Page 8: Single System Set Up
Single System Set Up Before you begin, turn off all transmitters and turn on any equipment (other group microphones or personal monitoring systems) that could cause interference (A-Y) during the performance. 1. Press and release the group button on the receiver. The receiver scans for the clearest group and channel. -
Page 9: Multiple System Set Up
Multiple System Set Up Up to 12 systems can operate simultaneously (band and RF environment dependent). Set up each system one-at-a-time. Once a receiver and transmitter are tuned to the same group and channel, leave the transmitter powered Important: on. Otherwise, scans from the other receivers will not detect that channel as occupied. Turn any other equipment that could cause interference during the performance so it will be detected during the group and channel scans in the fol- lowing steps. -
Page 10: Tips To Improve Wireless System Performance
Tips to Improve Wireless System Performance If you encounter interference or dropouts, try the following suggestions: • Choose a different receiver channel • Remove nearby sources of wireless interference, such as cell phones, two-way radios, computers, media players, Wi-Fi devices, and digital •... -
Page 11: Locking And Unlocking Controls
To remove batteries from the handheld transmitter, push them out through the opening in the microphone battery compartment. WARNING: Danger of explosion if battery incorrectly replaced. Operate only with Shure compatible batteries. WARNING: Battery packs shall not be exposed to ex- cessive heat such as sunshine, fire, or the like. -
Page 12: Troubleshooting
Rack-Mounting a Receiver Use the supplied mounting hardware to install the receiver in a standard 19" audio equipment rack. BXL4R group channel (A-Y) (0-9) SHURE INCORPORATED NILES, IL 60714 BXL4R group channel ANTENNA B POWER MIC OUT LINE OUT ANTENNA A... -
Page 13: Specifications
Specifications System BLX2 Working Range Audio Input Level 91 m (300 ft) Line of Sight gain position -20 dBV maximum Note: Actual range depends on RF signal absorption, reflection and interference. -10dB -10 dBV maximum Audio Frequency Response 50 to 15,000 Hz Gain Adjustment Range Note: Dependent on microphone type 10 dB... -
Page 14: Australia Warning For Wireless
: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance...
