Union Community UBio-X Face Installation Manual page 13

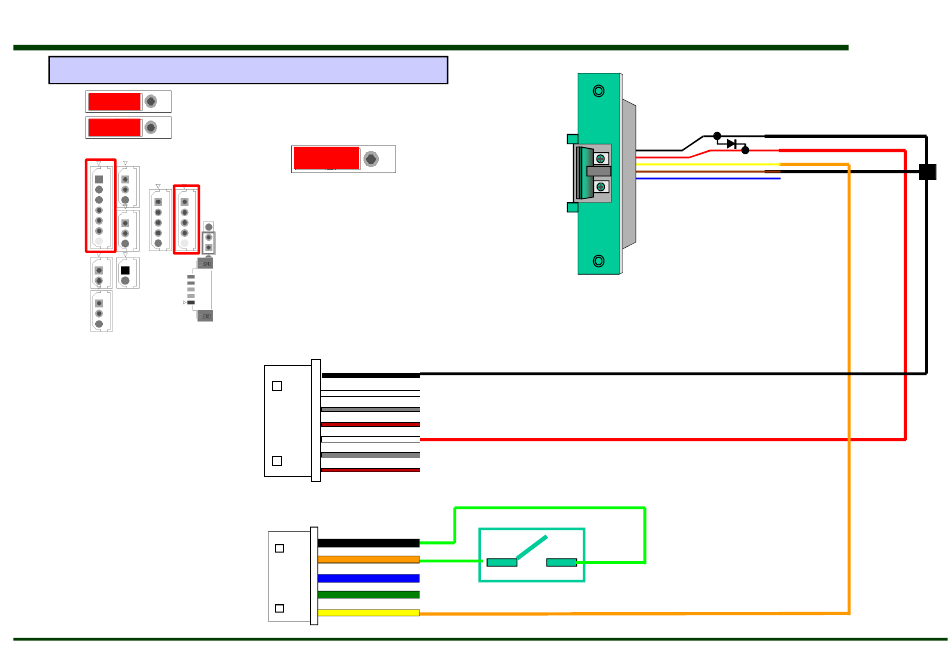

8. Connecting a Strike Type Door Lock (Fail Secure)
8.1. Connecting One System/ One Lock
SW552
SW551
J602
J603
7-GND (BK)
6-Lock2 NO (WH)
5-Lock2 Com (GY)
4-Lock2 NC (BR)
3-Lock1 NO (WH)
2-Lock1 Com (GY)
1-Lock1 NC (BR)
5-GND(BK)
4-EXITB (OR)
3-DM2 (BL)
2-DM1 (GR)
1-DM0 (YE)
SW551: Power ON
J602
J603
GND
L1_NO
Door Open S/W
Door Monitor
Installation for UBio-X Face
(-) Black
(+) Red
Door Signal: NC
13
