Union Community UBio-X Face Installation Manual

Walk through face recognition terminal
Hide thumbs Also See for UBio-X Face:

Advertisement

Quick Links

Download this manual
Installation Guide for UBio-X Face V1.0
Installation Guide for UBio-X Face V1.0
Walk Through Face Recognition Terminal
Walk Through Face Recognition Terminal
January.,25.2021
January.,25.2021
Union Community Co., Ltd.
Union Community Co., Ltd.
Distributed by
Doc Ver1.0
R&D Center
R&D Center

Advertisement

loading
Need help?

Need help?

Do you have a question about the UBio-X Face and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Union Community UBio-X Face

Summary of Contents for Union Community UBio-X Face

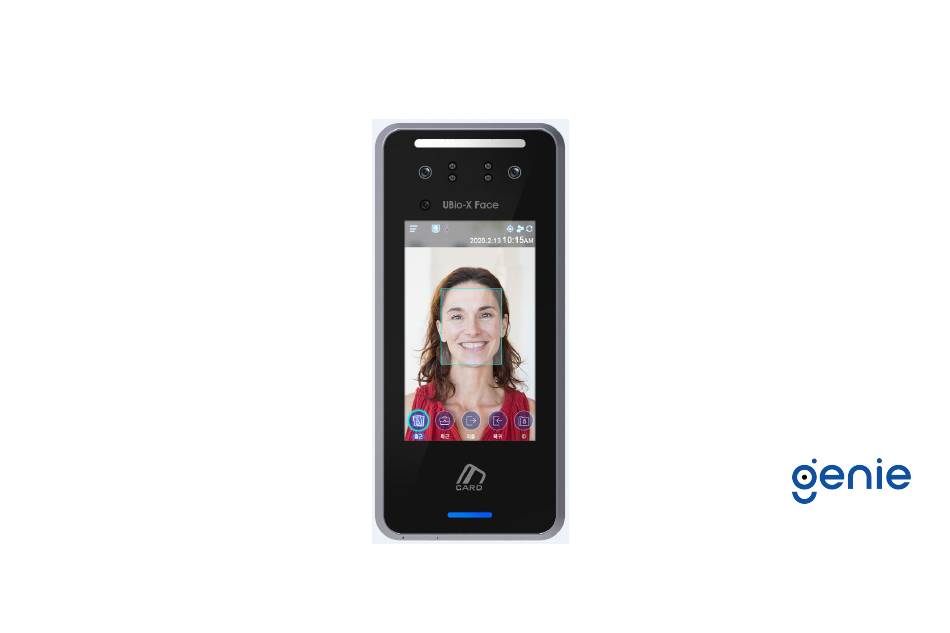

  • Page 1 Installation Guide for UBio-X Face V1.0 Installation Guide for UBio-X Face V1.0 Walk Through Face Recognition Terminal Walk Through Face Recognition Terminal Distributed by Doc Ver1.0 January.,25.2021 January.,25.2021 R&D Center R&D Center Union Community Co., Ltd. Union Community Co., Ltd.
  • Page 2 15V 4A Adapter Dead-Bolt BEHOST BHL-700C (Standby:0.15A, Start:0.9A) * Caution: The above data are the measured values when using the adapters and the dead-bolts provided by the Union Community. Installation for UBio-X Face Copyright 2014 By Union Community Co., LTD.
  • Page 3 1) Using 15V 4A Power Supply & AWG20 AWG20 40m AWG20 10m 15V 4A Adapter Dead-Bolt BEHOST BHL-700C (Standby:0.15A, Start:0.9A) * Caution: The above data are the measured values when using the adapters and the dead-bolts provided by the Union Community. Installation for UBio-X Face...
  • Page 4 5-GND(BK) 4-EXITB (OR) Lock Status Cable (5P) 3-DM2 (BL) 2-DM1 (GR) 1-DM0 (YE) 7-GND (BK) 6-Lock2 NO (WH) 5-Lock2 Com (GY) Lock Cable (7P) 4-Lock2 NC (BR) 3-Lock1 NO (WH) 2-Lock1 Com (GY) 1-Lock1 NC (BR) Installation for UBio-X Face...
  • Page 5 Light Bar Cable (3P) L_RED (RE) - 2 L_GREEN (GR) - 1 GND (BK) - 2 5V Out Cable (2P) 5V Out (WH/BK) - 1 Motor- (BR) - 2 Motor Cable (2P) Motor+ (YE) - 1 Installation for UBio-X Face...
  • Page 6 3. Connecting Ethernet (LAN) Cable J303-RJ45 ** UTP Connector Switch Hub Installation for UBio-X Face...
  • Page 7 4. Resistor Setting for RS485 End Termination SW401 On/Off Setting OFF(Default) * Default Setting is off. * ON: 120 Ohm Resistor is connected between 485A and 485B Installation for UBio-X Face...
  • Page 8 5. Description of the switch for setting lock power SW552 Lock2 Power On/Off Lock1 Power On/Off SW551 Lock1 Circuit Diagram Lock2 Circuit Diagram Installation for UBio-X Face...
  • Page 9 7-GND (BK) 6-Lock2 NO (WH) 5-Lock2 Com (GY) 4-Lock2 NC (BR) J602 3-Lock1 NO (WH) 2-Lock1 Com (GY) L1_NC 1-Lock1 NC (BR) 5-GND(BK) 4-EXITB (OR) 3-DM2 (BL) J603 Door Open S/W 2-DM1 (GR) Door Monitor 1-DM0 (YE) Installation for UBio-X Face...
  • Page 10 SW551: Power ON (+) Red - C + J602 J603 1 2 3 4 Door Signal: NC L1_NC 5-GND(BK) 4-EXITB (OR) J602 J602 3-DM2 (BL) J603 System 2 System 1 2-DM1 (GR) 1-DM0 (YE) Door Monitor System 1 Installation for UBio-X Face...
  • Page 11 7-GND (BK) 6-Lock2 NO (WH) 5-Lock2 Com (GY) 4-Lock2 NC (BR) J602 3-Lock1 NO (WH) 2-Lock1 Com (GY) L1_NC 1-Lock1 NC (BR) 5-GND(BK) 4-EXITB (OR) 3-DM2 (BL) J603 Door Open S/W 2-DM1 (GR) Door Monitor 1-DM0 (YE) Installation for UBio-X Face...
  • Page 12 (-) Black SW551 SW551: Power OFF SW551: Power ON (+) Red J602 J603 Door Signal: NC L1_NC 5-GND(BK) 4-EXITB (OR) 3-DM2 (BL) J603 J602 J602 System 2 System 1 2-DM1 (GR) 1-DM0 (YE) Door Monitor System 1 Installation for UBio-X Face...
  • Page 13 7-GND (BK) 6-Lock2 NO (WH) 5-Lock2 Com (GY) 4-Lock2 NC (BR) J602 L1_NO 3-Lock1 NO (WH) 2-Lock1 Com (GY) 1-Lock1 NC (BR) 5-GND(BK) 4-EXITB (OR) 3-DM2 (BL) J603 Door Open S/W 2-DM1 (GR) Door Monitor 1-DM0 (YE) Installation for UBio-X Face...
  • Page 14 (-) Black SW551 SW551: Power OFF SW551: Power ON (+) Red J602 J603 Door Signal: NC L1_NO 5-GND(BK) 4-EXITB (OR) 3-DM2 (BL) J603 J602 J602 System 2 System 1 2-DM1 (GR) 1-DM0 (YE) Door Monitor System 1 Installation for UBio-X Face...
  • Page 15 7-GND (BK) 6-Lock2 NO (WH) 5-Lock2 Com (GY) 4-Lock2 NC (BR) J602 3-Lock1 NO (WH) 2-Lock1 Com (GY) L1_NC 1-Lock1 NC (BR) 5-GND(BK) 4-EXITB (OR) 3-DM2 (BL) J603 Door Open S/W 2-DM1 (GR) Door Monitor 1-DM0 (YE) Installation for UBio-X Face...
  • Page 16 9.2. Connecting Two Systems/ One Lock SW552 System 1 System 2 SW551 SW551: Power OFF SW551: Power ON J602 J603 L1_NC 5-GND(BK) 4-EXITB (OR) J603 3-DM2 (BL) J602 J602 System 2 System 1 2-DM1 (GR) Door Monitor 1-DM0 (YE) System 1 Installation for UBio-X Face...
  • Page 17 7-GND (BK) 6-Lock2 NO (WH) 5-Lock2 Com (GY) 4-Lock2 NC (BR) J602 3-Lock1 NO (WH) 2-Lock1 Com (GY) 1-Lock1 NC (BR) Door Open S/W 5-GND(BK) 4-EXITB (OR) Lock 2 J603 3-DM2 (BL) 2-DM1 (GR) 1-DM0 (YE) Installation for UBio-X Face...
  • Page 18 L1_NO L1_COM Door Open S/W 7-GND (BK) 5-GND(BK) 6-Lock2 NO (WH) 4-EXITB (OR) 5-Lock2 Com (GY) J603 3-DM2 (BL) 4-Lock2 NC (BR) J602 2-DM1 (GR) 3-Lock1 NO (WH) 1-DM0 (YE) 2-Lock1 Com (GY) 1-Lock1 NC (BR) Installation for UBio-X Face...
  • Page 19 System 1 System 2 SW551 SW551: Power OFF SW551: Power OFF J602 J603 Auto Door Operating Part Auto Door Motor Auto-Door Sensor Auto-Door Monitor Sensor Input Line 9P CONN L1_NO L1_COM J602 J602 System 2 System 1 Installation for UBio-X Face...
  • Page 20 U9AL3MHD (DC24/0.3A). Lock (+) Motor 1 Lock (-) Motor 2 Door Monitor(NO) Lock NC Signal(NC) Motor- (Brown) J605 Motor+ (Yellow) Ground 5-GND(BK) 4-EXITB (OR) Door Open S/W Exit B 3-DM2 (BL) J603 2-DM1 (GR) 1-DM0 (YE) Installation for UBio-X Face...
  • Page 21 Lamp 1 Lamp 2 Ground (-) 12 V (+) 12 V (+) Ground (-) 7-GND (BK) L2_NO 6-Lock2 NO (WH) 5-Lock2 Com (GY) 4-Lock2 NC (BR) J602 L1_NO 3-Lock1 NO (WH) 2-Lock1 Com (GY) 1-Lock1 NC (BR) Installation for UBio-X Face...
  • Page 22 3-Lock1 NO (WH) Contact Current: 1A~2A 2-Lock1 Com (GY) 1-Lock1 NC (BR) ** It is recommended to connect an external relay if a problem occurs after connection with an external equipment such as a speed gate. Installation for UBio-X Face...
  • Page 23 OFF [0] * 1, 2, 3 OFF: 26Bit * 4 ON: Wiegand Mode Adapter Wiegand Cable (5P) 5. GND, Black 5-GND(BK) 3. WI0, Brown 4-WI1 (PI) 4. WI1, Pink 3-WI0 (BR) J609 2-WO1 (YE) 1-WO0 (OR) Installation for UBio-X Face...
  • Page 24 OFF [0] * 1, 2, 3 ON: 34Bit * 4 ON: Wiegand Mode Adapter Wiegand Cable (5P) 5. GND, Black 5-GND(BK) 3. WI0, Brown 4-WI1 (PI) 4. WI1, Pink 3-WI0 (BR) J609 2-WO1 (YE) 1-WO0 (OR) Installation for UBio-X Face...
  • Page 25 10cm or more away between terminals ** In order to prevent RF / SC card antenna interference between products, install at least 10cm apart from each other. ** Card recognition distance may be reduced when installed within 10cm. Installation for UBio-X Face...
  • Page 26 ** Recommend installation guide 2 190cm 135cm 138Cm 0.5m Installation for UBio-X Face...
  • Page 27 Distributed by Trading Address: Unit A8 Caxton Point Business Centre, Caxton Point, Caxton Way, Stevenage, SG1 2XU, UK Registered Office: c/o Becktech Limited, Terminus Road, Chichester, Sussex, PO19 8DW, UK Telephone: +44 (0)1707 330 541 | Email: sales@genieproducts.co.uk...
