Pulsar RW1566 Installation Manual

1. Intended use:
The RACK 19" cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies or households. It
is intended for devices manufactured in enclosures of the 19'' standard. Due to the RACK cabinets, the devices are aesthetically
mounted and protected against mechanical damage.
2. Specifications:
SPECIFICATIONS
Mounting dimensions:
External dimensions:
Net/gross weight:
Materials:
Static load:
Use:
Notes:
Declarations, warranty:
3. Structure of the cabinet.
INSTALLATION GUIDE

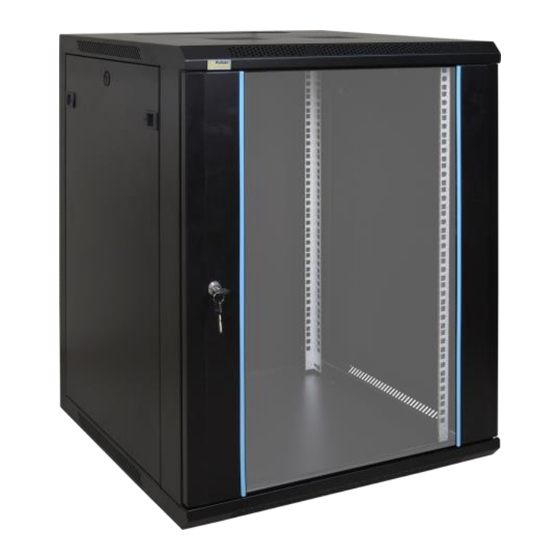

Name: 15U RACK cabinet, wall mounted, fully assembled 600x600
- RACK mounting rails: cold-rolled steel SPCC 1,5mm
- mounting plate: cold-rolled steel SPCC 1,5mm
- cabinet: cold-rolled steel SPCC 1,2mm RAL 9004
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004
- adjustable distance between front and rear RACK rails (range - see point 5)
- ventilation holes in the top panel (2 x 105x105mm - mounting dimensions)
- cable ducts in the top and bottom panel (340x54mm)
- lockable front door – repeatable code (2 keys included)
- possibility of reverse front door – opening left/right
- side panels - lock assembly possible - RAZB16 (additional equipment)
- fully assembled
RoHS, 12 months from the date of purchase
ENGLISH v1.2
code: RW1566
W=19", H=15U, D=354mm
W=600, H=768, D=600 [mm, +/-2]
30,3 / 31,8 [kg]
70 kg
inside, IP20
IM RW1566
Edition: 4 from 21.04.2020
Supersedes: 3 from 09.10.2019
EN
