Pulsar RWA964 Installation Manual

1. Intended use:
The RACK 19" cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies or households.
It is intended for devices manufactured in enclosures of the 19'' standard. Due to the RACK cabinets, the devices are aesthetically
mounted and protected against mechanical damage.
2. Specifications:
SPECIFICATIONS
Mounting dimensions:
External dimensions:
Net/gross weight:
Materials:
Static load:
Use:
Notes:
Declarations, warranty:

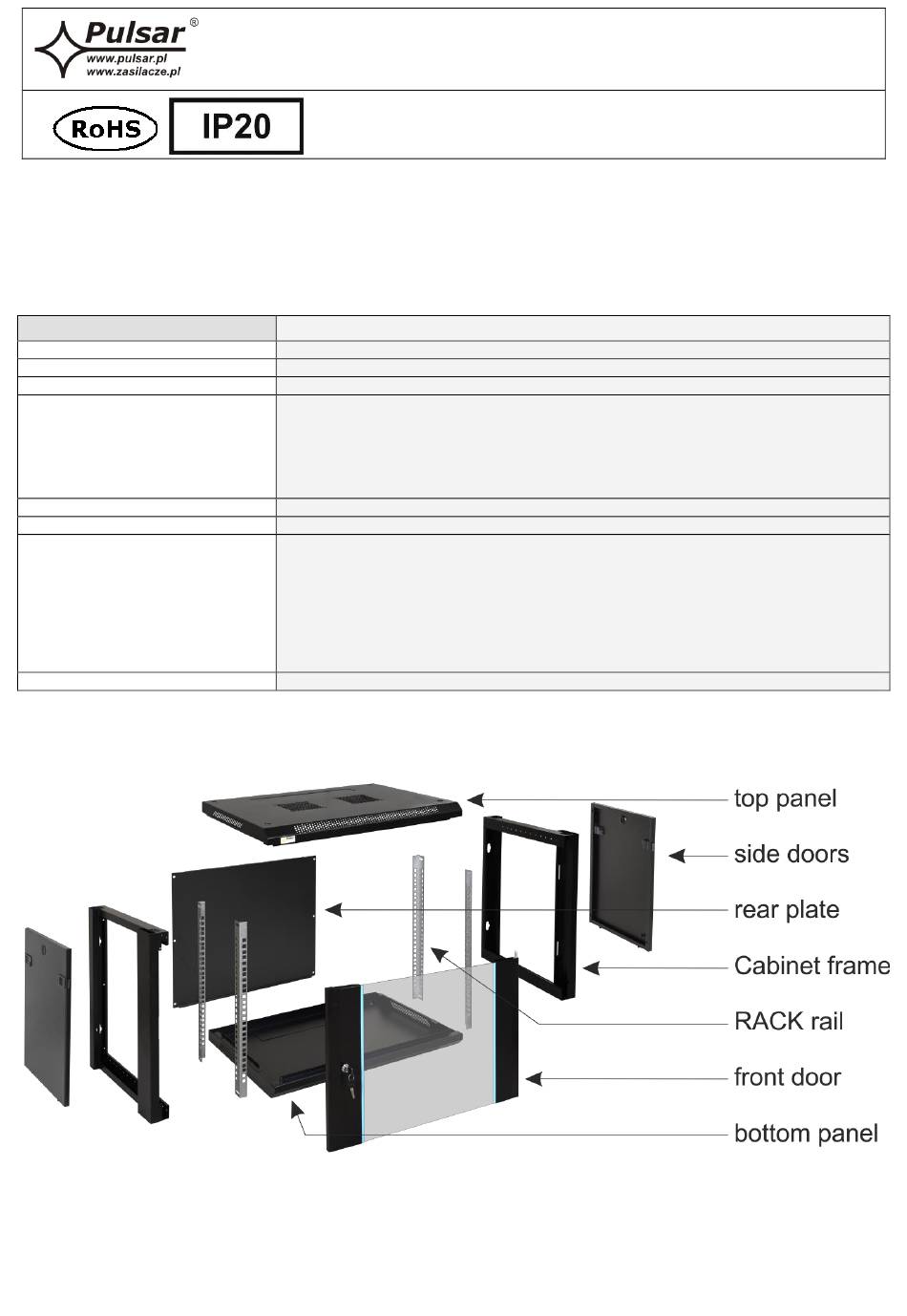

3. Structure of the cabinet.

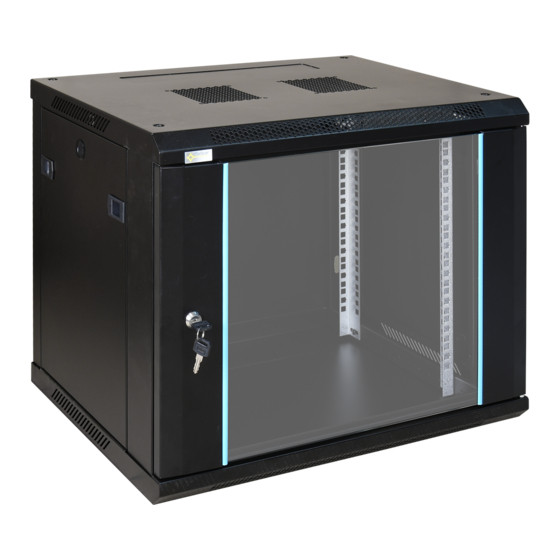

Name: 9U RACK cabinet, wall mounted, ready-to-assemble 600x450
- RACK mounting rails: cold-rolled steel SPCC 1,5mm
- top and bottom panel: cold-rolled steel SPCC 1,2mm RAL 9004
- frame: cold-rolled steel SPCC 1,2mm RAL 9004
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004
- rear plate: cold-rolled steel SPCC 1,2mm RAL 9004
- adjustable distance between front and rear RACK rails (range - see point 5.1)
- ventilation holes in the top panel (2 x 105x105mm - mounting dimensions)
- cable ducts in the top and bottom panel (340x56mm)
- lockable front door – repeatable code (2 keys included)
- possibility of reverse front door – opening left/right
- side panels - lock assembly possible - RAZB16 (additional equipment)
- possibility of disassembly rear panel (518x434mm)
- ready-to-assemble
RoHS, 12 months from the date of purchase
INSTALLATION GUIDE
ENGLISH v1.1
code: RWA964
W=19", H=9U, D=271mm
W=600, H=502, D=450 [mm, +/-2]
20 / 21,5 [kg]
70 kg
inside, IP20
IM RWA964
Edition: 2 from 07.06.2019
Supersedes: 1 from 23.04.2019
EN
