RAKU3

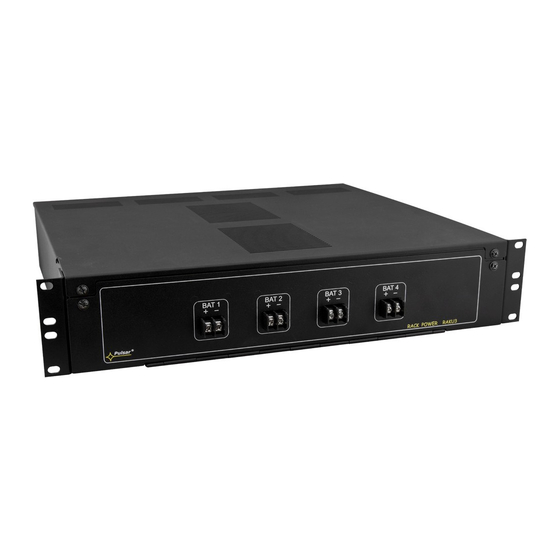

Battery enclosure 4x17Ah for RACK 19" cabinets
Edition: 1 from 29.01.2018
Supercedes the edition: --------------
PL
EN
1. Application
The RAKU3 battery enclosure is designed for installation 1÷4 of 7Ah / 17Ah/12V (SLA) batteries inside RACK 19"
cabinets. Battery outputs are located at the front panel of the housing.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pulsar RAKU3
Summary of Contents for Pulsar RAKU3
- Page 1 Edition: 1 from 29.01.2018 Supercedes the edition: -------------- 1. Application The RAKU3 battery enclosure is designed for installation 1÷4 of 7Ah / 17Ah/12V (SLA) batteries inside RACK 19" cabinets. Battery outputs are located at the front panel of the housing.

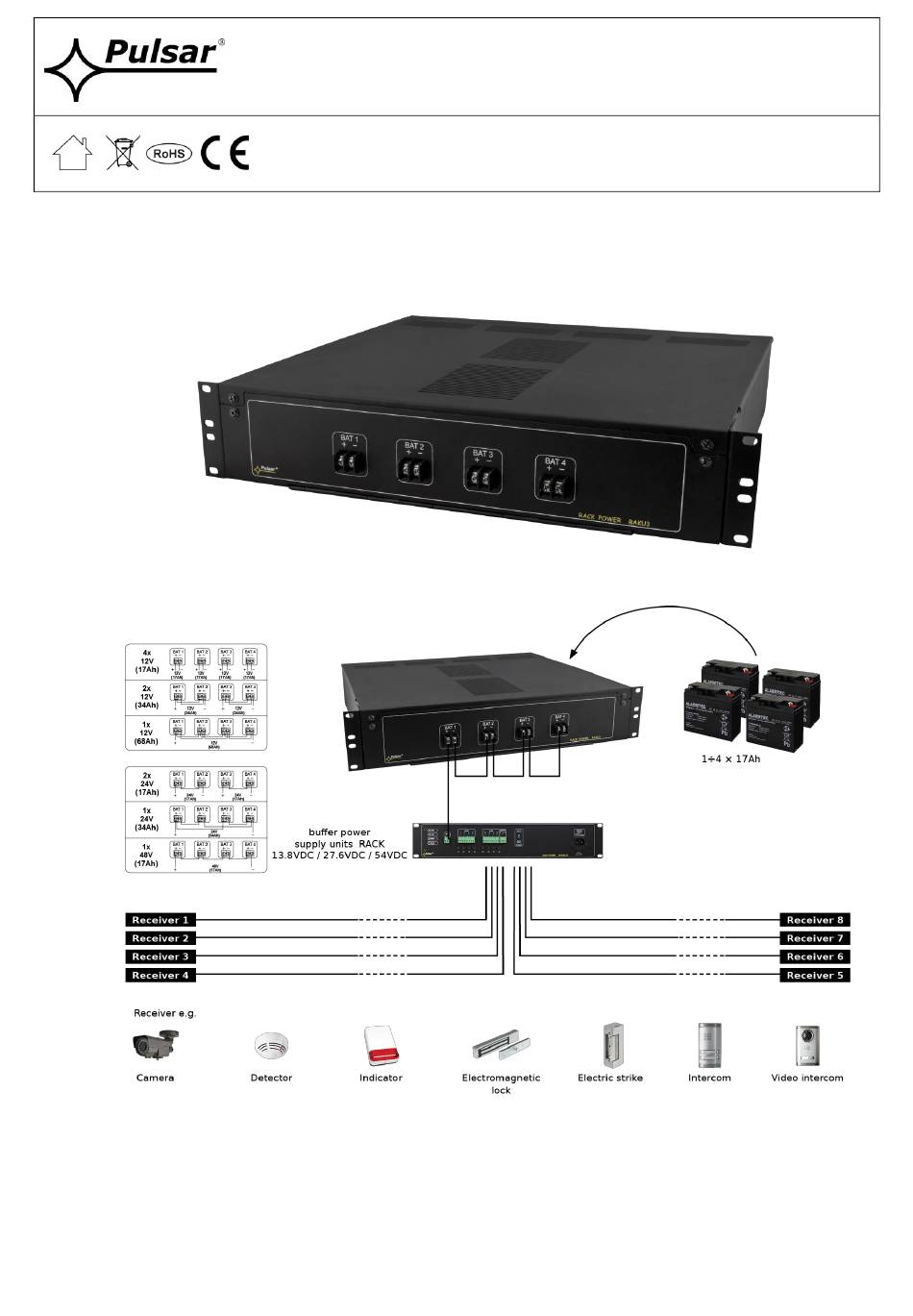

- Page 2 1.1. Specifications . Table 1. Description of components ( See Fig . 1) Element no. Description [Fig. 2] BAT1 battery output BAT2 battery output BAT3 battery output BAT4 battery output A battery compartment for a BAT1 battery A battery compartment for a BAT2 battery A battery compartment for a BAT3 battery A battery compartment for a BAT4 battery Battery cables (+ BAT red, -BAT black)
- Page 3 Table 1. Technical parameters. Battery compartment 4x17Ah/12V (SLA) max. Output load 20A max. Output voltage 60V DC max. º º C÷40 2nd environmental class, -10 C, ensure free air flow around the enclosure. Relative Operating conditions humidity 20% ... 90%, no condensation W=19”, H=2U, D=425 Mounting dimensions Dimensions...
- Page 4 The power supply unit is adapted for a sealed lead-acid battery (SLA). After the operation period it must not be disposed of but recycled according to the applicable law. Pulsar Siedlec 150, 32-744 Łapczyca, Polska Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
