Pulsar RWD1266GD Installation Manual

1. Intended use:
The RACK 19" cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies or
households. It is intended for devices manufactured in enclosures of the 19'' standard. Due to the RACK cabinets, the
devices are aesthetically mounted and protected against mechanical damage.
2. Specifications:
SPECIFICATIONS
Mounting dimensions:
External dimensions:
Net/gross weight:
Materials:
Static load:
Use:
Notes:
Certificates, declarations:

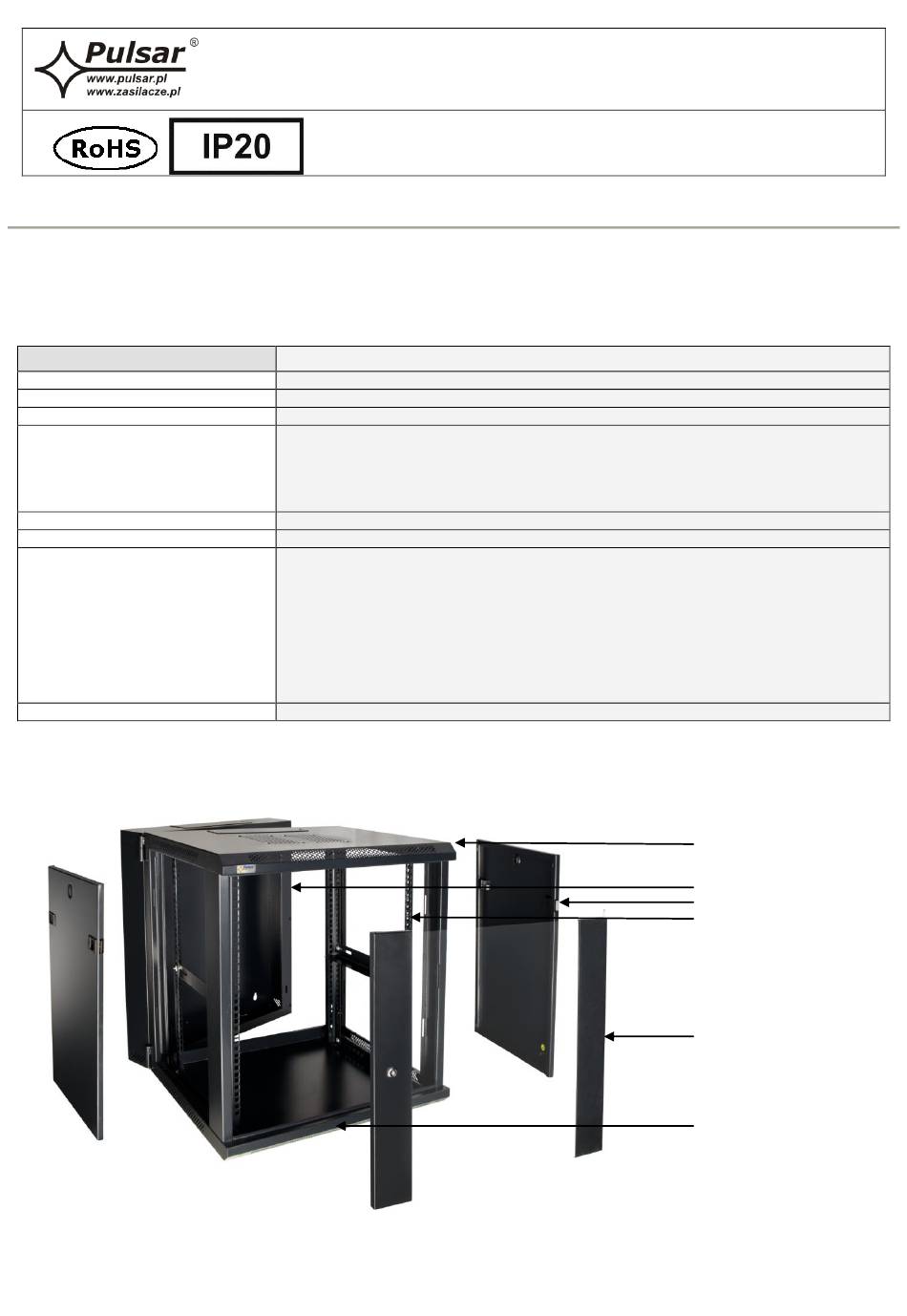

3. Structure of the cabinet.
Name: RACK cabinet ,double section, wall mounted, fully assembled 12U/600x600
- RACK mounting rails: cold-rolled steel SPCC 1,5mm RAL 9004 - bolted
- frame: cold-rolled steel SPCC 1,2mm RAL 9004 - welded
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - hinged
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004 - removable
- rear door: cold-rolled steel SPCC 1,2mm RAL 9004 - hinged
- adjustable distance between front and rear RACK rails
- ventilation holes in the top and bottom panel
- possible mounting of 1 or 2 fans in the top panel - RAW1 / RAW2
- cable ducts in the rear, top and bottom panel
- wall-mounting - 4 bolts (not included)
- lockable front door (2 keys included)
- lockable rear door (2 keys included)
- side panels - lock assembly possible - RAZB16
- fully assembled
INSTALLATION GUIDE
ENGLISH
code: RWD1266GD
Supersedes: 2 from 18.10.2013
W=19", H=12U
W=600, H=635, D=600 [mm, +/-2]
33 / 34 [kg]
60 kg
inside, IP20
RoHS
IM RWD1266GD
Edition: 3 from 10.08.2016
top panel
rear door (hinged)
side panel
RACK rail
front door
bottom panel
