Code: RAWO7
7U/150mm/17 Ah two-level RACK Security
Name:
enclosure for RACK19" cabinets
v1.0
EN
Edition: 1 from 25.01.2017
Supersedes the edition: --------------
1. Application:

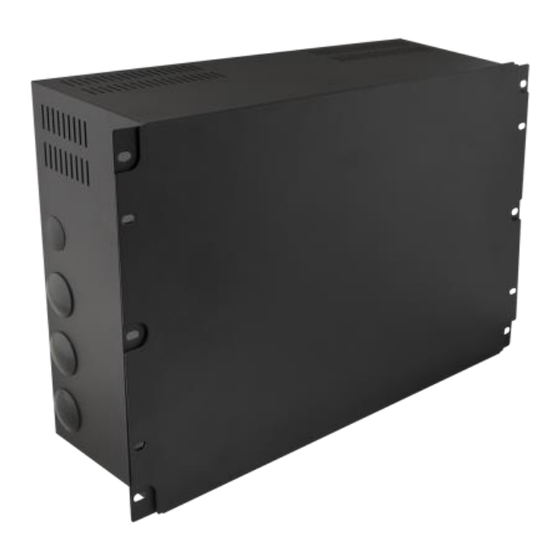

The metal RAWO7 enclosure is designed for mounting the alarm control panel and the input/output modules in
RACK19" cabinets. The enclosure has a removable mounting plate (1st level) and a removable hinged mounting plate (2nd
level). The enclosure has a battery compartment for a single 7Ah/12V battery. The mounting plate (1st level) has holes for
mounting transformers of the TOR/TRP/TRZ series and power supply units of the PS.../PSB.../PSBOC... series by Pulsar.
The hinged mounting plate (level II) is fitted with universal holes for mounting of control panels and expansion modules of
the following companies: DSC, PARADOX, RISCO, SATEL, PYRONIX, TEXECOM, TELMOR, ROGER and EBS.

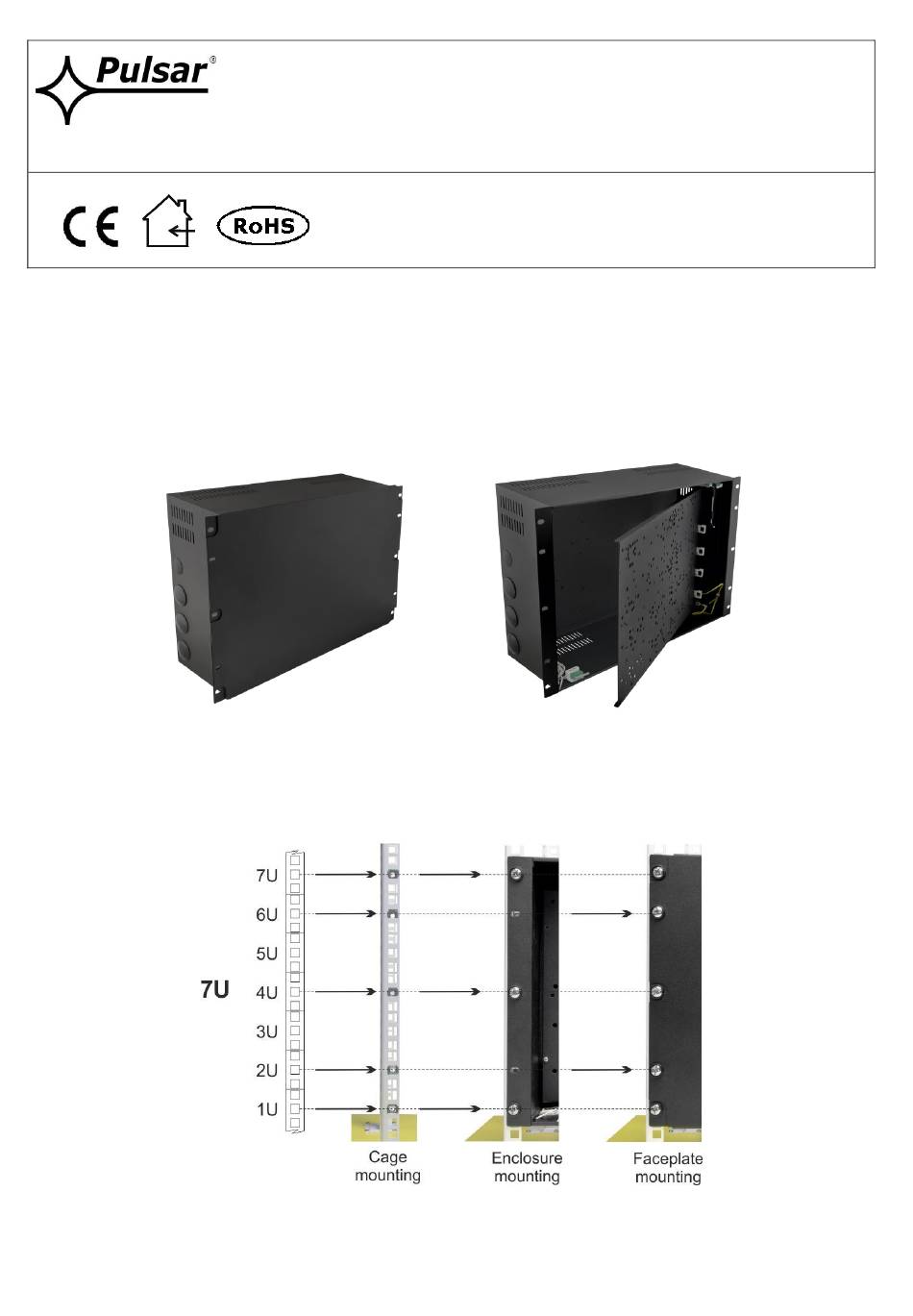

Fig.1
2. Mounting the enclosure to RACK 19" cabinets:
Mount cage nuts for M6 screws in the RACK cabinet, as shown in Figure 2. Use M6 screws to mount the enclosure
to the RACK profiles.
Fig.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAWO7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar RAWO7

Summary of Contents for Pulsar RAWO7

  • Page 1 Supersedes the edition: -------------- 1. Application: The metal RAWO7 enclosure is designed for mounting the alarm control panel and the input/output modules in RACK19” cabinets. The enclosure has a removable mounting plate (1st level) and a removable hinged mounting plate (2nd level).
  • Page 2 3. The introduction of cables into the enclosure: The enclosure has four openings (at each side) for the introduction of cables. All openings are fitted with rubber grommets, Fig. 3. Fig.3 Wires can be introduced in three ways: a) Through rubber grommets – fig.4 Fig.4 b) Using the MM019 / MM020 protection tubes - fig.5.
  • Page 3 The enclosure is equipped with a hinged mounting plate (1st level) with holes for mounting of transformer of the TOR/TRP/TRZ series and power supply units of the PS…/PSB…/PSBOC… series by Pulsar. The enclosure has a battery compartment for a single 7Ah/12V battery.
  • Page 4 PYRONIX: MATRIX 424, 6, 816, 832, 832+  TEXECOM: PREMIER 412, 816, 832, 48, 88, 168, 640  TELMOR: TCA- 824, 4x (TEX800, TMT1)  ROGER: PR402, CPR 32-SE  EBS: PX 202A  PULSAR: 5x (MS1012, MSR1012, MSRK1012) 5x (MS2012, MSR2012, MSRK2012)
