Pulsar RWD1266 Installation Manual

1. Intended use:
The RACK 19" cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in small companies or households.
It is intended for devices manufactured in enclosures of the 19'' standard. Due to the RACK cabinets, the devices are aesthetically
mounted and protected against mechanical damage.
2. Specifications:
SPECIFICATIONS
Mounting dimensions:
External dimensions:
Net/gross weight:
Materials:
Static load:
Use:
Notes:
Declarations, warranty:

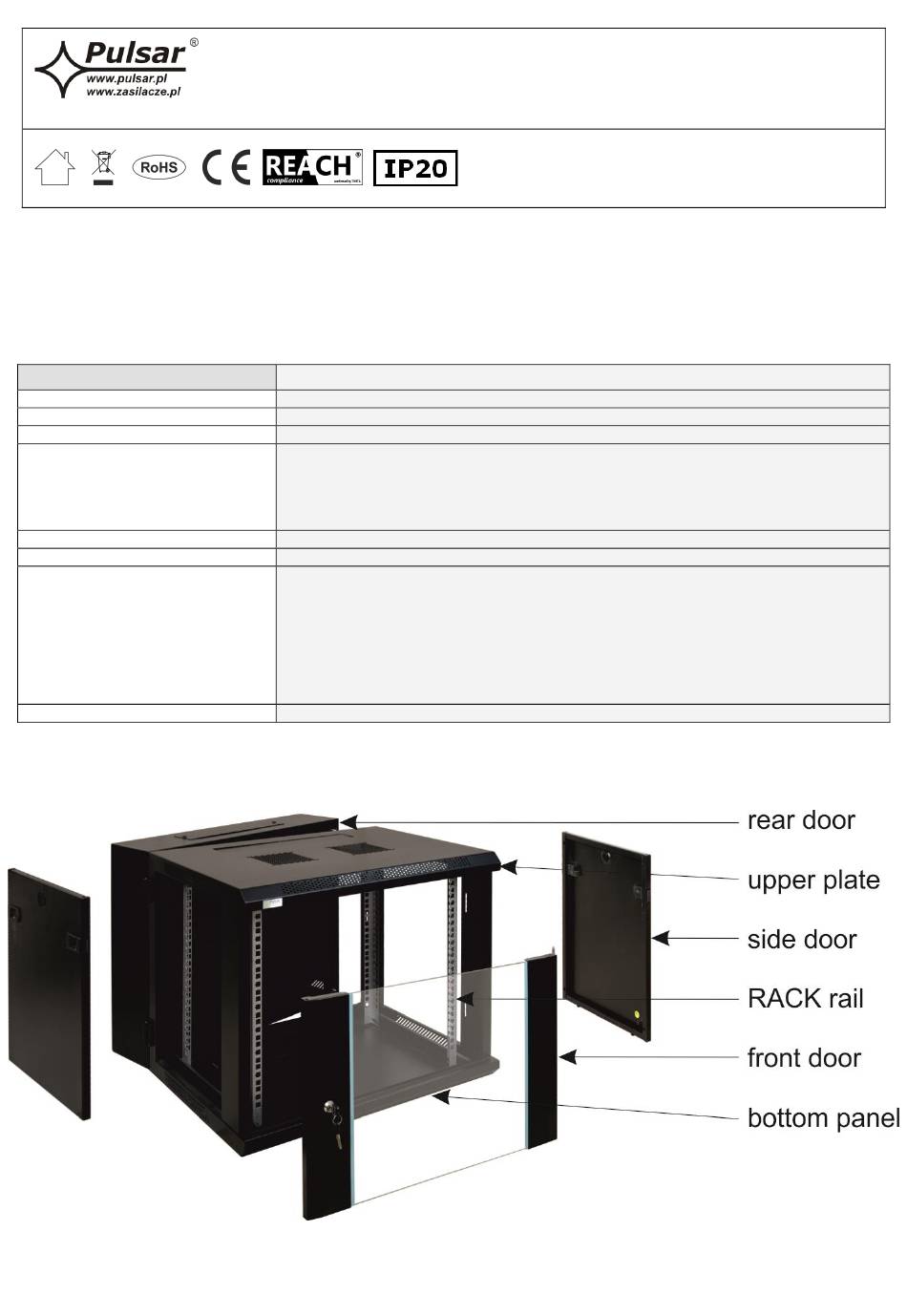

3. Structure of the cabinet.
Name: 12U RACK cabinet, double section, wall mounted, fully assembled
- RACK mounting rails: cold-rolled steel SPCC 1,5mm
- cabinet: cold-rolled steel SPCC 1,2mm RAL 9004
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004
- rear door: cold-rolled steel SPCC 1,2mm RAL 9004
- adjustable distance between front and rear RACK rails (range - see point 5)
- ventilation holes in the top panel (2 x 105x105mm - mounting dimensions)
- cable ducts in the top and bottom door (273x60mm)
- lockable front door – repeatable code (2 keys included)
- lockable rear door – repeatable code (2 keys included)
- possibility of reverse front door – opening left/right
- side panels - lock assembly possible - RAZB16 (additional equipment)
- ready-to-assemble
INSTALLATION GUIDE
ENGLISH v.1.0
code: RWD1266
600x600
W=19", H=12U, D=269mm
W=600, H=635, D=600 [mm, +/-2]
28 / 31,2 [kg]
70 kg
inside, IP20
RoHS, 12 months from the date of purchase
IM RWD1266
Edition: 1 from 23.09.2019
Supersedes: ------------
