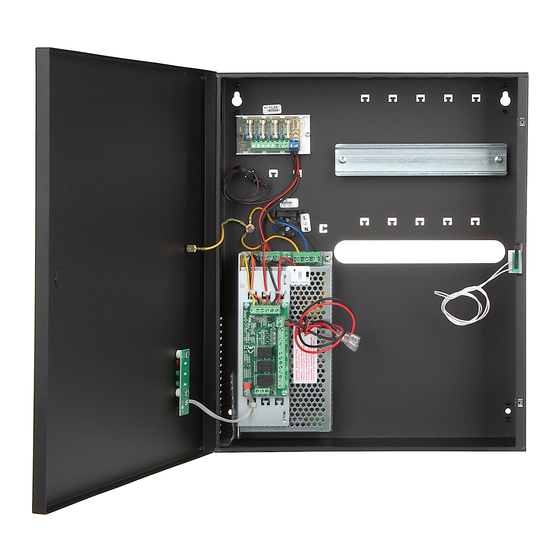

- Page 1 USER MANUAL Edition: 2 from 05.04.2022 Supersedes edition: 1 from 15.05.2019 AWZ637 v1.1 Enclosure with power supply unit dedicated to Dahua's access control...
-
Page 2: Table Of Contents
AWZ637 Features: supply voltage ~200 - 240 V battery circuit continuity control DC 13,8 V/6 A uninterruptible power supply battery voltage control fitting battery 17 Ah/12 V battery charging and maintenance control high efficiency (87%) ... -
Page 3: Block Diagram
AWZ637 1.2. Block diagram (fig.1). Fig.1. The block diagram of the PSU. 1.3. Description of PSU components and connectors. Table 2. Elements and connector of PSU (see Fig. 2). Element no. Description LED indicating the presence of DC voltage Connector for external LED indicators Selection jumper for charging current: ... -
Page 4: Specifications
AWZ637 Table 3. View of PSU (see Fig. 3). Element no. Description PSU module Fitting battery 17 Ah/12 V (SLA) TAMPER, contact, sabotage protection (NC) L-N ~230 V power supply connector, protection connector Power cord for the controller, ended with a DC 2,1/5,5 plug... - Page 5 Table 4. Electrical parameters. Supply voltage ~ 200 - 240 V Current consumption Power frequency 50/60 Hz Inrush current 40 A PSU power 96 W Output current max. Efficiency 11 - 13,8 V – buffer operation Output voltage 10 - 13,8 V – battery-assisted operation Ripple voltage (max.) 100 mV p-p Current consumption by PSU systems...
-
Page 6: Installation
AWZ637 Table 7. Operating parameters. Operating temperature -10ºC...+40ºC Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insolation unacceptable Vibrations and impulse waves during transport According to PN-83/T-42106 2. Installation. 2.1 Requirements. -
Page 7: Operating Status Indication
AWZ637 3. Operating status indication. 3.1 Optical indication. The power supply unit features LED status indication: Green LED AC: on – PSU is supplied with 230 V, off – no 230 V power, battery-assisted operation Green LED DC: ... -
Page 8: Battery Charging Time
According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
