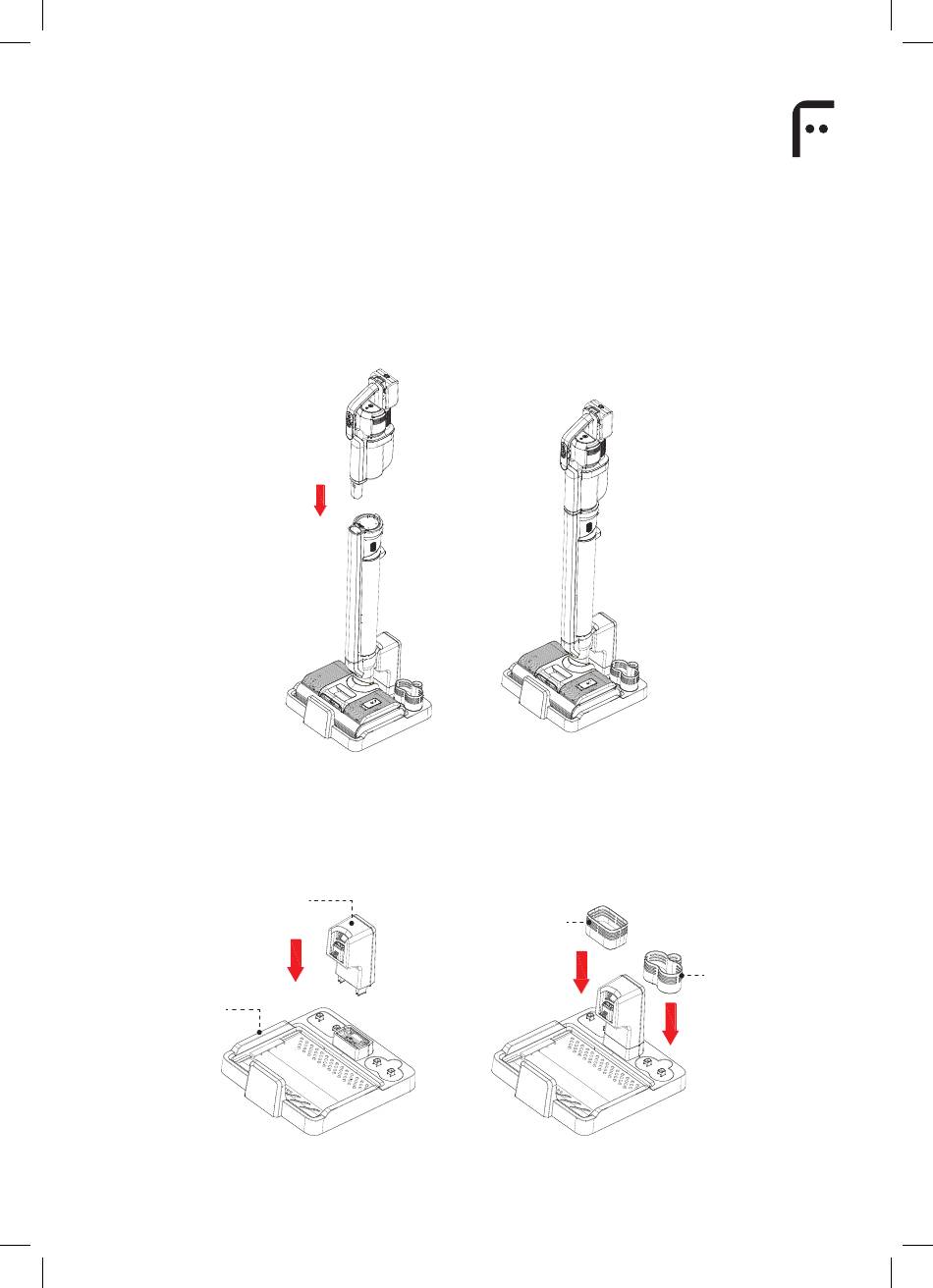

Body (Handheld) Assembly and Disassembly
• The end of the handheld vacuum cleaner equipped with the battery pack is inserted into
the main body mounting slot perpendicular to the machine direction. When you hear the
"click" , make sure that the hand-held mount is tight and not loose. This indicates that the
assembly has been successful.
• Now, you can use it as a cordless vacuum cleaner. To remove the handheld vacuum
cleaner separately, press the handheld release button and lift it vertically upwards.
Charging Base Holder Assembly
• Press the charging head assembly towards the charging base holder along the position
shown below. Once it 'clicks' , the hook is inserted in the corresponding hole position and
the assembly is successful.
Charging head
Charging
Base
Holder:
Hanger 1
41
Hanger 2
